Product Introduction

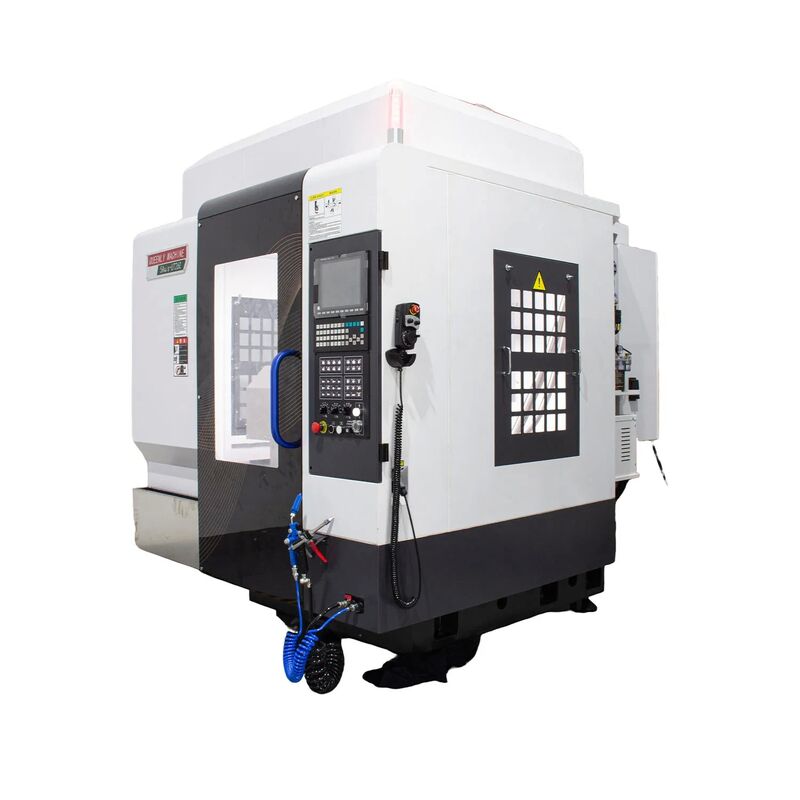

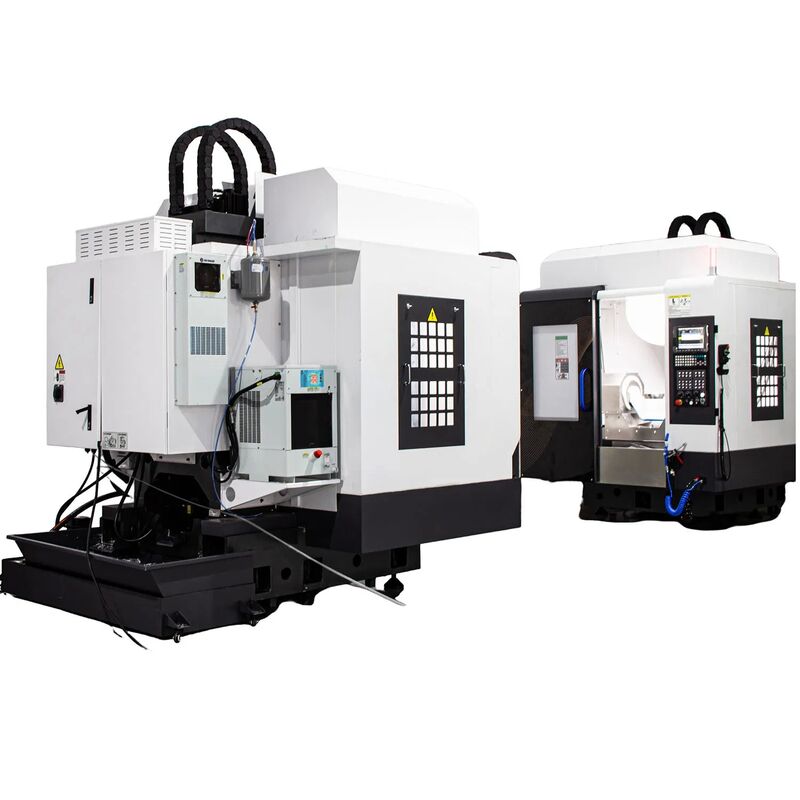

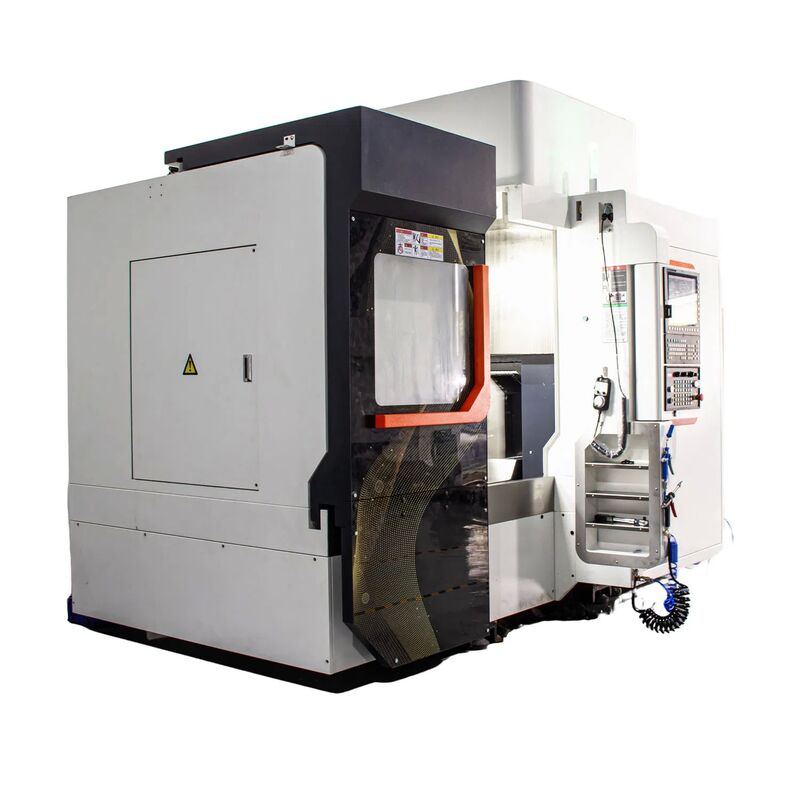

The UC320 Robust 5-Axis CNC Machining Center is a durable and high-precision machining solution designed for complex part processing, precision milling, drilling, tapping, boring, contour machining, mold manufacturing, automotive parts production, aerospace components, and industrial precision manufacturing. With a five-axis machining structure and stable CNC control system, the UC320 provides flexible machining capability, reliable accuracy, and consistent production performance for demanding applications.
Compared with traditional three-axis machining equipment, the UC320 five-axis CNC machine can process multiple sides of a workpiece in fewer setups. This helps reduce repeated clamping, improve positioning accuracy, shorten machining cycles, and maintain better dimensional consistency for precision components.

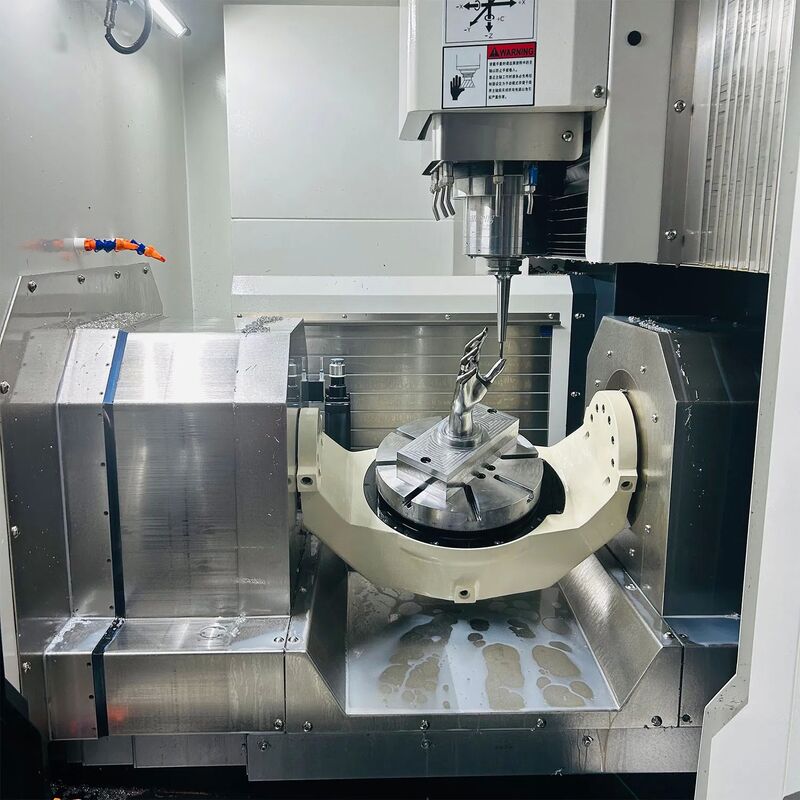

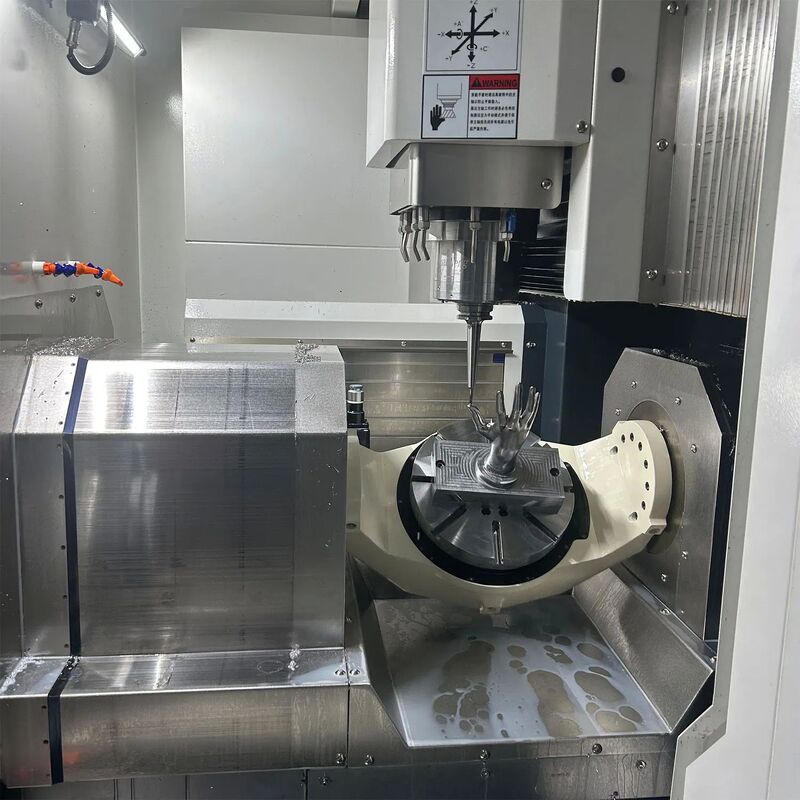

The machine is suitable for milling complex curved surfaces, inclined holes, deep cavities, mold cavities, impellers, blades, fixture parts, and customized industrial components. Its robust machine structure supports stable cutting performance during rough machining, semi-finishing, and precision finishing.
A CNC milling machine is a highly automated manufacturing device controlled by computer numerical control (CNC) sy-stems. It utilizes rotating cutting tools to remove material from a workpiece, enabling precise and complex machining operations.
Equipped with advanced control panels, it allows for programming of various machining paths, depths, and speeds. Thi-s machine is capable of handling a wide range of materials, from metals like aluminum and steel to plastics and comp-osites.
Its precision makes it indispensable in industries such as aerospace, automotive, and mold-making, where intricate and accurate parts are required. Whether for prototyping or large-scale production, the CNC milling machine significantly en-hances manufacturing efficiency and part quality.
|
Item
|
Unit
|
Parameter
|
|
C-axis rapid feed
|
rpm/min
|
260
|
|
X/Y/Z axis positioning accuracy
|
mm
|
±0.008/300mm(JIS std.)
|
|
A/C axis positioning accuracy
|
arcsec
|
6 arcsec
|
|
Max. tool length
|
mm
|
150
|
|
Max. tool weight
|
Kg
|
8
|
|
Tool magazine type
|
-
|
Arm type tool magazine
|
|
Tool magazine capacity
|
-
|
32
|
|
Max. tool diameter
|
mm
|
Φ80
|
|
Air supply requirement
|
kg/cm
|
6
|
|
Machine footprint
|
mm
|
320028002600
|
|
Power requirement
|
Kw
|
20
|
|
Machine weight
|
kg
|
6000
|
|
C-axis rapid feed
|
rpm/min
|
260
|
|
X/Y/Z axis positioning accuracy
|
mm
|
±0.008/300mm (JIS std.)
|
|
A/C axis positioning accuracy
|
arcsec
|
6 arcsec
|
|
Max. tool length
|
mm
|
150
|
|
Max. tool weight
|
Kg
|
8
|
|
Tool magazine type
|
-
|
Arm type tool magazine
|
|
Tool magazine capacity
|
-
|
32
|
|
Max. tool diameter
|
mm
|
Φ80
|
|
Air supply requirement
|
kg/cm
|
6
|
|
Machine footprint
|
mm
|
320028002600
|
|
Power requirement
|
Kw
|
20
|
|
Machine weight
|
kg
|
6000
|
|
A-axis (Tilting)
|
|
|
|
Rated speed (rpm)
|
rpm
|
100
|
|
Max. speed (rpm)
|
rpm
|
200
|
|
Rated torque (N·m)
|
N·m
|
272
|
|
Max. torque (N·m)
|
N·m
|
461
|
|
Rated power (kW)
|
kW
|
2.65
|
|
Brake pressure (MPa)
|
MPa
|
0.5 - 0.6
|
|
Brake torque (N·m)
|
N·m
|
≥400
|
|
C-axis (Rotary)
|
|
|
|
Rated speed (rpm)
|
rpm
|
180
|
|
Max. speed (rpm)
|
rpm
|
260
|
|
Rated torque (N·m)
|
N·m
|
68
|
|
Max. torque (N·m)
|
N·m
|
260
|
|
Rated power (kW)
|
kW
|
1.3
|
|
Brake pressure (MPa)
|
MPa
|
0.5 - 0.6
|
|
Brake torque (N·m)
|
N·m
|
≥200
|
|
Others:
|
|
|
|
Table diameter
|
mm
|
320
|
|
Max. workpiece diameter
|
mm
|
500
|
|
Tilting range
|
deg
|
±110°
|
|
Keyway width
|
mm
|
12H7
|
|
Max. workpiece weight
|
kg
|
120
|
FAQ
1. What is the UC320 5-Axis CNC Machining Center used for?
It is mainly used for precision milling, drilling, tapping, boring, contour machining, complex surface processing, mold machining, aerospace parts, automotive components, and industrial precision parts.
2. What are the advantages of 5-axis CNC machining?
5-axis machining reduces repeated clamping, improves positioning accuracy, supports complex curved surface machining, shortens production time, and improves part consistency.
3. What materials can the UC320 process?
It can process aluminum alloy, steel, stainless steel, cast iron, copper alloy, titanium alloy, mold steel, and other industrial materials depending on tooling and machining parameters.
4. Is the UC320 suitable for complex parts?
Yes. The UC320 is suitable for complex parts, mold cavities, inclined structures, impellers, blades, deep cavities, curved surfaces, and multi-angle precision components.
5. Can this machine support batch production?
Yes. With CNC control, stable machine rigidity, and repeatable machining accuracy, it is suitable for small-batch production and continuous industrial manufacturing.
6. Can the machine configuration be customized?
Yes. Axis travel, spindle system, table size, CNC control system, tool magazine, coolant system, chip conveyor, rotary table, and fixture design can be customized according to production needs.
7. What information is needed for quotation?
Please provide workpiece size, material, drawing, machining process, required accuracy, surface quality requirement, maximum workpiece weight, production quantity, and preferred machine configuration.
