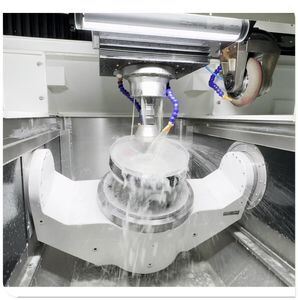

High-Speed HCG50 5+1-Axis CNC Optical Milling Center with 20 m/min Feed Speed

The High-Speed HCG50 5+1-Axis CNC Optical Milling Center is a high-precision machining solution designed for optical glass processing, lens component machining, curved surface milling, precision mold machining, semiconductor material processing, and high-accuracy optical part manufacturing. With a 5+1-axis machining structure and high-speed feed capability of up to 20 m/min, this machine provides efficient machining performance, flexible tool movement, stable accuracy, and smooth surface processing for demanding precision applications.

The 5+1-axis structure improves machining flexibility for complex optical surfaces, curved profiles, inclined structures, multi-angle features, and precision components. It helps reduce repeated clamping, improve positioning accuracy, shorten machining cycles, and maintain stable surface quality during optical material processing.

This CNC optical milling center can perform precision milling, drilling, contour machining, surface finishing, rough machining, semi-finishing, and precision finishing. It is suitable for processing optical glass, K9 glass, fused quartz, monocrystalline silicon, crystal materials, ceramics, non-ferrous metals, mold steel, and other precision materials depending on tooling, spindle configuration, coolant condition, fixture design, and machining parameters.

HCG50 5+1 Axis Optical Precision Milling Center Developed CO.,LTD., the HCG50 5+1 Axis Optical Precision Milling Center is a versatile and high-performance solution for optical component machining. It integr-ates coarse-to-fine grinding capabilities with dual grinding spindles, boosting efficiency and reliability while ensuring ex-ceptional precision—easily achieving surface form accuracy of PV 5µm.

Featuring a 6-axis, 5-linkage system, this center excels at processing complex components like spherical workpieces (up to 300mm diameter), aspherical workpieces (up to 450mm diameter), and prisms (max rotational diameter 480-mm). It comes with proprietary CAM software and a suite of advanced components, including the Renishaw OMP 40-2 tool measurement system for automatic tool wear compensation, and a Sinumerik CNC system for smooth operation.

Suitable for machining various materials such as fused quartz, H-K9L glass, monocrystalline silicon, and S136 stainless steel, the HCG50 delivers fine ground surfaces and high-precision results, making it a trusted choice for optical precisi-on machining needs.
