New-Technology Six-Axis Flexible Airbag Polishing Machine for Optical Conformal Surface Finishing
New-Technology Six-Axis Flexible Airbag Polishing Machine for Optical Conformal Surface Finishing
six-axis flexible airbag polisher
optics polishing machine
airbag polisher with warranty
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
QHBP60B
Application:
Metal,Plastic
Process Usage:
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Specificity:
Optical Precsion Grinding
Software:
High Precsion Software
X/Y/Z Axis Travel:
600×600×300mm
A/B/C Axis Travel:
±360/±180/ Bidirectional Rotation
Transport Package:
Pallet
Specification:
4550*3827*3245
Trademark:
Queenly
Origin:
China
HS Code:
84601100
Production Capacity:
200sets/Month
Highlight:
six-axis flexible airbag polisher
,optics polishing machine
,airbag polisher with warranty
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

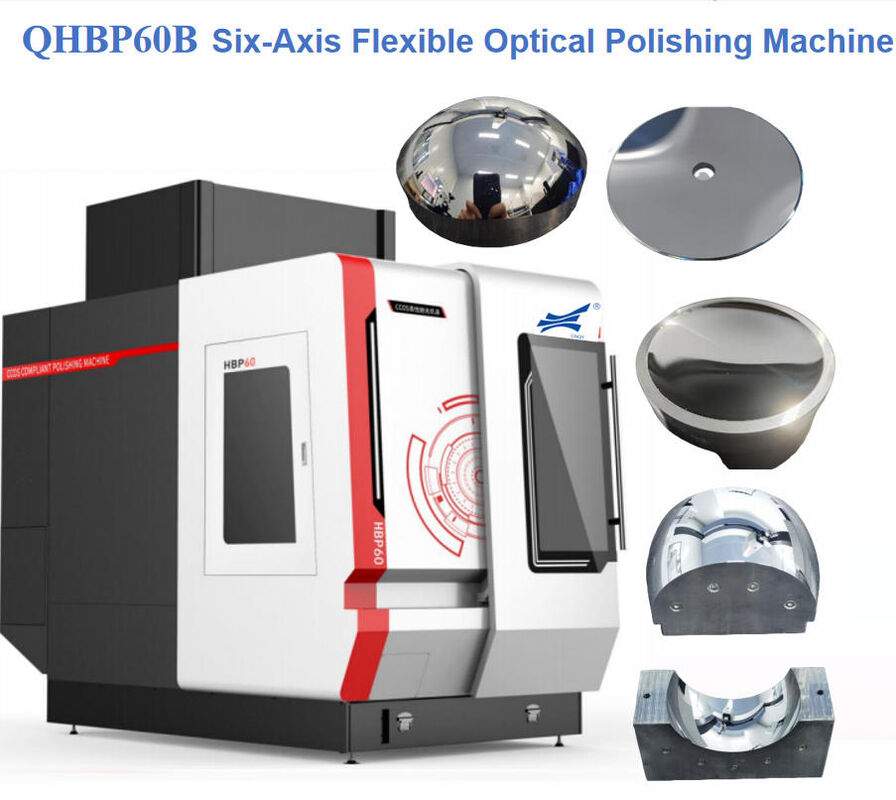

QHBP60B Six-Axis Flexible Airbag Polishing Machine
The New-Technology Six-Axis Flexible Airbag Polishing Machine is an advanced optical surface finishing solution designed for conformal polishing, precision optical polishing, complex curved surface finishing, aspherical surface processing, freeform surface polishing, and ultra-precision optical component manufacturing. With six-axis linkage, flexible airbag polishing technology, proprietary CNC control, and dedicated CAM software, this machine provides high machining flexibility, stable polishing performance, excellent surface quality, and strong process expandability.
In conformal polishing mode, the machine can achieve a material removal rate of up to 30 mm³/min, making it suitable for high-efficiency surface correction and controlled material removal. The flexible airbag polishing tool adapts well to complex surface geometries, helping improve tool contact stability and surface consistency during optical polishing.
For high-precision machining, this six-axis optical polishing machine can rapidly converge to PV 0.3λ, with optimal accuracy reaching up to PV 0.01λ under suitable process conditions. Its unique precessional polishing method helps enhance surface quality, improve polishing uniformity, and control edge effects, making it suitable for demanding optical surface finishing applications.

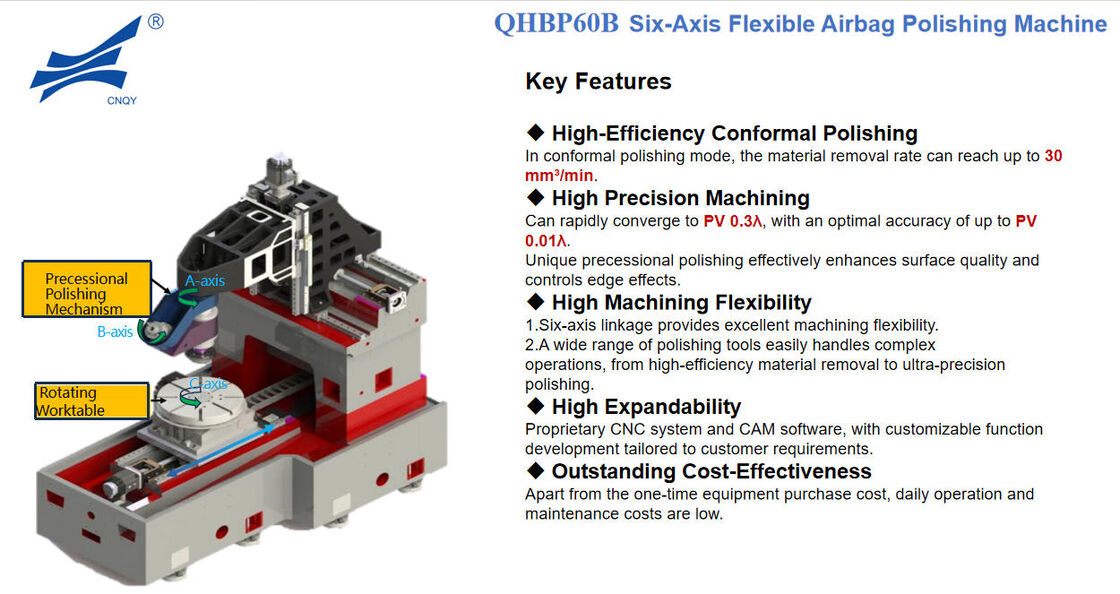

Key Features:
- High-Efficiency Conformal Polishing
In conformal polishing mode, the material removal rate can reach up to 30 mm³/min.
- High Precision Machining
- Can rapidly converge to PV 0.3λ, with an optimal accuracy of up to PV 0.01λ.

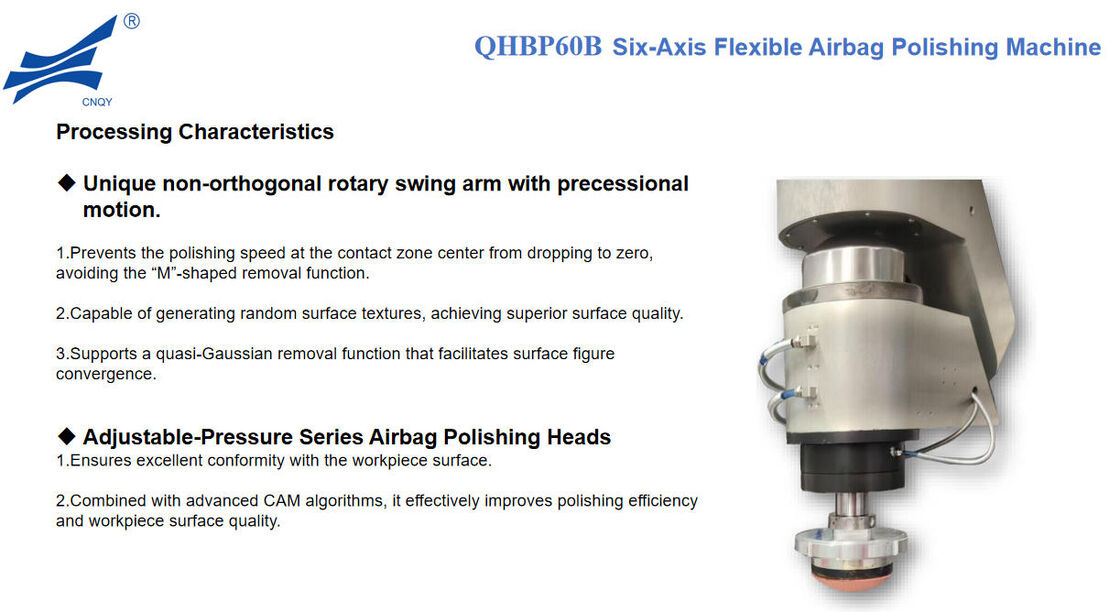

- Unique precessional polishing effectively enhances surface quality and controls edge effects.
- High Machining Flexibility
- Six-axis linkage provides excellent machining flexibility.
- A wide range of polishing tools easily handles complex operations, from high-efficiency material removal to ultra-precision polishing.
- High Expandability

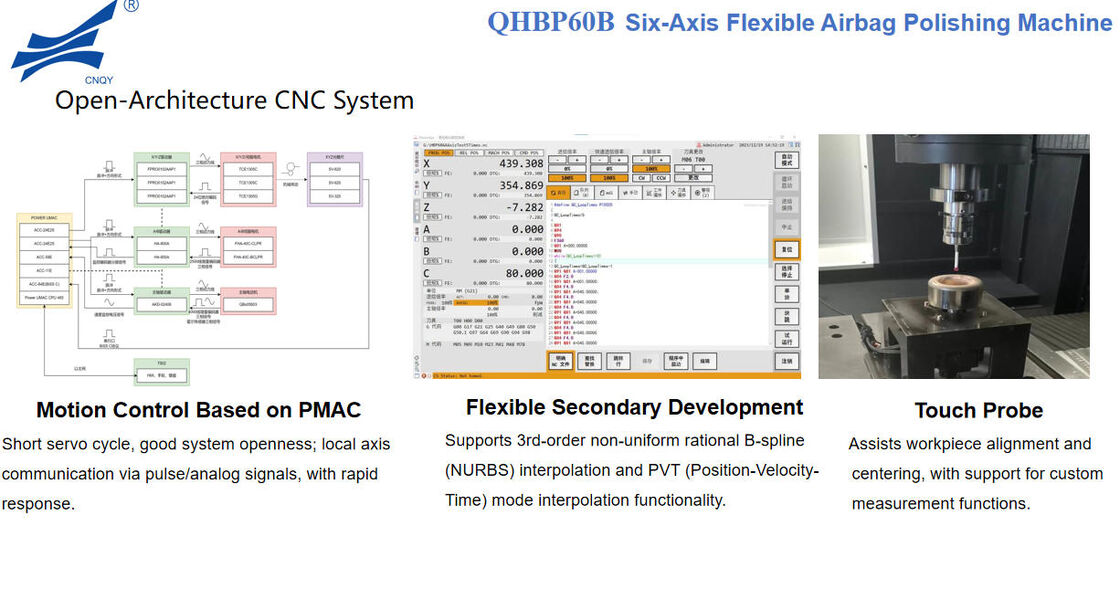

Proprietary CNC system and CAM software, with customizable function development tailored to customer requirements.
- Outstanding Cost-Effectiveness
Apart from the one-time equipment purchase cost, daily operation and maintenance costs are low.
FAQ
1. What is a Six-Axis Flexible Airbag Polishing Machine used for?
It is mainly used for optical surface polishing, conformal polishing, aspherical surface finishing, freeform surface processing, lens polishing, mirror polishing, precision mold polishing, and ultra-precision surface correction.
2. What is conformal polishing?
Conformal polishing refers to a polishing process where the polishing tool adapts to the workpiece surface shape, helping maintain stable contact and controlled material removal on complex optical surfaces.
3. What is the material removal rate of this machine?
In conformal polishing mode, the material removal rate can reach up to 30 mm³/min, making it suitable for efficient optical surface correction and material removal.
4. What machining accuracy can it achieve?
The machine can rapidly converge to PV 0.3λ, with optimal accuracy reaching up to PV 0.01λ under suitable process conditions.
5. What are the advantages of precessional polishing?
Precessional polishing helps improve surface quality, enhance polishing uniformity, reduce local polishing errors, and control edge effects during precision optical surface finishing.
6. Can the CNC system and software be customized?
Yes. The machine uses a proprietary CNC system and CAM software, and customized function development can be provided according to customer process requirements.
7. Why is this machine cost-effective?
Besides the one-time equipment purchase cost, daily operation and maintenance costs are low. Its high efficiency, flexible processing capability, and long-term stability help reduce overall production costs.
