Precision Horizontal CNC Lathe Machine for Metalworking, Turning and High-Accuracy Parts Machining
Precision Horizontal CNC Lathe Machine for Metalworking, Turning and High-Accuracy Parts Machining
Precision horizontal CNC lathe
CNC lathe for metalworking
Horizontal lathe machine
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE
Contact Us
Request A Quote
Product Details
Model NO.:
QYCK668
Type:
Multi-Axis Automatic And Semi-Automatic Lathe
Processing Accessory:
Centre CNC Lathe
Guide Rail:
Inclined Guide Rail
Tool Holder:
Single-tool Holder CNC Lathe
Power Source:
Hydraulic Pressure
Controlling Mode:
CNC
Automatic Grade:
Automatic
Setting Mode:
Floor-type
Precision:
High Precision
Condition:
New
Province:
Fujian
X Travel:
800mm
Z Travel:
530mm
Transport Package:
Box
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
HS Code:
84601100
Production Capacity:
5000/Year
Highlight:
Precision horizontal CNC lathe
,CNC lathe for metalworking
,Horizontal lathe machine
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Product Introduction

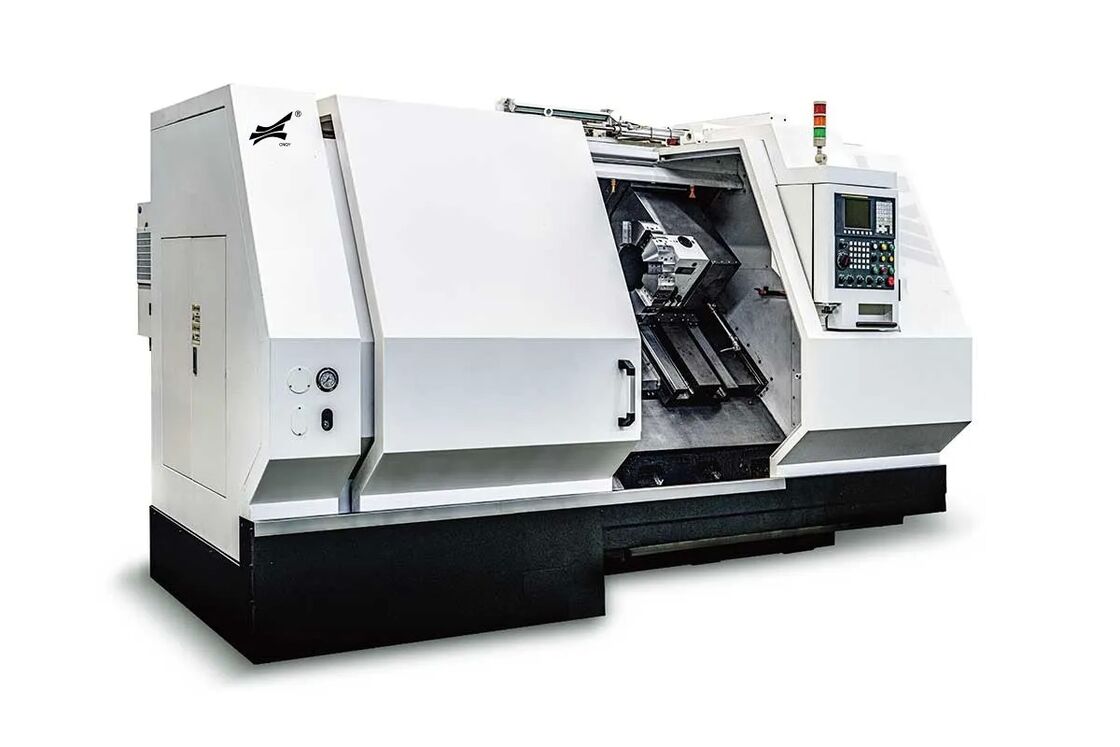

The Precision Horizontal CNC Lathe Machine is a high-performance CNC metalworking solution designed for precision turning, facing, boring, threading, grooving, and high-accuracy parts machining. Built with a strong cast iron machine body, stable base structure, high-precision guideways, and reliable transmission components, this CNC lathe provides excellent rigidity, vibration resistance, and long-term machining stability for industrial production.

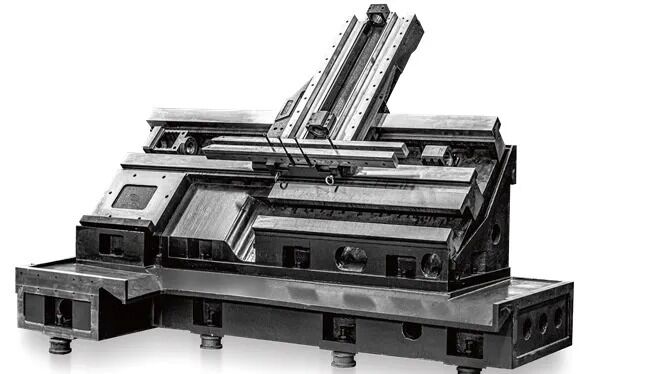

The machine body is made of high-strength cast iron with excellent aseismatic capability, helping reduce vibration during cutting and improving machining consistency. This rigid structure is especially important for metalworking projects that require stable cutting performance, accurate dimensions, and smooth surface finishing.
The machine adopts a wide base and Y-type column structure, providing strong support for the whole machine and improving overall rigidity. This design helps maintain stable positioning during machining and supports reliable performance under continuous production conditions.
Key Features
- Precision horizontal CNC lathe machine for metalworking projects
- High-strength cast iron machine body with excellent vibration resistance
- Wide base and Y-type column structure for improved machine rigidity
- Taiwan high-precision linear guideways for smooth and accurate movement
- Ball screw pre-extended structure helps reduce thermal deformation
- Improved precision and rigidity for long-time machining operation
- Japan NSK angular contact ball bearing group for reliable screw support
- Suitable for turning, facing, boring, threading, grooving, and precision machining
- Stable structure supports rough machining and precision finishing
- Suitable for steel, stainless steel, cast iron, aluminum alloy, copper, and other materials
- Ideal for automotive parts, machinery parts, shafts, fixtures, and custom metal components
| MODELS | KDVM855L |
| TRAVEL | |
| X axis | 800mm |
| Y axis | 550mm |
| Z axis | 550mm |
| Spindle center to column | 595mm |
| Spindle end to table | 120-670mm |
| TABLE | |
| Tablesize | 1000×550mm |
| T-slot(width×number×space) | 18mm×5×90mm |
| Max.table loading | 800kg |
| SPINDLE | |
| Taper bore of spindle | BT40 |
| Spindle power | 11/15kw |
| Spindle speed | 8000rpm |
| FEED | |
| X/Y/Z fast feed | 48/ 48/ 36m/min |
| Torque axis motors | 20/ 20/ 20Nm |
| ATC | |
| Tool number | 24 |
| Max. tool size (With adjacent tool) | 78mm |
| Max. tool size (Without adjacent tool) | 120mm |
| Max.tool weight | 8kg |
| Time (tool-tool) | 2s |
| ACCURACY | |
| Positioning | ≤0.006 |
| Repeatability(X/Y/Z)(ISO) | ≤0.004mm |
| OTHERS | |
| Min.Input | 0.001mm |
| Overall dimension (LxWxH) | 2600x2300x2700mm |
| Net weight | 5250kg |
FAQ
1. What is the Precision Horizontal CNC Lathe Machine used for?
The Precision Horizontal CNC Lathe Machine is mainly used for turning, facing, boring, threading, grooving, and precision machining of metal parts, shafts, hardware components, automotive parts, and customized industrial workpieces.
2. Why is the cast iron structure important?
The high-strength cast iron structure provides excellent rigidity and vibration resistance. It helps reduce cutting vibration, improve machining stability, and maintain consistent part quality during metalworking operations.
3. What are the advantages of Taiwan high-precision linear guideways?
Taiwan high-precision linear guideways provide smooth movement, low friction, accurate positioning, and stable long-term performance. They help improve machining accuracy and reduce wear during operation.
4. What is the benefit of the ball screw pre-extended structure?
The ball screw pre-extended structure helps reduce thermal deformation caused by heat during long-time machining. This improves positioning accuracy, machining stability, and overall machine rigidity.
5. What is the function of Japan NSK angular contact ball bearings?
Japan NSK angular contact ball bearing groups provide reliable support for the ball screw system. They help improve motion transmission stability, positioning accuracy, and service life.
6. What materials can this machine process?
This CNC lathe can process steel, stainless steel, cast iron, aluminum alloy, copper, and other industrial metal materials. The actual machining capability depends on spindle power, cutting tools, machine configuration, and workpiece requirements.
7. Can the machine be customized according to customer requirements?
Yes. We support customization of spindle power, machining range, control system, tool holder, chuck configuration, guideway structure, cooling system, chip removal system, protective cover, and other machine specifications according to production needs.
