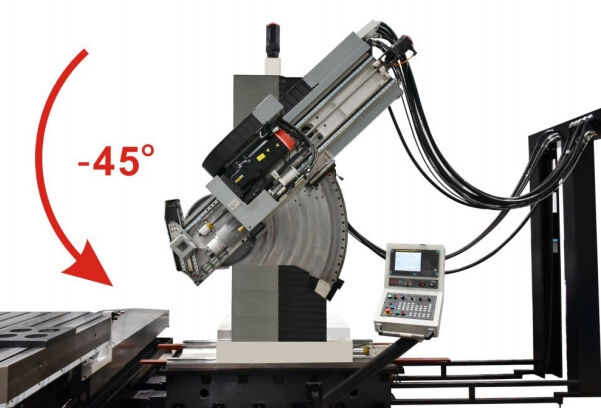

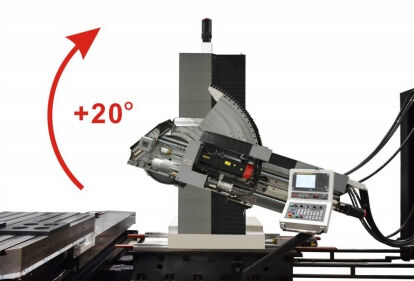

High-Precision CNC Deep Hole Drilling Machine for Accurate Hole Machining and Metal Processing
High-Precision CNC Deep Hole Drilling Machine for Accurate Hole Machining and Metal Processing
CNC deep hole drilling machine
precision deep hole drilling machine
industrial CNC drilling machine
Place of Origin:
China
Brand Name:
Queenly
Certification:
CE, ISO 9001
Contact Us
Request A Quote
Product Details

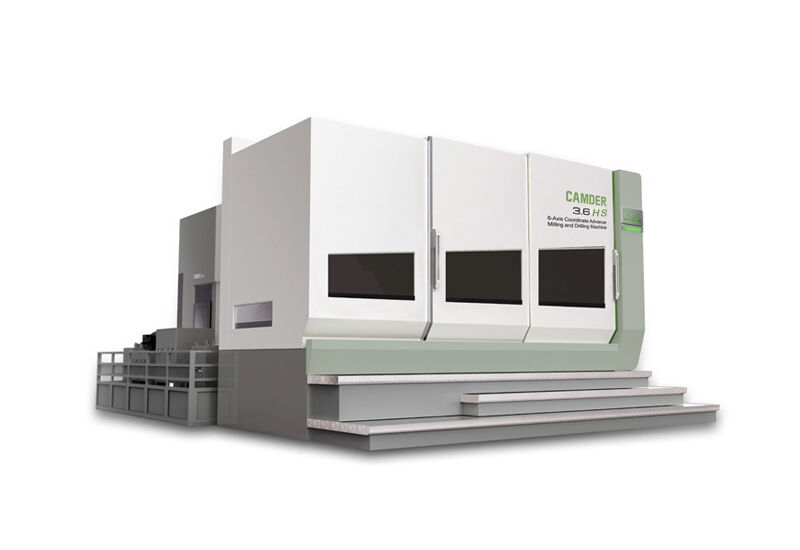

Model NO.:
3.6HS
Structure:
Horizontal Drilling Machine
Layout:
Horizontal
Controlling Mode:
CNC
Number Of Shaft:
3
Hole Diameter:
50-100mm
Automatic Grade:
Automatic
Precision:
High Precision
Condition:
New
Size:
4700 X 4850 X 3100mm
Machining Hole Diameter:
3~35mm
Machining Depth:
1200mm
Worktable Horizontal (X):
1300
Spindle Vertical (Y):
1200
Max. Spindle Speed:
6000rpm
Spindle Feed Speed:
0~3000mm/Min
Spindle Motor:
11kw
Total Power Requirement:
35kw
Worktable Max. Loading Capacity:
8ton
Worktable Size:
1500X1050
Coolant Pressure:
1~8MPa
Rate Of Flow:
6~110 L/Min
CNC System:
Fanuc/Syntec
Transport Package:
Container
Specification:
11 Ton
Trademark:
QUEENLY
Origin:
China
HS Code:
8459210000
Production Capacity:
800pieces/Year
Highlight:
CNC deep hole drilling machine
,precision deep hole drilling machine
,industrial CNC drilling machine
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Product Introduction
The High-Precision CNC Deep Hole Drilling Machine is a professional machining solution designed for deep hole drilling, precision hole machining, mold processing, automotive parts manufacturing, hydraulic components, aerospace parts, machinery components, and industrial metal processing applications. With CNC control and a rigid machine structure, this machine supports accurate drilling depth, stable hole straightness, smooth inner hole quality, and efficient long-depth drilling performance.
Deep hole drilling requires stable spindle performance, precise feed control, reliable coolant supply, and efficient chip evacuation. This CNC deep hole drilling machine is designed to reduce hole deviation, improve machining accuracy, and maintain stable cutting performance during long-depth hole processing.
The machine is suitable for drilling oil holes, cooling holes, mold water channels, hydraulic valve holes, shaft holes, precision component holes, and other deep-hole structures. It can process steel, alloy steel, stainless steel, cast iron, aluminum alloy, copper alloy, mold steel, and other industrial metal materials according to tool selection and cutting parameters.
The CNC control system allows operators to set drilling depth, spindle speed, feed rate, machining path, and process parameters according to different workpieces. This helps improve machining repeatability, reduce manual operation errors, and support stable batch production.
Key Features
- High-precision CNC deep hole drilling machine for metal processing
- Suitable for deep holes, oil holes, cooling channels, and hydraulic valve holes
- CNC control supports accurate drilling depth, feed speed, and process settings
- Rigid machine structure helps reduce hole deviation during long-depth drilling
- Efficient coolant supply supports tool cooling and chip evacuation
- Suitable for steel, stainless steel, cast iron, aluminum alloy, copper alloy, and mold steel
- Can be used for mold, automotive, hydraulic, aerospace, and machinery parts
- Supports single-piece precision machining and batch production
- Helps improve hole straightness, inner surface quality, and machining consistency
- Machine configuration can be customized according to workpiece requirements
FAQ
1. What is a CNC Deep Hole Drilling Machine used for?
It is mainly used for deep hole drilling, precision hole machining, mold water channel drilling, hydraulic valve hole processing, shaft hole drilling, oil hole machining, and industrial metal part production.
2. What materials can this machine process?
It can process steel, alloy steel, stainless steel, cast iron, aluminum alloy, copper alloy, mold steel, and other industrial metals depending on drill type, coolant condition, spindle speed, feed rate, and workpiece hardness.
3. What are the advantages of CNC deep hole drilling?
CNC deep hole drilling provides better control of drilling depth, feed speed, hole position, and machining repeatability. It helps improve hole accuracy, straightness, surface quality, and production consistency.
4. Why is coolant important in deep hole drilling?
Coolant helps cool the cutting tool, reduce friction, remove chips, improve hole surface quality, and protect the tool during long-depth drilling operations.
5. Can the machine be customized?
Yes. Machine travel, drilling depth, spindle configuration, coolant system, clamping method, control system, and workpiece support structure can be customized according to production requirements.
6. What information is needed for quotation?
Please provide workpiece material, hole diameter, drilling depth, required accuracy, workpiece size, production quantity, drawing, and application industry. This helps recommend a suitable deep hole drilling solution.
7. What industries use CNC deep hole drilling machines?
They are commonly used in mold manufacturing, automotive parts, hydraulic components, aerospace parts, machinery manufacturing, shaft processing, precision components, and industrial equipment production.
