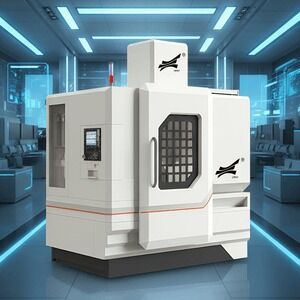

Precision Optimal Five-Axis Center for Advanced Machining Solutions

Precision Optimal Five-Axis Center for Advanced Machining Solutions

five-axis machining center

precision five-axis CNC machine

advanced machining center with warranty

Certification:

GS, CE

Contact Us
Request A Quote
Product Details
Type:
Multi-Axis Automatic And Semi-Automatic Lathe
Processing Accessory:
Centre CNC Lathe
Guide Rail:
Inclined Guide Rail
Tool Holder:
Single-tool Holder CNC Lathe
Power Source:
Hydraulic Pressure
Controlling Mode:
CNC
Automatic Grade:
Automatic
Setting Mode:
Floor-type
Precision:
High Precision
Condition:
New
Province:
Fujian
X Travel:
800mm
Z Travel:
530mm
Transport Package:
Box
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
HS Code:
84601100
Production Capacity:
5000/Year
Highlight:

five-axis machining center

,

precision five-axis CNC machine

,

advanced machining center with warranty

Payment & Shipping Terms
Minimum Order Quantity
1 Piece
Price
US $10,000-50,000
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Precision Optimal Five-Axis Center for Advanced Machining Solutions 0
Product Introduction
Precision Optimal Five-Axis Center for Advanced Machining Solutions 1
Product Features
  1. Aseismatic capability, high strength and good quality cast iron.
  2. Wide base and Y-type column structure
  3. Taiwan high precision linear guide ways.
  4. Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.
  5. Adopting Japan NSK special screws angular contact ball bearing group.
MODELS KDVM855L
TRAVEL
X axis 800mm
Y axis 550mm
Z axis 550mm
Spindle center to column 595mm
Spindle end to table 120-670mm
TABLE
Tablesize 1000×550mm
T-slot(width×number×space) 18mm×5×90mm
Max.table loading 800kg
SPINDLE
Taper bore of spindle BT40
Spindle power 11/15kw
Spindle speed 8000rpm
FEED
X/Y/Z fast feed 48/ 48/ 36m/min
Torque axis motors 20/ 20/ 20Nm
ATC
Tool number 24
Max. tool size (With adjacent tool) 78mm
Max. tool size (Without adjacent tool) 120mm
Max.tool weight 8kg
Time (tool-tool) 2s
ACCURACY
Positioning ≤0.006
Repeatability(X/Y/Z)(ISO) ≤0.004mm
OTHERS
Min.Input 0.001mm
Overall dimension (LxWxH) 2600x2300x2700mm
Net weight 5250kg
Main products
Precision Optimal Five-Axis Center for Advanced Machining Solutions 2
Company Profile
Precision Optimal Five-Axis Center for Advanced Machining Solutions 3

Queenly Machine established in Fujian, specializing in a wide range of precision CNC machine tools, including high-pre-cision grinding centers, ultra-precision surface grind- ers, optical milling and grinding centers, flexible polishing machin-es, various machining centers, CNC cutting tools, power chucks, hydraulic cylinder, drilling and tapping ma- chine, pack-aging machinery, booster cylinder, copper, etc.

Our company adheres to a talent-oriented philosophy and is dedicated to the research and industrialization of critical and bottleneck technologies. Its main business focuses on the R&D, manufacturing, and sales of high-end CNC mach-ine tools and ultra-preci- sion optical components.

All of our products are independently designed and manufactured by our team, based on more than decades of exper-tise in processing hard and brittle materials. In addition, our company has independently developed a five-axis CNC co-ntrol system as well as multiple sets of auxiliary machining software.

We have developed the first 6-axis Coordinate Advance Milling and (Deep Hole) Drilling machine in Asia. This establish-ment has been recognized by different expertise as coun- try leading-edge technology and access to a number of natio-nal patents. In Multi-func- tion Deep Hole Drilling Machine, we have been recognized by majority of the customer as the Leader of quality and craftsmanship throughout the country.

During the process of R&D, Production and Market development, we are also using our machine to master the frst-hand information. Be bold and innovative, ever-improving, continue to explore and of course listen to our customer comment for quality improve- ment. We always use the customer point of view to modify the machine become more suitable and user friendly.

Queenly targets the world mould making edge - leading technology, continue to ex- plore, higher accuracy and perfect quality, thus enable our customers to be equipped with the most suitable machines.

Nowadays, our products exported all over the world: USA, Australia, Brazil, Bangladesh, Canada, India, Korea, Malaysia, Portugal, Thailand, Taiwan, UK and so on.

In the future, with the intelligent manufacturing, we would like to work by your side and provide you with different solu-tion to conquer any challenges.
