Product Description
Product Introduction
Our precision brazed cutting tools serve the machinery, m-old manufacturing, automotive parts industries, and ligh-t/heavy-duty machining. Leveraging advanced Taiwanese tech and premium tungsten carbide inserts, they undergo strict brazing for top precision and quality.

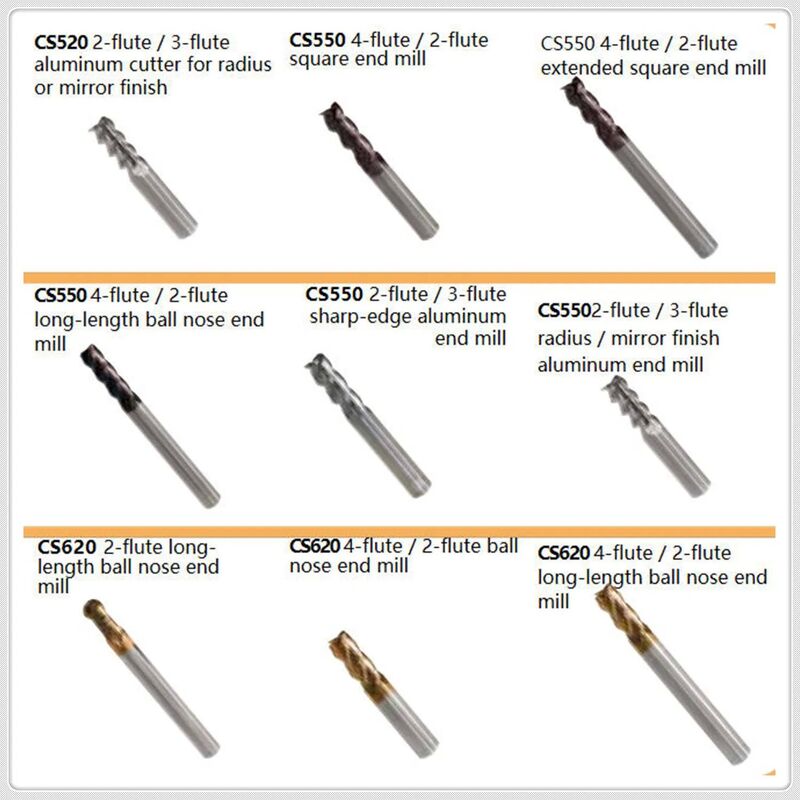

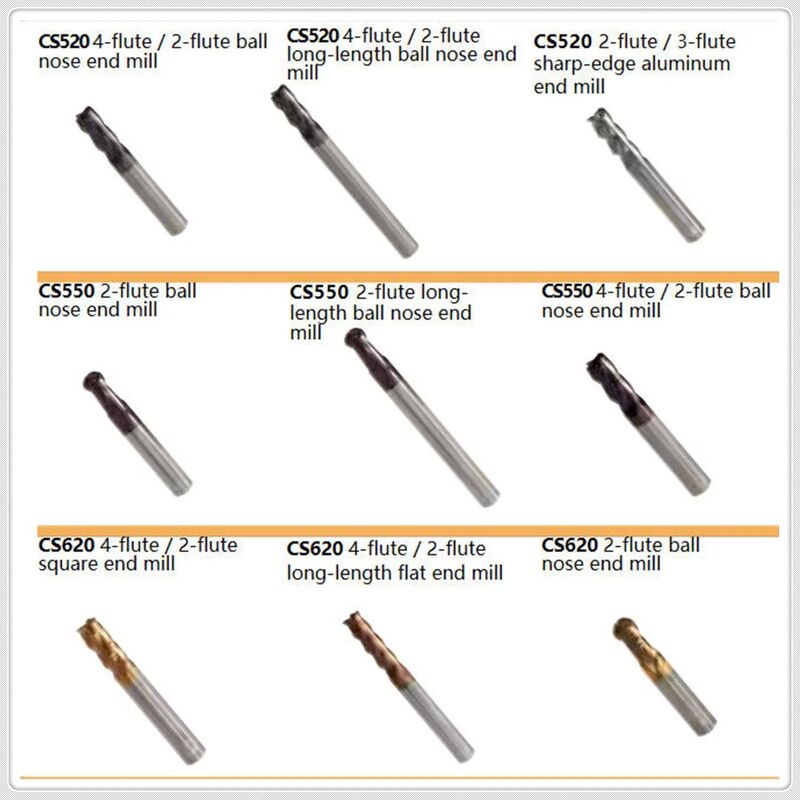

We boost tool life/value via R&D to cut users' machining costs. Standard tools (finish/rough end mills, T-slot cutt-ers, 3-side edge side milling cutters, etc.) have sufficient inventory for immediate supply. We also offer non-standar-d custom tools and reconditioning (insert replacement, re-grinding, etc.). Contact us anytime for needs.
Product Description
The Fine-Finish Brazed CNC Chamfer and Cylindrical Milling Cutters are precision cutting tools designed for CNC milling, chamfering, edge finishing, cylindrical surface machining, mold manufacturing, automotive parts processing, machinery manufacturing, and light-duty or heavy-duty machining applications. Manufactured with advanced Taiwanese technology and premium tungsten carbide inserts, these cutting tools provide stable cutting performance, high machining accuracy, smooth surface finish, and reliable durability for industrial metal machining.
These precision brazed cutting tools are produced through a strict brazing process to ensure strong bonding between the cutter body and carbide inserts. The stable brazed structure helps maintain tool rigidity, cutting accuracy, and machining consistency during chamfer milling, cylindrical milling, side milling, contour machining, roughing, and finishing operations.

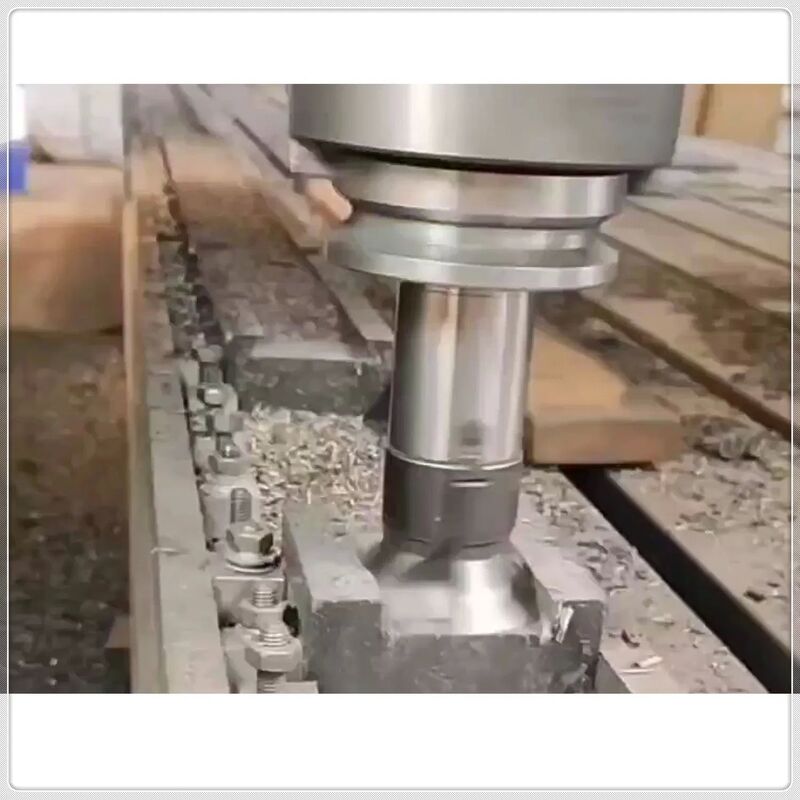

Chamfer cutters are suitable for edge chamfering, deburring, bevel cutting, hole edge finishing, mold edge processing, and preparation before assembly or welding. Cylindrical milling cutters are suitable for cylindrical surface machining, side face milling, profile milling, groove machining, and precision component processing. With accurate cutting edges and reliable tool rigidity, these tools help improve edge quality, surface smoothness, and dimensional consistency.

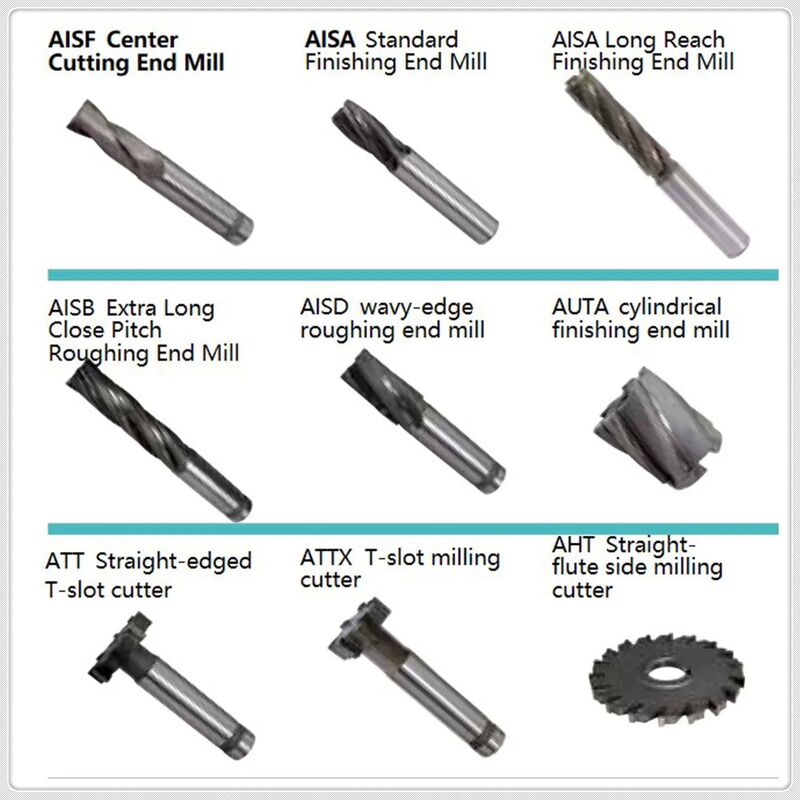

| Model No. | Outer D | Edge H | Shank d | Full L | Edge T |
|---|---|---|---|---|---|
| AISF14 - 030 - 2C | 14 | 30 | 16 | 105 | 2 |
| AISF15 - 030 - 2C | 15 | 30 | 16 | 105 | 2 |
| AISF16 - 030 - 2C | 16 | 30 | 16 | 105 | 2 |
| AISF17 - 030 - 2C | 17 | 30 | 16 | 105 | 2 |
| AISF18 - 040 - 2C | 18 | 40 | 20 | 115 | 2 |
| AISF19 - 040 - 2C | 19 | 38, 40 | 20 | 115 | 2 |
| AISF20 - 040 - 2C | 20 | 40 | 20 | 115 | 2 |
| AISF21 - 040 - 2C | 21 | 40 | 20 | 115 | 2 |
| AISF22 - 040 - 2C | 22 | 40 | 20 | 115 | 2 |
| AISF23 - 040 - 2C | 23 | 40 | 25 | 115 | 2 |
| AISF24 - 050 - 2C | 24 | 50 | 25 | 135 | 2 |
| AISF25 - 050 - 2C | 25 | 50 | 25 | 135 | 2 |
| AISF26 - 050 - 2C | 26 | 50 | 25 | 135 | 2 |
| AISF28 - 050 - 2C | 28 | 50 | 25 | 135 | 2 |
| AISF30 - 050 - 2C | 30 | 50 | 25 | 135 | 2 |
| AISF32 - 050 - 2C | 32 | 50 | 32 | 135 | 2 |
| AISF35 - 050 - 2C | 35 | 50 | 32 | 135 | 2 |
| Model No. | Outer Diameter | Length of cut (LOC) H | Edge QTY | Shank D | Head D1 | Head L1 | Total L |
|---|---|---|---|---|---|---|---|
| ATT016 - 1.X/02/2.X/03/04/05/06/08/10/12 | 16 | 1.5/2/2.5/3/4/5/6/8/10/12 | 6 | 10 | 8 | 10 | 100 |
| ATT020 - 1.X/02/2.X/03/04/05/06/08/10/12 | 20 | 1.5/2/2.5/3/4/5/6/8/10/12 | 6 | 12 | 10.5 | 10 | 110 |
| ATT025 - 1.X/02/2.X/03/04/05/06/08/10/12 | 25 | 1.5/2/2.5/3/4/5/6/8/10/12 | 6 | 12 | 10.5 | 10 | 110 |
| ATT030 - 02/2.X/03/04/05/06/08/10/12 | 30 | 2/2.5/3/4/5/6/8/10/12 | 6 | 16 | 13 | 10 | 120 |
| ATT032 - 03/04/05/06/08/10/12 | 32 | 3/4/5/6/8/10/12 | 6 | 16 | 13 | 10 | 120 |
| ATT035 - 02/03/04/05/06/08/10/12 | 35 | 2/3/4/5/6/8/10/12 | 6 | 16 | 13 | 10 | 120 |
| ATT040 - 03/04/05/06/08/10/12 | 40 | 3/4/5/6/8/10/12 | 6 | 20 | 18 | 10 | 130 |
| ATT045 - 03/04/05/06/08/10/12 | 45 | 3/4/5/6/8/10/12 | 8 | 20 | 18 | 10 | 130 |
| ATT050 - 03/04/05/06/08/10/12 | 50 | 3/4/5/6/8/10/12 | 8 | 25 | 22 | 10 | 130 |
| ATT060 - 03/04/05/06/08/10/12 | 60 | 3/4/5/6/8/10/12 | 10 | 32 | 30 | 10 | 130 |
| ATT075 - 10/12 | 75 | 10/12 | 14 | 32 | 30 | 10 | 130 |
| ATT100 - 10/12 | 100 | 10/12 | 16 | 32 | 30 | 10 | 130 |
| ATT120 - 12/16 | 120 | 10/16 | 20 | 32 | 30 | 10 | 130 |
| Model No. | Outer D | Edge L H | Shank d | Full L | Edge T |
|---|---|---|---|---|---|
| AAT45 - 016 | 16 | 4 | 12 | 70 | 3 |
| AAT45 - 020 | 20 | 5 | 12 | 80 | 4 |
| AAT45 - 025 | 25 | 6.5 | 12 | 90 | 5 |
| AAT45 - 030 | 30 | 8 | 16 | 105 | 5 |
| AAT45 - 035 | 35 | 9.5 | 20 | 105 | 6 |
| AAT45 - 040 | 40 | 11.5 | 20 | 105 | 6 |
| AAT45 - 045 | 45 | 13 | 25 | 115 | 6 |
| AAT45 - 050 | 50 | 14.5 | 25 | 115 | 6 |
| AAT45 - 055 | 55 | 15 | 32 | 125 | 6 |
| AAT45 - 060 | 60 | 19 | 32 | 125 | 6 |
| AAT45 - 075 | 75 | 24 | 32 | 145 | 8 |
| AAT45 - 100 | 100 | 34 | 32 | 150 | 10 |
FAQ
1. What are Chamfer and Cylindrical Milling Cutters used for?
Chamfer cutters are mainly used for edge chamfering, deburring, bevel cutting, and hole edge finishing. Cylindrical milling cutters are used for cylindrical surface machining, side milling, profile milling, groove machining, and precision component processing.
2. What materials are used for these cutting tools?
These tools use premium tungsten carbide inserts and precision brazed structures. The carbide inserts help improve wear resistance, cutting stability, machining accuracy, and tool service life.
3. What are the advantages of brazed CNC cutting tools?
Brazed CNC cutting tools offer strong bonding, stable tool rigidity, reliable cutting performance, and good machining consistency. They are suitable for both roughing and finishing operations.
4. Are these tools suitable for fine-finish machining?
Yes. These chamfer and cylindrical milling cutters are suitable for fine-finish machining, edge finishing, surface smoothing, and precision milling when matched with proper cutting parameters.
5. Can you provide custom chamfer or cylindrical milling cutters?
Yes. We provide non-standard custom cutting tools according to customer drawings, workpiece materials, machining methods, cutting angles, tool dimensions, surface finish requirements, and special processing needs.
6. Can used cutting tools be repaired?
Yes. We offer tool reconditioning services, including insert replacement, re-grinding, and tool repair. This helps extend tool life and reduce machining costs.
7. How can I choose the right cutter?
Please provide your workpiece material, machining method, chamfer angle, cutting depth, surface finish requirement, machine model, required accuracy, and tool drawings if available. Our team can recommend a suitable standard or custom cutting tool solution.
