Chidori Blade T-Type Cutting Tool for CNC T-Slot Milling and Precision Groove Machining
Chidori Blade T-Type Cutting Tool for CNC T-Slot Milling and Precision Groove Machining
Chidori Blade T-Type cutter
T-Type Cutting Tool with warranty
Chidori Blade precision cutting tool
Certification:
ISO 9001:2008, ISO 9001:2000, GS, CE
Contact Us
Request A Quote
Product Details
Model NO.:
ATTX016-03
Logo Printing:
Without Logo Printing
Size:
Small
Customized:
Non-Customized
Type:
Cutting Tool
Material:
Metal
Head Blade:
Brazed Tungsten Carbide Cutting Edge
Shank Connection Type:
Er Collet Chuck
Cutting Angle:
90°
Cutting Hardness:
HRC55
Cutting Edge Length:
10t3
Transport Package:
Box
Specification:
D16~100
Trademark:
Queenly
Origin:
China
Production Capacity:
100000PCS/Year
Highlight:
Chidori Blade T-Type cutter
,T-Type Cutting Tool with warranty
,Chidori Blade precision cutting tool
Payment & Shipping Terms
Minimum Order Quantity
2 Pieces
Price
US $4.8-18.1 / Piec
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
|

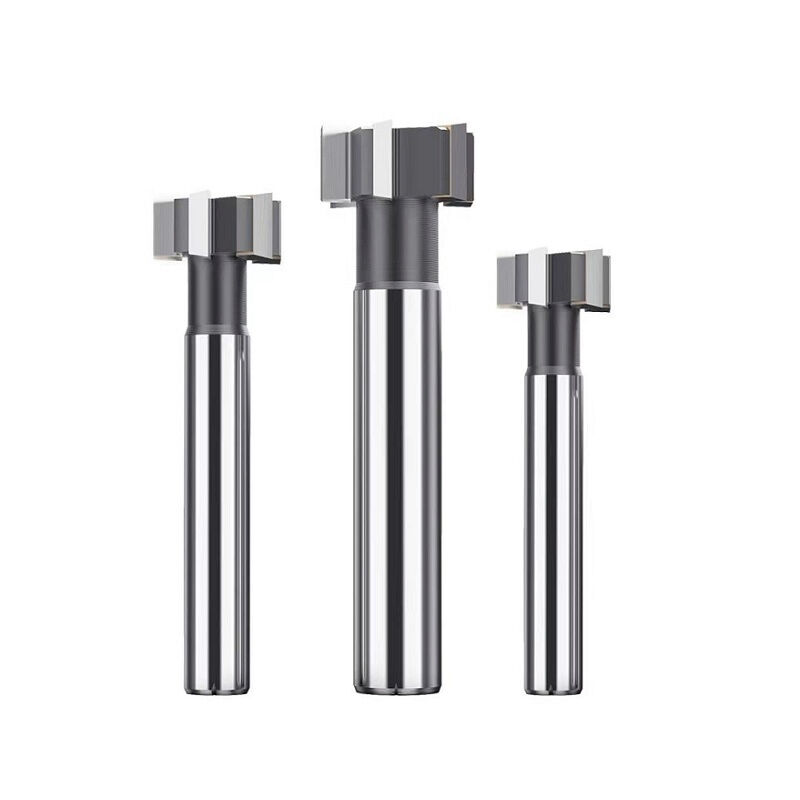

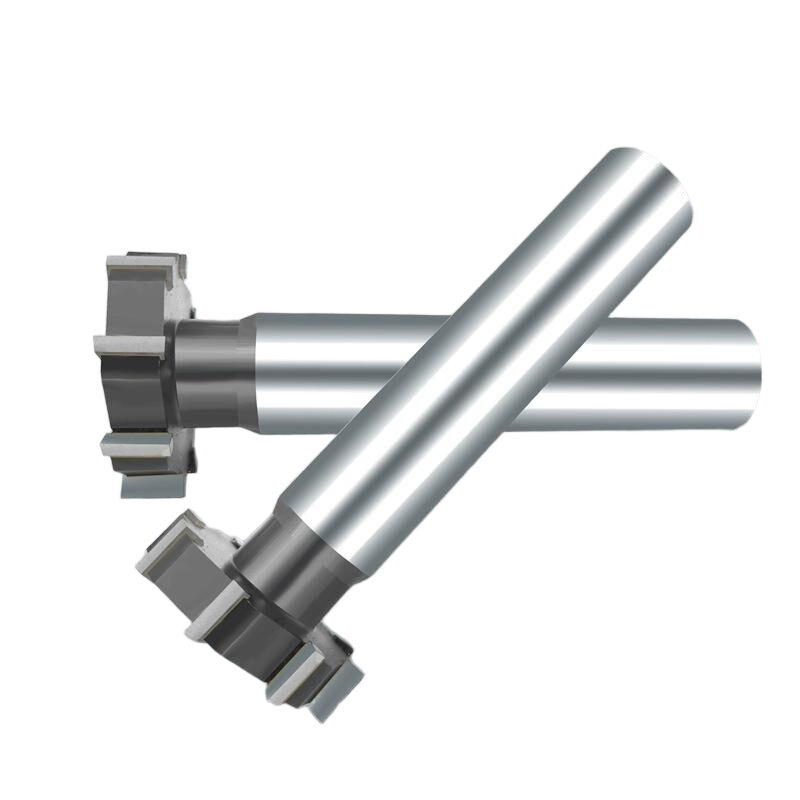

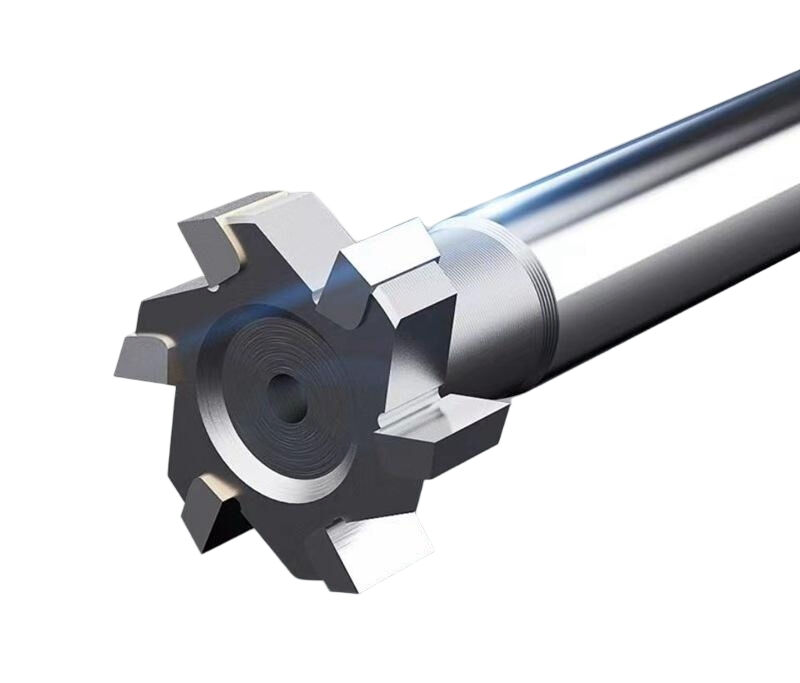

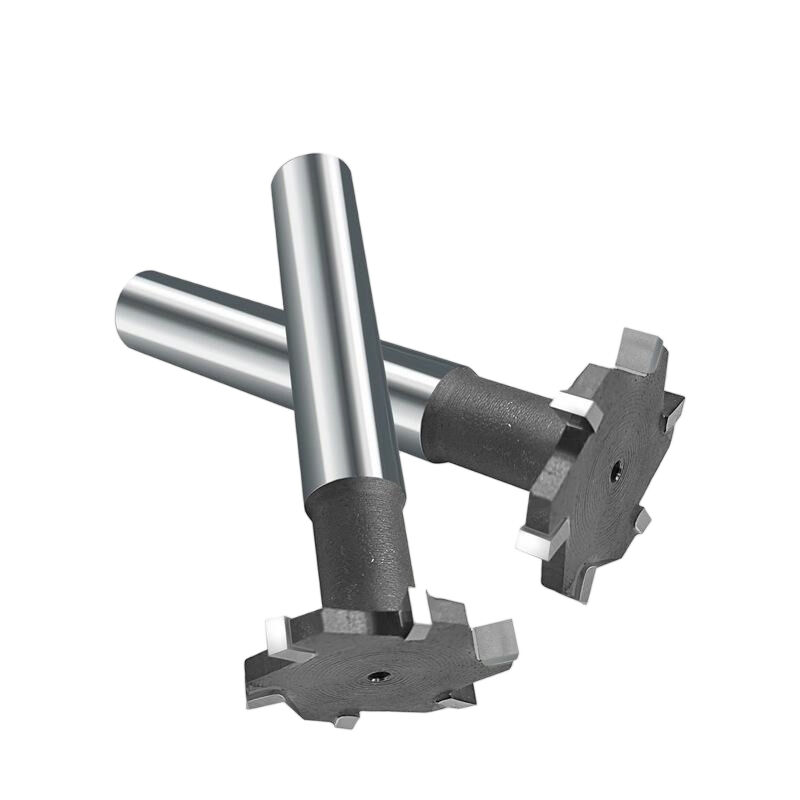

ATTX Chidori Blade T-Type Cutting Tool
|
|||||||
|
MODEL NO.
|
D
|
Edge L H
|
Shank d
|
EdgeT
|
Neck d1
|
Neck L1
|
Full L
|
|
ATTX016-03/04/05/06/08/10/12
|
16
|
3/4/5/6/8/10/12
|
12
|
4
|
7
|
7
|
100
|
|
ATTX020-03/04/05/06/08/10/12
|
20
|
3/4/5/6/8/10/12
|
16
|
6
|
11
|
11
|
100
|
|
ATTX025-03/04/05/06/08/10/12
|
25
|
3/4/5/6/8/10/12
|
16
|
6
|
13
|
13
|
100
|
|
ATTX030-03/04/05/06/08/10/12
|
30
|
3/4/5/6/8/10/12
|
16
|
6
|
15
|
15
|
100
|
|
ATTX032-03/04/05/06/08/10/12
|
32
|
3/4/5/6/8/10/12
|
16
|
6
|
15
|
15
|
120
|
|
ATTX035-03/04/05/06/08/10/12
|
35
|
3/4/5/6/8/10/12
|
16
|
6
|
15
|
15
|
120
|
|
ATTX040-03/04/05/06/08/10/12
|
40
|
3/4/5/6/8/10/12
|
25
|
6
|
21
|
21
|
150
|
|
ATTX045-03/04/05/06/08/10/12
|
45
|
3/4/5/6/8/10/12
|
25
|
8
|
21
|
21
|
150
|
|
ATTX050-03/04/05/06/08/10/12
|
50
|
3/4/5/6/8/10/12
|
25
|
8
|
24
|
24
|
150
|
|
ATTX060-05/06/08/10/12/15/16/20/25
|
60
|
5/6/8/10/12/15/16/20/25
|
32
|
10
|
30
|
30
|
130
|
|
ATTX075-10/12
|
75
|
10/12
|
32
|
14
|
30
|
30
|
130
|
|
ATTX100-10/12/16
|
100
|
10/12/16
|
32
|
16
|
30
|
30
|
130
|
Our precision brazed cutting tools serve the machinery, m-old manufacturing, automotive parts industries, and ligh-t/heavy-duty machining. Leveraging advanced Taiwanese tech and premium tungsten carbide inserts, they undergo strict brazing for top precision and quality.

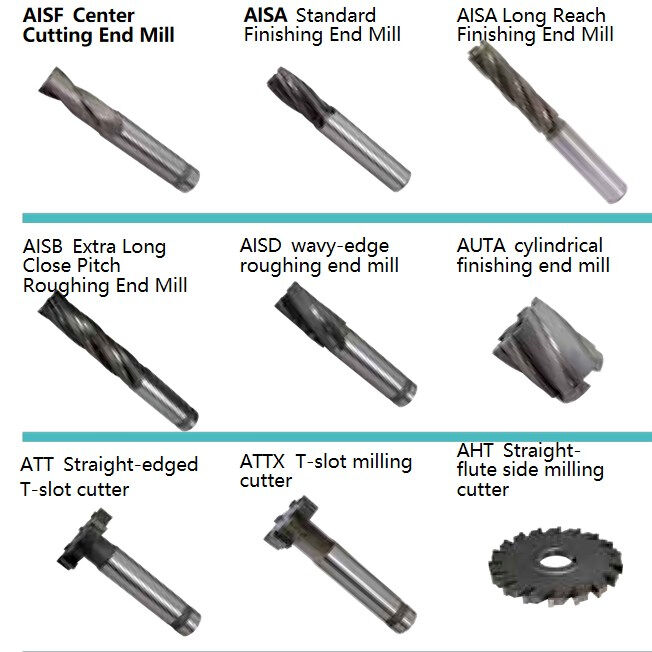

We boost tool life/value via R&D to cut users' machining costs. Standard tools (finish/rough end mills, T-slot cutt-ers, 3-side edge side milling cutters, etc.) have sufficient inventory for immediate supply. We also offer non-standar-d custom tools and reconditioning (insert replacement, re-grinding, etc.). Contact us anytime for needs.
Key Features
- Chidori blade T-type cutting tool for CNC milling applications
- Suitable for T-slot milling, groove cutting, side milling, and mold processing
- Staggered-tooth blade design helps improve cutting stability
- Premium tungsten carbide inserts improve wear resistance and tool life
- Precision brazed structure ensures strong bonding and reliable performance
- Advanced Taiwanese technology supports high machining quality
- Suitable for finishing, roughing, light-duty, and heavy-duty machining
- Standard tools are available from stock for fast delivery
- Supports non-standard customization according to drawings or workpiece needs
- Reconditioning service includes insert replacement, re-grinding, and tool repair
- Helps reduce machining cost and improve production efficiency
- Suitable for machinery, mold, automotive parts, and industrial machining applications
|
Model No.
|
Outer D
|
Edge H
|
Shank d
|
Full L
|
Edge T
|
|
AISF14 - 030 - 2C
|
14
|
30
|
16
|
105
|
2
|
|
AISF15 - 030 - 2C
|
15
|
30
|
16
|
105
|
2
|
|
AISF16 - 030 - 2C
|
16
|
30
|
16
|
105
|
2
|
|
AISF17 - 030 - 2C
|
17
|
30
|
16
|
105
|
2
|
|
AISF18 - 040 - 2C
|
18
|
40
|
20
|
115
|
2
|
|
AISF19 - 040 - 2C
|
19
|
38, 40
|
20
|
115
|
2
|
|
AISF20 - 040 - 2C
|
20
|
40
|
20
|
115
|
2
|
|
AISF21 - 040 - 2C
|
21
|
40
|
20
|
115
|
2
|
|
AISF22 - 040 - 2C
|
22
|
40
|
20
|
115
|
2
|
|
AISF23 - 040 - 2C
|
23
|
40
|
25
|
115
|
2
|
|
AISF24 - 050 - 2C
|
24
|
50
|
25
|
135
|
2
|
|
AISF25 - 050 - 2C
|
25
|
50
|
25
|
135
|
2
|
|
AISF26 - 050 - 2C
|
26
|
50
|
25
|
135
|
2
|
|
AISF28 - 050 - 2C
|
28
|
50
|
25
|
135
|
2
|
|
AISF30 - 050 - 2C
|
30
|
50
|
25
|
135
|
2
|
|
AISF32 - 050 - 2C
|
32
|
50
|
32
|
135
|
2
|
|
AISF35 - 050 - 2C
|
35
|
50
|
32
|
135
|
2
|
|
Model No.
|
Outer Diameter
|
Length of cut (LOC) H
|
Edge QTY
|
Shank D
|
Head D1
|
Head L1
|
Total L
|
|
ATT016 - 1.X/02/2.X/03/04/05/06/08/10/12
|
16
|
1.5/2/2.5/3/4/5/6/8/10/12
|
6
|
10
|
8
|
10
|
100
|
|
ATT020 - 1.X/02/2.X/03/04/05/06/08/10/12
|
20
|
1.5/2/2.5/3/4/5/6/8/10/12
|
6
|
12
|
10.5
|
10
|
110
|
|
ATT025 - 1.X/02/2.X/03/04/05/06/08/10/12
|
25
|
1.5/2/2.5/3/4/5/6/8/10/12
|
6
|
12
|
10.5
|
10
|
110
|
|
ATT030 - 02/2.X/03/04/05/06/08/10/12
|
30
|
2/2.5/3/4/5/6/8/10/12
|
6
|
16
|
13
|
10
|
120
|
|
ATT032 - 03/04/05/06/08/10/12
|
32
|
3/4/5/6/8/10/12
|
6
|
16
|
13
|
10
|
120
|
|
ATT035 - 02/03/04/05/06/08/10/12
|
35
|
2/3/4/5/6/8/10/12
|
6
|
16
|
13
|
10
|
120
|
|
ATT040 - 03/04/05/06/08/10/12
|
40
|
3/4/5/6/8/10/12
|
6
|
20
|
18
|
10
|
130
|
|
ATT045 - 03/04/05/06/08/10/12
|
45
|
3/4/5/6/8/10/12
|
8
|
20
|
18
|
10
|
130
|
|
ATT050 - 03/04/05/06/08/10/12
|
50
|
3/4/5/6/8/10/12
|
8
|
25
|
22
|
10
|
130
|
|
ATT060 - 03/04/05/06/08/10/12
|
60
|
3/4/5/6/8/10/12
|
10
|
32
|
30
|
10
|
130
|
|
ATT075 - 10/12
|
75
|
10/12
|
14
|
32
|
30
|
10
|
130
|
|
ATT100 - 10/12
|
100
|
10/12
|
16
|
32
|
30
|
10
|
130
|
|
ATT120 - 12/16
|
120
|
10/16
|
20
|
32
|
30
|
10
|
130
|
|
Model No.
|
Outer D
|
Edge L H
|
Shank d
|
Full L
|
Edge T
|
|
AAT45 - 016
|
16
|
4
|
12
|
70
|
3
|
|
AAT45 - 020
|
20
|
5
|
12
|
80
|
4
|
|
AAT45 - 025
|
25
|
6.5
|
12
|
90
|
5
|
|
AAT45 - 030
|
30
|
8
|
16
|
105
|
5
|
|
AAT45 - 035
|
35
|
9.5
|
20
|
105
|
6
|
|
AAT45 - 040
|
40
|
11.5
|
20
|
105
|
6
|
|
AAT45 - 045
|
45
|
13
|
25
|
115
|
6
|
|
AAT45 - 050
|
50
|
14.5
|
25
|
115
|
6
|
|
AAT45 - 055
|
55
|
15
|
32
|
125
|
6
|
|
AAT45 - 060
|
60
|
19
|
32
|
125
|
6
|
|
AAT45 - 075
|
75
|
24
|
32
|
145
|
8
|
|
AAT45 - 100
|
100
|
34
|
32
|
150
|
10
|
FAQ
1. What is a Chidori Blade T-Type Cutting Tool used for?
The Chidori Blade T-Type Cutting Tool is mainly used for CNC T-slot milling, groove machining, side milling, mold slot processing, fixture groove machining, and industrial metal cutting applications.
2. What is the advantage of the chidori blade design?
The chidori blade, or staggered-tooth design, helps improve cutting stability, reduce cutting resistance, support smoother chip removal, and improve machining efficiency during groove and slot cutting.
3. What materials are used for this cutting tool?
The tool uses premium tungsten carbide inserts and a precision brazed structure. The carbide inserts help improve wear resistance, cutting life, and machining stability.
4. What standard cutting tools are available?
Standard tools include finish end mills, rough end mills, T-slot cutters, three-side edge side milling cutters, and other CNC milling tools. Sufficient inventory is available for immediate supply.
5. Can you provide custom cutting tools?
Yes. We provide non-standard custom cutting tools according to customer drawings, workpiece materials, machining methods, tool sizes, and special processing requirements.
6. Can used cutting tools be repaired?
Yes. We offer cutting tool reconditioning services, including insert replacement, re-grinding, and tool repair. This helps extend tool life and reduce machining costs.
7. How can I choose the right cutting tool?
Please provide your workpiece material, machining method, groove size, cutting depth, machine model, required accuracy, and tool drawings if available. Our team can recommend a suitable standard tool or custom tool solution.
