Budget-Friendly Low-Cost CNC Machines Boasting High Quality

Budget-Friendly Low-Cost CNC Machines Boasting High Quality

low-cost CNC machines with warranty

budget-friendly CNC machines

affordable CNC machines high quality

Certification:

GS, CE, RoHS, ISO 9001

Contact Us
Request A Quote
Product Details
Model NO.:
UC 320
Application:
Glass
Process Usage:
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
X-Axis Travel:
500mm
Y-Axis Travel:
750mm
Z-Axis Travel:
400mm
X/Y/Z Axis Speed:
24m/Min
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Highlight:

low-cost CNC machines with warranty

,

budget-friendly CNC machines

,

affordable CNC machines high quality

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
US $35,000-45,000
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

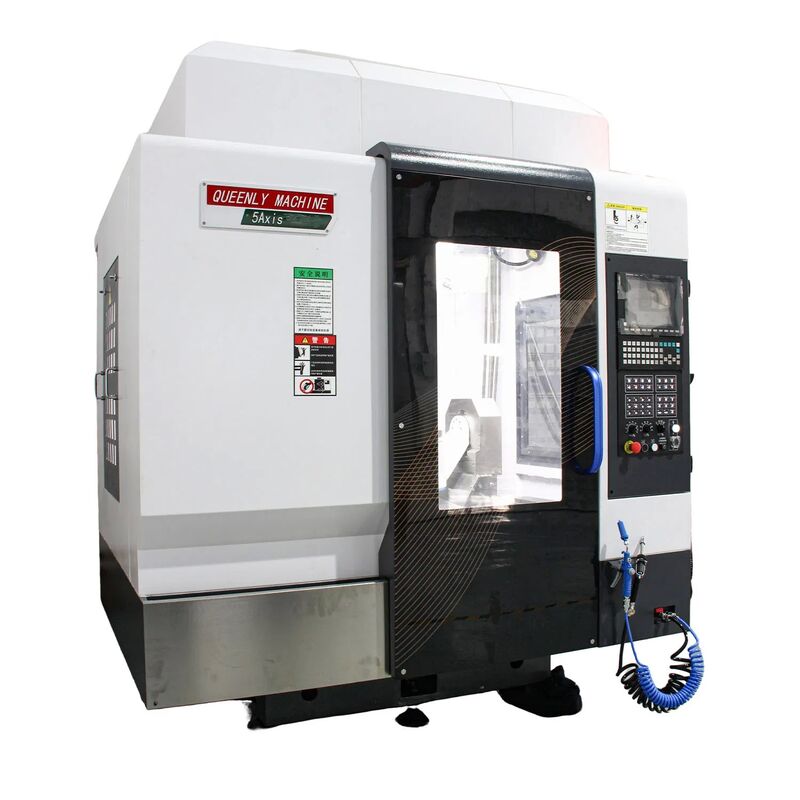

Budget-Friendly Low-Cost CNC Machines Boasting High Quality 0
Product Introduction
Budget-Friendly Low-Cost CNC Machines Boasting High Quality 1

A CNC milling machine is a highly automated manufacturing device controlled by computer numerical control (CNC) sy-stems. It utilizes rotating cutting tools to remove material from a workpiece, enabling precise and complex machining operations.

Equipped with advanced control panels, it allows for programming of various machining paths, depths, and speeds. Thi-s machine is capable of handling a wide range of materials, from metals like aluminum and steel to plastics and comp-osites.

Its precision makes it indispensable in industries such as aerospace, automotive, and mold-making, where intricate and accurate parts are required. Whether for prototyping or large-scale production, the CNC milling machine significantly en-hances manufacturing efficiency and part quality.

Budget-Friendly Low-Cost CNC Machines Boasting High Quality 2
Budget-Friendly Low-Cost CNC Machines Boasting High Quality 3
Budget-Friendly Low-Cost CNC Machines Boasting High Quality 4
Budget-Friendly Low-Cost CNC Machines Boasting High Quality 5
Budget-Friendly Low-Cost CNC Machines Boasting High Quality 6
Budget-Friendly Low-Cost CNC Machines Boasting High Quality 7
Item Unit Parameter
C-axis rapid feed rpm/min 260
X/Y/Z axis positioning accuracy mm ±0.008/300mm(JIS std.)
A/C axis positioning accuracy arcsec 6 arcsec
Max. tool length mm 150
Max. tool weight Kg 8
Tool magazine type - Arm type tool magazine
Tool magazine capacity - 32
Max. tool diameter mm Φ80
Air supply requirement kg/cm 6
Machine footprint mm 320028002600
Power requirement Kw 20
Machine weight kg 6000
C-axis rapid feed rpm/min 260
X/Y/Z axis positioning accuracy mm ±0.008/300mm (JIS std.)
A/C axis positioning accuracy arcsec 6 arcsec
Max. tool length mm 150
Max. tool weight Kg 8
Tool magazine type - Arm type tool magazine
Tool magazine capacity - 32
Max. tool diameter mm Φ80
Air supply requirement kg/cm 6
Machine footprint mm 320028002600
Power requirement Kw 20
Machine weight kg 6000
A-axis (Tilting)

Rated speed (rpm) rpm 100
Max. speed (rpm) rpm 200
Rated torque (N·m) N·m 272
Max. torque (N·m) N·m 461
Rated power (kW) kW 2.65
Brake pressure (MPa) MPa 0.5 - 0.6
Brake torque (N·m) N·m ≥400
C-axis (Rotary)

Rated speed (rpm) rpm 180
Max. speed (rpm) rpm 260
Rated torque (N·m) N·m 68
Max. torque (N·m) N·m 260
Rated power (kW) kW 1.3
Brake pressure (MPa) MPa 0.5 - 0.6
Brake torque (N·m) N·m ≥200
Others:

Table diameter mm 320
Max. workpiece diameter mm 500
Tilting range deg ±110°
Keyway width mm 12H7
Max. workpiece weight kg 120
Main products
Budget-Friendly Low-Cost CNC Machines Boasting High Quality 8
Company Profile
Budget-Friendly Low-Cost CNC Machines Boasting High Quality 9

Queenly Machine established in Fujian, specializing in a wide range of precision CNC machine tools, including high-pre-cision grinding centers, ultra-precision surface grind- ers, optical milling and grinding centers, flexible polishing machin-es, various machining centers, CNC cutting tools, power chucks, hydraulic cylinder, drilling and tapping ma- chine, pack-aging machinery, booster cylinder, copper, etc.

Our company adheres to a talent-oriented philosophy and is dedicated to the research and industrialization of critical and bottleneck technologies. Its main business focuses on the R&D, manufacturing, and sales of high-end CNC mach-ine tools and ultra-preci- sion optical components.

All of our products are independently designed and manufactured by our team, based on more than decades of exper-tise in processing hard and brittle materials. In addition, our company has independently developed a five-axis CNC co-ntrol system as well as multiple sets of auxiliary machining software.

We have developed the first 6-axis Coordinate Advance Milling and (Deep Hole) Drilling machine in Asia. This establish-ment has been recognized by different expertise as coun- try leading-edge technology and access to a number of natio-nal patents. In Multi-func- tion Deep Hole Drilling Machine, we have been recognized by majority of the customer as the Leader of quality and craftsmanship throughout the country.

During the process of R&D, Production and Market development, we are also using our machine to master the frst-hand information. Be bold and innovative, ever-improving, continue to explore and of course listen to our customer comment for quality improve- ment. We always use the customer point of view to modify the machine become more suitable and user friendly.

Queenly targets the world mould making edge - leading technology, continue to ex- plore, higher accuracy and perfect quality, thus enable our customers to be equipped with the most suitable machines.

Nowadays, our products exported all over the world: USA, Australia, Brazil, Bangladesh, Canada, India, Korea, Malaysia, Portugal, Thailand, Taiwan, UK and so on.

In the future, with the intelligent manufacturing, we would like to work by your side and provide you with different solu-tion to conquer any challenges.
