Product Description
Product Introduction

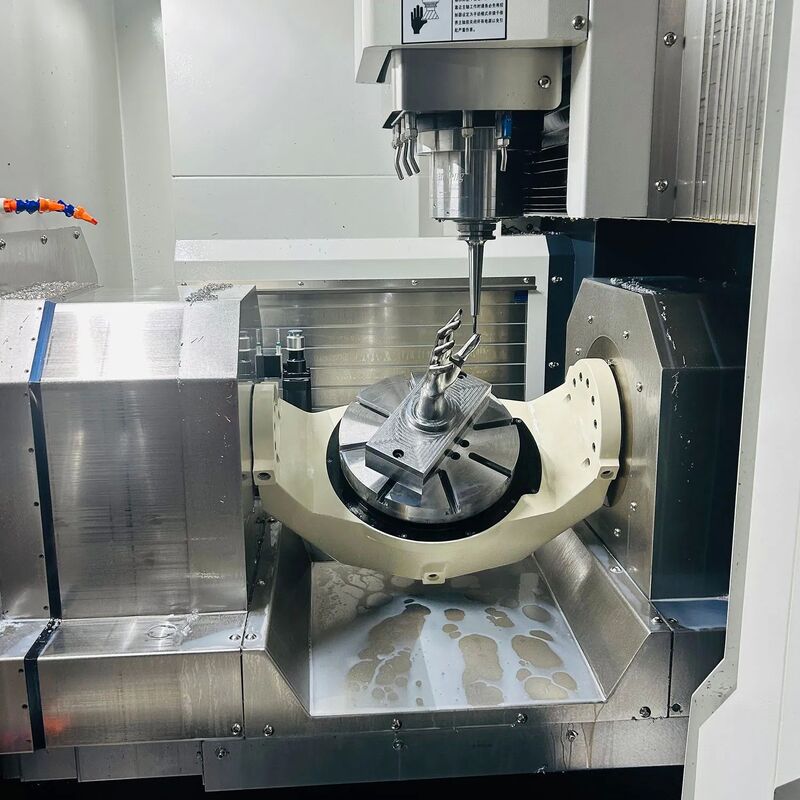

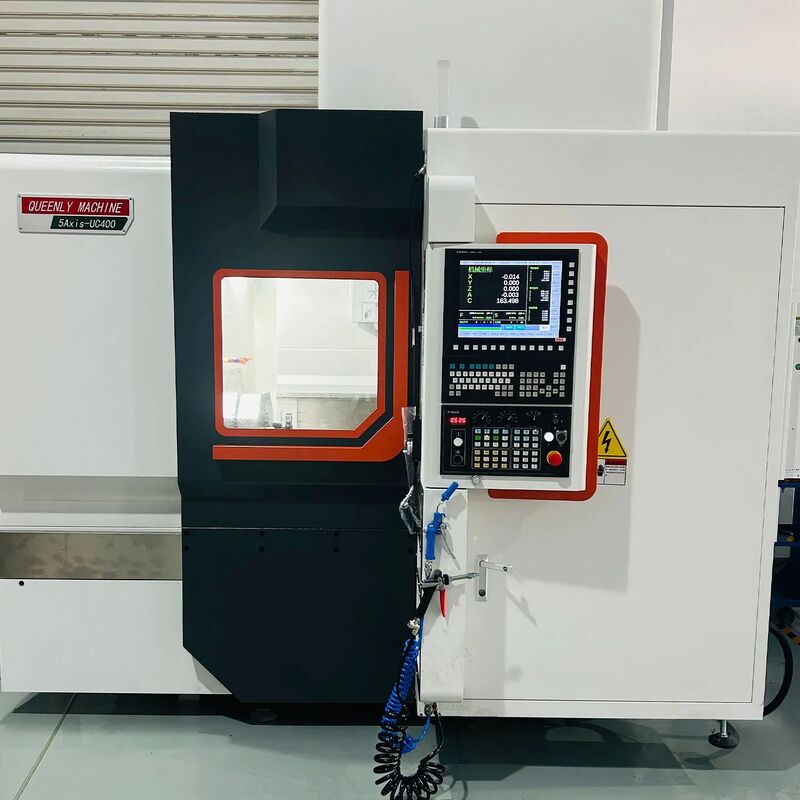

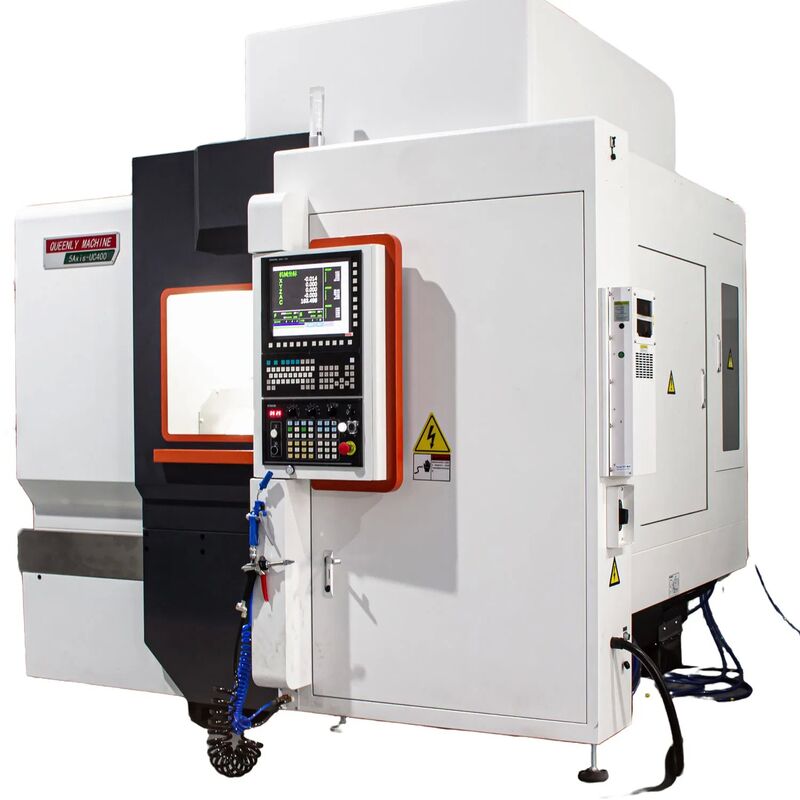

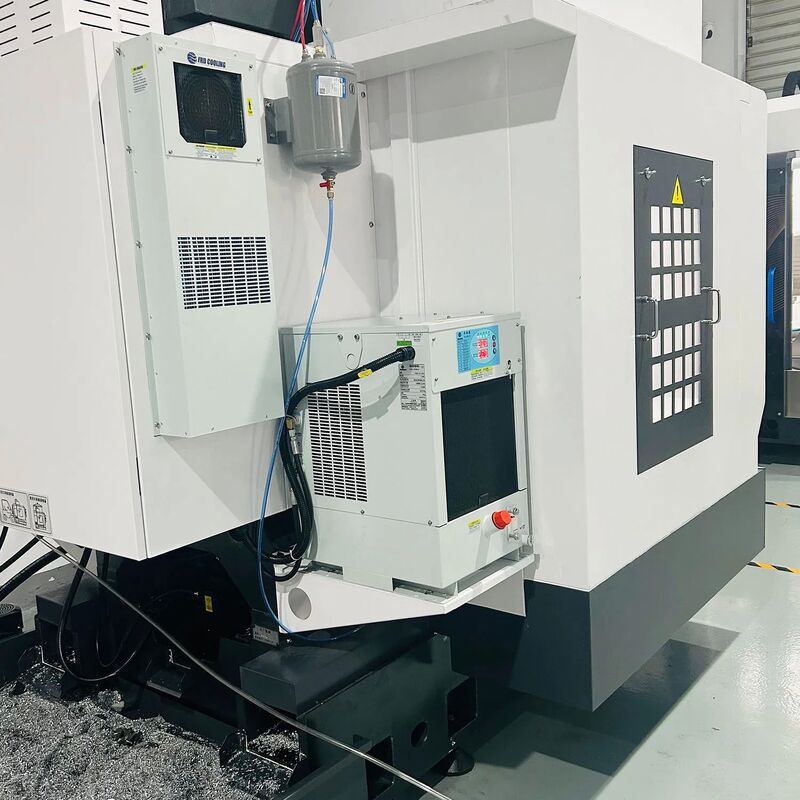

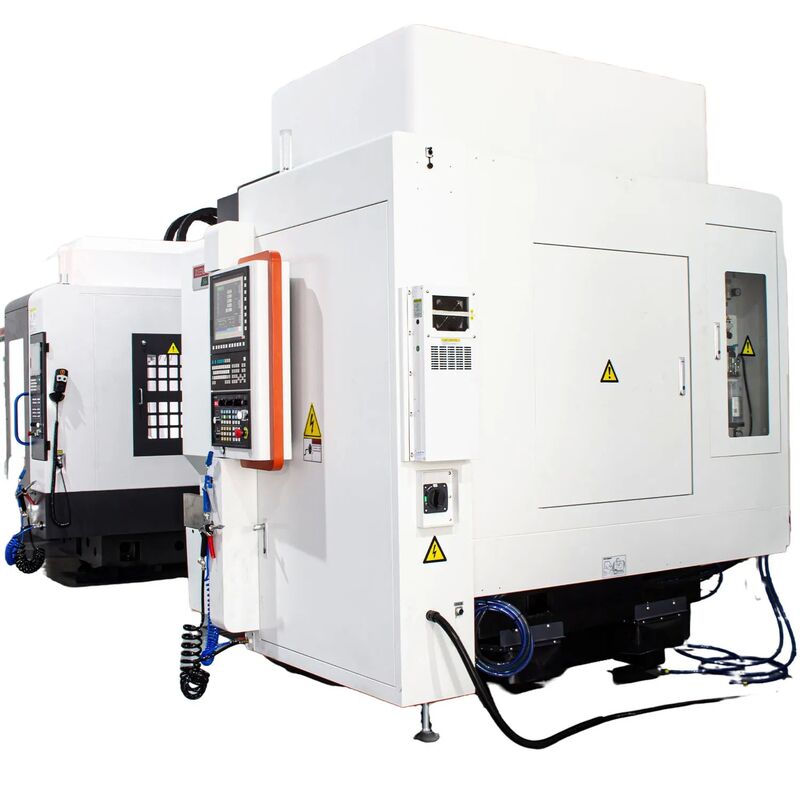

The UC400 emerges as a standout 5-axis machining center, meticulously engineered to cater to the demanding needs of precision manufacturing across diverse industries. At its core, the machine features a torque motor cradle design, a key component that ensures exceptional stability and accuracy for both the A-axis (tilting axis) and C-axis (rotary axis). This design empowers the UC400 to handle complex machining tasks with ease—whether it's creating intricate contour-ed surfaces or conducting multi-sided machining on workpieces. By minimizing the need for repeated workpiece clam-ping, it significantly reduces positioning errors, thus guaranteeing consistent machining precision that meets rigorous industry standards.
When it comes to operational efficiency and safety, the UC400's concealed arm-type tool magazine is a game-changer. The concealed design not only optimizes the machine's spatial layout but also shields the tool magazine and tools from potential damage caused by cutting chips, coolants, and other debris during machining. This protection extends the ser-vice life of both the magazine and the tools. Meanwhile, the arm-type structure enables rapid and smooth tool changes, drastically cutting down on tool change time and minimizing production downtime. This seamless tool exchange proc-ess ensures uninterrupted production workflows, boosting overall machining efficiency and helping manufacturers meet tight production schedules.
| Machine Specifications Table | Unit | UC400 |
|---|---|---|
| X/Y/Z Axis Stroke | mm | 500*700*350 |
| Spindle Nose to Table Distance (A Axis at 0°) | mm | 130 - 530 |
| Table Size | mm | Φ350 |
| Maximum Table Load | Kg | 150 |
| Spindle Taper | - | BT40 |
| Spindle Maximum Speed | Rpm | 18000 |
| Spindle Power | Kw | 15Kw |
| X/Y/Z Axis Motors | Kw | 1.8Kw/1.8Kw/1.8Kw |
| X Axis Rapid Traverse | Mn/min | 15000 |
| Y Axis Rapid Traverse | Mn/min | 15000 |
| Z Axis Rapid Traverse | Mn/min | 15000 |
| A Axis Rapid Feed | Rpm/min | 80 |
| C Axis Rapid Feed | Rpm/min | 150 |
| X/Y/Z Axis Positioning Accuracy | Mn | ±0.008 mm / 300 mm (JIS Standard) |
| A/C Axis Positioning Accuracy | arcsec | 6 arc seconds |
| Maximum Tool Length | Mn | 150 |
| Maximum Tool Weight | Kg | 8 |
| Tool Magazine Types | - | Arm-Type Tool Magazine (Concealed Type) |
| Tool Magazine Capacity | - | 24 |
| Maximum Tool Diameter | Mn | Φ80 |
| Compressed Air Requirements | kg/cm² | 6 |
| Machine Footprint | Mn | 360026002700 |
| Power Requirements | Kw | 20 |
| Machine Net Weight | kg | 6000 |
| Torque Motor Cradle Five - Axis | Unit | Specification |
|---|---|---|
| A - Axis (Tilting Axis) | ||
| Rated Speed | rpm | 60 |
| Rated Torque | N.m | 421 |
| Rated Power | kw | 2.65 |
| Brake Air Pressure | MPa | 0.5 - 0.6 |
| Brake Clamping Torque | N.m | ≥700 |
| C - Axis (Rotary Axis) | ||
| Rated Speed | rpm | 150 |
| Rated Torque | N.m | 82 |
| Rated Power | kw | 1.3 |
| Brake Air Pressure | MPa | 0.5 - 0.6 |
| Brake Clamping Torque | N.m | ≥120 |
| Others | ||
| Table Diameter | mm | 350 |
| Maximum Workpiece Diameter | mm | 590 |
| Tilting Axis Rotation Angle | deg | ±110° |
| Keyway Width | mm | 12H7 |
| Workpiece Load Capacity | kg | 150 |
| NO. | Accessory Name | Qty |
|---|---|---|
| 1 | Shim Block | 8pcs |
| 2 | Tool | 1set |
| 3 | Anchor Bolt | 8set |
| 4 | Toolbox | 1 Box |
| 5 | Three - Color Signal Tower Light | 1 Light |
| 6 | Pulse Generator Handwheel | 1set |
| 7 | Air Blow Gun with Hose | 1set |
| 8 | BT40 Tool Holder | 2pcs |
FAQ
1. What is the UC400 5-Axis CNC Machining Center used for?
The UC400 5-Axis CNC Machining Center is mainly used for complex surface machining, multi-sided machining, inclined hole processing, mold machining, aerospace components, medical parts, automotive precision parts, and custom high-accuracy metal workpieces.
2. Why is the UC400 suitable for custom precision parts?
The UC400 can machine multiple surfaces and angles in one clamping, which helps reduce positioning errors and improve machining consistency. This makes it suitable for customized workpieces, small-batch production, and complex precision components.
3. What is the advantage of the torque motor cradle design?
The torque motor cradle design provides stable and accurate movement for the A-axis and C-axis. It supports smooth five-axis linkage machining and helps maintain high precision when processing curved surfaces, angled features, and multi-sided parts.
4. What is the benefit of the concealed arm-type tool magazine?
The concealed arm-type tool magazine protects tools and the tool magazine from chips, coolant, and debris. It also supports fast and smooth automatic tool changing, helping reduce downtime and improve machining efficiency.
5. What control systems do you use on your machines?
We can provide different control systems according to customer requirements, such as Siemens, GSK, FANUC, and other reliable CNC control brands.
6. How can I choose the most suitable machine?
Please tell us the machine model, technical parameters, workpiece material, processing size, or production requirements you are interested in. You can also send us product pictures or drawings, and our team will recommend the most suitable machine with competitive price and reliable quality.
7. Can the machines be customized according to customer requirements?
Yes. We support customization of machining range, spindle power, rotary axis configuration, tool magazine, fixture configuration, cooling system, lubrication system, control system, protective cover, and other machine specifications according to your production needs.
