A CNC (Computer Numerical Control) milling machine is a precision - oriented, automated tool reshaping modern manufacturing. It operates by executing commands from a pre - written computer program, often generated from a CAD (Computer - Aided Design) model via CAM (Computer - Aided Manufacturing) software. This machine consists of key components. The control panel, acting as the "brain," interprets digital instructions and directs the machine's actions. The axis system, typically including the X, Y, and Z axes, determines the cutting tool's movement directions, while the spindle holds and rotates the cutting tool at varying speeds for material removal. The work table securely fastens the workpiece, ensuring stability during machining. CNC milling machines can create diverse shapes and perform operations like face milling, pocket milling, and drilling. They are highly versatile, working with materials such as metals, plastics, and wood. Their advantages are significant: they offer high precision, enabling the production of parts with tight tolerances; they ensure consistency and repeatability, crucial for mass - producing identical components; and they boost productivity as they can run continuously with minimal human intervention. These qualities make CNC milling machines indispensable across industries, from aerospace and automotive to medical device manufacturing and prototyping.
Key Features

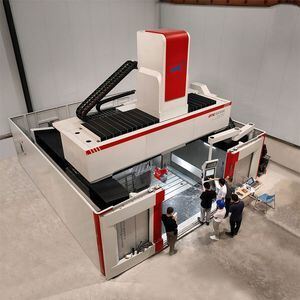

- GTE3030C CNC milling machine for precision and large workpiece machining
- 20/50 m/min rapid feed speed for improved machining efficiency
- Helps reduce non-cutting time during long-distance axis movement
- Suitable for milling, drilling, boring, slotting, contour machining, and surface finishing
- CNC control system supports accurate and automated machining
- Compatible with CAD/CAM programming workflow
- Stable axis movement helps improve positioning accuracy and repeatability
- Strong workpiece adaptability for molds, plates, castings, and structural parts
- Stable worktable improves clamping reliability and machining quality
- Suitable for rough machining, semi-finishing, and precision finishing
- Processes steel, cast iron, aluminum alloy, copper, plastic, wood, and other materials
- Ideal for mold manufacturing, large workpiece processing, and continuous industrial production
| CNC milling machine GTE3030C Machine Tool Parameters: | |
| X-axis travel (moving beam forward/backward travel): | 3000 mm |
| Y-axis travel (saddle left/right travel): 3000 mm | 3000mm |
| Z-axis travel (milling head up/down travel): | 1500 mm |
| Distance from spindle nose to worktable: | 100–1600 mm |
| Distance between two columns: | 4200–5700 mm |
| Worktable size: | 3500 × 2800 mm |
| Worktable load capacity: | 8 tons |
| Maximum spindle speed: | 6000 rpm |
| Maximum spindle torque: | 300 N·m |
| Rotation angle: | A = ±180°, C = ±360° |
| Angular positioning accuracy: | A = ±5 sec; C = ±5 sec |
| Minimum indexing angle: | 0.0001° |
| Rapid feed rate: X, Y: | 20 / 50 m/min; Z: 20 m/min |
| Cutting feed rate: | 10 m/min |
| Number of tools: | 32 pcs |
| Total machine power: | 110 kW |
| Machine dimensions (L × W × H): | 7600 × 8100 × 6150 mm |
| Machine weight: | 52 tons |
| Control system: | FANUC / Heidenhain / SIEMENS |
FAQ
1. What is the GTE3030C CNC Milling Machine used for?
The GTE3030C CNC Milling Machine is mainly used for precision milling, drilling, boring, slotting, contour machining, and large workpiece processing. It is suitable for molds, plates, castings, machine bases, structural components, and customized industrial parts.
2. What is the advantage of 20/50 m/min rapid feed?
The 20/50 m/min rapid feed helps reduce non-cutting time by allowing the machine axes to move quickly between machining positions. This improves production efficiency, especially when processing large workpieces with long travel distances.
3. Why is this machine suitable for large workpiece machining?
The GTE3030C combines stable CNC control, reliable axis movement, a strong worktable, and efficient rapid feed performance. These features help improve machining efficiency, reduce repeated setup, and maintain stable accuracy for large molds, plates, and structural components.
4. What materials can this machine process?
This machine can process steel, cast iron, aluminum alloy, copper, plastic, wood, and other industrial materials. The actual processing capability depends on spindle power, cutting tools, machine configuration, and workpiece requirements.
5. What machining functions do your machining centers support?
Our machining centers support drilling, tapping, milling, boring, slotting, contour machining, and other processing functions. Different configurations can be selected according to workpiece size, material, and production requirements.
6. How can I choose the most suitable machine?
Please tell us the machine model, technical parameters, workpiece material, processing size, accuracy requirements, or production needs. You can also send us product drawings or pictures, and our team will recommend the most suitable machine configuration.
7. Can the machine be customized according to customer requirements?
Yes. We support customization of machining range, rapid feed speed, spindle power, worktable size, control system, tooling system, fixture configuration, protective cover, chip removal system, lubrication system, and other machine specifications according to your production needs.
