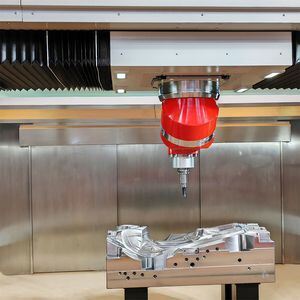

GTE3030C CNC Milling Machine with 1500mm Z-Axis Travel for Deep Cavity Milling and Large Workpiece Machining
GTE3030C CNC Milling Machine with 1500mm Z-Axis Travel for Deep Cavity Milling and Large Workpiece Machining
CNC milling machine 1500mm Z axis
Gte3030c CNC machine large travel
CNC milling machine with warranty
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
GTE3030C
Application:
Metal
Process Usage:
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Transport Package:
Pallet
Specification:
4550*3827*3245
Trademark:
Queenly
Origin:
China
HS Code:
84601100
Production Capacity:
200sets/Month
Highlight:
CNC milling machine 1500mm Z axis
,Gte3030c CNC machine large travel
,CNC milling machine with warranty
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Product Introduction
A CNC (Computer Numerical Control) milling machine is a precision - oriented, automated tool reshaping modern manufacturing. It operates by executing commands from a pre - written computer program, often generated from a CAD (Computer - Aided Design) model via CAM (Computer - Aided Manufacturing) software. This machine consists of key components. The control panel, acting as the "brain," interprets digital instructions and directs the machine's actions. The axis system, typically including the X, Y, and Z axes, determines the cutting tool's movement directions, while the spindle holds and rotates the cutting tool at varying speeds for material removal. The work table securely fastens the workpiece, ensuring stability during machining. CNC milling machines can create diverse shapes and perform operations like face milling, pocket milling, and drilling. They are highly versatile, working with materials such as metals, plastics, and wood. Their advantages are significant: they offer high precision, enabling the production of parts with tight tolerances; they ensure consistency and repeatability, crucial for mass - producing identical components; and they boost productivity as they can run continuously with minimal human intervention. These qualities make CNC milling machines indispensable across industries, from aerospace and automotive to medical device manufacturing and prototyping.
Key Features
- GTE3030C CNC milling machine designed for large and deep workpiece machining
- 1500mm Z-axis travel for extended vertical machining capacity
- Suitable for deep cavity milling, drilling, boring, slotting, and contour machining
- Ideal for tall workpieces, large molds, deep cavities, and high-profile components
- CNC control system supports accurate and automated machining
- Compatible with CAD/CAM programming workflow
- X, Y, and Z axis system for precise cutting tool movement
- Helps reduce repeated setup and improves machining convenience
- Suitable for steel, cast iron, aluminum alloy, copper, plastic, wood, and industrial materials
- Designed for mold manufacturing, machine bases, castings, structural parts, and custom workpieces
|
CNC milling machine GTE3030C Machine Tool Parameters:
|
|
|
X-axis travel (moving beam forward/backward travel):
|
3000 mm
|
|
Y-axis travel (saddle left/right travel): 3000 mm
|
3000mm
|
|
Z-axis travel (milling head up/down travel):
|
1500 mm
|
|
Distance from spindle nose to worktable:
|
100–1600 mm
|
|
Distance between two columns:
|
4200–5700 mm
|
|
Worktable size:
|
3500 * 2800 mm
|
|
Worktable load capacity:
|
8 tons
|
|
Maximum spindle speed:
|
6000 rpm
|
|
Maximum spindle torque:
|
300 N·m
|
|
Rotation angle:
|
A = ±180°, C = ±360°
|
|
Angular positioning accuracy:
|
A = ±5 sec; C = ±5 sec
|
|
Minimum indexing angle:
|
0.0001°
|
|
Rapid feed rate: X, Y:
|
20 / 50 m/min; Z: 20 m/min
|
|
Cutting feed rate:
|
10 m/min
|
|
Number of tools:
|
32 pcs
|
|
Total machine power:
|
110 kW
|
|
Machine dimensions (L * W * H):
|
7600 * 8100 * 6150 mm
|
|
Machine weight:
|
52 tons
|
|
Control system:
|
FANUC / Heidenhain / SIEMENS
|
FAQ
1. What is the GTE3030C CNC Milling Machine used for?
The GTE3030C CNC Milling Machine is mainly used for milling, drilling, boring, slotting, contour machining, and precision processing of large workpieces. It is suitable for molds, deep cavities, machine bases, castings, structural parts, and customized industrial components.
2. What is the advantage of 1500mm Z-axis travel?
The 1500mm Z-axis travel provides a larger vertical machining range. It allows the machine to process taller workpieces, deeper cavities, large molds, and high-profile components with better tool accessibility and machining flexibility.
3. Why is this machine suitable for deep cavity machining?
The extended Z-axis travel allows the cutting tool to reach deeper machining areas more easily. This helps improve machining convenience for deep molds, cavities, large castings, and complex parts that require long vertical tool movement.
4. What materials can this machine process?
This machine can process steel, cast iron, aluminum alloy, copper, plastic, wood, and other industrial materials. The actual processing capability depends on spindle power, cutting tools, machine configuration, and workpiece requirements.
5. What control systems do you use on your machines?
We can provide different control systems according to customer requirements, such as Siemens, GSK, FANUC, and other reliable CNC control brands.
6. How can I choose the most suitable machine?
Please tell us the machine model, technical parameters, workpiece material, processing size, accuracy requirements, or production needs. You can also send us product drawings or pictures, and our team will recommend the most suitable machine configuration.
7. Can the machines be customized according to customer requirements?
Yes. We support customization of machining range, Z-axis travel, spindle power, worktable size, control system, tooling system, fixture configuration, protective cover, chip removal system, and other machine specifications according to your production needs.
