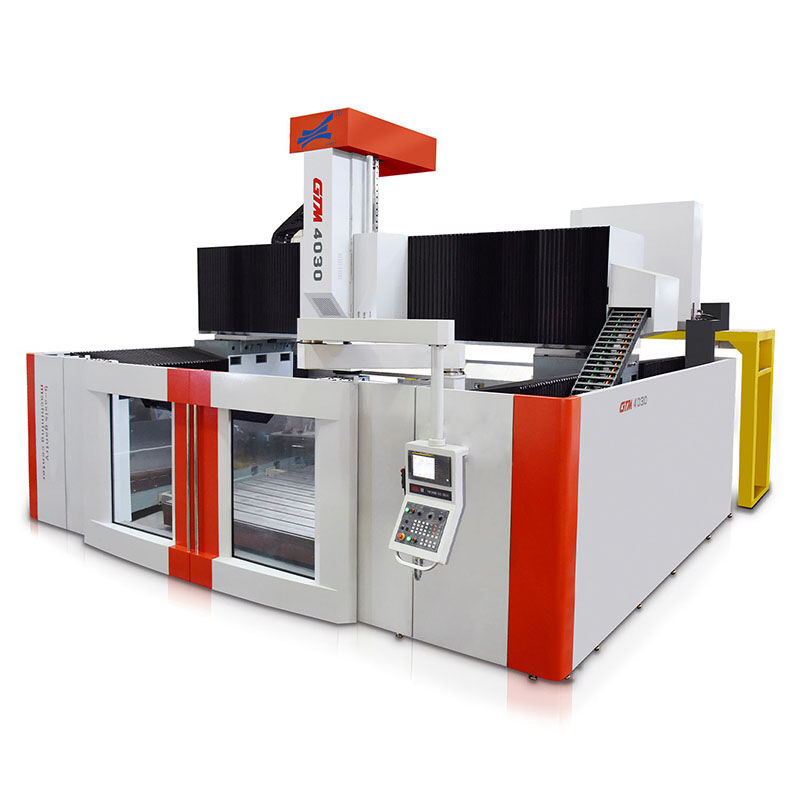

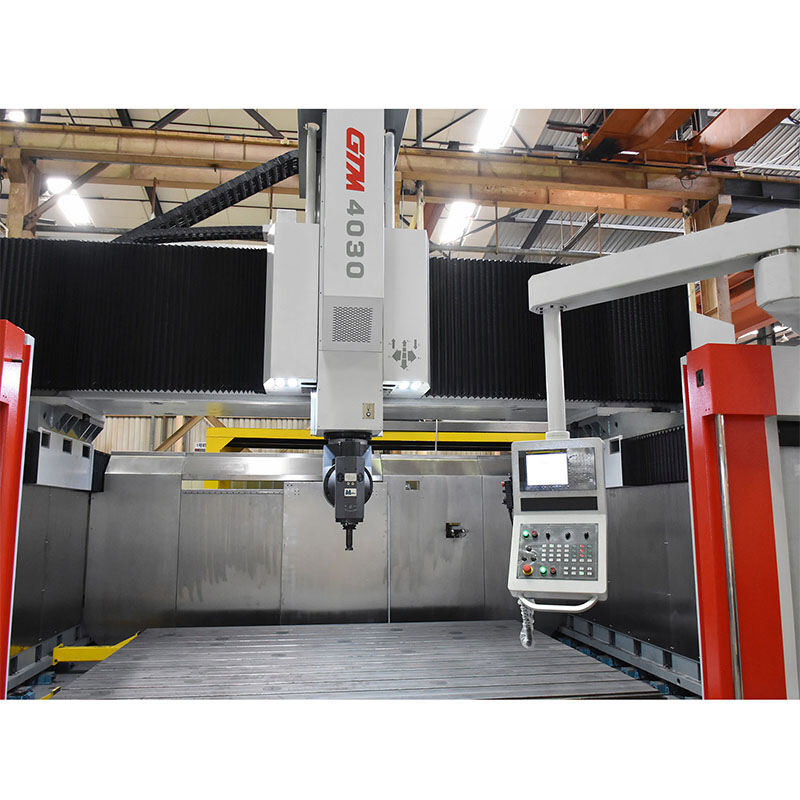

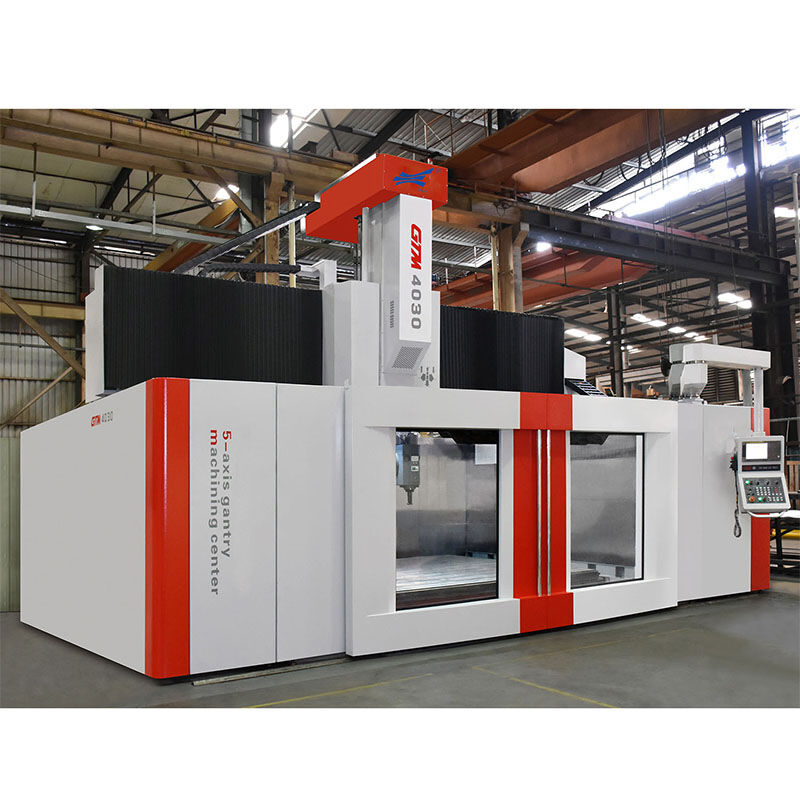

High-Powered GTM4030 CNC Gantry Machining Center for Versatile Milling, Drilling and Large-Scale Production
High-Powered GTM4030 CNC Gantry Machining Center for Versatile Milling, Drilling and Large-Scale Production
Gtm4030 CNC machine high-powered
Premium CNC machine versatile-use
CNC machine Gtm4030 with warranty
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
GTM4030
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Transport Package:
Pallet
Specification:
4550*3827*3245
Trademark:
Queenly
Origin:
China
HS Code:
84601100
Production Capacity:
200sets/Month
Highlight:
Gtm4030 CNC machine high-powered
,Premium CNC machine versatile-use
,CNC machine Gtm4030 with warranty
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Product Introduction
This is a series of high-performance CNC machine tools, including models such as GTM3020, GTM3030, GTM4030, and GTM4080. These machines are engineered with precise axis travels (X, Y, Z axes) to ensure accurate positioning during machining operations. They boast a spacious worktable, providing ample room for handling various workpieces. The s-pindle is powerful, enabling efficient cutting and milling tasks.
Equipped with advanced milling heads, these machine t-ools offer excellent angular positioning accuracy, allowing for complex machining operations. They also feature fast traversing speeds, which contribute to enhanced productivity. An optional tool magazine is available, facilitating automatic tool changes and further improving operational efficiency. Driven by the reliable FANUC 0i - MF PLUS CNC system, these machine tools provide stable and precise control, making them well-suited for a wide range of industrial applications, from precision component manufacturing to large-scale pr-oduction tasks.
|
Model
|
GMT3020
|
GMT3030
|
GMT4030
|
GMT4080
|
|
Travel
|
|
|
|
|
|
X axis
|
2000 mm
|
3000 mm
|
3000 mm
|
8000 mm
|
|
Y axis
|
3000 mm
|
3000 mm
|
4000 mm
|
4000 mm
|
|
Z axis
|
1000 mm
|
1250 mm
|
1250 mm
|
1250 mm
|
|
Spindle nose to worktable
|
250 - 1250 mm
|
400 - 1650 mm
|
400 - 1650 mm
|
400 - 1650 mm
|
|
Distance between the columns
|
4000 mm
|
4000 mm
|
5000 mm
|
5000 mm
|
|
Worktable
|
|
|
|
|
|
Worktable size
|
2500 x 2000 mm
|
2500 x 2800 mm
|
3500 x 2800 mm
|
3500 x 8000 mm
|
|
T - slot
|
22 x 250 mm
|
22 x 250 mm
|
22 x 250 mm
|
22 x 250 mm
|
|
Max. loading capacity
|
8 ton/m²
|
8 ton/m²
|
8 ton/m²
|
8 ton/m²
|
|
Spindle
|
|
|
|
|
|
Spindle bore taper
|
BT50
|
BT50
|
BT50
|
BT50
|
|
Max. spindle speed
|
5000 rpm
|
5000 rpm
|
4000 rpm
|
4000 rpm
|
|
Spindle power
|
22/26 kW
|
22/26 kW
|
22/26 kW
|
22/26 kW
|
|
Milling Head
|
|
|
|
|
|
Rotating angle
|
A = ±135°; C = ±180°
|
A = ±135°; C = ±180°
|
A = ±180°; C = ±180°
|
A = ±180°; C = ±180°
|
|
Angle positioning accuracy
|
A = ±3 sec; C = ±3 sec
|
A = ±3 sec; C = ±3 sec
|
A = ±5 sec; C = ±5 sec
|
A = ±5 sec; C = ±5 sec
|
|
Minimum indexing unit
|
2.5° / 1°
|
2.5° / 1°
|
0.001°
|
0.001°
|
|
Maximum spindle torque
|
1100 N.m
|
1100 N.m
|
600 N.m
|
600 N.m
|
|
Speed
|
|
|
|
|
|
Rapid traverse rate
|
10 m/min
|
10 m/min
|
10 m/min
|
10 m/min
|
|
Machining speed
|
10 m/min
|
10 m/min
|
10 m/min
|
10 m/min
|
|
Tool magazine (Optional)
|
|
|
|
|
|
Pocket quantity
|
32 pcs / 64 pcs
|
32 pcs / 64 pcs
|
32 pcs / 64 pcs
|
32 pcs / 64 pcs
|
|
Max. tool diameter
|
125 mm
|
125 mm
|
125 mm
|
125 mm
|
|
Without adjacent tool
|
250 mm
|
250 mm
|
250 mm
|
250 mm
|
|
Max. tool weight
|
20 kg
|
20 kg
|
20 kg
|
20 kg
|
|
Size & Weight
|
|
|
|
|
|
Total power requirement (L x W x H)
|
6500 x 7500 x 5700 mm
|
6500 x 8500 x 5900 mm
|
7500 x 8500 x 5900 mm
|
7500 x 13500 x 5900 mm
|
|
Machine weight
|
45 ton
|
50 ton
|
55 ton
|
70 ton
|
|
CNC system
|
FANUC 0i - MF PLUS
|
FANUC 0i - MF PLUS
|
FANUC 0i - MF PLUS
|
FANUC 0i - MF PLUS
|
|
The above parameters for reference only, subject to Technical Agreement.
|
|
|
|
|
1. What is the GTM4030 CNC Gantry Machining Center used for?
The GTM4030 CNC Gantry Machining Center is mainly used for milling, drilling, boring, tapping, contour machining, and precision processing of medium and large workpieces. It is suitable for molds, large plates, machinery parts, structural components, and customized industrial workpieces.
2. What models are available in the GTM series?
The GTM series includes GTM3020, GTM3030, GTM4030, and GTM4080. Different models provide different machining ranges, worktable sizes, and processing capacities to meet different production requirements.
3. Why is the GTM4030 suitable for versatile machining?
The GTM4030 combines a powerful spindle, precise axis travel, spacious worktable, advanced milling head, and optional tool magazine. It can support milling, drilling, boring, tapping, angled machining, contour machining, and multi-face processing.

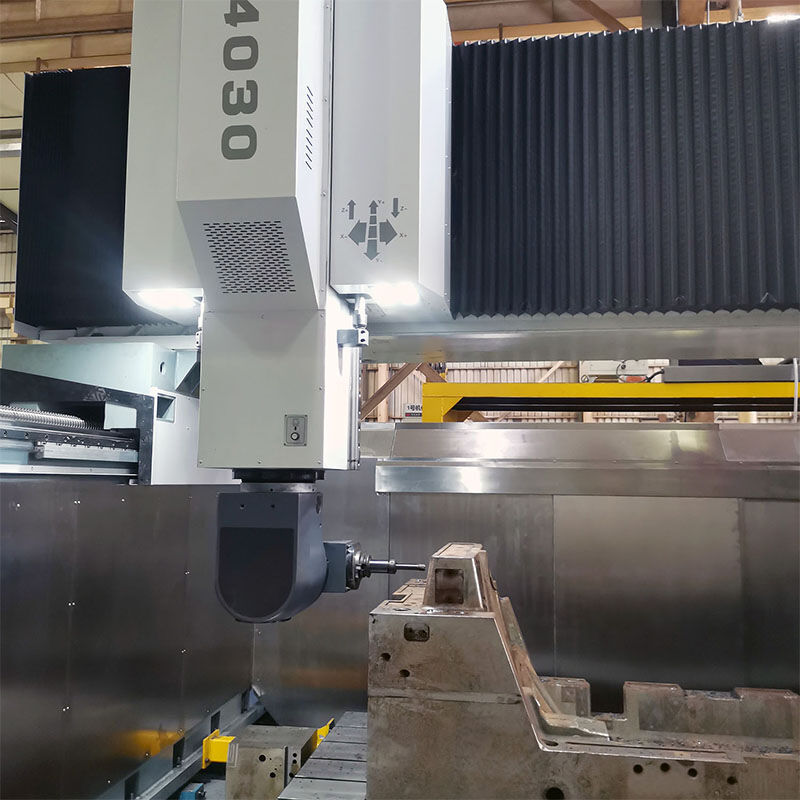

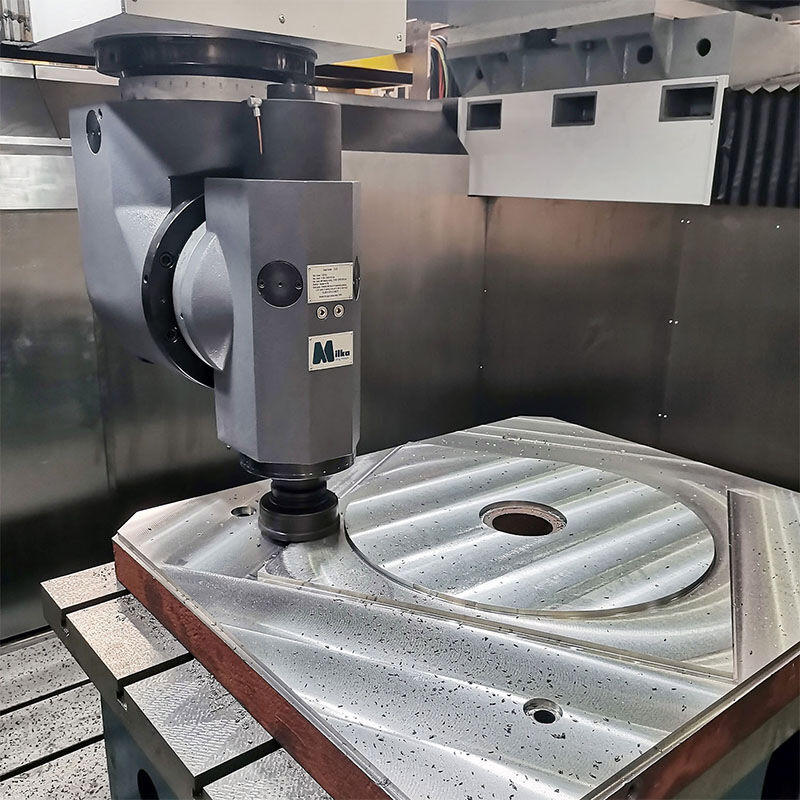

4. What are the advantages of the advanced milling head?
The advanced milling head provides excellent angular positioning accuracy, allowing the machine to process angled surfaces, complex contours, mold cavities, and multi-face workpieces with higher flexibility.
5. What control systems do you use on your machines?
We can provide different control systems according to customer requirements, such as Siemens, GSK, FANUC, and other reliable CNC control brands.
6. How can I choose the most suitable machine?
Please tell us the machine model, technical parameters, workpiece material, processing size, accuracy requirements, or production needs. You can also send us product drawings or pictures, and our team will recommend the most suitable machine configuration.
7. Can the machines be customized according to customer requirements?
Yes. We support customization of machining range, spindle power, worktable size, tool magazine, milling head configuration, control system, fixture configuration, protective cover, chip removal system, and other machine specifications according to your production needs.
