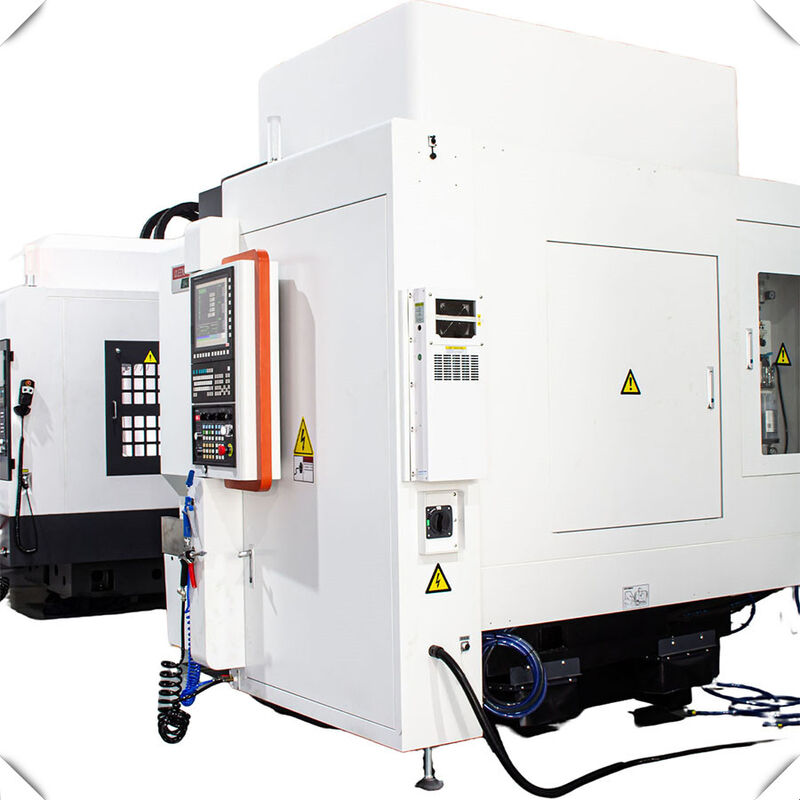

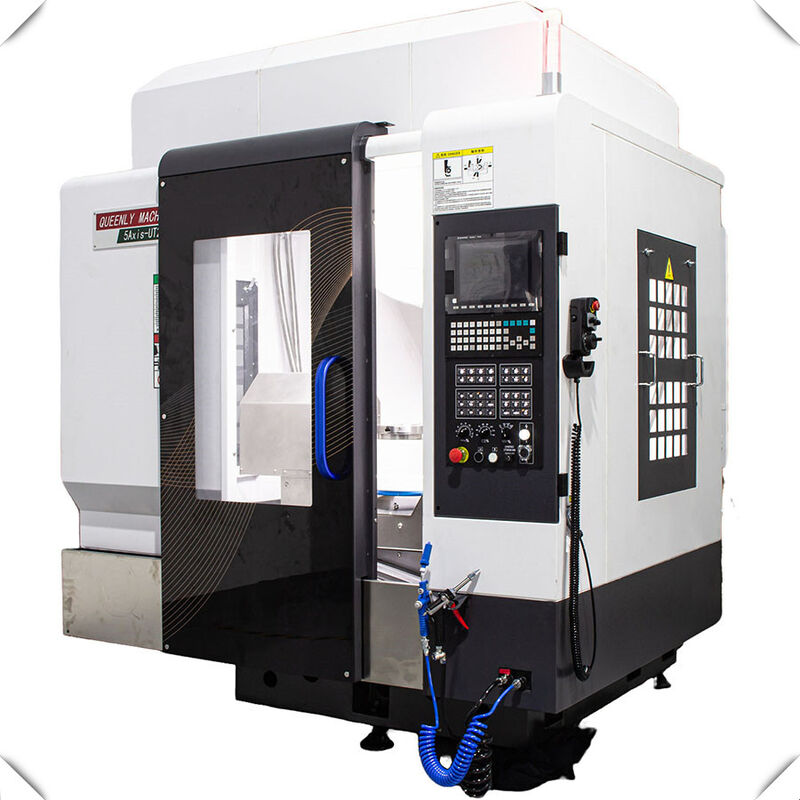

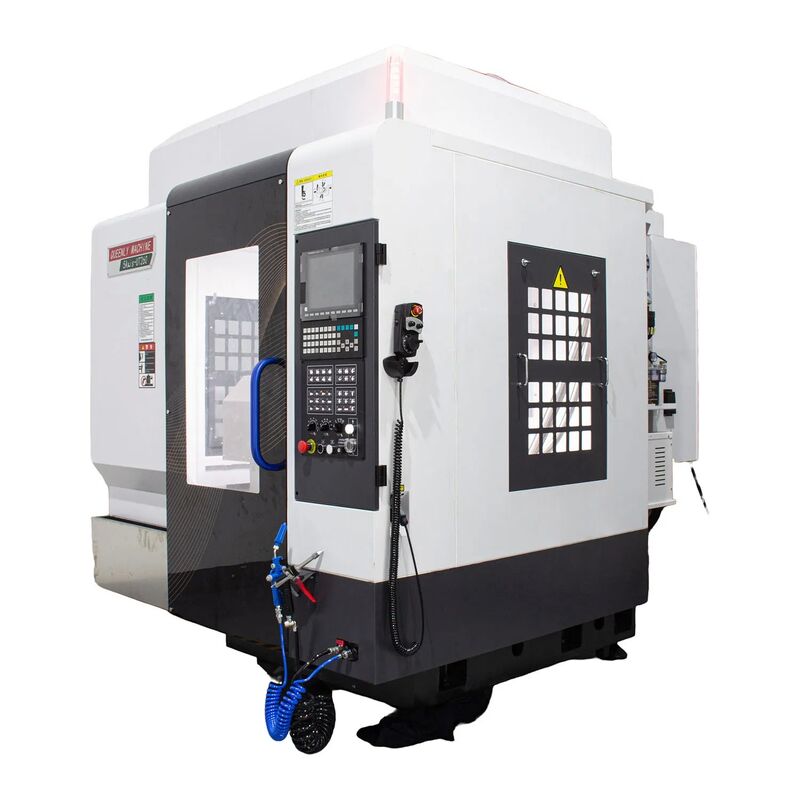

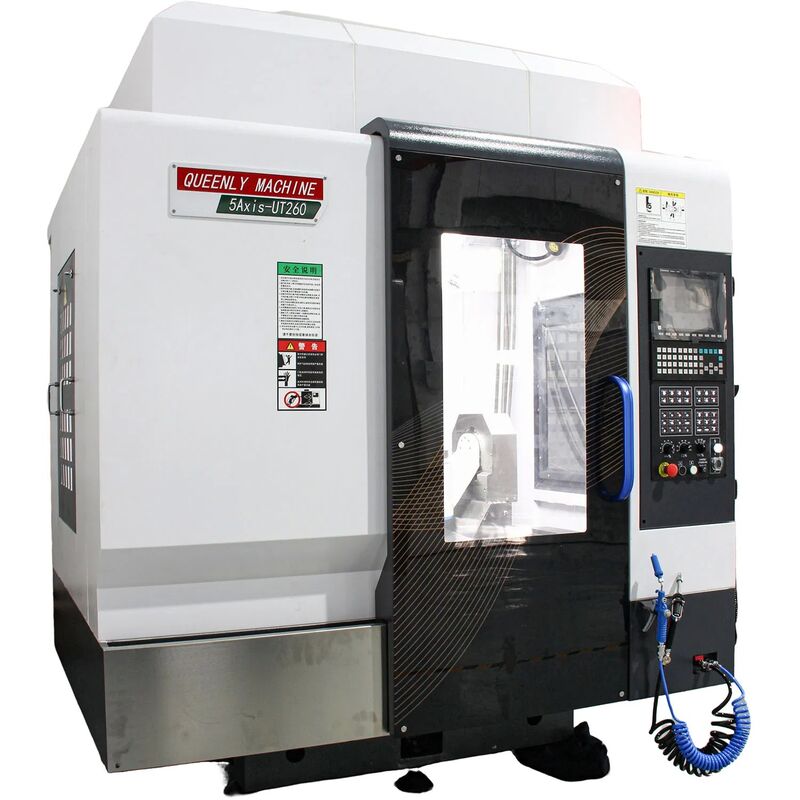

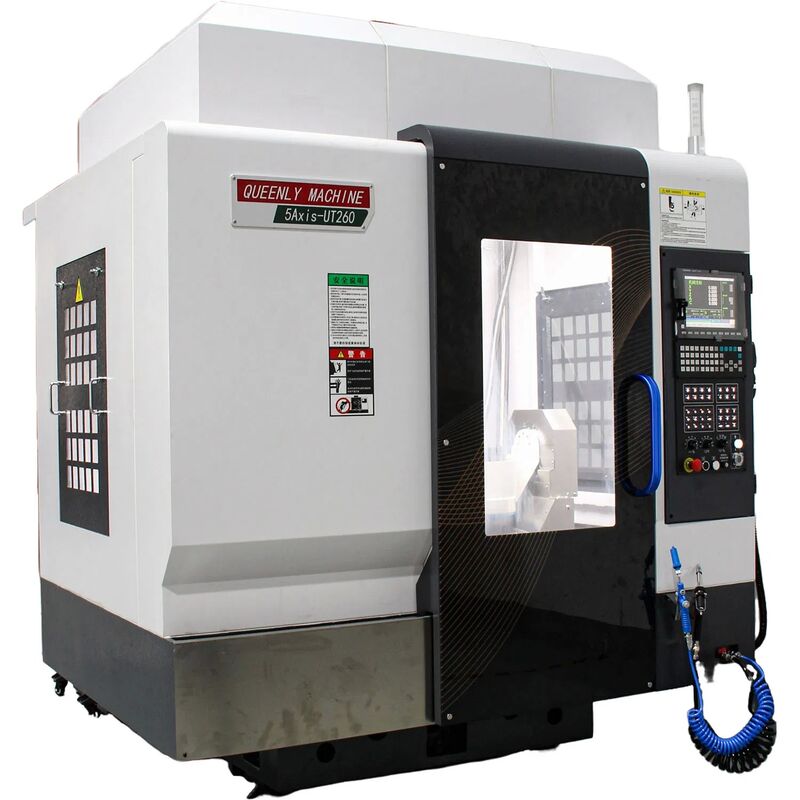

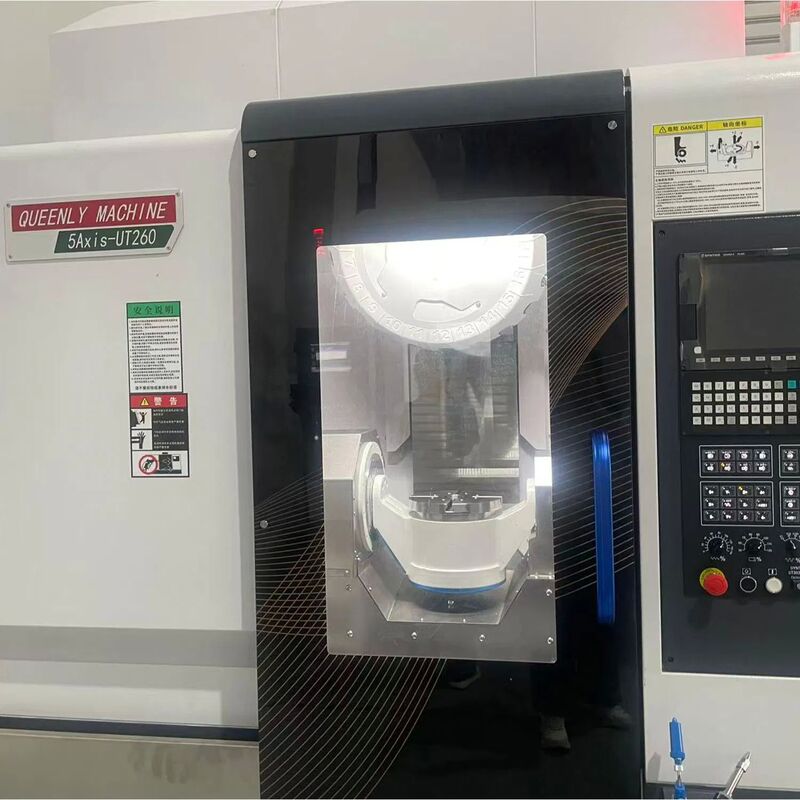

Robust UT260 5-Axis CNC Machining Center for Durable Precision Milling and Heavy-Duty Cutting
Robust UT260 5-Axis CNC Machining Center for Durable Precision Milling and Heavy-Duty Cutting
5-axis CNC machine with warranty
durable five-axis CNC machine
Robust 5axis-Ut260 CNC machine
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
UT260
Application:
Glass
Process Usage:
Metal-Cutting CNC Machine Tools
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
35days
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Highlight:
5-axis CNC machine with warranty
,durable five-axis CNC machine
,Robust 5axis-Ut260 CNC machine
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Product Introduction
The UT260 is a precision-focused machining solution tailored for demanding manufacturing scenarios. It boasts a well-designed worktable that provides a stable foundation for workpiece placement, paired with a set of axes that offer amp-le movement range to accommodate various part sizes and machining requirements. At its core, the spindle delivers ro-bust performance, supporting both high-speed finishing operations and steady heavy-cutting tasks, thanks to a power-ful servo main motor that ensures consistent power output.
To enhance machining efficiency, the UT260 is equipped with a disc-type tool magazine featuring a servo arm design, which enables quick tool changes to minimize non-cutting time, keeping production processes flowing smoothly. Its a-ccuracy is a standout feature, with precise positioning and repeat positioning capabilities across key axes, ensuring th-at even complex parts are machined with consistent, high-quality results.
The machine also prioritizes practicality and durability in its design. It includes a fully enclosed protective cover to mai-ntain a clean, safe working environment, along with efficient chip removal and coolant systems that prevent interferen-ce during operation and protect critical components. Additionally, the use of reliable guideway structures and effective spindle cooling/protection mechanisms ensures long-term stable performance, making the UT260 a dependable choice for businesses seeking to meet strict precision standards and maintain consistent productivity in their machining ope-rations.
Key Features
- Robust UT260 5-axis CNC machining center for durable production
- Suitable for precision milling, high-speed finishing, and heavy-duty cutting
- Stable worktable design for reliable workpiece placement and clamping
- Wide axis movement range for different part sizes and machining needs
- Powerful spindle system driven by a strong servo main motor
- Consistent power output for rough machining and precision finishing
- Disc-type tool magazine with servo arm design for fast automatic tool changing
- Reduces non-cutting time and improves machining efficiency
- Precise positioning and repeat positioning performance across key axes
- Fully enclosed protective cover for clean and safe operation
- Efficient chip removal and coolant systems reduce machining interference
- Reliable guideway structures support long-term stable performance
- Spindle cooling and protection mechanisms improve machine durability
|
NO.
|
Item
|
Unit
|
Data
|
|
1
|
Worktable Size (Table Diameter)
|
mm
|
260
|
|
2
|
T-Slot
|
mm
|
/
|
|
3
|
T-Slot Pitch
|
mm
|
/
|
|
4
|
Rotary Table Maximum Load
|
kg
|
30KG
|
|
5
|
X-Axis Left-Right Travel
|
mm
|
420
|
|
6
|
Y-Axis Travel
|
mm
|
400
|
|
7
|
Z-Axis Travel
|
mm
|
320
|
|
8
|
Distance from Spindle Center to Column Guide Surface
|
mm
|
420
|
|
9
|
Distance from Spindle Nose to Rotary Table
|
mm
|
90-410
|
|
10
|
Spindle Taper
|
-
|
BT30-100
|
|
11
|
Spindle Speed Range
|
r/min
|
Direct-Drive Type, 0–20000 rpm
|
|
12
|
Main Motor Model
|
-
|
S08-M7.5-20B4-0C0
|
|
13
|
Rated Power of Servo Main Motor
|
kw
|
5.5
|
|
14
|
30-Minute Maximum Power of Servo Main Motor
|
kw
|
7.5
|
|
15
|
Continuous Rated Torque of Servo Main Motor
|
Nm
|
17.51/Max 23.8
|
|
16
|
Spindle Component Dynamic Balancing Method
|
-
|
G1
|
|
17
|
Spindle Accuracy
|
-
|
Spindle Nose Runout: 0.003 mm; Spindle Radial Runout: Near End 0.003 mm
|
|
18
|
Tool Holder Standard
|
-
|
BT30
|
|
19
|
Pull Stud Standard
|
-
|
P30(45º)
|
|
20
|
X/Y-Axis Feed Motor Model
|
-
|
AM11
|
|
21
|
X/Y-Axis Feed Motor Max. Speed
|
r/min
|
4000
|
|
22
|
Rated Power of X/Y-Axis Feed Motor
|
kw
|
2.4
|
|
23
|
Stall Torque of X/Y-Axis Feed Motor
|
Nm
|
11.5
|
|
24
|
Z-Axis Feed Motor Model
|
-
|
AM18
|
|
25
|
Maximum Speed of Z-Axis Feed Motor
|
r/min
|
3000
|
|
26
|
Rated Power of Z-Axis Feed Motor
|
kw
|
3.9
|
|
27
|
Stall Torque of Z-Axis Feed Motor
|
Nm
|
18.6
|
|
28
|
X/Y-Axis Rapid Traverse
|
m/min
|
60
|
|
29
|
Z-Axis Rapid Traverse
|
m/min
|
48
|
|
30
|
A-Axis Rapid Traverse
|
Rpm/min
|
200
|
|
31
|
C-Axis Rapid Traverse
|
Rpm/min
|
300
|
|
32
|
Cutting Feed Rate
|
mm/min
|
15000
|
|
33
|
Tool Magazine Type (Servo Arm Type)
|
-
|
Disc Type
|
|
34
|
Tool Magazine Capacity (Servo Arm Type)
|
pcs
|
21
|
|
35
|
Maximum Tool Diameter with Full Magazine (Servo Arm Type)
|
mm
|
∅80
|
|
36
|
Maximum Tool Diameter with Adjacent Empty Slots (Servo Arm Type)
|
mm
|
∅150
|
|
37
|
Maximum Allowable Tool Weight (Servo Arm Type)
|
kg
|
3
|
|
38
|
Maximum Allowable Tool Length (Servo Arm Type)
|
mm
|
150
|
|
39
|
Tool-to-Tool Change Time (Servo Arm Type)
|
s
|
1.8
|
|
40
|
Tool Selection Method (Servo Arm Type)
|
-
|
Nearest Tool Selection by Clockwise
|
|
41
|
Total Electrical Capacity of Machine (Power Source)
|
KVA
|
30
|
|
42
|
Coolant Pump Flow Rate (Power Source)
|
L/min
|
40(Head:18m)
|
|
43
|
Compressed Air for Machine (Power Source)
|
Kgf/cm²
|
6-8
|
|
44
|
Power Supply Requirement (Power Source)
|
-
|
380V±10% 50Hz
|
|
45
|
Ambient Temperature Requirement (Environmental Requirements)
|
-
|
0℃-40℃
|
|
46
|
Relative Humidity (Environmental Requirements)
|
-
|
20%-80%
|
|
47
|
Overall Machine Dimensions (Machine Dimensions)
|
mm
|
235019502750
|
|
48
|
Machine Weight (Machine Dimensions)
|
kg
|
3300
|
|
49
|
Machine Protective Cover (Machine Dimensions)
|
-
|
Fully Enclosed
|
|
50
|
X/Y/Z Positioning Accuracy (Accuracy)
|
mm
|
±0.005
|
|
51
|
X/Y/Z Repeat Positioning Accuracy (Accuracy)
|
mm
|
±0.005
|
|
52
|
A/C Axis Positioning Accuracy (Accuracy)
|
arcsec
|
6 arc seconds
|
|
53
|
Guideway Type (Others)
|
-
|
X30*4 Ball Linear Guideway with Slider; Y30*4 Ball Linear Guideway with Slider; Z Ball Linear Guideway with Slider; Linear Guideway and Slider Type
|
|
54
|
Chip Removal Method (Others)
|
-
|
Front Coolant Flood / Rear Chip Removal
|
|
55
|
Cleaning Method (Others)
|
-
|
Manual Air Gun / Chip-Cleaning Coolant Gun
|
|
56
|
Spindle Protection / Cooling Method (Others)
|
-
|
Coolant Spray / Machining Air Blow
|
FAQ
1. What is the UT260 5-Axis CNC Machining Center used for?
The UT260 is mainly used for precision milling, high-speed finishing, heavy-duty cutting, complex parts processing, mold machining, and customized industrial workpiece production.
2. Why is the UT260 considered a robust CNC machine?
The UT260 combines a stable worktable, powerful spindle system, reliable guideway structure, full protective cover, efficient chip removal, and spindle cooling protection. These features support durable and stable long-term machining.
3. Can the UT260 handle heavy-duty cutting?
Yes. The machine is equipped with a robust spindle system and a powerful servo main motor, allowing it to support both high-speed finishing and steady heavy-duty cutting operations.
4. What is the advantage of the disc-type tool magazine?
The disc-type tool magazine with servo arm design enables fast and stable automatic tool changing. It reduces tool change time, minimizes non-cutting time, and improves machining efficiency during multi-process production.
5. How does the UT260 maintain machining accuracy?
The UT260 uses precise positioning, repeat positioning capability, stable guideway structures, reliable spindle output, coolant support, and spindle cooling protection to maintain consistent machining accuracy.
6. How can I choose the most suitable machine configuration?
Please provide your workpiece material, processing size, accuracy requirements, machining functions, production capacity, or machine model. You can also send product drawings or pictures, and our team will recommend a suitable configuration.
7. Can the machine be customized according to customer requirements?
Yes. We support customization of machining range, spindle power, tool magazine, control system, fixture configuration, coolant system, chip removal system, protective cover, guideway structure, spindle cooling system, and other machine specifications according to customer production needs.
