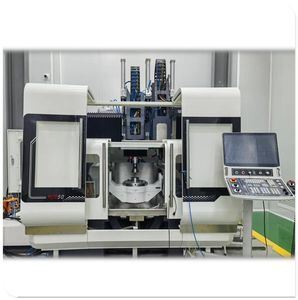

HCG50 5+1 Axis Optical Precision Milling and Grinding Center with Siemens SINUMERIK CNC Control for High-Accuracy Optical Components

HCG50 5+1 Axis Optical Precision Milling Center Developed CO.,LTD., the HCG50 5+1 Axis Optical Precision Milling Center is a versatile and high-performance solution for optical component machining. It integr-ates coarse-to-fine grinding capabilities with dual grinding spindles, boosting efficiency and reliability while ensuring ex-ceptional precision—easily achieving surface form accuracy of PV 5µm.

Featuring a 6-axis, 5-linkage system, this center excels at processing complex components like spherical workpieces (up to 300mm diameter), aspherical workpieces (up to 450mm diameter), and prisms (max rotational diameter 480-mm). It comes with proprietary CAM software and a suite of advanced components, including the Renishaw OMP 40-2 tool measurement system for automatic tool wear compensation, and a Sinumerik CNC system for smooth operation.

Suitable for machining various materials such as fused quartz, H-K9L glass, monocrystalline silicon, and S136 stainless steel, the HCG50 delivers fine ground surfaces and high-precision results, making it a trusted choice for optical precisi-on machining needs.

• HCG50 5+1 axis optical precision milling and grinding center
• Suitable for spherical, aspherical, prism, and optical mold machining
• Dual grinding spindles for coarse-to-fine grinding operations
• Surface form accuracy can reach PV 5μm under suitable conditions
• Processes spherical workpieces up to 300mm diameter
• Processes aspherical workpieces up to 450mm diameter
• Supports prism machining with max rotational diameter of 480mm
• Proprietary CAM software for accurate tool path planning
• Renishaw OMP40-2 tool measurement system for automatic tool wear compensation
• Siemens SINUMERIK CNC system for smooth and stable operation
• Suitable for fused quartz, H-K9L glass, monocrystalline silicon, and S136 stainless steel
• Designed for optical lenses, optical molds, prisms, and precision components

The HCG50 is mainly used for precision milling and grinding of optical components, including spherical workpieces, aspherical parts, prisms, optical molds, precision glass components, and other high-accuracy optical workpieces.

The 5+1 axis structure provides flexible machining capability for complex optical surfaces. It improves tool accessibility, supports multi-angle machining, and helps achieve stable accuracy when processing spherical, aspherical, and prism components.

Under suitable machining conditions, the HCG50 can achieve surface form accuracy of PV 5μm, making it suitable for high-precision optical component manufacturing and optical mold processing.

The HCG50 can process fused quartz, H-K9L glass, monocrystalline silicon, S136 stainless steel, and other optical or engineering materials. The actual machining process depends on material properties, workpiece shape, grinding tools, and accuracy requirements.

The Renishaw OMP40-2 tool measurement system supports automatic tool wear compensation. It helps reduce manual adjustment errors, improve machining consistency, and maintain stable processing accuracy.

The machine is equipped with a Siemens SINUMERIK CNC system, which provides smooth operation, stable motion control, and reliable precision for complex optical machining tasks.

Yes. We support customization of machining range, spindle configuration, grinding tools, fixture system, CNC control system, CAM software functions, measurement system, cooling system, and other machine specifications according to customer production needs.
