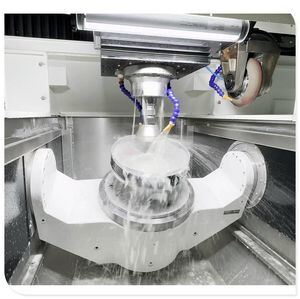

HCG50 5+1-Axis CNC Optical Precision Milling Center with 250 kg Load Capacity
HCG50 5+1-Axis CNC Optical Precision Milling Center with 250 kg Load Capacity
5+1 axis CNC milling machine
250kg load CNC machine
optical precision milling tool
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
HCG50
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Transport Package:
Pallet
Specification:
4550*3827*3245
Trademark:
Queenly
Origin:
China
HS Code:
84601100
Production Capacity:
200sets/Month
Highlight:
5+1 axis CNC milling machine
,250kg load CNC machine
,optical precision milling tool
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Product Introduction
HCG50 5+1 Axis Optical Precision Milling Center Developed CO.,LTD., the HCG50 5+1 Axis Optical Precision Milling Center is a versatile and high-performance solution for optical component machining. It integr-ates coarse-to-fine grinding capabilities with dual grinding spindles, boosting efficiency and reliability while ensuring ex-ceptional precision—easily achieving surface form accuracy of PV 5µm.
Featuring a 6-axis, 5-linkage system, this center excels at processing complex components like spherical workpieces (up to 300mm diameter), aspherical workpieces (up to 450mm diameter), and prisms (max rotational diameter 480-mm). It comes with proprietary CAM software and a suite of advanced components, including the Renishaw OMP 40-2 tool measurement system for automatic tool wear compensation, and a Sinumerik CNC system for smooth operation.
Suitable for machining various materials such as fused quartz, H-K9L glass, monocrystalline silicon, and S136 stainless steel, the HCG50 delivers fine ground surfaces and high-precision results, making it a trusted choice for optical precisi-on machining needs.
Key Features
- HCG50 5+1-axis CNC optical precision milling center
- Workpiece load capacity up to 250 kg
- Suitable for optical glass, fused quartz, monocrystalline silicon, crystal, and ceramic materials
- 5+1-axis structure supports curved surface and multi-angle machining
- Helps reduce repeated clamping and improve machining accuracy
- Rigid machine structure supports stable processing of medium-sized precision workpieces
- Suitable for spherical surfaces, aspherical surfaces, prisms, glass molds, and optical components
- Supports precision milling, grinding, contour machining, and surface finishing
- CNC control improves repeatability and machining consistency
- Machine configuration can be customized according to workpiece and process requirements
|
Machining Range
|
|
|
|
X-Axis Travel
|
mm
|
550
|
|
Y-Axis Travel
|
mm
|
600
|
|
Z1-Axis Travel
|
mm
|
300
|
|
Z2-Axis Travel
|
mm
|
300
|
|
Drive Type of X/Y/Z1/Z2 Axes
|
|
Linear Motor
|
|
Motion Axes
|
|
|
|
Rated Power of X/Y/Z1/Z2 Axes
|
kW
|
|
|
Maximum Rapid Feed Rate (X/Y/Z1/Z2)
|
m/min
|
20/10/7.5/7.5
|
|
Maximum Acceleration (X/Y/Z1/Z2)
|
m/s^2
|
5/5/5/5
|
|
Positioning Accuracy (X/Y/Z1/Z2)
|
mm
|
±0.003
|
|
Axis Repeatability (X/Y/Z1/Z2)
|
mm
|
±0.002
|
|
Cradle Rotary Table
|
|
|
|
Table Diameter
|
mm
|
∅400
|
|
Cradle Span
|
mm
|
750
|
|
C-Axis Maximum Speed
|
rpm
|
550
|
|
Rotation Angle
|
°
|
Any Angle
|
|
Rotational Accuracy
|
"
|
±5(optional±2.5)
|
|
A-Axis Maximum Speed
|
rpm
|
100
|
|
Rated Torque
|
N.m
|
500
|
|
Rotation Angle
|
°
|
±90
|
|
Rotational Accuracy
|
"
|
±5(optional±2.5)
|
|
Spindle
|
|
|
|
Spindle Type
|
|
HSK-A63
|
|
Spindle Maximum Speed
|
rpm
|
20000
|
|
Spindle Motor Power (S1/S6)
|
kW
|
20/30
|
|
Spindle Motor Torque (S1/S6)
|
N.m
|
30.7/46
|
|
Fine Grinding Spindle Maximum Speed
|
rpm
|
8000
|
|
Fine Grinding Spindle Motor Power (S1/S6)
|
kW
|
8.5/11.8
|
|
Fine Grinding Spindle Motor Torque (S1/S6)
|
N.m
|
8.4/11.2
|
|
Tool System
|
|
|
|
Maximum Wheel Size
|
mm
|
25 *∅200
|
|
Internal Cooling Pressure
|
bar
|
20
|
|
Power Source
|
|
|
|
Power Supply
|
kVA
|
75
|
|
Air Supply
|
bar
|
8 (Clean & Dry)
|
|
Others
|
|
|
|
Overall Dimensions (L * W * H)
|
mm
|
355028002550
|
|
Weight
|
kg
|
13000
|
|
1
|
CNC System
|
Sinumerik 840 Digital
|
Panel Size: 307 mm
|
|
2
|
Linear Scale / Encoder
|
Renishaw
|
|
|
3
|
Five-Axis Cradle Rotary Table
|
Shengchang PESDTT400LA-EW6TL2
|
|
|
4
|
Through-Spindle Coolant
|
DGZX-15020 / 20D-KFHWJLS
|
|
|
5
|
Spindle Water Cooling
|
LW-120PTE-36 Water Chiller
|
|
|
6
|
Oil Mist Separator
|
800 - 1100m³/h
|
|
|
7
|
Oil-Water Separator
|
|
|
|
8
|
Wireless Probe
|
Renishaw OMP40-2
|
|
|
X-Axis Motor
|
1FK2208-3AC01-0MB0
|
Siemens
|
|
|
Y-Axis Motor
|
MLP200C-0090-FS-NOCN-NNNN
|
|
Linear Motor
|
|
Z-Axis Motor
|
MLP100A-xxxx-FS-NOCN-NNNN
|
|
Linear Motor
|
|
Spindle Motor
|
1PH8083-1SN02-0MA1
|
Siemens
|
Z2 Spindle Motor
|
|
X-Axis Linear Guide
|
RGH35CA3R2380ZBP Ⅱ
|
HIWIN
|
|
|
Y-Axis Linear Guide
|
RGH35CA2R1570ZBP Ⅱ
|
HIWIN
|
|
|
Z-Axis Linear Guide
|
RGH30CA3R1000ZBP Ⅱ
|
HIWIN
|
|
|
X-Axis Ball Screw
|
SDA4016VAZS-5TTG0+1129LC3
|
THK
|
|
|
Chiller Pump
|
MS5-40/2
|
|
|
|
Lubrication System
|
4L (NW-2232-410XI)
|
|
|
|
Hydraulic System
|
LY-2.2KW-80L
|
|
|
|
Rotary Table
|
PESDTT400LA-EW6TL2
|
Shengchang
|
|
FAQ
1. What is the HCG50 5+1-Axis CNC Optical Precision Milling Center used for?
It is mainly used for optical component machining, optical glass milling, fused quartz processing, monocrystalline silicon machining, spherical and aspherical surface processing, prism machining, and high-accuracy precision material processing.
2. What does the 250 kg load capacity mean?
The 250 kg load capacity means the machine can support workpieces weighing up to 250 kg under suitable clamping and machining conditions, making it suitable for medium-sized optical molds, glass parts, quartz components, and precision workpieces.
3. Why use a 5+1-axis CNC machine for optical precision machining?
The 5+1-axis structure provides better machining flexibility, supports multi-angle processing, reduces repeated clamping, improves positioning accuracy, and helps maintain stable surface quality for complex optical components.
4. What materials can this machine process?
It can process optical glass, K9 glass, fused quartz, monocrystalline silicon, crystal materials, ceramics, S136 stainless steel, non-ferrous metals, and other precision materials depending on tooling and machining parameters.
5. Is this machine suitable for hard and brittle materials?
Yes. With suitable tools, stable machine rigidity, proper cooling, fixture design, and controlled machining parameters, it can process hard and brittle materials such as optical glass, quartz, ceramics, and monocrystalline silicon.
6. Can the machine configuration be customized?
Yes. Axis travel, spindle system, table size, load configuration, CNC control system, coolant system, fixture design, tool magazine, and other configurations can be customized according to production requirements.
7. What information is needed for quotation?
Please provide workpiece material, size, weight, drawing, machining process, required accuracy, surface quality requirement, production quantity, and preferred machine configuration.
