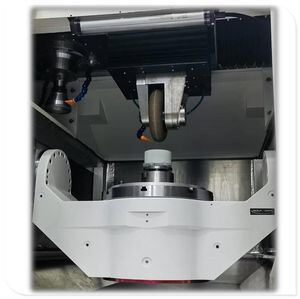

HCG50 5+1-Axis CNC Optical Precision Milling Center with PV 5 μm Surface Form Accuracy
HCG50 5+1-Axis CNC Optical Precision Milling Center with PV 5 μm Surface Form Accuracy
5+1 axis CNC milling machine
optical milling machine with 5μm accuracy
HCG50 CNC machine with warranty
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
HCG50
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Transport Package:
Pallet
Specification:
4550*3827*3245
Trademark:
Queenly
Origin:
China
HS Code:
84601100
Production Capacity:
200sets/Month
Highlight:
5+1 axis CNC milling machine
,optical milling machine with 5μm accuracy
,HCG50 CNC machine with warranty
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Product Introduction
HCG50 5+1 Axis Optical Precision Milling Center Developed CO.,LTD., the HCG50 5+1 Axis Optical Precision Milling Center is a versatile and high-performance solution for optical component machining. It integr-ates coarse-to-fine grinding capabilities with dual grinding spindles, boosting efficiency and reliability while ensuring ex-ceptional precision—easily achieving surface form accuracy of PV 5µm.
Featuring a 6-axis, 5-linkage system, this center excels at processing complex components like spherical workpieces (up to 300mm diameter), aspherical workpieces (up to 450mm diameter), and prisms (max rotational diameter 480-mm). It comes with proprietary CAM software and a suite of advanced components, including the Renishaw OMP 40-2 tool measurement system for automatic tool wear compensation, and a Sinumerik CNC system for smooth operation.
Suitable for machining various materials such as fused quartz, H-K9L glass, monocrystalline silicon, and S136 stainless steel, the HCG50 delivers fine ground surfaces and high-precision results, making it a trusted choice for optical precisi-on machining needs.
Key Features
- HCG50 5+1-axis CNC optical precision milling center
- Surface form accuracy up to PV 5 μm under suitable conditions
- Integrated coarse-to-fine grinding capability for optical machining
- Dual grinding spindles improve efficiency and process reliability
- 6-axis, 5-linkage system supports complex optical component processing
- Suitable for spherical workpieces up to 300 mm diameter
- Suitable for aspherical workpieces up to 450 mm diameter
- Supports prism machining with maximum rotational diameter of 480 mm
- Renishaw OMP40-2 tool measurement system supports automatic tool wear compensation
- Sinumerik CNC system provides smooth and stable machine operation
- Proprietary CAM software supports efficient optical machining programming
- Suitable for fused quartz, H-K9L glass, monocrystalline silicon, and S136 stainless steel
|
Machining Range
|
|
|
|
X-Axis Travel
|
mm
|
550
|
|
Y-Axis Travel
|
mm
|
600
|
|
Z1-Axis Travel
|
mm
|
300
|
|
Z2-Axis Travel
|
mm
|
300
|
|
Drive Type of X/Y/Z1/Z2 Axes
|
|
Linear Motor
|
|
Motion Axes
|
|
|
|
Rated Power of X/Y/Z1/Z2 Axes
|
kW
|
|
|
Maximum Rapid Feed Rate (X/Y/Z1/Z2)
|
m/min
|
20/10/7.5/7.5
|
|
Maximum Acceleration (X/Y/Z1/Z2)
|
m/s³
|
5/5/5/5
|
|
Positioning Accuracy (X/Y/Z1/Z2)
|
mm
|
±0.003
|
|
Axis Repeatability (X/Y/Z1/Z2)
|
mm
|
±0.002
|
|
Cradle Rotary Table
|
|
|
|
Table Diameter
|
mm
|
⌀400
|
|
Cradle Span
|
mm
|
750
|
|
C-Axis Maximum Speed
|
rpm
|
550
|
|
Rotation Angle
|
°
|
Any Angle
|
|
Rotational Accuracy
|
"
|
±5(optional±2.5)
|
|
A-Axis Maximum Speed
|
rpm
|
100
|
|
Rated Torque
|
N.m
|
500
|
|
Rotation Angle
|
°
|
±90
|
|
Rotational Accuracy
|
"
|
±5(optional±2.5)
|
|
Spindle
|
|
|
|
Spindle Type
|
|
HSK-A63
|
|
Spindle Maximum Speed
|
rpm
|
20000
|
|
Spindle Motor Power (S1/S6)
|
kW
|
20/30
|
|
Spindle Motor Torque (S1/S6)
|
N.m
|
30.7/46
|
|
Fine Grinding Spindle Maximum Speed
|
rpm
|
8000
|
|
Fine Grinding Spindle Motor Power (S1/S6)
|
kW
|
8.5/11.8
|
|
Fine Grinding Spindle Motor Torque (S1/S6)
|
N.m
|
8.4/11.2
|
|
Tool System
|
|
|
|
Maximum Wheel Size
|
mm
|
25 *⌀200
|
|
Internal Cooling Pressure
|
bar
|
20
|
|
Power Source
|
|
|
|
Power Supply
|
kVA
|
75
|
|
Air Supply
|
bar
|
8 (Clean & Dry)
|
|
Others
|
|
|
|
Overall Dimensions (L * W * H)
|
mm
|
355028002550
|
|
Weight
|
kg
|
13000
|
|
1
|
CNC System
|
Sinumerik 840 Digital
|
Panel Size: 307 mm
|
|
2
|
Linear Scale / Encoder
|
Renishaw
|
|
|
3
|
Five-Axis Cradle Rotary Table
|
Shengchang PESDTT400LA-EW6TL2
|
|
|
4
|
Through-Spindle Coolant
|
DGZX-15020 / 20D-KFHWJLS
|
|
|
5
|
Spindle Water Cooling
|
LW-120PTE-36 Water Chiller
|
|
|
6
|
Oil Mist Separator
|
800 - 1100m³⁄h
|
|
|
7
|
Oil-Water Separator
|
|
|
|
8
|
Wireless Probe
|
Renishaw OMP40-2
|
|
|
X-Axis Motor
|
1FK2208-3AC01-0MB0
|
Siemens
|
|
|
Y-Axis Motor
|
MLP200C-0090-FS-NOCN-NNNN
|
|
Linear Motor
|
|
Z-Axis Motor
|
MLP100A-xxxx-FS-NOCN-NNNN
|
|
Linear Motor
|
|
Spindle Motor
|
1PH8083-1SN02-0MA1
|
Siemens
|
Z2 Spindle Motor
|
|
X-Axis Linear Guide
|
RGH35CA3R2380ZBP Ⅱ
|
HIWIN
|
|
|
Y-Axis Linear Guide
|
RGH35CA2R1570ZBP Ⅱ
|
HIWIN
|
|
|
Z-Axis Linear Guide
|
RGH30CA3R1000ZBP Ⅱ
|
HIWIN
|
|
|
X-Axis Ball Screw
|
SDA4016VAZS-5TTG0+1129LC3
|
THK
|
|
|
Chiller Pump
|
MS5-40/2
|
|
|
|
Lubrication System
|
4L (NW-2232-410XI)
|
|
|
|
Hydraulic System
|
LY-2.2KW-80L
|
|
|
|
Rotary Table
|
PESDTT400LA-EW6TL2
|
Shengchang
|
|
FAQ
1. What is the HCG50 5+1-Axis CNC Optical Precision Milling Center used for?
It is mainly used for optical component machining, spherical and aspherical surface processing, prism machining, optical glass grinding, fused quartz machining, monocrystalline silicon processing, and high-accuracy optical part manufacturing.
2. What surface form accuracy can the HCG50 achieve?
Under suitable process conditions, the HCG50 can achieve surface form accuracy of up to PV 5 μm, making it suitable for precision optical machining applications.
3. What is the advantage of dual grinding spindles?
The dual grinding spindle design supports coarse-to-fine grinding, improving machining efficiency while maintaining stable surface quality and precision performance.
4. What does the Renishaw OMP40-2 system do?
The Renishaw OMP40-2 tool measurement system supports automatic tool measurement and tool wear compensation, helping improve machining consistency and reduce manual adjustment errors.
5. What workpiece sizes can this machine process?
It can process spherical workpieces up to 300 mm diameter, aspherical workpieces up to 450 mm diameter, and prisms with a maximum rotational diameter of 480 mm.
6. What materials can the HCG50 process?
It can process fused quartz, H-K9L optical glass, monocrystalline silicon, S136 stainless steel, and other precision materials depending on tooling, fixture design, coolant conditions, and machining parameters.
7. What information is needed for quotation?
Please provide workpiece material, size, drawing, surface type, required PV accuracy, surface quality requirement, machining process, production quantity, and preferred machine configuration.
