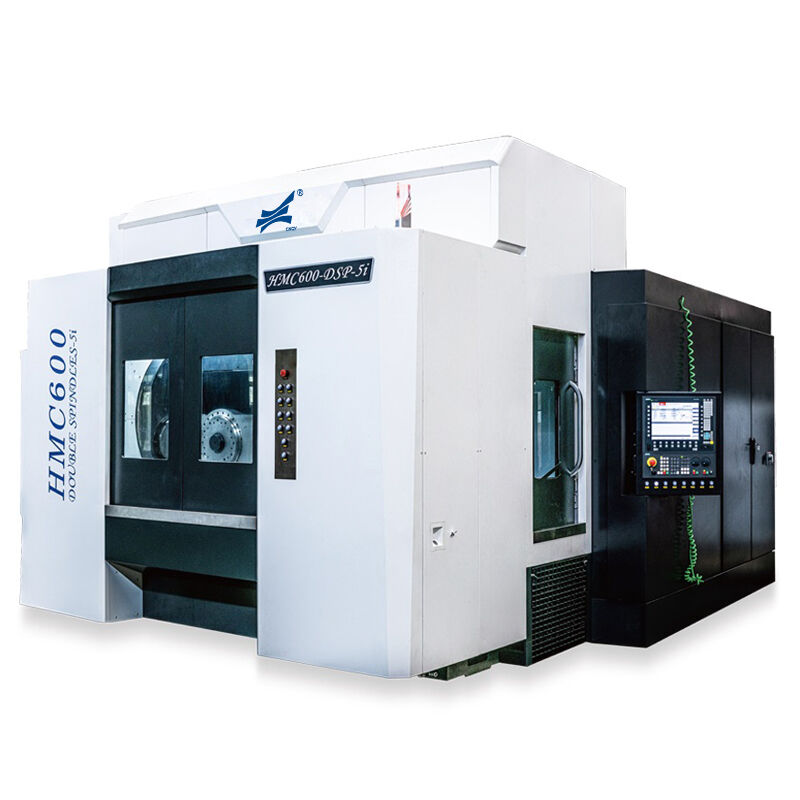

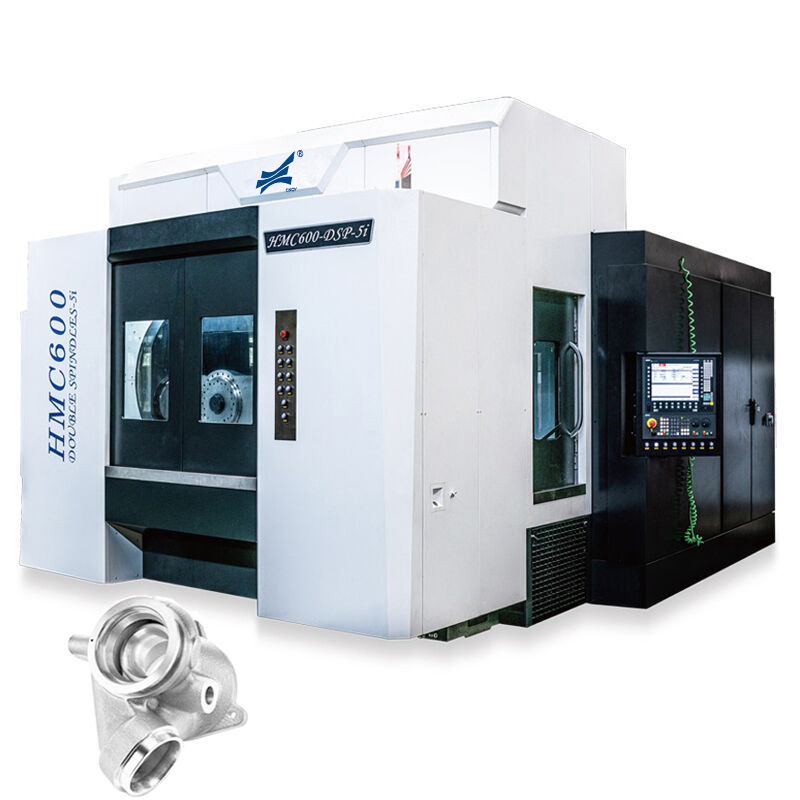

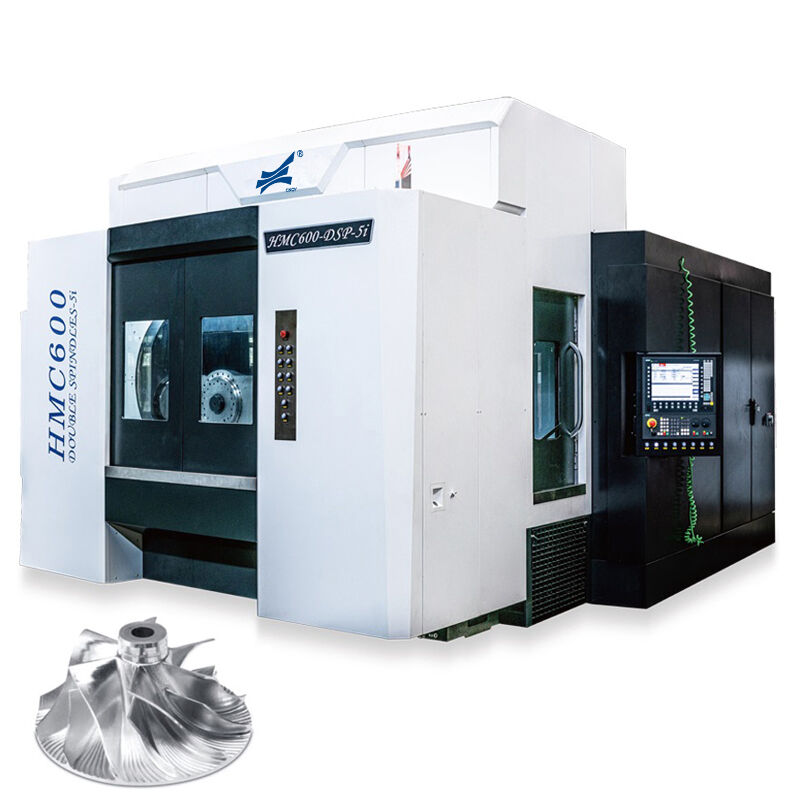

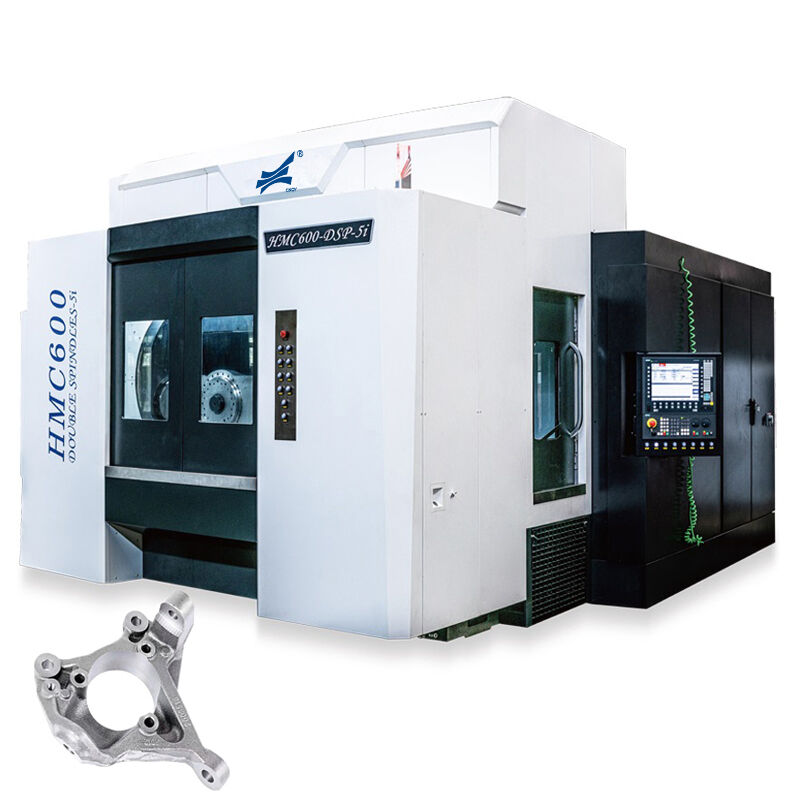

Industrial-Grade CNC Milling Machine for Precision Engineering and High-Accuracy Parts Manufacturing
Industrial-Grade CNC Milling Machine for Precision Engineering and High-Accuracy Parts Manufacturing
industrial CNC milling machine
precision engineering CNC machine
heavy-duty CNC milling equipment
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
QNCY25018
Application:
Glass
Process Usage:
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
60days
X-Axis Travel:
500mm
Y-Axis Travel:
750mm
Z-Axis Travel:
400mm
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
HS Code:
84571010
Production Capacity:
50sets/Month
Highlight:
industrial CNC milling machine
,precision engineering CNC machine
,heavy-duty CNC milling equipment
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Product Introduction
A CNC milling machine is a highly automated manufacturing device controlled by computer numerical control (CNC) sy-stems. It utilizes rotating cutting tools to remove material from a workpiece, enabling precise and complex machining operations.
Equipped with advanced control panels, it allows for programming of various machining paths, depths, and speeds. Thi-s machine is capable of handling a wide range of materials, from metals like aluminum and steel to plastics and comp-osites.
Its precision makes it indispensable in industries such as aerospace, automotive, and mold-making, where intricate and accurate parts are required. Whether for prototyping or large-scale production, the CNC milling machine significantly en-hances manufacturing efficiency and part quality.
Key Features
- Industrial-grade CNC milling machine for precision engineering
- Suitable for milling, drilling, tapping, boring, slotting, chamfering, and contour machining
- CNC control system supports accurate and automated machining
- Programmable machining paths, cutting depths, spindle speeds, and feed rates
- Helps reduce manual operation errors and improve repeatability
- Suitable for aluminum alloy, steel, stainless steel, cast iron, copper, plastics, and composites
- Stable machining performance for prototypes and batch production
- Capable of producing complex shapes and high-accuracy industrial parts
- Supports tight tolerance machining and smooth surface finishing
- Suitable for aerospace, automotive, mold, machinery, electronics, and medical industries
|
Item
|
Unit
|
Parameter
|
|
C-axis rapid feed
|
rpm/min
|
260
|
|
X/Y/Z axis positioning accuracy
|
mm
|
±0.008/300mm(JIS std.)
|
|
A/C axis positioning accuracy
|
arcsec
|
6 arcsec
|
|
Max. tool length
|
mm
|
150
|
|
Max. tool weight
|
Kg
|
8
|
|
Tool magazine type
|
-
|
Arm type tool magazine
|
|
Tool magazine capacity
|
-
|
32
|
|
Max. tool diameter
|
mm
|
Φ80
|
|
Air supply requirement
|
kg/cm
|
6
|
|
Machine footprint
|
mm
|
320028002600
|
|
Power requirement
|
Kw
|
20
|
|
Machine weight
|
kg
|
6000
|
|
C-axis rapid feed
|
rpm/min
|
260
|
|
X/Y/Z axis positioning accuracy
|
mm
|
±0.008/300mm (JIS std.)
|
|
A/C axis positioning accuracy
|
arcsec
|
6 arcsec
|
|
Max. tool length
|
mm
|
150
|
|
Max. tool weight
|
Kg
|
8
|
|
Tool magazine type
|
-
|
Arm type tool magazine
|
|
Tool magazine capacity
|
-
|
32
|
|
Max. tool diameter
|
mm
|
Φ80
|
|
Air supply requirement
|
kg/cm
|
6
|
|
Machine footprint
|
mm
|
320028002600
|
|
Power requirement
|
Kw
|
20
|
|
Machine weight
|
kg
|
6000
|
|
A-axis (Tilting)
|
|
|
|
Rated speed (rpm)
|
rpm
|
100
|
|
Max. speed (rpm)
|
rpm
|
200
|
|
Rated torque (N·m)
|
N·m
|
272
|
|
Max. torque (N·m)
|
N·m
|
461
|
|
Rated power (kW)
|
kW
|
2.65
|
|
Brake pressure (MPa)
|
MPa
|
0.5 - 0.6
|
|
Brake torque (N·m)
|
N·m
|
≥400
|
|
C-axis (Rotary)
|
|
|
|
Rated speed (rpm)
|
rpm
|
180
|
|
Max. speed (rpm)
|
rpm
|
260
|
|
Rated torque (N·m)
|
N·m
|
68
|
|
Max. torque (N·m)
|
N·m
|
260
|
|
Rated power (kW)
|
kW
|
1.3
|
|
Brake pressure (MPa)
|
MPa
|
0.5 - 0.6
|
|
Brake torque (N·m)
|
N·m
|
≥200
|
|
Others:
|
|
|
|
Table diameter
|
mm
|
320
|
|
Max. workpiece diameter
|
mm
|
500
|
|
Tilting range
|
deg
|
±110°
|
|
Keyway width
|
mm
|
12H7
|
|
Max. workpiece weight
|
kg
|
120
|
FAQ
1. What is the Industrial-Grade CNC Milling Machine used for?
The Industrial-Grade CNC Milling Machine is mainly used for precision milling, drilling, tapping, boring, slotting, chamfering, contour machining, and high-accuracy industrial parts manufacturing.
2. Why is this machine suitable for precision engineering?
This machine uses CNC control, stable spindle operation, precise axis movement, and programmable machining paths. These features help improve dimensional accuracy, repeatability, and finished part quality.
3. What materials can this machine process?
This CNC milling machine can process aluminum alloy, steel, stainless steel, cast iron, copper, plastics, composites, and other engineering materials. The actual machining capability depends on spindle power, cutting tools, machine configuration, and workpiece requirements.
4. What machining functions does the machine support?
The machine can support face milling, pocket milling, drilling, tapping, boring, slotting, chamfering, surface finishing, and complex contour machining according to different production needs.
5. What industries use CNC milling machines?
CNC milling machines are widely used in aerospace, automotive manufacturing, mold making, machinery manufacturing, electronics, medical device parts, prototype production, and custom precision engineering.
6. How can I choose the most suitable CNC milling machine?
Please provide your workpiece material, processing size, required accuracy, machining functions, production capacity, or machine model. You can also send drawings or product pictures, and our team will recommend the most suitable machine configuration.
7. Can the machine be customized according to customer requirements?
Yes. We support customization of machining range, spindle power, spindle speed, worktable size, control system, tool magazine, fixture configuration, cooling system, chip removal system, protective cover, and other machine specifications according to production needs.
