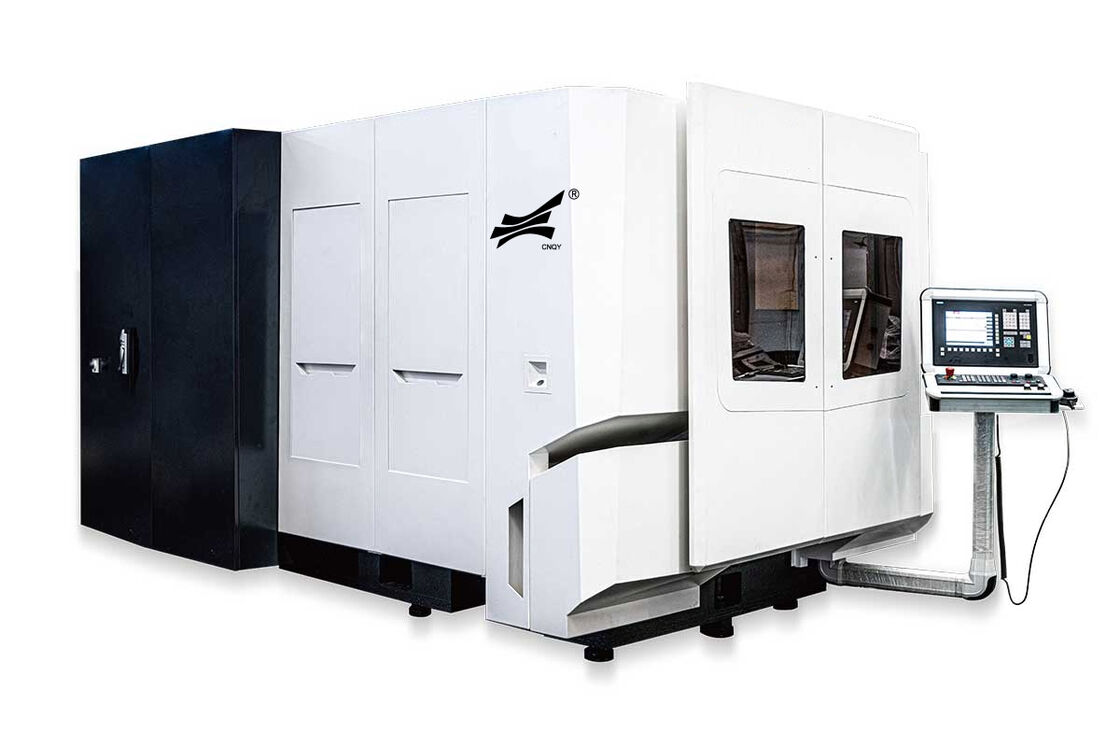

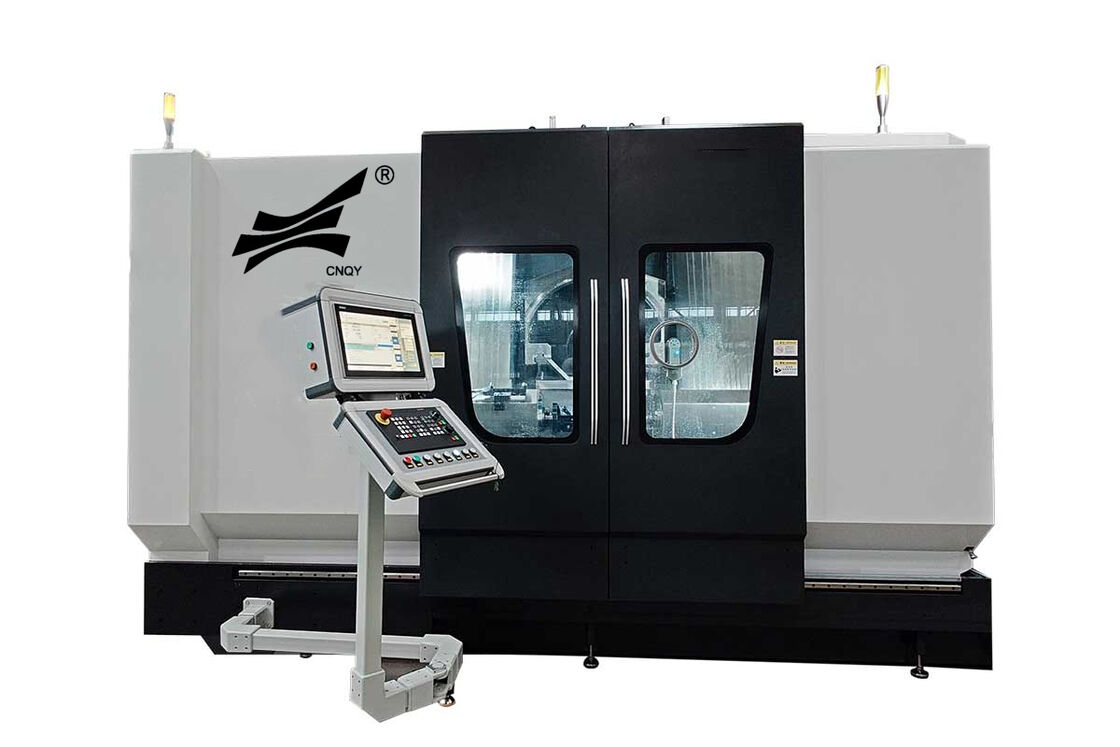

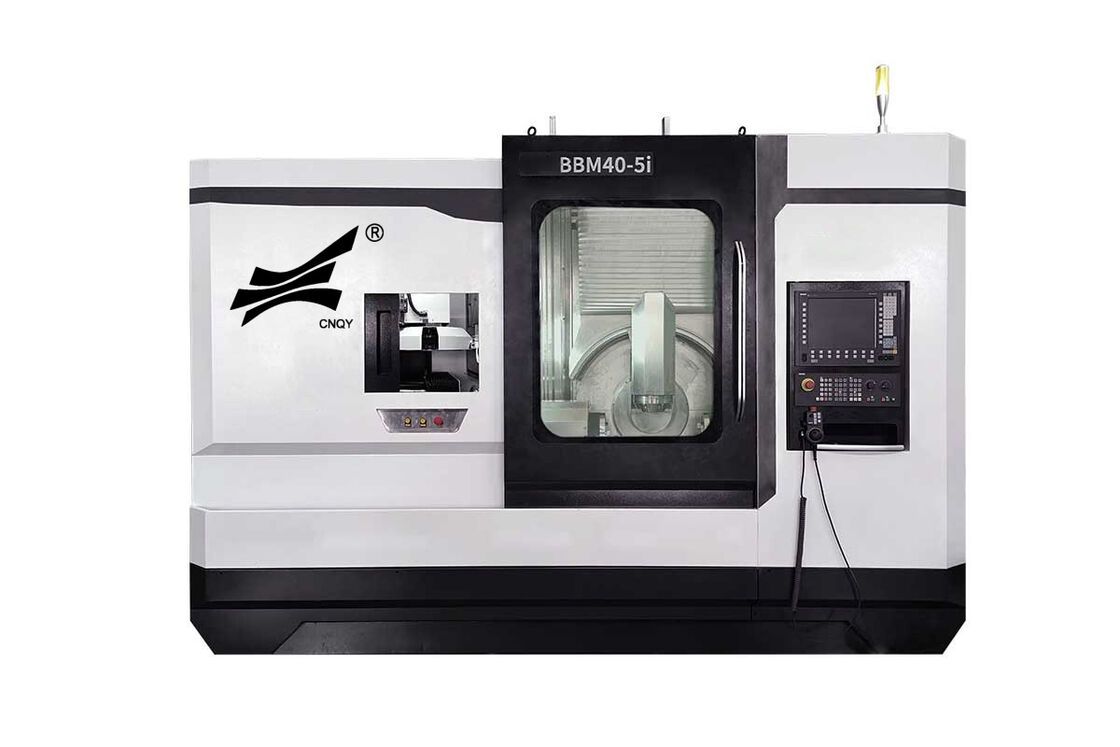

Five-Axis Linked CNC Blade Milling Center for High-Precision Vertical Machining and Complex Surface Processing
Five-Axis Linked CNC Blade Milling Center for High-Precision Vertical Machining and Complex Surface Processing
Five-Axis CNC milling machine
Vertical machine center lathe
Linked blade milling tools
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE
Contact Us
Request A Quote
Product Details
Model NO.:
QYBM
Type:
Multi-Axis Automatic And Semi-Automatic Lathe
Processing Accessory:
Centre CNC Lathe
Guide Rail:
Inclined Guide Rail
Tool Holder:
Single-tool Holder CNC Lathe
Power Source:
Hydraulic Pressure
Controlling Mode:
CNC
Automatic Grade:
Automatic
Setting Mode:
Floor-type
Precision:
High Precision
Condition:
New
Province:
Fujian
X Travel:
800mm
Z Travel:
530mm
Transport Package:
Box
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
HS Code:
84601100
Production Capacity:
5000/Year
Highlight:
Five-Axis CNC milling machine
,Vertical machine center lathe
,Linked blade milling tools
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Product Introduction

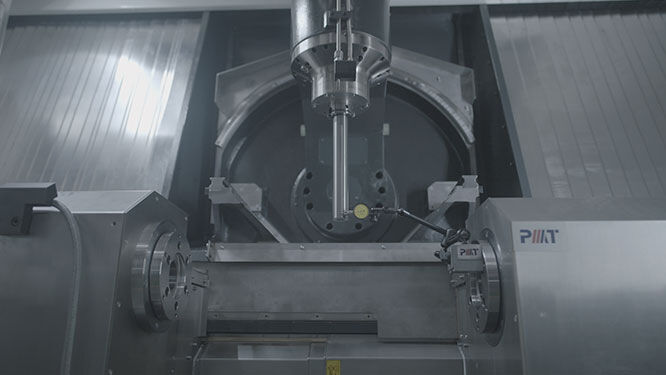

The Five-Axis Linked CNC Blade Milling Center is a high-precision vertical machining solution designed for blade machining, impeller processing, complex surface milling, precision mold manufacturing, aerospace components, automotive parts, machinery parts, and customized industrial workpieces. With five-axis linkage capability, a rigid cast iron machine body, high-precision linear guideways, and reliable transmission components, this machine provides stable accuracy, smooth cutting performance, and strong adaptability for demanding industrial applications.
The machine body is made of high-strength and good-quality cast iron with excellent aseismatic capability. This rigid casting structure helps reduce vibration during machining, improve cutting stability, and maintain consistent dimensional accuracy during long-time operation. It is especially suitable for complex blade profiles and curved surface components that require stable surface quality and precise contour control.
The machine adopts a wide base and Y-type column structure, providing strong support for the whole machine and improving overall rigidity. This structure helps enhance stability during high-speed milling, heavy cutting, and precision finishing, making the machine suitable for blade parts, molds, metal components, fixtures, and multi-angle workpieces.
Product Features
- Aseismatic capability, high strength and good quality cast iron.
- Wide base and Y-type column structure
- Taiwan high precision linear guide ways.
- Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.
- Adopting Japan NSK special screws angular contact ball bearing group.
| MODELS | KDVM855L |
|---|---|
| TRAVEL | |
| X axis | 800mm |
| Y axis | 550mm |
| Z axis | 550mm |
| Spindle center to column | 595mm |
| Spindle end to table | 120-670mm |
| TABLE | |
| Tablesize | 1000×550mm |
| T-slot(width×number×space) | 18mm×5×90mm |
| Max.table loading | 800kg |
| SPINDLE | |
| Taper bore of spindle | BT40 |
| Spindle power | 11/15kw |
| Spindle speed | 8000rpm |
| FEED | |
| X/Y/Z fast feed | 48/ 48/ 36m/min |
| Torque axis motors | 20/ 20/ 20Nm |
| ATC | |
| Tool number | 24 |
| Max. tool size (With adjacent tool) | 78mm |
| Max. tool size (Without adjacent tool) | 120mm |
| Max.tool weight | 8kg |
| Time (tool-tool) | 2s |
| ACCURACY | |
| Positioning | ≤0.006 |
| Repeatability(X/Y/Z)(ISO) | ≤0.004mm |
| OTHERS | |
| Min.Input | 0.001mm |
| Overall dimension (LxWxH) | 2600x2300x2700mm |
| Net weight | 5250kg |
FAQ
1. What is the Five-Axis Linked CNC Blade Milling Center used for?
The Five-Axis Linked CNC Blade Milling Center is mainly used for blade machining, impeller processing, complex surface milling, mold processing, aerospace parts, automotive components, machinery parts, and customized industrial workpieces.
2. Why is five-axis linkage suitable for blade machining?
Five-axis linkage allows the cutting tool to approach the workpiece from multiple angles. This makes it suitable for curved blade surfaces, complex profiles, inclined features, and multi-angle machining while reducing repeated clamping and positioning errors.
3. Why is the cast iron machine body important?
The high-strength cast iron machine body provides excellent rigidity and vibration resistance. It helps reduce cutting vibration, improve machining stability, and maintain consistent surface quality during long-time operation.
4. What are the advantages of Taiwan high-precision linear guideways?
Taiwan high-precision linear guideways provide smooth movement, low friction, accurate positioning, and stable long-term performance. They help improve machining precision and reduce mechanical wear.
5. What is the benefit of the ball screw pre-extended structure?
The ball screw pre-extended structure helps reduce thermal deformation caused by long-time machining. This improves positioning accuracy, machining stability, and overall machine rigidity.
6. What materials can this machine process?
This machine can process steel, stainless steel, cast iron, aluminum alloy, copper, mold materials, and other industrial metals. The actual machining capability depends on spindle power, cutting tools, machine configuration, and workpiece requirements.
7. Can the machine be customized according to customer requirements?
Yes. We support customization of machining range, spindle power, spindle speed, five-axis configuration, CNC control system, guideway structure, tool magazine, fixture system, cooling system, chip removal system, protective cover, and other machine specifications according to production needs.
