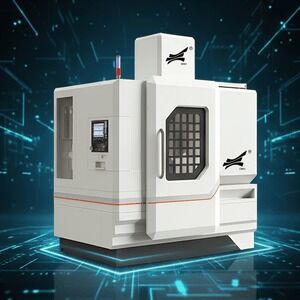

High-Performance Precision CNC Machining Center for Industrial Manufacturing and Complex Part Processing
High-Performance Precision CNC Machining Center for Industrial Manufacturing and Complex Part Processing
industrial precision machining center
high-performance CNC machining center
precision machining center with warranty
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE
Contact Us
Request A Quote
Product Details
Type:
Multi-Axis Automatic And Semi-Automatic Lathe
Processing Accessory:
Centre CNC Lathe
Guide Rail:
Inclined Guide Rail
Tool Holder:
Single-tool Holder CNC Lathe
Power Source:
Hydraulic Pressure
Controlling Mode:
CNC
Automatic Grade:
Automatic
Setting Mode:
Floor-type
Precision:
High Precision
Condition:
New
Province:
Fujian
X Travel:
800mm
Z Travel:
530mm
Transport Package:
Box
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
HS Code:
84601100
Production Capacity:
5000/Year
Highlight:
industrial precision machining center
,high-performance CNC machining center
,precision machining center with warranty
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
The High-Performance Precision CNC Machining Center is an advanced machining solution designed for precision milling, drilling, tapping, boring, contour machining, surface finishing, mold machining, and complex industrial part production. With a rigid machine structure, stable spindle system, CNC control technology, and flexible machining capability, this machining center provides reliable accuracy, efficient production performance, and consistent part quality for industrial manufacturing applications.
This CNC machining center is suitable for processing aluminum alloy, steel, stainless steel, cast iron, copper alloy, alloy steel, mold steel, and other industrial materials. It can be widely used for machinery components, mold parts, automotive parts, aerospace components, fixture parts, hardware parts, equipment bases, and customized precision workpieces.
The machine can complete multiple machining processes in one setup, helping reduce workpiece transfer, shorten production cycles, and improve machining consistency. CNC control allows operators to set tool paths, spindle speed, feed rate, machining depth, drilling positions, and process parameters according to different production requirements.
Product Introduction
Product Features
- Aseismatic capability, high strength and good quality cast iron.
- Wide base and Y-type column structure
- Taiwan high precision linear guide ways.
- Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.
- Adopting Japan NSK special screws angular contact ball bearing group.
|
MODELS
|
KDVM855L
|
|
TRAVEL
|
|
|
X axis
|
800mm
|
|
Y axis
|
550mm
|
|
Z axis
|
550mm
|
|
Spindle center to column
|
595mm
|
|
Spindle end to table
|
120-670mm
|
|
TABLE
|
|
|
Tablesize
|
1000*550mm
|
|
T-slot(width*number*space)
|
18mm*5*90mm
|
|
Max.table loading
|
800kg
|
|
SPINDLE
|
|
|
Taper bore of spindle
|
BT40
|
|
Spindle power
|
11/15kw
|
|
Spindle speed
|
8000rpm
|
|
FEED
|
|
|
X/Y/Z fast feed
|
48/ 48/ 36m/min
|
|
Torque axis motors
|
20/ 20/ 20Nm
|
|
ATC
|
|
|
Tool number
|
24
|
|
Max. tool size (With adjacent tool)
|
78mm
|
|
Max. tool size (Without adjacent tool)
|
120mm
|
|
Max.tool weight
|
8kg
|
|
Time (tool-tool)
|
2s
|
|
ACCURACY
|
|
|
Positioning
|
≤0.006
|
|
Repeatability(X/Y/Z)(ISO)
|
≤0.004mm
|
|
OTHERS
|
|
|
Min.Input
|
0.001mm
|
|
Overall dimension (LxWxH)
|
2600x2300x2700mm
|
|
Net weight
|
5250kg
|
FAQ
1. What is a Precision CNC Machining Center used for?
It is mainly used for precision milling, drilling, tapping, boring, surface finishing, contour machining, mold processing, machinery parts production, and industrial component manufacturing.
2. What materials can this machining center process?
It can process aluminum alloy, steel, stainless steel, cast iron, copper alloy, alloy steel, mold steel, and other industrial materials depending on tooling, spindle power, coolant condition, and machining parameters.
3. What are the advantages of CNC machining centers?
CNC machining centers provide accurate positioning, stable repeatability, flexible machining programs, reduced manual errors, improved efficiency, and consistent part quality for batch production.
4. Is this machine suitable for complex parts?
Yes. It is suitable for complex parts, molds, fixture parts, automotive components, aerospace parts, machinery parts, and customized industrial workpieces.
5. Can the machine support multiple processes?
Yes. It can support milling, drilling, tapping, boring, contour machining, surface milling, and precision finishing in one setup.
6. Can the machine configuration be customized?
Yes. Table size, axis travel, spindle system, CNC control system, tool magazine, coolant system, chip conveyor, and automatic tool changer can be customized according to production needs.
7. What information is needed for quotation?
Please provide workpiece size, material, machining process, required accuracy, maximum workpiece weight, production quantity, and preferred machine configuration.
