Fully Enclosed Small CNC Drilling and Milling Machine High Precision High Rigidity Floor Standing for Educational Training

Fully Enclosed Small CNC Drilling and Milling Machine High Precision High Rigidity Floor Standing for Educational Training

fully enclosed CNC milling machine

high precision drilling machine

floor standing educational CNC machine

Certification:

GS, CE, RoHS, ISO 9001

Contact Us
Request A Quote
Product Details
Model NO.:
QNCYCNCX2
Application:
Glass
Process Usage:
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
30days
X-Axis Travel:
210mm
Y-Axis Travel:
95 Mm
Z-Axis Travel:
200 Mm
Working Table Size:
380 × 90mm
Voltage:
220V
T Slot Size:
12mm*3
Repeated Positioning Accuracy:
0.02mm
Max Milling Hole:
20mm
Maximum Milling Diameter:
20mm
System Resolution:
0.0025mm
Spindle Taper:
Mt3
Ball Screw:
Ball Screw Drive
Spindle Motor Power:
1200W
Net Weight:
300kgs
Transport Package:
Pallet
Specification:
1230*770*1800
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Highlight:

fully enclosed CNC milling machine

,

high precision drilling machine

,

floor standing educational CNC machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
US $7,500 / Set
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

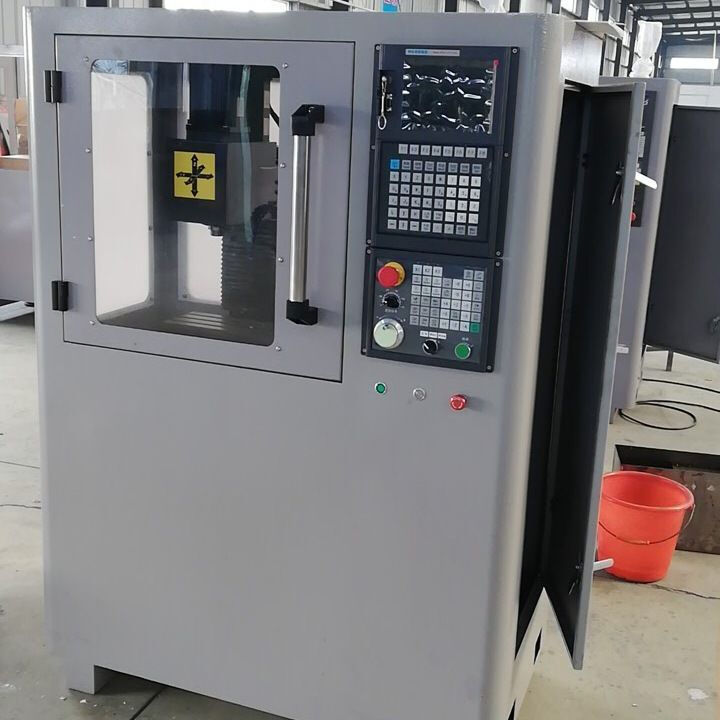

Fully Enclosed Small CNC Drilling and Milling Machine High Precision High Rigidity Floor Standing for Educational Training 0
Product Introduction
Fully Enclosed Small CNC Drilling and Milling Machine High Precision High Rigidity Floor Standing for Educational Training

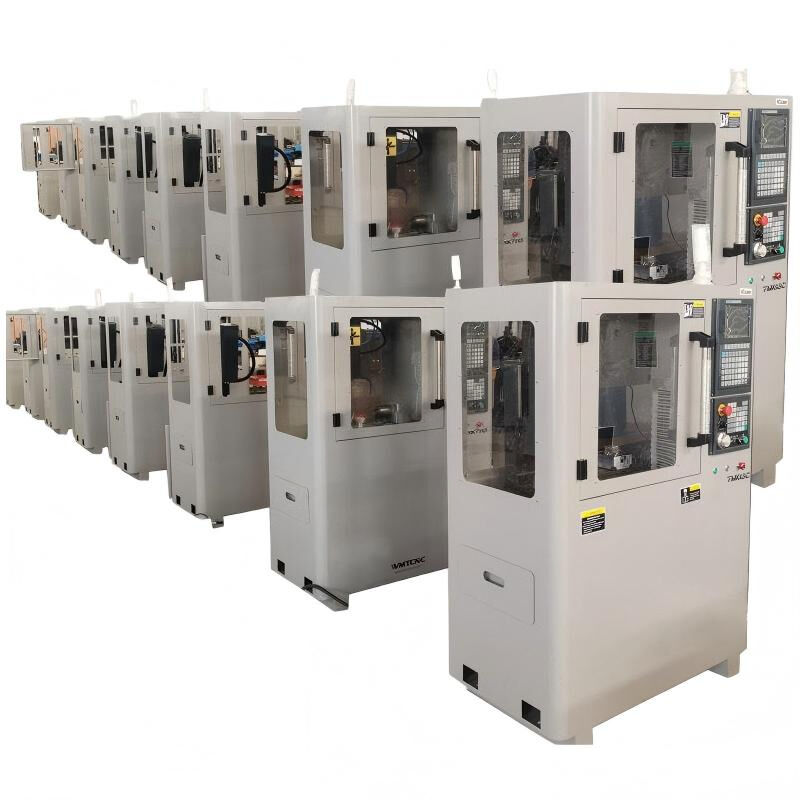

Fully Enclosed Small CNC Drilling and Milling Machine High Precision High Rigidity Floor Standing for Educational Training 1

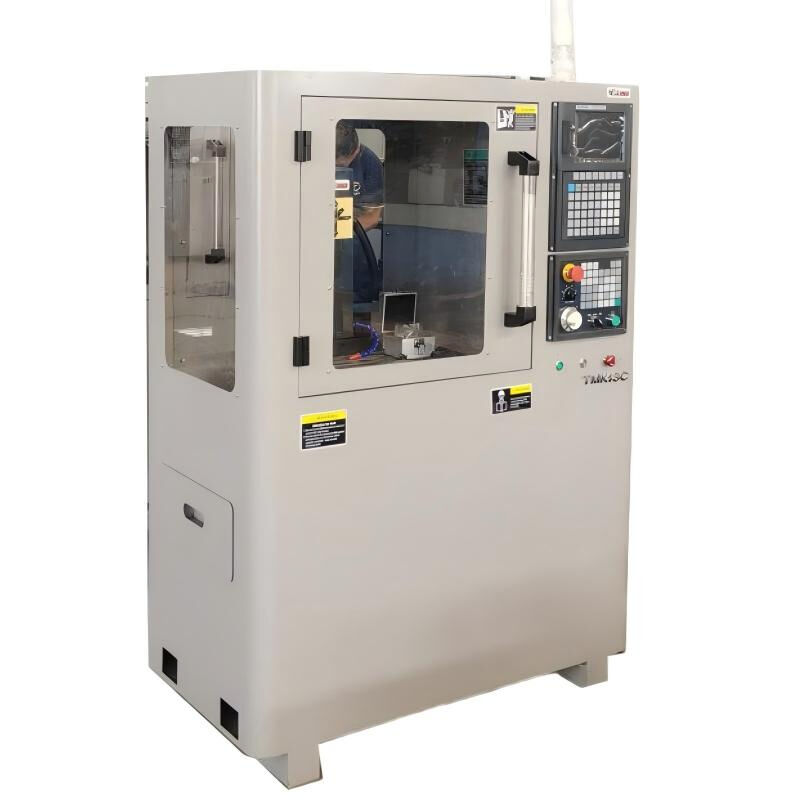

Fully Enclosed Small CNC Drilling and Milling Machine High Precision High Rigidity Floor Standing for Educational Training 2

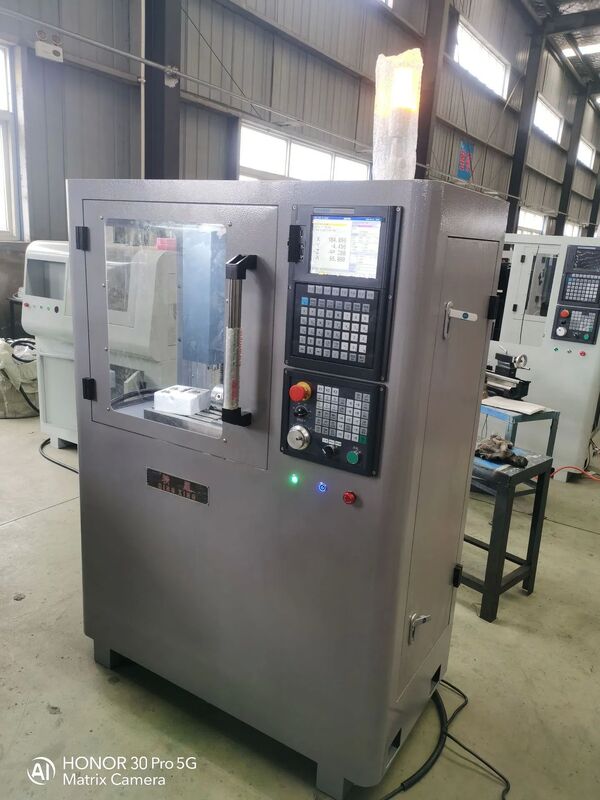

Fully Enclosed Small CNC Drilling and Milling Machine High Precision High Rigidity Floor Standing for Educational Training 3

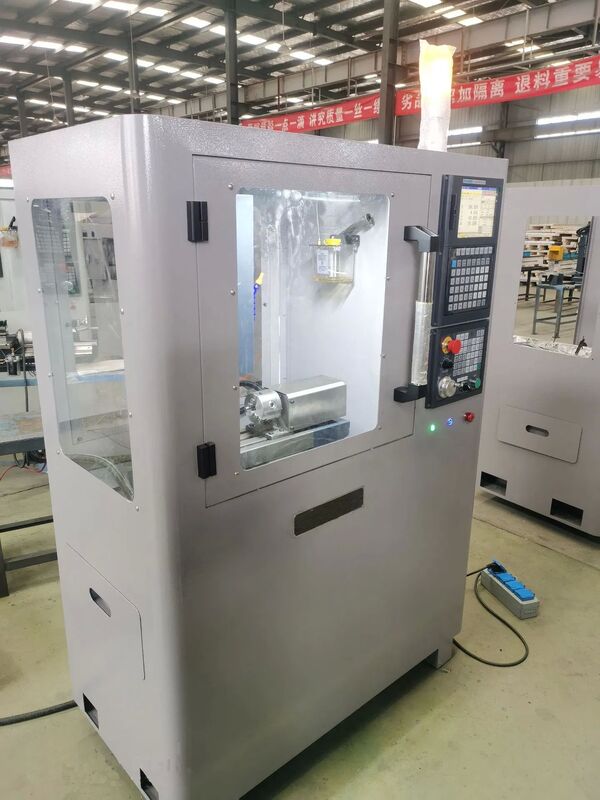

Fully Enclosed Small CNC Drilling and Milling Machine High Precision High Rigidity Floor Standing for Educational Training 4
Main products
Fully Enclosed Small CNC Drilling and Milling Machine High Precision High Rigidity Floor Standing for Educational Training 5
Company Profile
Fully Enclosed Small CNC Drilling and Milling Machine High Precision High Rigidity Floor Standing for Educational Training 6

Queenly Machine established in Fujian, specializing in a wide range of precision CNC machine tools, including high-pre-cision grinding centers, ultra-precision surface grind- ers, optical milling and grinding centers, flexible polishing machin-es, various machining centers, CNC cutting tools, power chucks, hydraulic cylinder, drilling and tapping ma- chine, pack-aging machinery, booster cylinder, copper, etc.

Our company adheres to a talent-oriented philosophy and is dedicated to the research and industrialization of critical and bottleneck technologies. Its main business focuses on the R&D, manufacturing, and sales of high-end CNC mach-ine tools and ultra-preci- sion optical components.

All of our products are independently designed and manufactured by our team, based on more than decades of exper-tise in processing hard and brittle materials. In addition, our company has independently developed a five-axis CNC co-ntrol system as well as multiple sets of auxiliary machining software.

We have developed the first 6-axis Coordinate Advance Milling and (Deep Hole) Drilling machine in Asia. This establish-ment has been recognized by different expertise as coun- try leading-edge technology and access to a number of natio-nal patents. In Multi-func- tion Deep Hole Drilling Machine, we have been recognized by majority of the customer as the Leader of quality and craftsmanship throughout the country.

During the process of R&D, Production and Market development, we are also using our machine to master the frst-hand information. Be bold and innovative, ever-improving, continue to explore and of course listen to our customer comment for quality improve- ment. We always use the customer point of view to modify the machine become more suitable and user friendly.

Queenly targets the world mould making edge - leading technology, continue to ex- plore, higher accuracy and perfect quality, thus enable our customers to be equipped with the most suitable machines.

Nowadays, our products exported all over the world: USA, Australia, Brazil, Bangladesh, Canada, India, Korea, Malaysia, Portugal, Thailand, Taiwan, UK and so on.

In the future, with the intelligent manufacturing, we would like to work by your side and provide you with different solu-tion to conquer any challenges.

Fully Enclosed Small CNC Drilling and Milling Machine High Precision High Rigidity Floor Standing for Educational Training 7
Cooperative Brand
Fully Enclosed Small CNC Drilling and Milling Machine High Precision High Rigidity Floor Standing for Educational Training 8
Our Services
Fully Enclosed Small CNC Drilling and Milling Machine High Precision High Rigidity Floor Standing for Educational Training 9
Certifications
Fully Enclosed Small CNC Drilling and Milling Machine High Precision High Rigidity Floor Standing for Educational Training 10
Packaging & Shipping
Fully Enclosed Small CNC Drilling and Milling Machine High Precision High Rigidity Floor Standing for Educational Training 11
FAQ
Fully Enclosed Small CNC Drilling and Milling Machine High Precision High Rigidity Floor Standing for Educational Training 12
