Nc 4-Axis Cam Rotary Table

Nc 4-Axis Cam Rotary Table

4-axis CNC rotary table

CNC rotary table with cam

4-axis rotary table for machining

Contact Us
Request A Quote
Product Details
Model NO.:
NC 4-Axis
Jaw Type:
Master Jaw
Power:
Hydraulic
Structure:
Solid
Material:
Carbon Steel
Type:
Special Chuck
Jaw Width:
100
Jaw Height:
30
Jaw Open:
100
Transport Package:
Case
Specification:
Made Of High Quality Steel
Trademark:
QUEENLY
Origin:
China
HS Code:
8466200000
Production Capacity:
4000PCS/Year
Highlight:

4-axis CNC rotary table

,

CNC rotary table with cam

,

4-axis rotary table for machining

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
US $6,000-7,000 / S
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Product Introduction
Nc 4-Axis Cam Rotary Table 0
Main products
Nc 4-Axis Cam Rotary Table 1
Company Profile
Nc 4-Axis Cam Rotary Table 2

Queenly Machine established in Fujian, specializing in a wide range of precision CNC machine tools, including high-pre-cision grinding centers, ultra-precision surface grind- ers, optical milling and grinding centers, flexible polishing machin-es, various machining centers, CNC cutting tools, power chucks, hydraulic cylinder, drilling and tapping ma- chine, pack-aging machinery, booster cylinder, copper, etc.

Our company adheres to a talent-oriented philosophy and is dedicated to the research and industrialization of critical and bottleneck technologies. Its main business focuses on the R&D, manufacturing, and sales of high-end CNC mach-ine tools and ultra-preci- sion optical components.

All of our products are independently designed and manufactured by our team, based on more than decades of exper-tise in processing hard and brittle materials. In addition, our company has independently developed a five-axis CNC co-ntrol system as well as multiple sets of auxiliary machining software.

We have developed the first 6-axis Coordinate Advance Milling and (Deep Hole) Drilling machine in Asia. This establish-ment has been recognized by different expertise as coun- try leading-edge technology and access to a number of natio-nal patents. In Multi-func- tion Deep Hole Drilling Machine, we have been recognized by majority of the customer as the Leader of quality and craftsmanship throughout the country.

During the process of R&D, Production and Market development, we are also using our machine to master the frst-hand information. Be bold and innovative, ever-improving, continue to explore and of course listen to our customer comment for quality improve- ment. We always use the customer point of view to modify the machine become more suitable and user friendly.

Queenly targets the world mould making edge - leading technology, continue to ex- plore, higher accuracy and perfect quality, thus enable our customers to be equipped with the most suitable machines.

Nowadays, our products exported all over the world: USA, Australia, Brazil, Bangladesh, Canada, India, Korea, Malaysia, Portugal, Thailand, Taiwan, UK and so on.

In the future, with the intelligent manufacturing, we would like to work by your side and provide you with different solu-tion to conquer any challenges.

Nc 4-Axis Cam Rotary Table 3
Cooperative Brand
Nc 4-Axis Cam Rotary Table 4
Our Services
Nc 4-Axis Cam Rotary Table 5
Certifications
Nc 4-Axis Cam Rotary Table 6
Packaging & Shipping
Nc 4-Axis Cam Rotary Table 7
FAQ
Nc 4-Axis Cam Rotary Table 8

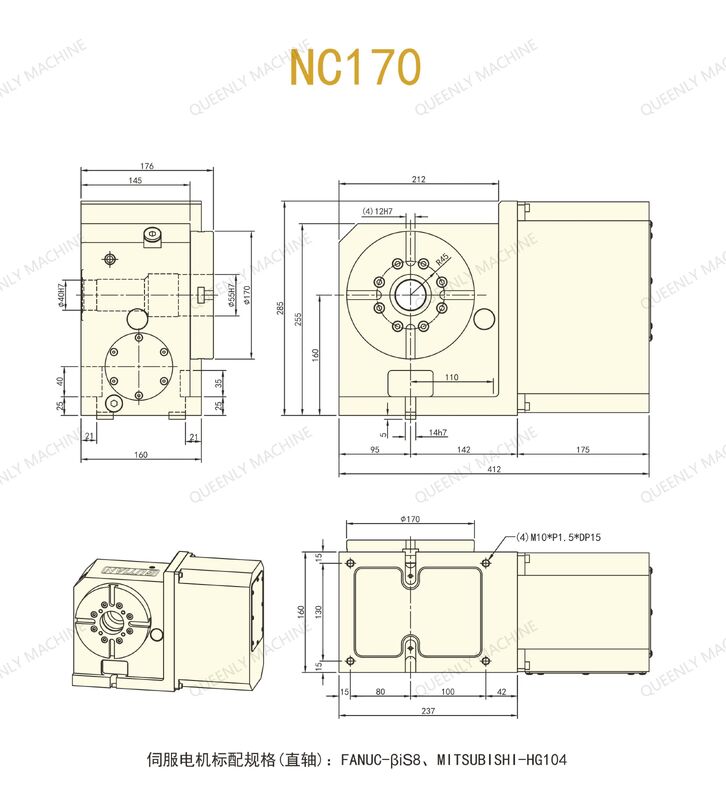

Item
Unit
Data
Worktable Diameter
mm
ø170
Center Height
mm
160
Center Hole Diameter (Front)
mm
ø55
Center Hole Diameter (Rear)
mm
ø40
Standard Motor Specification (Straight Shaft Motor) (Customizable for other brands/models)
-
FANUC BIS8, MITSUBISHI HG104
T-slot Width
mm
12H7
Locating Key Width
mm
14h7
Total Reduction Ratio
-
1:40
Indexing Precision
arc.sec
15
Repeat Precision
arc.sec
4
Locking Method (Hydraulic)
MPa
3.0±0.5
