Product Description
Heavy Profile Machining Center
Product Overview
The Heavy Profile CNC Machining Center is a professional CNC profile machining solution designed for high-precision processing of aluminum alloy profiles, aluminum-wood composite profiles, copper profiles, steel profiles, PVC profiles, and other industrial profile materials. It is built for manufacturers that need strong rigidity, fast tool changing, stable machining accuracy, and multi-process profile processing in one clamping.
This machine adopts a dedicated CNC numerical control system with a user-friendly human-machine interface, making daily operation more convenient and efficient. The professional CNC machining software supports three-dimensional programming and real-time machining visualization, allowing operators to check the tool path and processing status more clearly before and during machining. This helps reduce programming errors and improves production reliability.
Equipment Features
- Adopt CNC special numerical control system with friendly man-machine interface for easy operation
- Professional CNC machining software enables three programming processing with real-time visualization
- Capable of processing aluminum alloy profiles, aluminum wood composite profiles, copper profiles, steel profiles, PVC, and more with single clamping for milling, drilling, tapping, chamfering and other precision machining functions
- Equipped with automatic chip removal machine using BT40 spindle taper hole to increase machine rigidity
- Servo automatic tool changing spindle ensures high precision machining with protective cover for operator safety and environmental sanitation
- 24-bit capacity fast synchronous tool changing library allows pre-tool preparation with tool changing time of only 2 seconds
- T-type casting work table suitable for high precision machining with strong stability

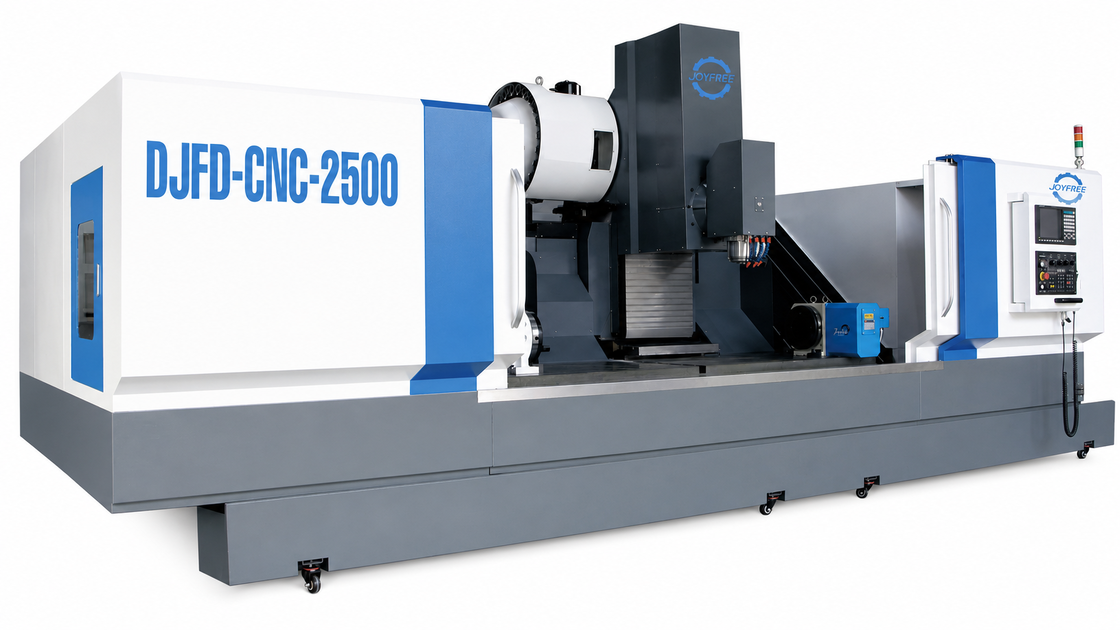

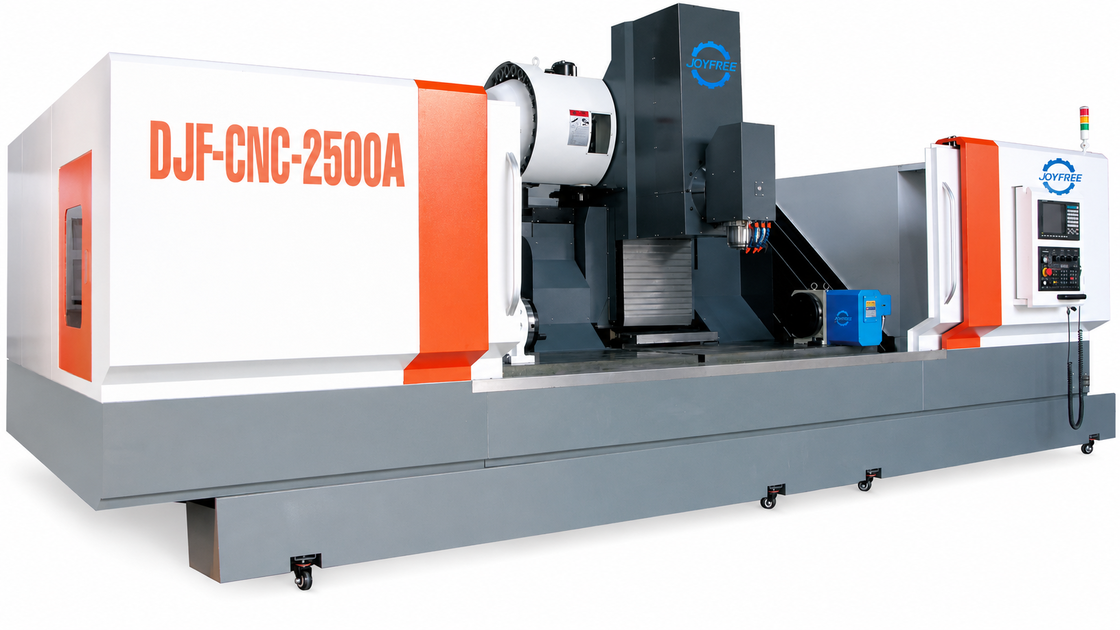

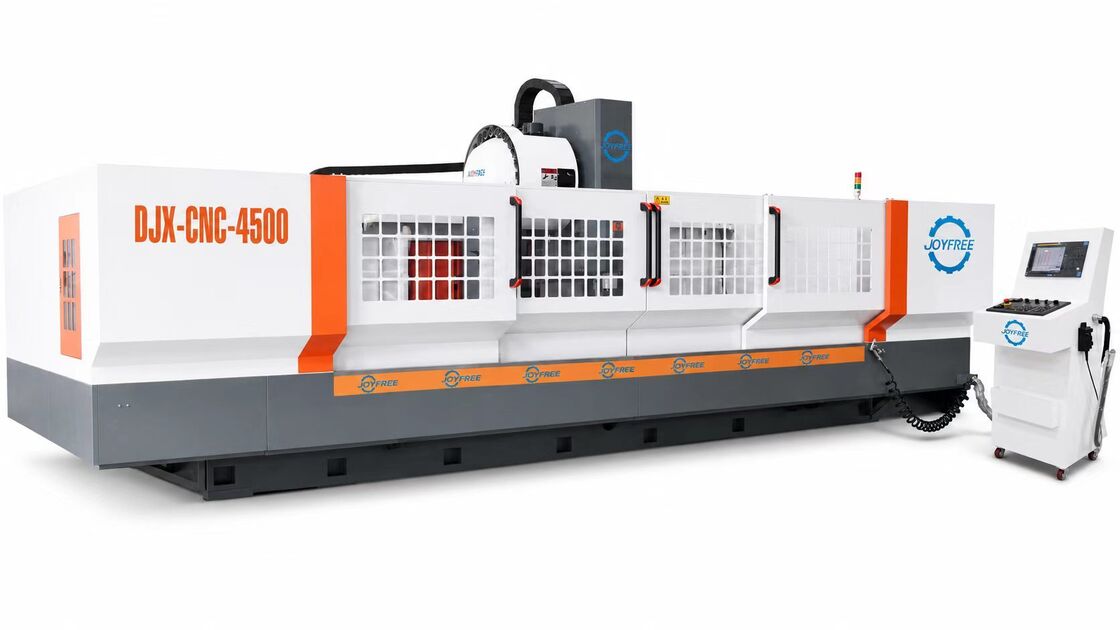

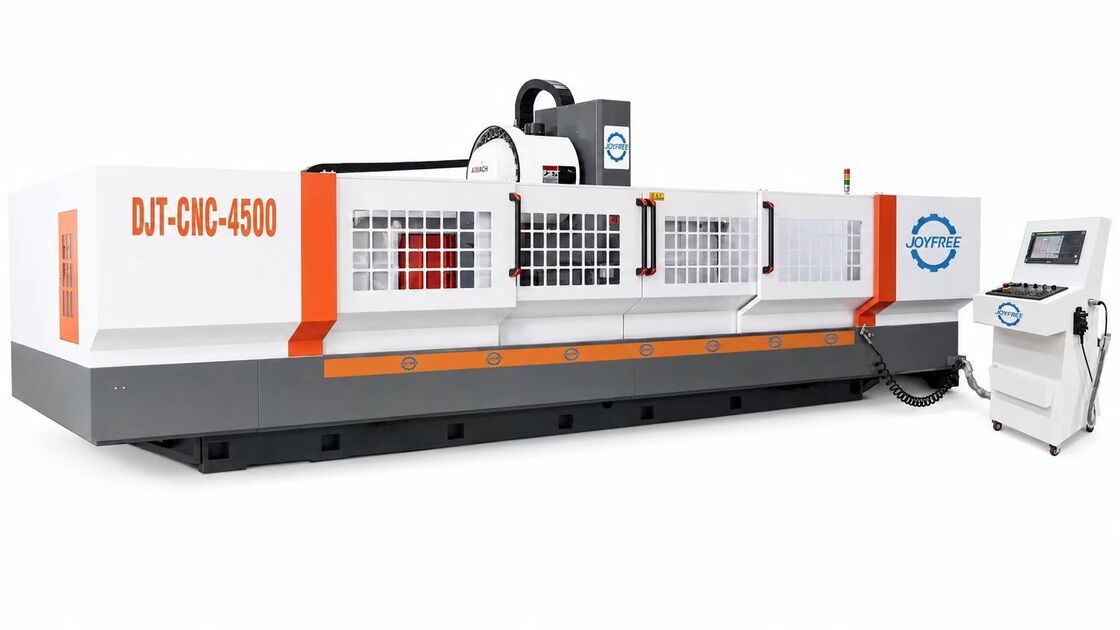

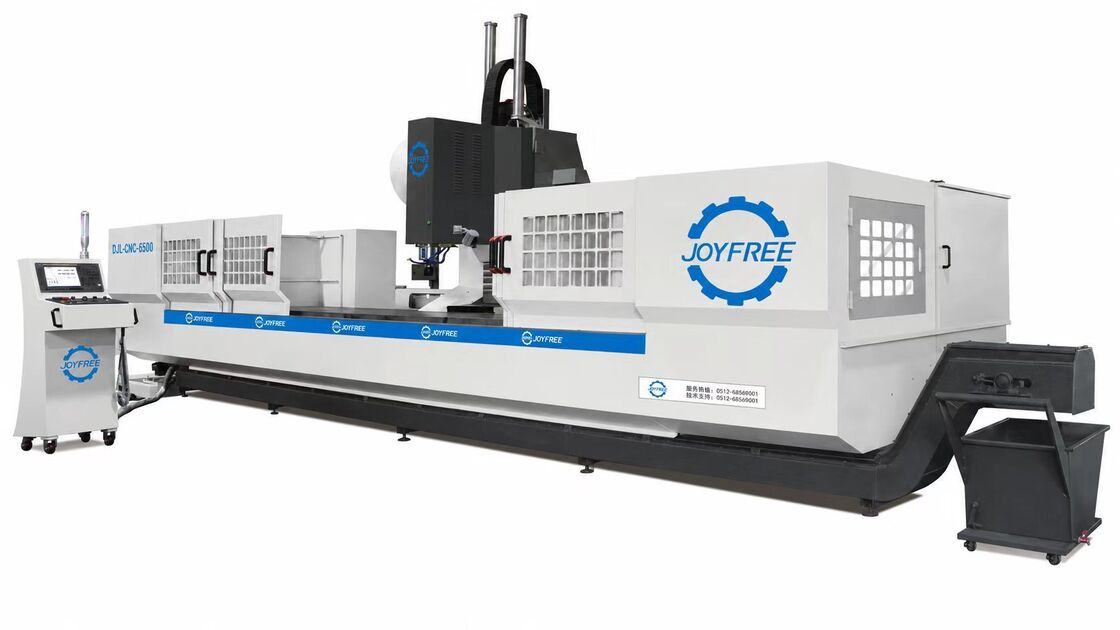

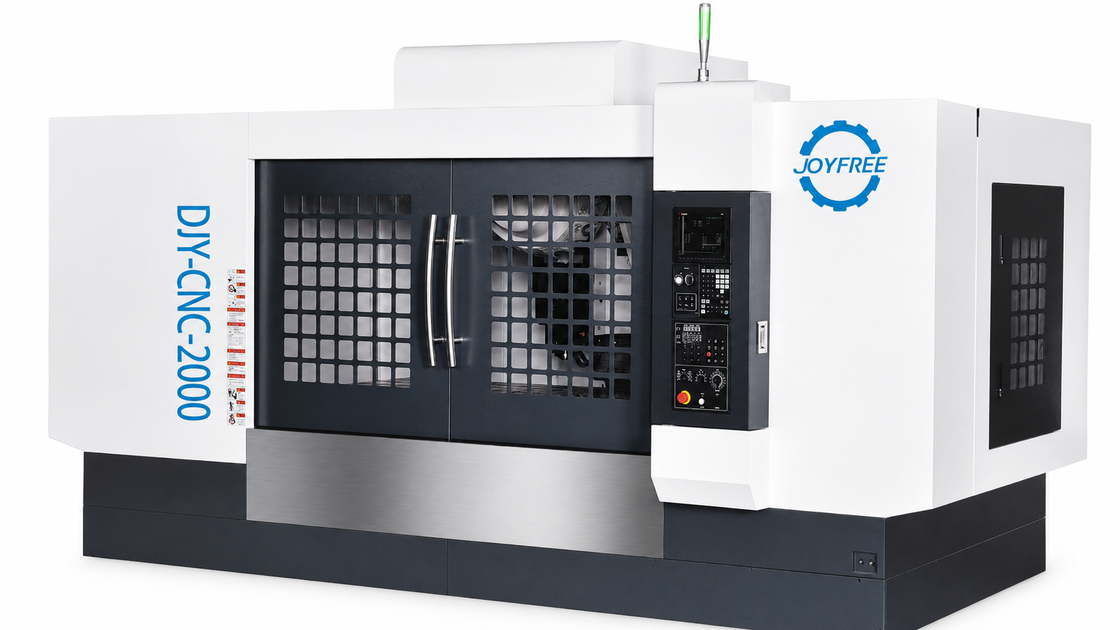

Equipment Views
Technical Parameters
| Category | Item | Parameter |
|---|---|---|
| STROKE | Stroke for X axis | 4500–12500 mm |
| STROKE | Stroke for Y axis | 700 mm |
| STROKE | Stroke for Z axis | 700 mm |
| SPINDLE | Spindle speed | 6000 / 8000 r/min |
| SPINDLE | Spindle taper | BT50 |
| TOOL | Tool magazine | Disc type |
| TOOL | Capacity of tools magazine | 24 pcs |
| TOOL | Tool change time | 2 sec |
| POWER OF MOTOR | Spindle driven motor | 15(S1)–18.5(S6) kW |
| POWER OF MOTOR | X/Y/Z driven motor | 3 kW / 3 kW / 3 kW |
| MOVING SPEED | X moving speed | 48 m/min |
| MOVING SPEED | Y/Z moving speed | 28 / 28 m/min |
| MOVING SPEED | X/Y/Z feeding speed | 15000 mm/min |
| LUBRICATING SYSTEM | Lubricating system | Automatic lubricating |
| LUBRICATING SYSTEM | Cooling system | Water cooling system |
| PRECISION | Position precision of X axis | 0.03 mm |
| PRECISION | Position precision of Y/Z axis | 0.02 mm |
| PRECISION | Repeating position | X: ±0.01 mm (500) / Y/Z: ±0.005 mm (300) |
| SIZE OF MACHINE | Air pressure | 6 kg/cm² |
| SIZE OF MACHINE | Operation system | SIEMENS / FANUC / MITSUBISHI |
| SIZE OF MACHINE | Height | 3300 mm |
| SIZE OF MACHINE | Area | 7200–15000 * 3300 mm |
| SIZE OF MACHINE | Weight | 12000–20000 kg |
FAQ
1. What is the Heavy Profile CNC Machining Center used for?
The Heavy Profile CNC Machining Center is mainly used for milling, drilling, tapping, chamfering, slotting, and precision machining of aluminum profiles, steel profiles, copper profiles, PVC profiles, and aluminum-wood composite profiles. It is suitable for heavy profile machining, long profile processing, and customized industrial profile production.
2. What materials can this machine process?
This machine can process aluminum alloy profiles, aluminum-wood composite profiles, copper profiles, steel profiles, PVC profiles, and other industrial profile materials. The actual processing range depends on the profile size, material hardness, spindle power, tooling system, and machining requirements.
3. What are the advantages of the BT40 spindle taper?
The BT40 spindle taper provides stronger rigidity and better cutting stability, making the machine more suitable for heavy profile machining and multi-process cutting. It helps improve machining accuracy, tool stability, and overall processing performance.
4. What is the benefit of the 24-position fast synchronous tool magazine?
The 24-position fast synchronous tool magazine allows tools to be prepared in advance and supports fast tool changing in about 2 seconds. This reduces non-cutting time, improves production efficiency, and is especially useful for workpieces that require multiple machining processes.
5. What control systems do you use on your machines?
We can provide different control systems according to customer requirements, such as Siemens, GSK, FANUC, and other reliable CNC control brands.
6. How can I choose the most suitable machine?
Please tell us the machine model, technical parameters, workpiece material, processing size, or production requirements you are interested in. You can also send us product pictures or drawings, and our team will recommend the most suitable machine with competitive price and reliable quality.
7. Can the machines be customized according to customer requirements?
Yes. We support customization of machining range, spindle power, automation level, fixture configuration, tooling system, control system, tool magazine, protection cover, chip removal system, and other machine specifications according to your production needs.
