Automatic Profile Processing Center for Long Aluminum Profile Drilling, Milling, Slotting and Curtain Wall Fabrication
Automatic Profile Processing Center for Long Aluminum Profile Drilling, Milling, Slotting and Curtain Wall Fabrication
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Model Number:
JFE3020
Contact Us
Request A Quote
Product Details
Model NO.:
JFE3020
Application:
Glass
Process Usage:
Aluminum Profile 5-axis Gantry Machining Center
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
35days
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Automatic Profile Processing Center for Long Aluminum Profile Drilling, Milling, Slotting and Curtain Wall Fabrication
Product Overview
The Automatic Profile Processing Center is a CNC profile machining solution developed for long aluminum profiles, industrial extrusions, door and window profiles, curtain wall profiles, and customized structural profiles. It is designed to solve the common problems of traditional profile processing, such as repeated manual measuring, unstable clamping, low hole-position accuracy, and slow production speed.
This machine focuses on continuous processing of long profile workpieces. With CNC automatic positioning, stable profile clamping, and programmable machining paths, it can complete drilling, milling, slotting, tapping, end milling, and hole processing according to different profile drawings. It is especially suitable for factories that need to process multiple hole positions, long slots, installation grooves, and customized machining areas on aluminum profiles.
Equipment Features
- Adopt CNC Special numerical control system with friendly man-machine interface for easy operation
- Professional CNC machining software enabling three programming processing with real-time visualization
- Capable of processing aluminum alloy profiles, aluminum wood composite profiles, copper profiles, steel profiles, PVC, and more with single clamping for milling, drilling, tapping, and chamfering operations
- Equipped with automatic chip removal machine and BT40 spindle taper hole for increased machine rigidity
- Servo automatic tool changing spindle ensures high precision machining with protective cover for operator safety and environmental sanitation
- 24-bit capacity fast synchronous tool changing library allows pre-tool preparation with tool change time of only 2 seconds
- T-type casting work table suitable for high precision machining with strong stability

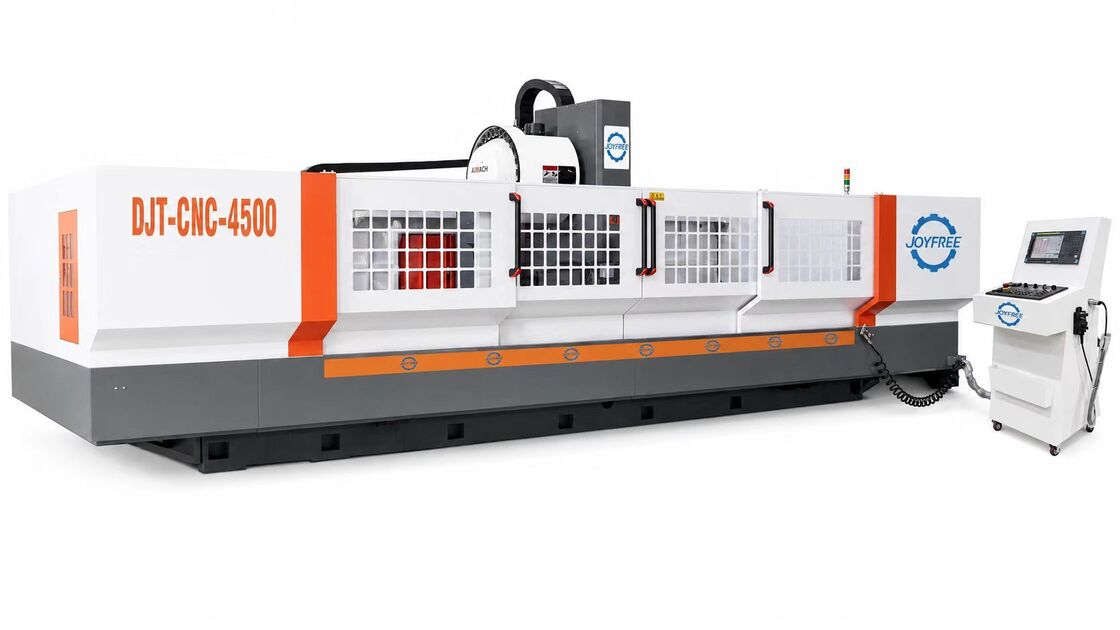

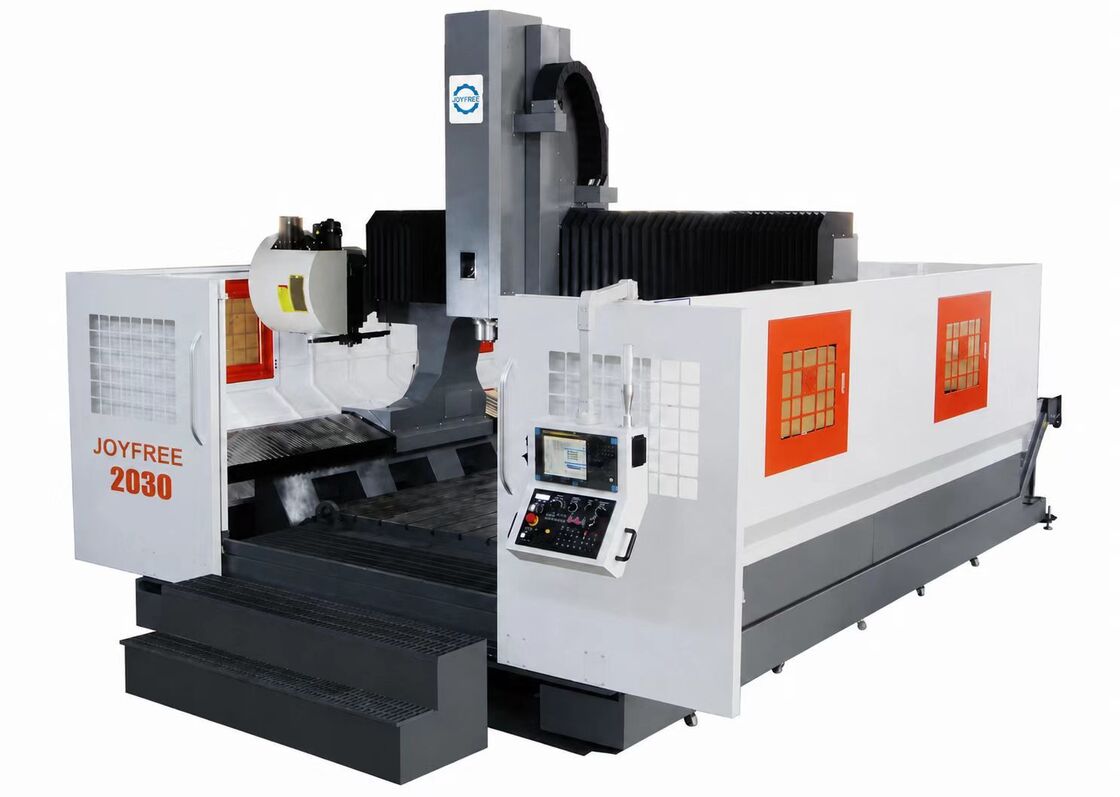

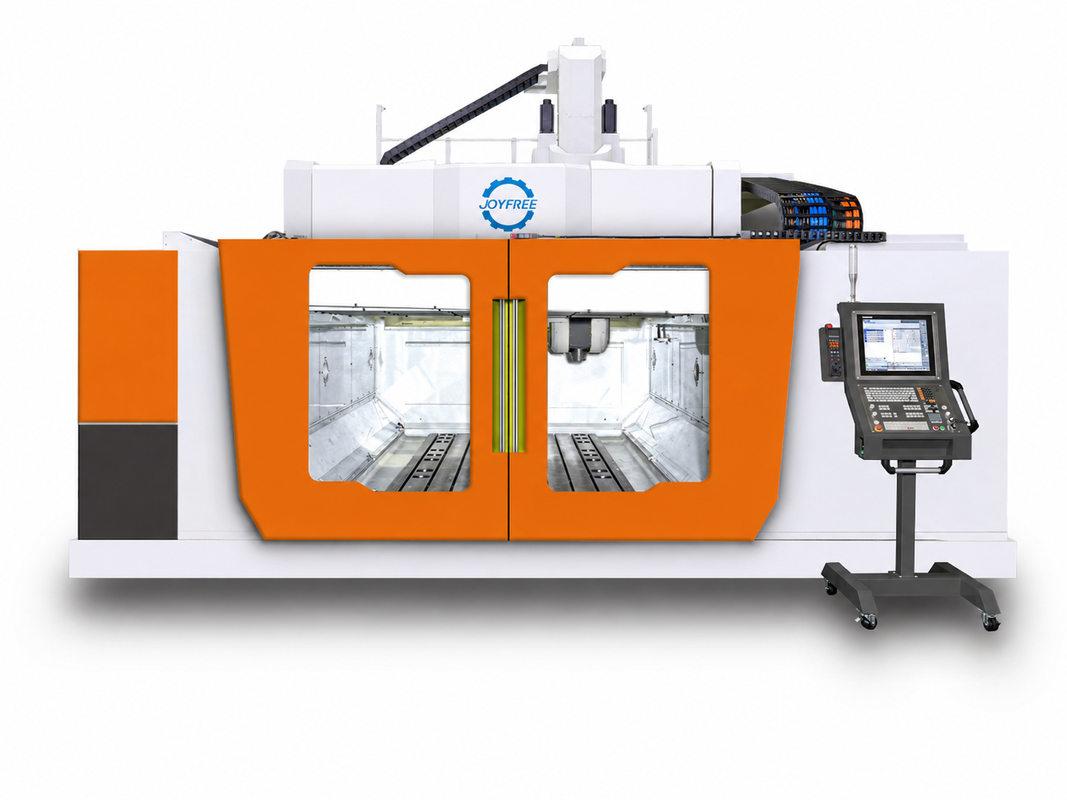

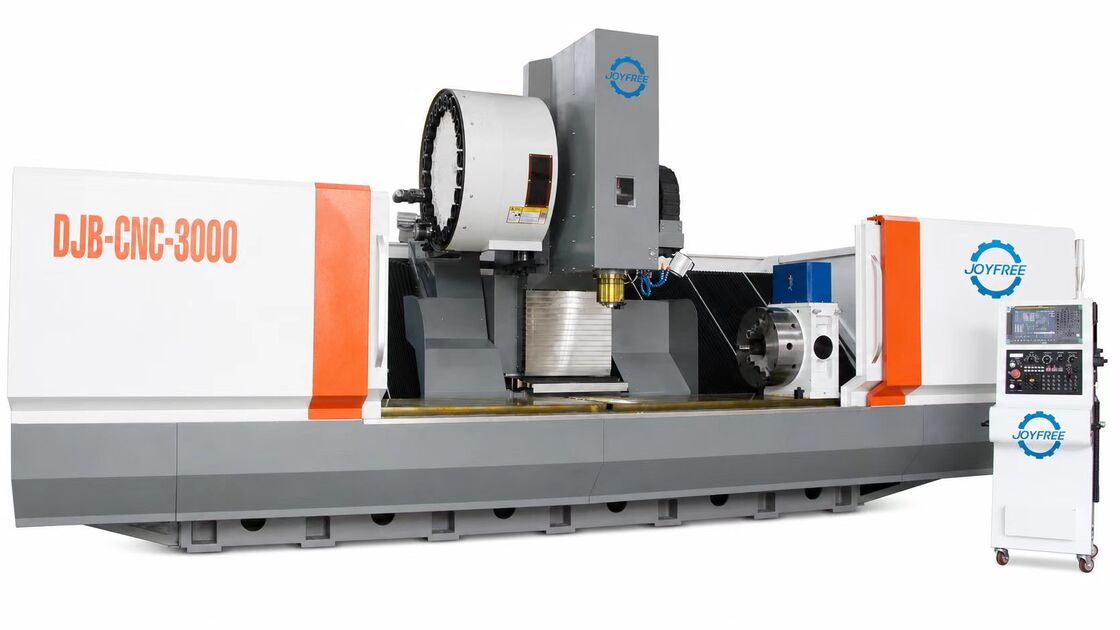

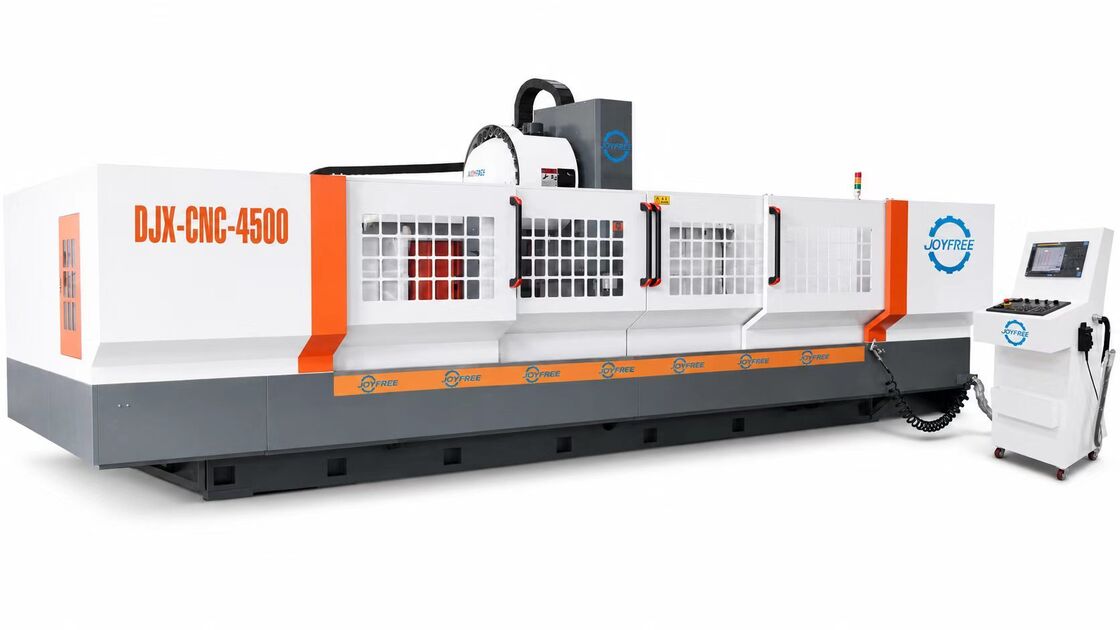

Equipment Views
Technical Parameters
| Category | Item | Parameter |
|---|---|---|
| STROKE | Stroke for X axis | 4500–12500 mm |
| STROKE | Stroke for Y axis | 700 mm |
| STROKE | Stroke for Z axis | 700 mm |
| SPINDLE | Spindle speed | 10000 / 12000 r/min |
| SPINDLE | Spindle taper | BT40(Φ150) |
| TOOL | Tool magazine | Disc type |
| TOOL | Capacity of tools magazine | 24 pcs |
| TOOL | Tool change time | 2 sec |
| POWER OF MOTOR | Spindle driven motor | 11(S1)–18.5(S6) kW |
| POWER OF MOTOR | X/Y/Z driven motor | 3 kW / 3 kW / 3 kW |
| MOVING SPEED | X moving speed | 48 m/min |
| MOVING SPEED | Y/Z moving speed | 28 / 28 m/min |
| MOVING SPEED | X/Y/Z feeding speed | 15000 mm/min |
| LUBRICATING SYSTEM | Lubricating system | Automatic lubricating |
| LUBRICATING SYSTEM | Cooling system | Water cooling system |
| PRECISION | Position precision of X axis | 0.03 mm |
| PRECISION | Position precision of Y/Z axis | 0.02 mm |
| PRECISION | Repeating position | X: ±0.01 mm (500) / Y/Z: ±0.005 mm (300) |
| SIZE OF MACHINE | Air pressure | 6 kg/cm² |
| SIZE OF MACHINE | Operation system | SIEMENS / FANUC / MITSUBISHI |
| SIZE OF MACHINE | Height | 3300 mm |
| SIZE OF MACHINE | Area | 7200–15000 * 3300 mm |
| SIZE OF MACHINE | Weight | 11000–20000 kg |
FAQ
1. What is the Profile Processing Center used for?
The Profile Processing Center is mainly used for drilling, milling, slotting, tapping, end milling, and hole processing of long aluminum profiles and industrial profiles. It is suitable for door and window profiles, curtain wall profiles, solar frame profiles, aluminum frames, and customized structural profiles.
2. Why is this machine suitable for long profile processing?
This machine is designed with profile clamping, automatic positioning, and a working structure suitable for long and narrow workpieces. It can process holes, slots, grooves, and milling areas along the profile length with better accuracy and efficiency.
3. What materials can this machine process?
This machine is mainly suitable for aluminum profiles and aluminum alloy extrusions. According to the spindle power, machine configuration, and cutting tools, it can also process some industrial metal profiles and customized structural profiles.
4. What control systems do you use on your machines?
We can provide different control systems according to customer requirements, such as Siemens, GSK, FANUC, and other reliable CNC control brands.
5. How can I choose the most suitable machine?
Please tell us the machine model, technical parameters, workpiece material, processing size, or production requirements you are interested in. You can also send us product pictures or drawings, and our team will recommend the most suitable machine with competitive price and reliable quality.
6. Can the machines be customized according to customer requirements?
Yes. We support customization of machining range, spindle power, automation level, fixture configuration, tooling system, control system, and other machine specifications according to your production needs.
