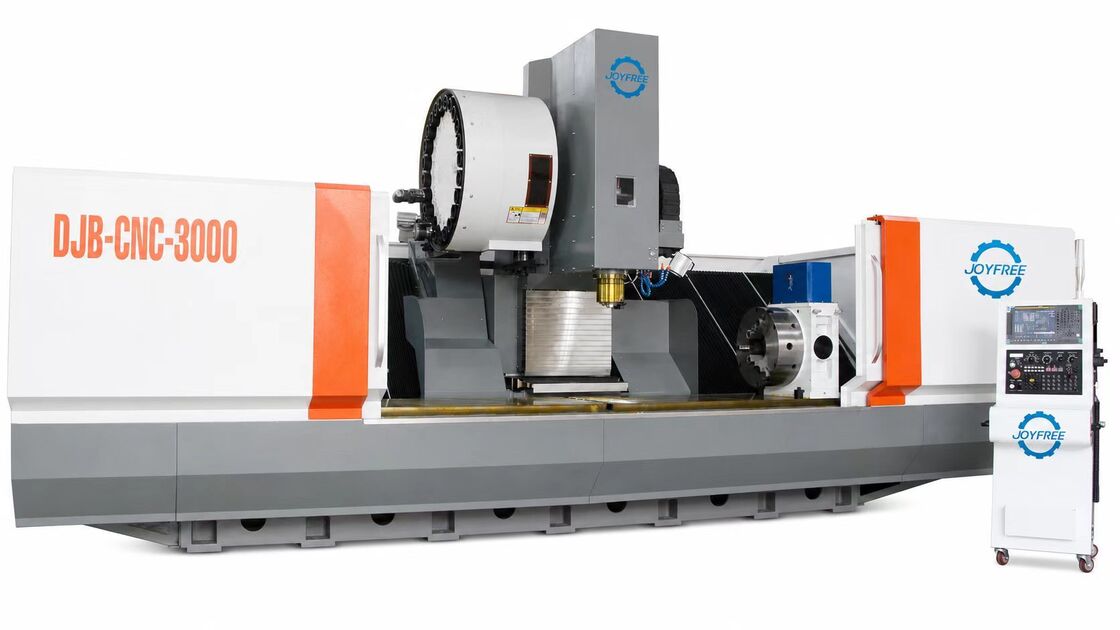

Compound Four-Axis CNC Machining Center for Multi-Angle Milling, Drilling, Tapping and Precision Parts Processing

The Compound Four-Axis CNC Machining Center is a precision CNC machine designed for complex workpieces that require multi-angle machining, side processing, hole drilling, tapping, milling, boring, and contour machining. By adding a fourth rotary axis to the traditional machining structure, the machine allows the workpiece to rotate or index during processing, making it easier to machine multiple surfaces in one clamping.

This machine is especially suitable for parts that cannot be efficiently processed by ordinary three-axis equipment, such as components with side holes, angled holes, curved surfaces, grooves, multiple reference surfaces, and irregular structures. The four-axis compound design helps reduce repeated clamping, improve positioning accuracy, and maintain better consistency between different machining surfaces.

• Adopts CNC special numerical control system with friendly man-machine interface and easy operation
• Professional numerical control processing software enables three-digit programming and true WYSIWYG operation
• Capable of 3D linkage machining of up to 6 axes
• Can be equipped with knife point follow function
• Can be equipped with worktable turntable to form five-axis machining
• Processes aluminum alloy profiles, aluminum-wood composite profiles, copper profiles, steel profiles and other precision processing
• One-time clamping for milling, drilling, tapping, chamfering and other functional precision machining
• Equipped with automatic chip removal machine
• BT40 high-speed (24000S) electric spindle increases machine rigidity
• Servo automatic tool change spindle ensures high-precision machining
• Machine protective cover ensures operator safety and environmental sanitation
• 24 tool position capacity fast synchronous tool magazine with 2-second tool change time
• T-type casting worktable suitable for high precision processing with strong stability

The Compound Four-Axis CNC Machining Center is mainly used for multi-angle milling, drilling, tapping, boring, slotting, and precision machining of complex metal parts. It is suitable for workpieces with side holes, angled holes, multiple surfaces, grooves, curved structures, and irregular shapes.

The main advantage is that the fourth rotary axis allows the workpiece to be positioned or machined from different angles. This reduces repeated clamping, improves machining accuracy, and makes complex parts easier to process in one setup.

This machine can process aluminum alloy, steel, copper, cast iron, and other industrial metal materials. The actual processing capability depends on spindle power, rotary axis configuration, tooling system, and workpiece requirements.

Our machining centers can support drilling, tapping, milling, boring, and turning functions. Multi-axis options, such as 3-axis, 4-axis, and 5-axis configurations, are also available to meet the processing needs of complex workpieces.

We can provide different control systems according to customer requirements, such as Siemens, GSK, FANUC, and other reliable CNC control brands.

Yes. We support customization of machining range, spindle power, automation level, fixture configuration, tooling system, control system, and other machine specifications according to your production needs.
