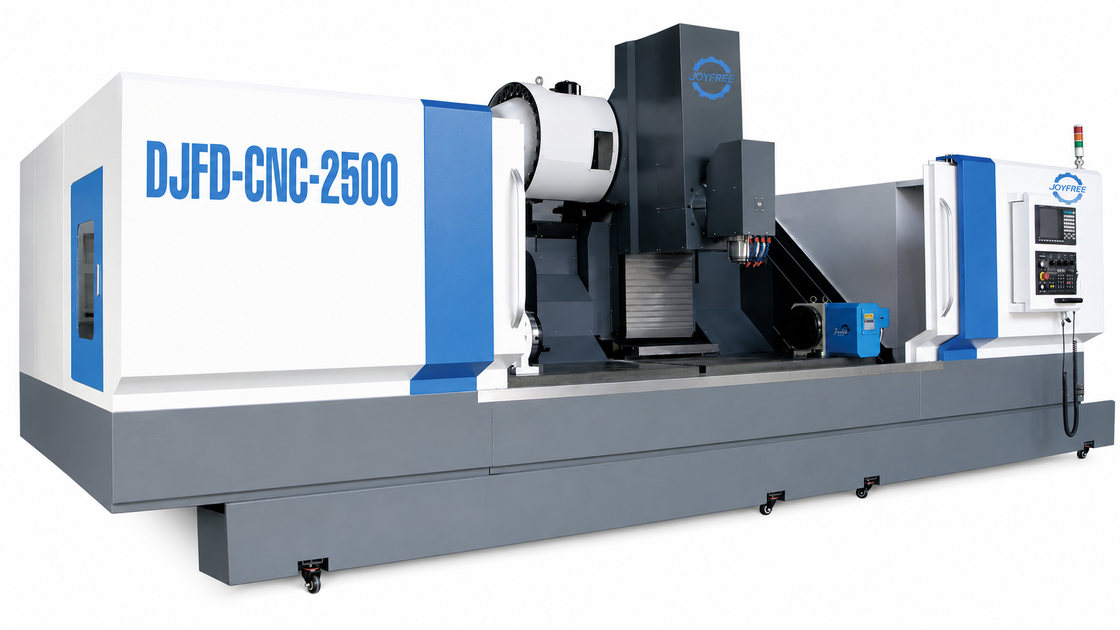

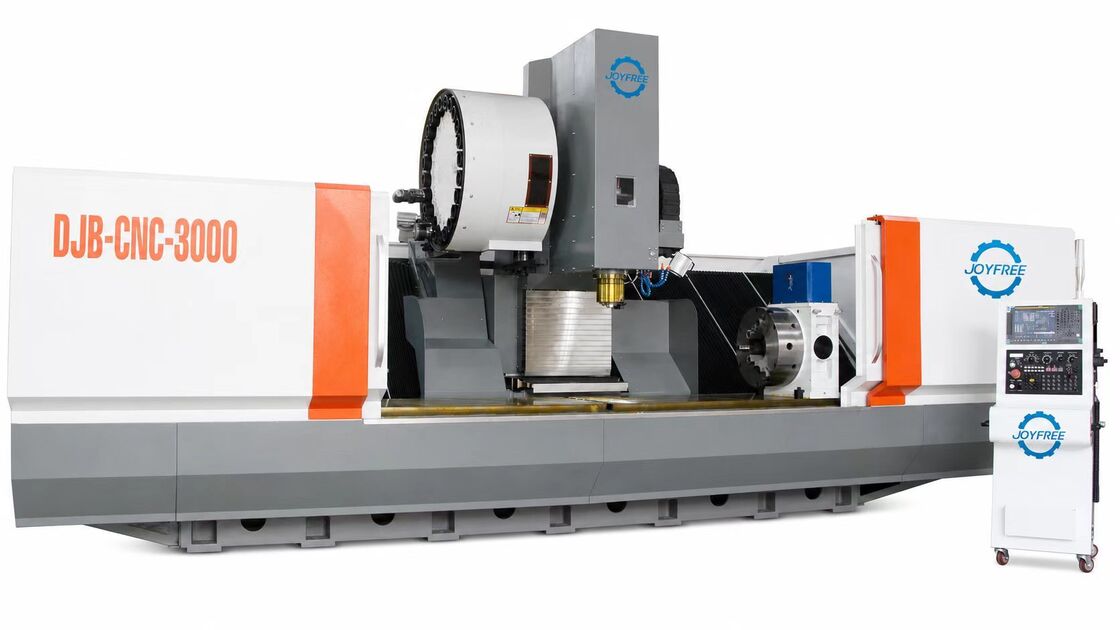

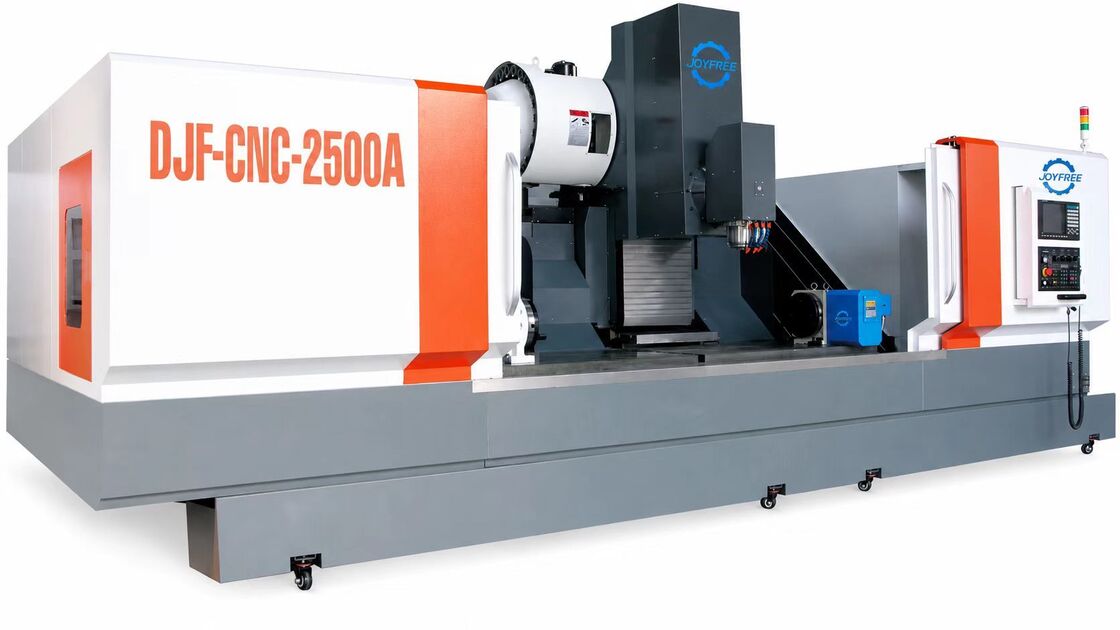

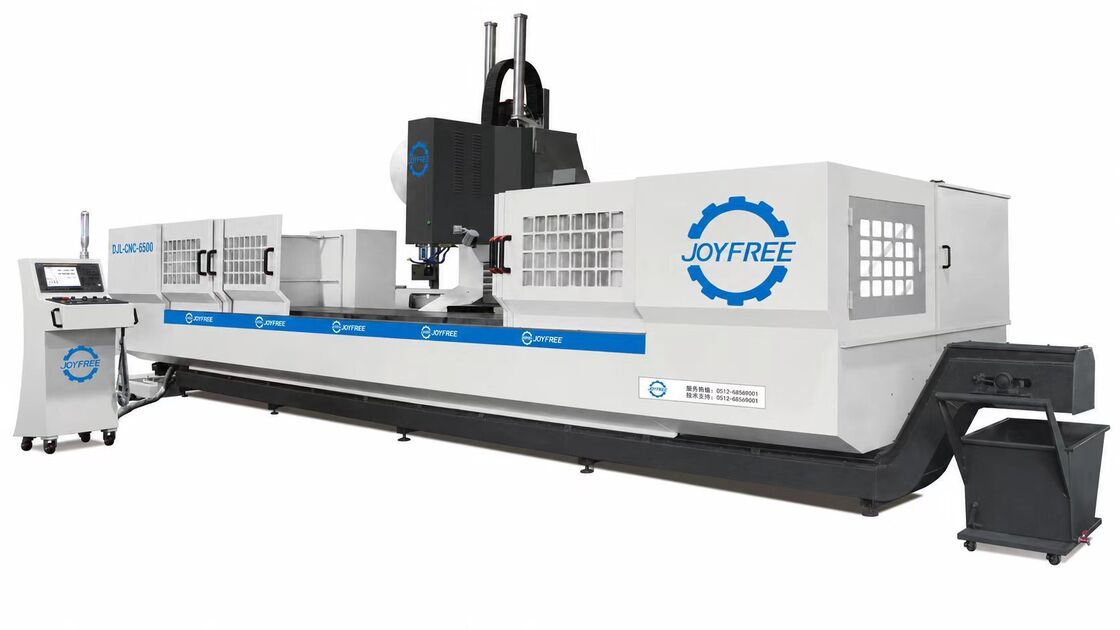

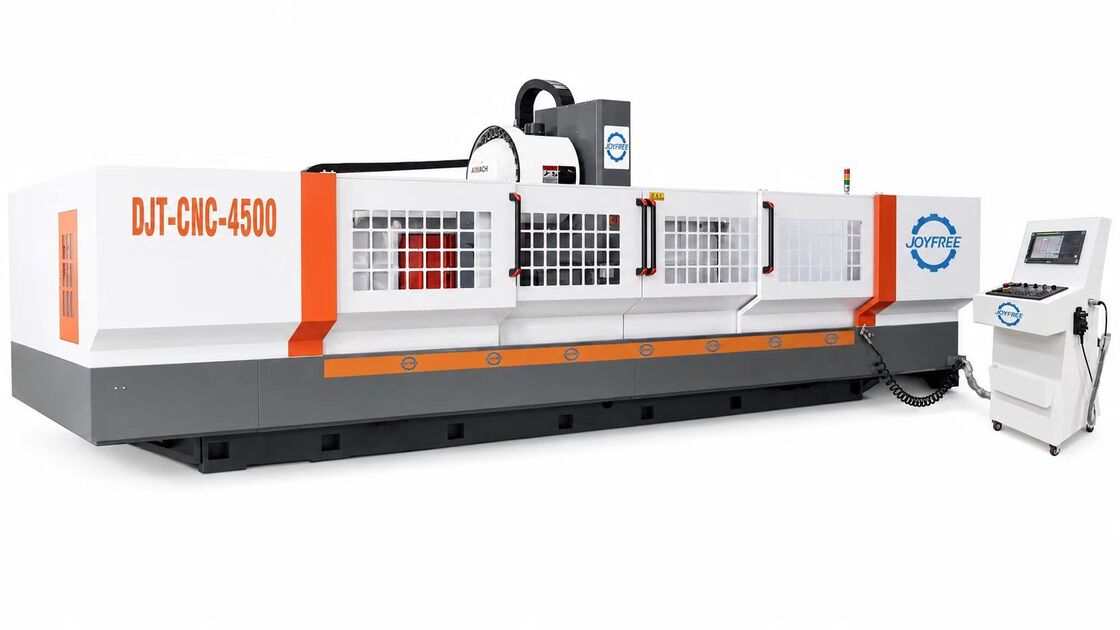

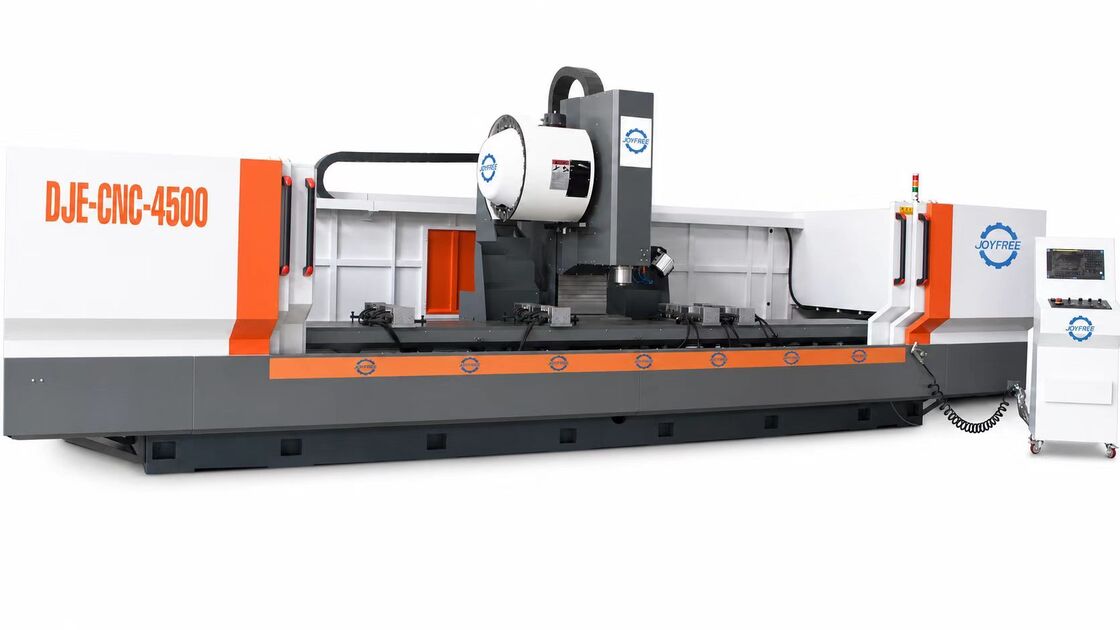

Compound 4-Axis CNC Machining Center for Multi-Side Milling, Drilling, Tapping and Complex Metal Parts Processing

The Compound 4-Axis CNC Machining Center is a high-efficiency CNC machine designed for multi-side milling, drilling, tapping, boring, slotting, and compound machining of complex metal parts. Compared with standard 3-axis machining equipment, this 4-axis machining center adds rotary positioning or rotary machining capability, allowing the workpiece to be processed from multiple angles in one setup.

The biggest advantage of this machine is its ability to reduce repeated clamping. For workpieces that require side holes, angled surfaces, curved features, grooves, or multi-face machining, the 4-axis structure helps improve machining accuracy and production consistency. It is especially suitable for precision components that need stable positioning and high repeatability.

• Adopts CNC special numerical control system with friendly man-machine interface and easy operation
• Professional numerical control processing software enables three-digit programming processing with true WYSIWYG capability
• Can realize 3D linkage machining of up to 6 axes
• Equipped with knife point follow function
• Can be equipped with worktable turntable to form five-axis machining
• Processes aluminum alloy profiles, aluminum-wood composite profiles, copper profiles, steel profiles and other precision processing
• One-time clamping milling, drilling, tapping, chamfering and other functional precision machining
• Equipped with automatic chip removal machine
• BT40 high-speed (24000S) electric spindle increases machine rigidity
• Servo automatic tool change spindle ensures high-precision machining
• Machine protective cover ensures operator safety and environmental sanitation
• 24 tool position capacity fast synchronous tool magazine with 2-second tool change time
• T-type casting worktable suitable for high precision processing with strong stability

The Compound 4-Axis CNC Machining Center is mainly used for milling, drilling, tapping, boring, slotting, and multi-side machining of complex metal parts. It is suitable for workpieces that require side machining, angled hole processing, curved surface machining, and multiple machining operations in one clamping.

A 4-axis machining center adds rotary positioning or rotary machining capability compared with a standard 3-axis machine. This allows the workpiece to be processed from different angles, reducing repeated clamping, improving machining accuracy, and increasing production efficiency.

This machine can process aluminum alloy, steel, copper, cast iron, and other industrial metal materials. The actual processing range depends on the spindle power, rotary axis configuration, cutting tools, and workpiece requirements.

Our machining centers can support drilling, tapping, milling, boring, and turning functions. Multi-axis options, such as 3-axis, 4-axis, and 5-axis configurations, are also available to meet the processing needs of complex workpieces.

We can provide different control systems according to customer requirements, such as Siemens, GSK, FANUC, and other reliable CNC control brands.

Yes. We support customization of machining range, spindle power, automation level, fixture configuration, tooling system, control system, and other machine specifications according to your production needs.
