High-Precision Profile CNC Machining Center for Aluminum Profile Milling, Drilling, Tapping and Industrial Profile Processing
High-Precision Profile CNC Machining Center for Aluminum Profile Milling, Drilling, Tapping and Industrial Profile Processing
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Model Number:
JFE3020
Contact Us
Request A Quote
Product Details
Model NO.:
JFE3020
Application:
Glass
Process Usage:
Aluminum Profile 5-axis Gantry Machining Center
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
35days
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
High-Precision Profile CNC Machining Center for Aluminum Profile Milling, Drilling, Tapping and Industrial Profile Processing
Product Overview
The High-Precision Profile CNC Machining Center is a professional CNC machine designed for accurate milling, drilling, tapping, slotting, cutting, and multi-process machining of aluminum profiles and industrial profiles. It is widely used in aluminum window and door manufacturing, curtain wall profile processing, industrial aluminum extrusion machining, automotive aluminum parts, rail transit components, furniture profiles, and customized metal profile fabrication.
Equipped with a high-precision CNC control system, rigid machine structure, high-speed spindle, and stable guide rail system, this profile machining center delivers excellent machining accuracy and reliable production performance. It can complete multiple machining operations in one clamping, helping manufacturers reduce manual operation, improve machining consistency, and increase production efficiency.
This profile CNC machining center is suitable for aluminum profiles, aluminum alloy frames, industrial extrusions, structural profiles, door and window profiles, curtain wall profiles, heat sink profiles, and customized profile parts. With accurate positioning, easy programming, and stable processing performance, the machine can meet different requirements for hole drilling, end milling, groove milling, tapping, and profile cutting.
Equipment Features
- Three-axis full screw ensures high accuracy
- HT 300 casting ensures accuracy, rigidity and stability
- CNC special control system for high-speed precision processing
- Standard casting worktable
- Chain type chip removal system
- Fully protected sheet metal

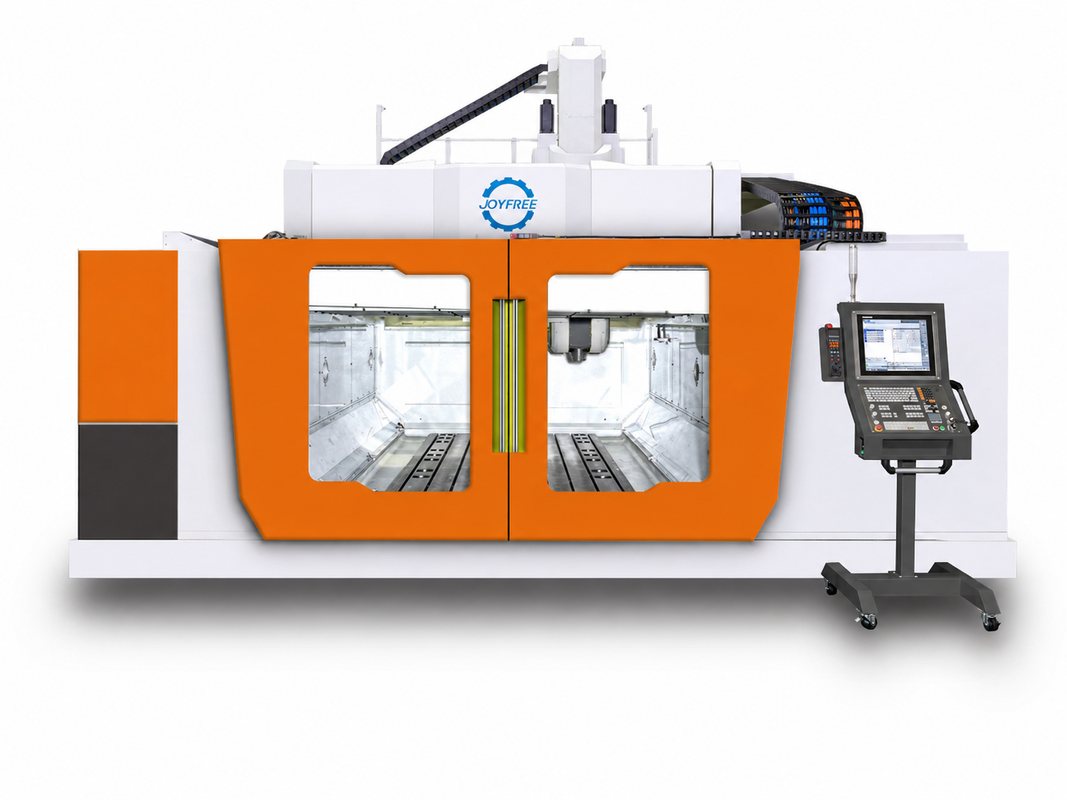

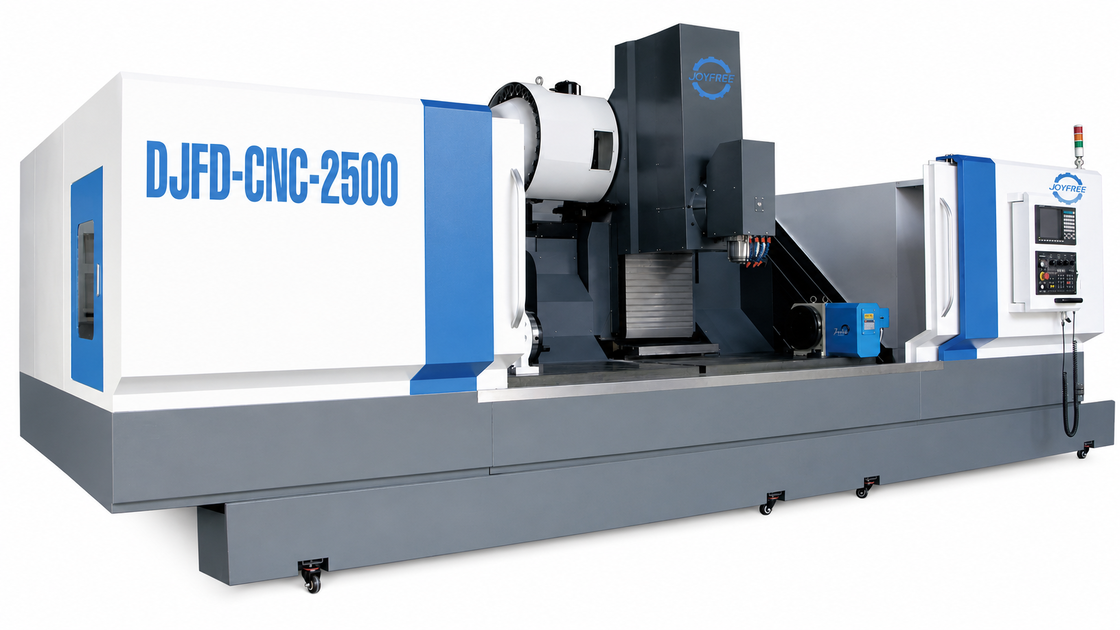

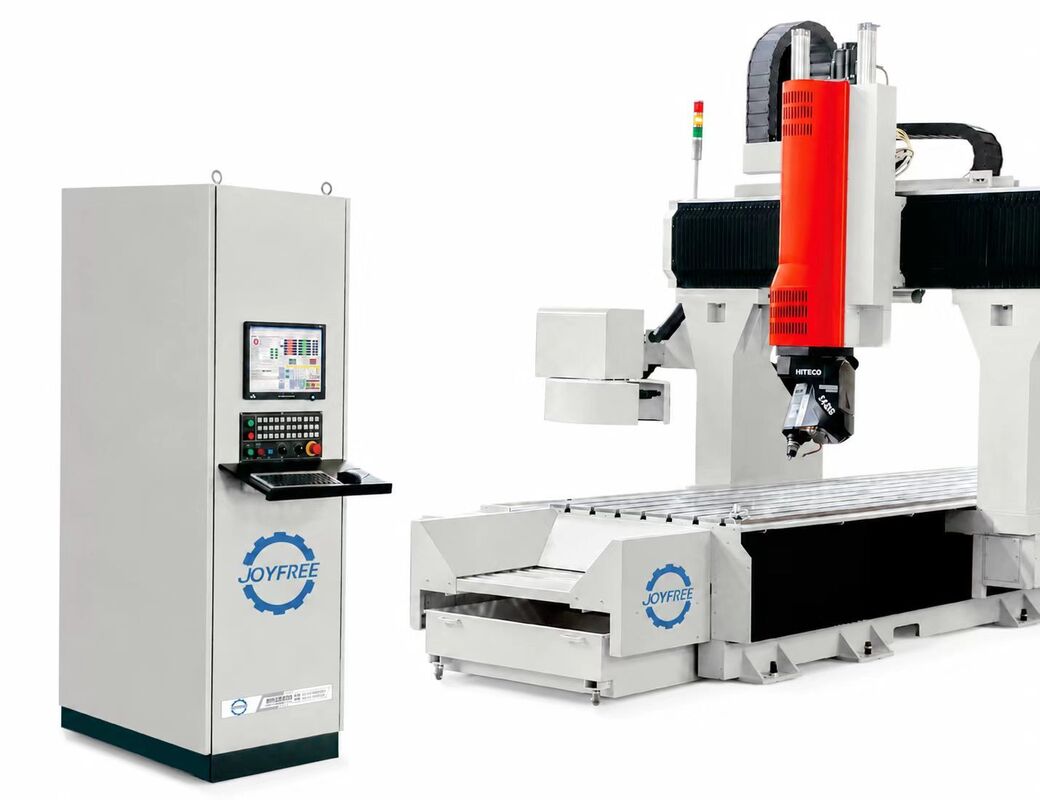

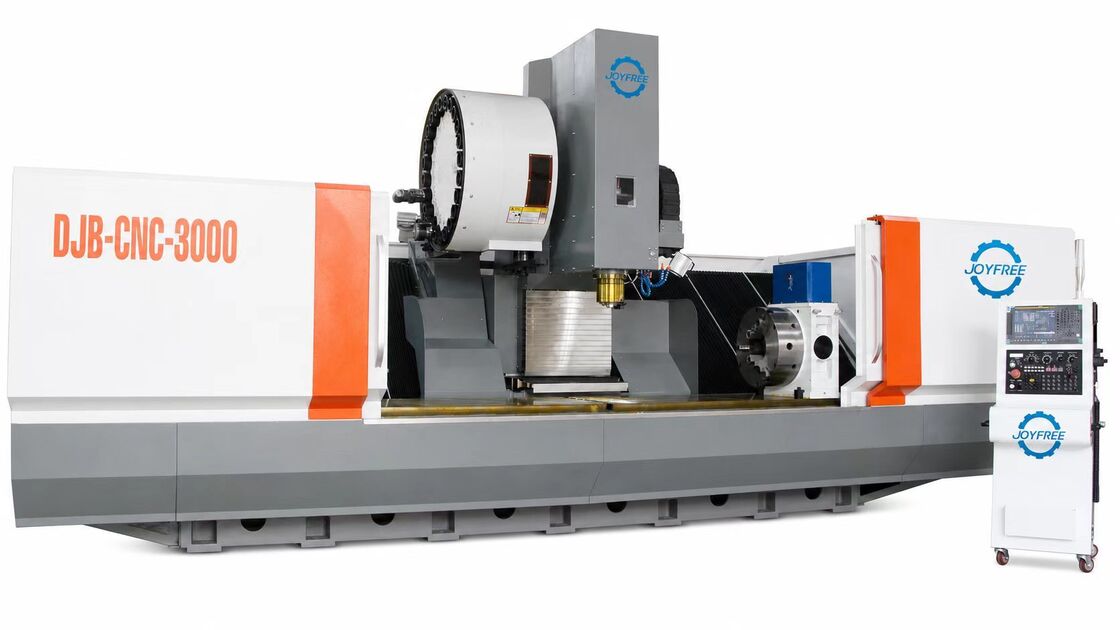

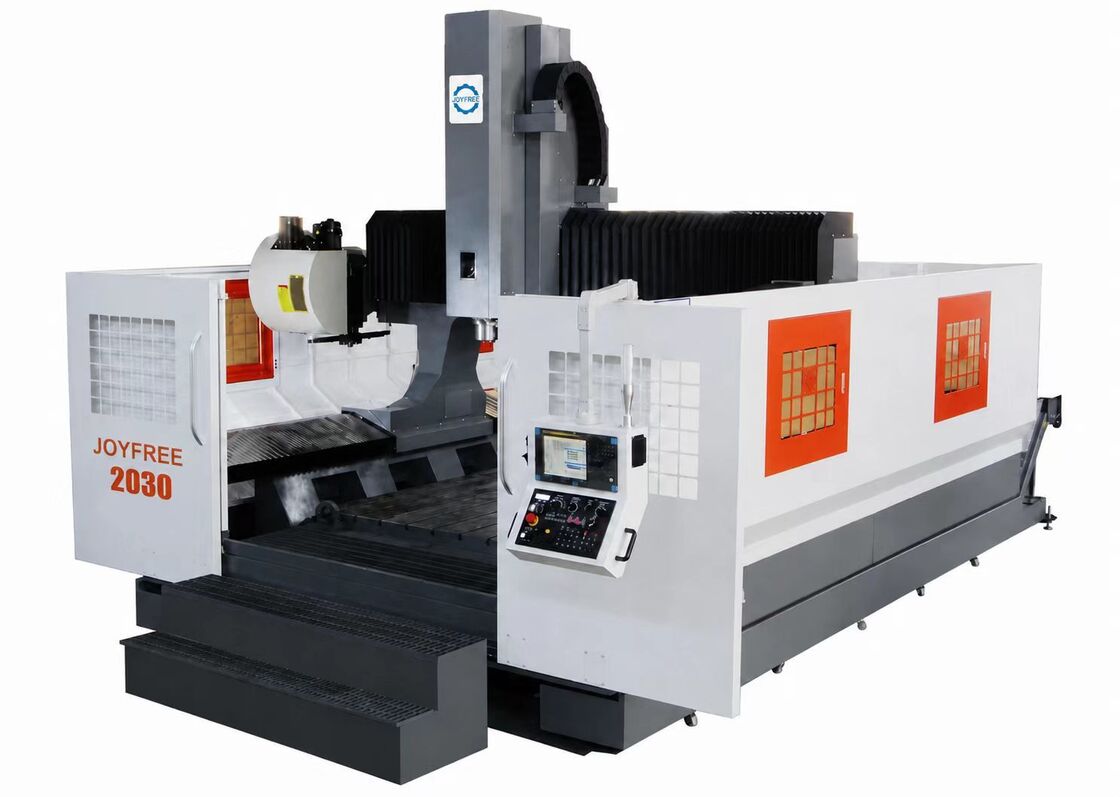

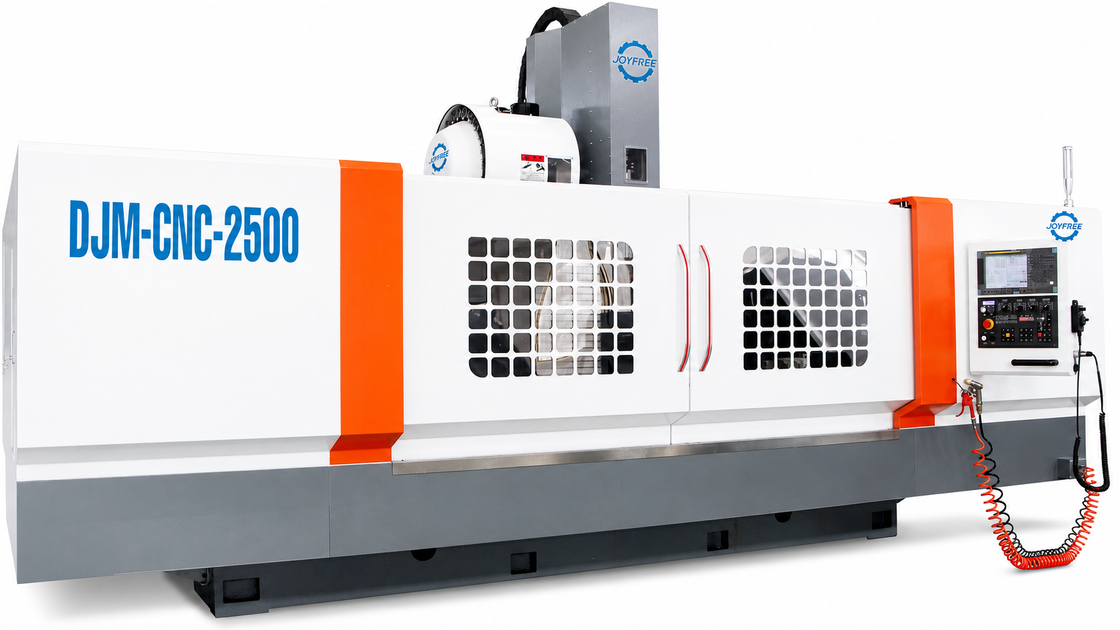

Equipment Views
Technical Parameters
| Category | Item | Parameter |
|---|---|---|
| STROKE | Stroke for X axis | 2500 mm |
| Stroke for Y axis | 550 mm | |
| Stroke for Z axis | 500 / 700 mm | |
| SPINDLE | Spindle speed | 12000 r/min |
| Spindle taper | BT40 | |
| TOOL | Tool magazine | Disc type |
| Capacity of tools magazine | 24 pcs | |
| Tool change time | 2 sec | |
| POWER OF MOTOR | Spindle driven motor | 7.5 / 11 kW |
| X/Y/Z driven motor | 3 kW / 3 kW / 3 kW | |
| MOVING SPEED | X moving speed | 28 m/min |
| Y/Z moving speed | 28 / 28 m/min | |
| X/Y/Z feeding speed | 15000 mm/min | |
| LUBRICATING SYSTEM | Lubricating system | Automatic lubricating |
| Cooling system | Water cooling system | |
| PRECISION | Position precision of X axis | 0.015 mm |
| Position precision of Y/Z axis | 0.01 mm | |
| Repeating position | X: ±0.005 mm (500) / Y/Z: ±0.005 mm (300) | |
| SIZE OF MACHINE | Air pressure | 6 kg/cm² |
| Operation system | SIEMENS / FANUC / MITSUBISHI | |
| Height | 3300 mm | |
| Area | 5200 * 3300 mm | |
| Weight | 9000 kg |
FAQ
1. What is the High-Precision Profile CNC Machining Center used for?
The High-Precision Profile CNC Machining Center is mainly used for milling, drilling, tapping, slotting, cutting, and multi-process machining of aluminum profiles and industrial profiles. It is suitable for door and window profiles, curtain wall profiles, industrial extrusions, aluminum frames, and customized profile parts.
2. What materials can this machine process?
This machine is mainly suitable for aluminum profiles, aluminum alloy materials, industrial extrusions, structural profiles, and customized metal profile components. The specific processing range depends on the machine configuration, spindle power, tooling system, and workpiece requirements.
3. What are the advantages of a high-precision profile machining center?
A high-precision profile machining center provides accurate positioning, stable machining quality, high repeatability, and efficient production performance. It can complete multiple processing steps in one clamping, reducing manual errors and improving overall machining consistency.
4. What are the main products of your company?
We specialize in a wide range of precision CNC machine tools and industrial equipment, including high-precision grinding centers, ultra-precision surface grinders, optical milling and grinding centers, flexible polishing machines, various machining centers, CNC cutting tools, power chucks, hydraulic cylinders, drilling and tapping machines, packaging machinery, booster cylinders, copper processing equipment, and related industrial solutions.
5. What control systems do you use on your machines?
We can provide different control systems according to customer requirements, such as Siemens, GSK, FANUC, and other reliable CNC control brands.
6. Can the machines be customized according to customer requirements?
Yes. We support customization of machining range, spindle power, automation level, fixture configuration, tooling system, control system, and other machine specifications according to your production needs.
