High-Precision Profile CNC Machining Center for Aluminum Profile Drilling, Milling, Tapping and Industrial Profile Processing
High-Precision Profile CNC Machining Center for Aluminum Profile Drilling, Milling, Tapping and Industrial Profile Processing
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Model Number:
JFE3020
Contact Us
Request A Quote
Product Details
Model NO.:
JFE3020
Application:
Glass
Process Usage:
Aluminum Profile 5-axis Gantry Machining Center
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
35days
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
High-Precision Profile CNC Machining Center for Aluminum Profile Drilling, Milling, Tapping and Industrial Profile Processing
Product Overview
The High-Precision Profile CNC Machining Center is a professional CNC machine designed for accurate drilling, milling, tapping, slotting, cutting, and multi-process machining of aluminum profiles and industrial profiles. It is widely used in aluminum window and door manufacturing, curtain wall profile processing, industrial aluminum extrusion machining, automotive components, rail transit parts, furniture profiles, and customized metal profile fabrication.
Equipped with a precision CNC control system, high-speed spindle, rigid machine structure, and stable guide rail system, this profile machining center provides excellent processing accuracy and reliable production performance. It can complete multiple machining operations in one clamping, helping manufacturers reduce manual operation, improve machining consistency, and increase production efficiency.
Equipment Features
- Three-axis full screw rod, 45# linear guide rail, ensuring high-speed and high-precision heavy cutting
- HT 300 casting ensures accuracy, rigidity and stability
- Direct-connected spindle driven by high power, suitable for high-speed and high precision universal processing of various steel, aluminum, copper, PVC and other materials
- Standard casting worktable, chain type chip removal machine and fully protected sheet metal

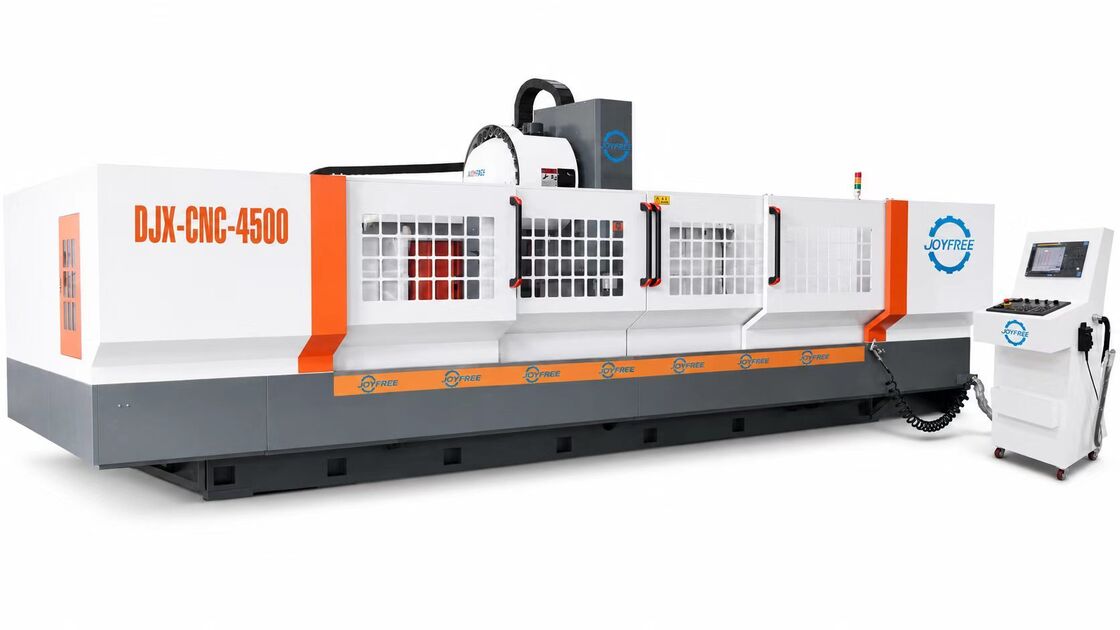

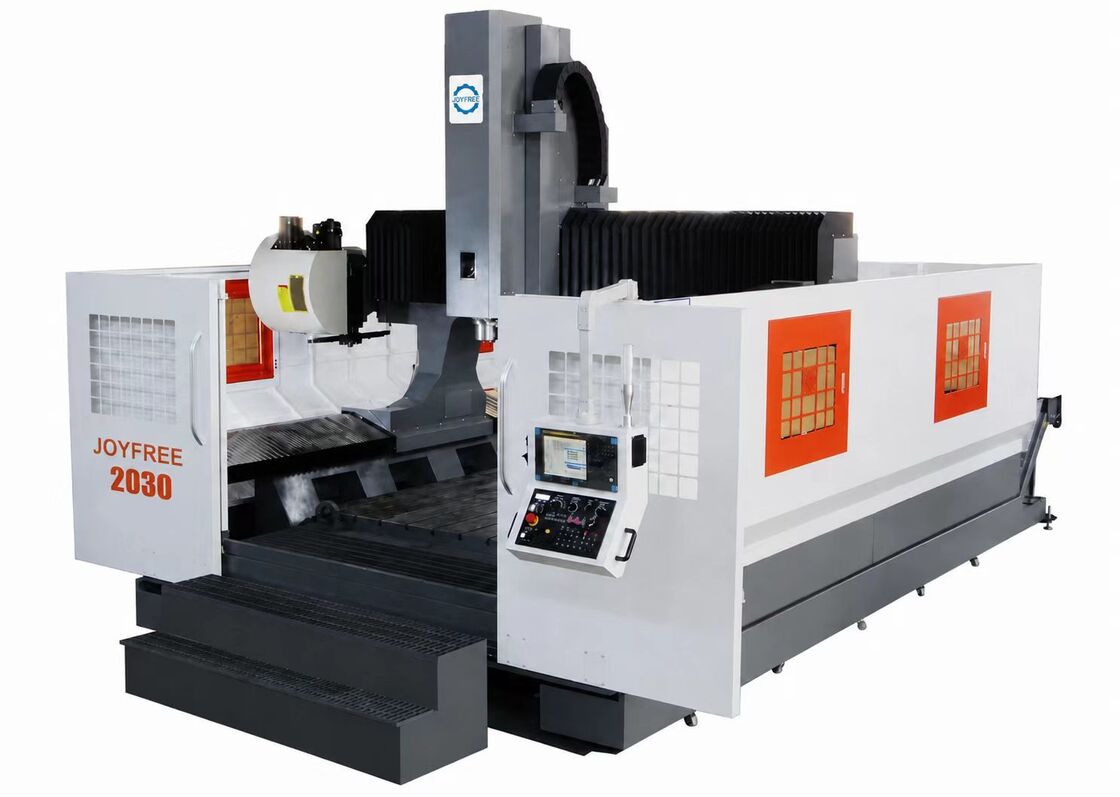

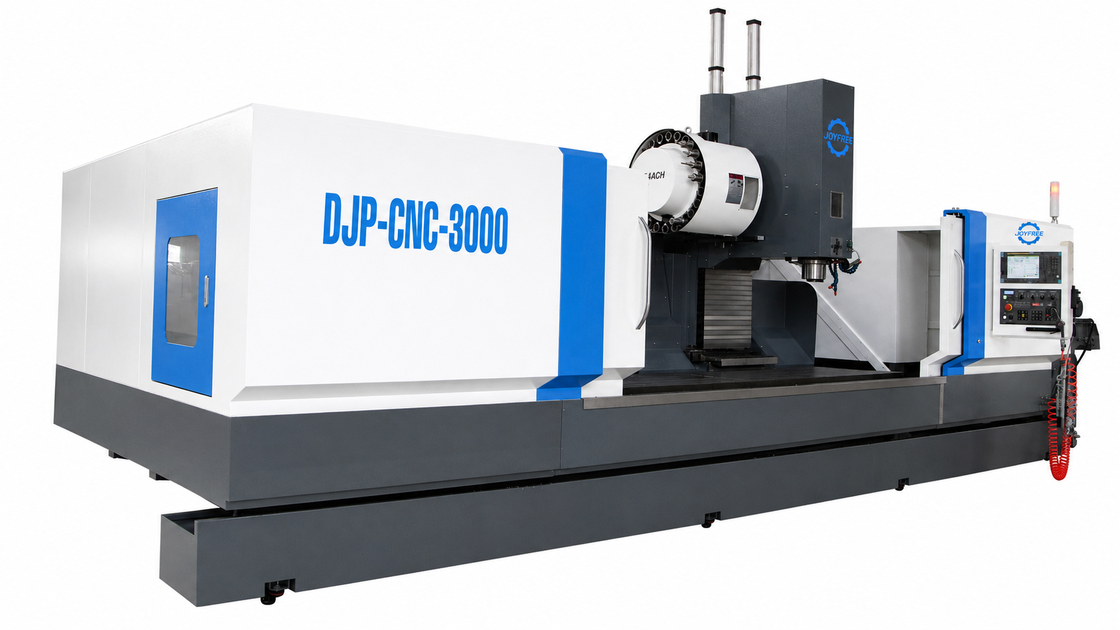

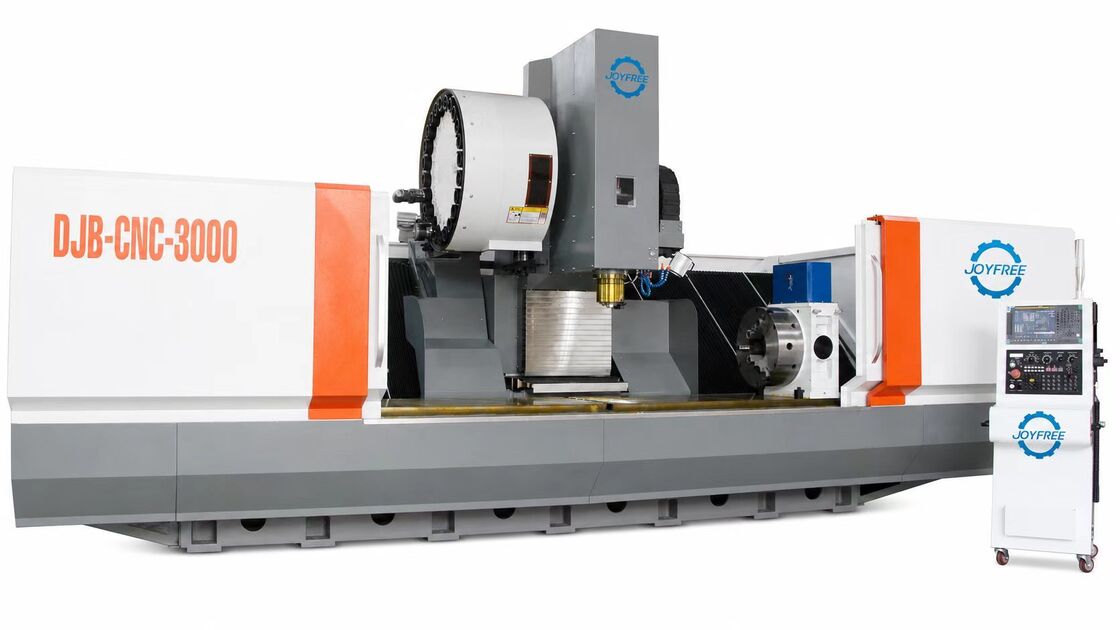

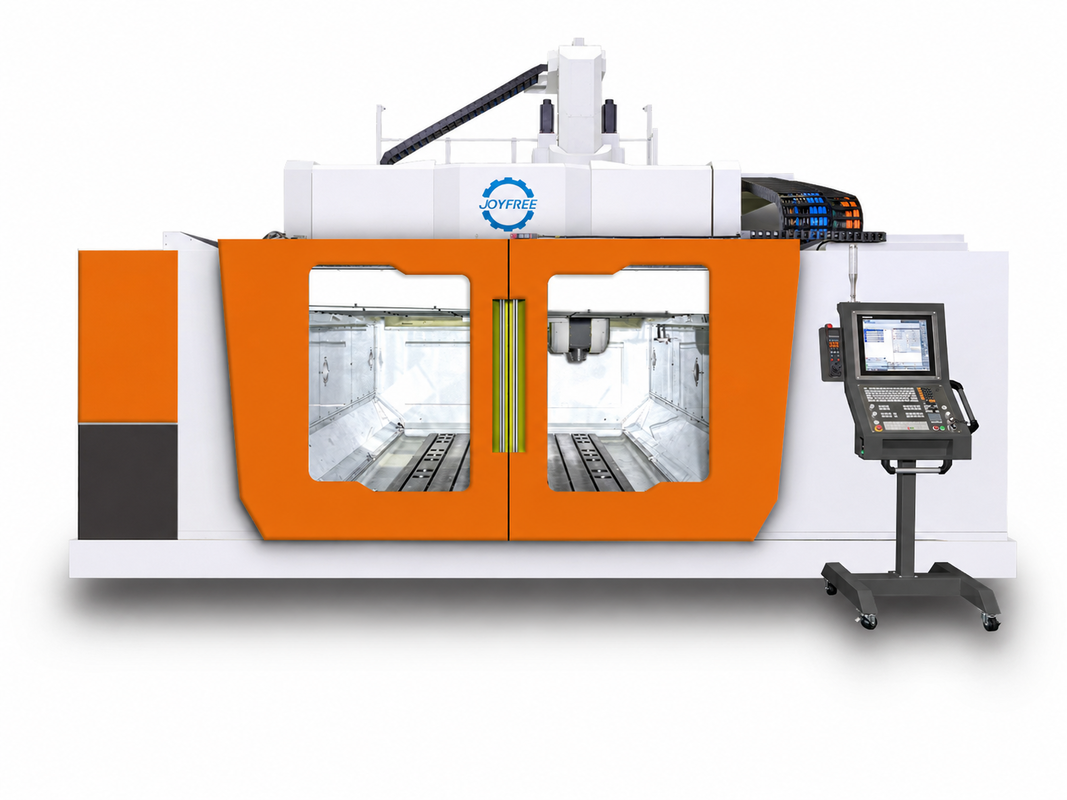

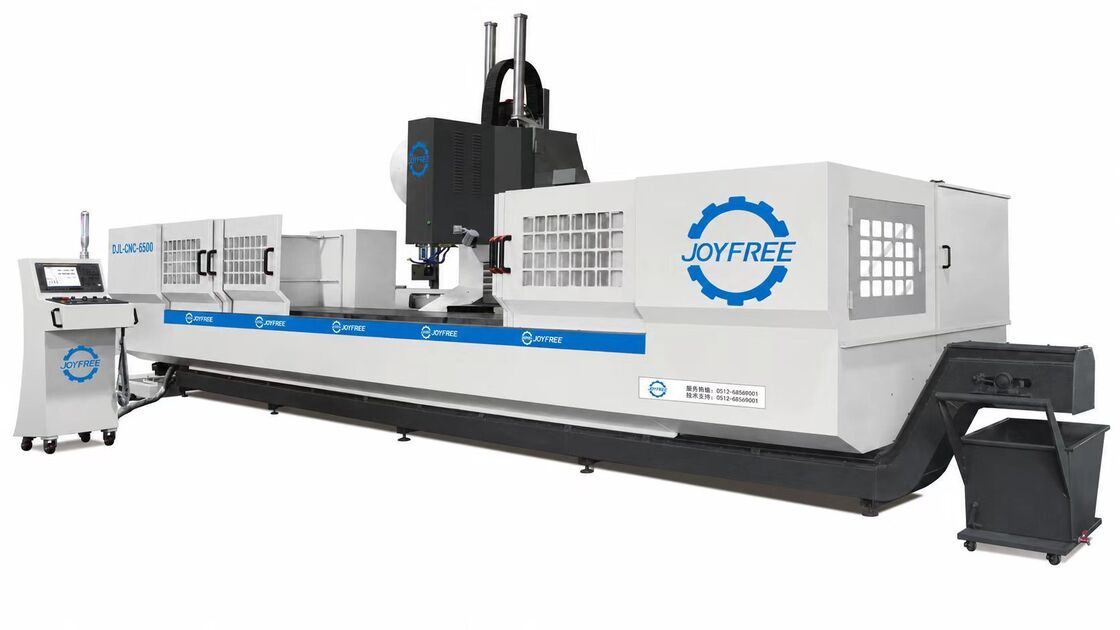

Equipment Views
Technical Parameters
| Category | Item | Parameter |
|---|---|---|
| STROKE | Stroke for X axis | 2500 / 3000 mm |
| Stroke for Y axis | 550 / 700 mm | |
| Stroke for Z axis | 500 / 700 mm | |
| SPINDLE | Spindle speed | 10000 r/min |
| Spindle taper | BT40(Φ150) | |
| TOOL | Tool magazine | Disc type |
| Capacity of tools magazine | 24 pcs | |
| Tool change time | 2 sec | |
| POWER OF MOTOR | Spindle driven motor | 11 kW |
| X driven motor | 3 kW | |
| Y/Z driven motor | 3 kW / 3 kW | |
| MOVING SPEED | X moving speed | 28 m/min |
| Y/Z moving speed | 28 / 28 m/min | |
| X/Y/Z feeding speed | 15000 mm/min | |
| LUBRICATING SYSTEM | Lubricating system | Automatic lubricating |
| Cooling system | Water cooling system | |
| PRECISION | Position precision of X axis | 0.01 mm |
| Position precision of Y/Z axis | 0.01 mm | |
| Repeating position | X: ±0.005 mm (500) / Y/Z: ±0.005 mm (300) | |
| SIZE OF MACHINE | Air pressure | 6 kg/cm² |
| Operation system | SIEMENS / FANUC / MITSUBISHI | |
| Height | 3300 mm | |
| Area | 5200 / 5700 * 3300 mm | |
| SIZE OF MACHINE | Weight | 9000–10000 kg |
FAQ
1. What is the High-Precision Profile CNC Machining Center used for?
The High-Precision Profile CNC Machining Center is mainly used for drilling, milling, tapping, slotting, cutting, and multi-process machining of aluminum profiles and industrial profiles. It is suitable for door and window profiles, curtain wall profiles, industrial extrusions, aluminum frames, and customized profile parts.
2. What materials can this machine process?
This machine is mainly suitable for aluminum profiles, aluminum alloy materials, industrial extrusions, structural profiles, and customized metal profile components. The specific processing range depends on the machine configuration, spindle power, tooling system, and workpiece requirements.
3. What are the advantages of a high-precision profile machining center?
A high-precision profile machining center provides accurate positioning, stable machining quality, high repeatability, and efficient production performance. It can complete multiple processing steps in one clamping, reducing manual errors and improving overall machining consistency.
4. What machining functions do your machining centers support?
Our machining centers can support drilling, tapping, milling, boring, and turning functions. Multi-axis options, such as 3-axis, 4-axis, and 5-axis configurations, are also available to meet the processing needs of complex workpieces.
5. What control systems do you use on your machines?
We can provide different control systems according to customer requirements, such as Siemens, GSK, FANUC, and other reliable CNC control brands.
6. Can the machines be customized according to customer requirements?
Yes. We support customization of machining range, spindle power, automation level, fixture configuration, tooling system, control system, and other machine specifications according to your production needs.
