High-Precision Heavy-Cutting CNC Machining Center for Aluminum Profiles and Industrial Profile Processing
High-Precision Heavy-Cutting CNC Machining Center for Aluminum Profiles and Industrial Profile Processing
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Model Number:
JFE3020
Contact Us
Request A Quote
Product Details
Model NO.:
JFE3020
Application:
Glass
Process Usage:
Aluminum Profile 5-axis Gantry Machining Center
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
35days
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
High-Precision Heavy-Cutting CNC Machining Center for Aluminum Profiles and Industrial Profile Processing
Product Overview
The High-Precision Heavy-Cutting CNC Machining Center for Aluminum Profiles and Industrial Profile Processing is a rigid and powerful CNC machine designed for high-efficiency milling, drilling, tapping, boring, slotting, and heavy-duty profile machining. It is suitable for processing aluminum profiles, industrial extrusions, structural profiles, large aluminum frames, curtain wall profiles, and customized metal profile components.
Built with a strong machine body, high-rigidity structure, powerful spindle system, and precision CNC control, this heavy-cutting machining center provides excellent stability during long-time industrial operation. It is especially suitable for manufacturers that require high cutting strength, accurate machining performance, and stable processing quality for large or complex profile workpieces.
Equipment Features
- Three-axis full screw ensures high accuracy
- HT300 casting ensures accuracy, rigidity and stability
- CNC special control system suitable for high-speed and high-precision processing of aluminum, copper, PVC and other materials
- Standard casting worktable, chain type chip removal machine and fully protected sheet metal

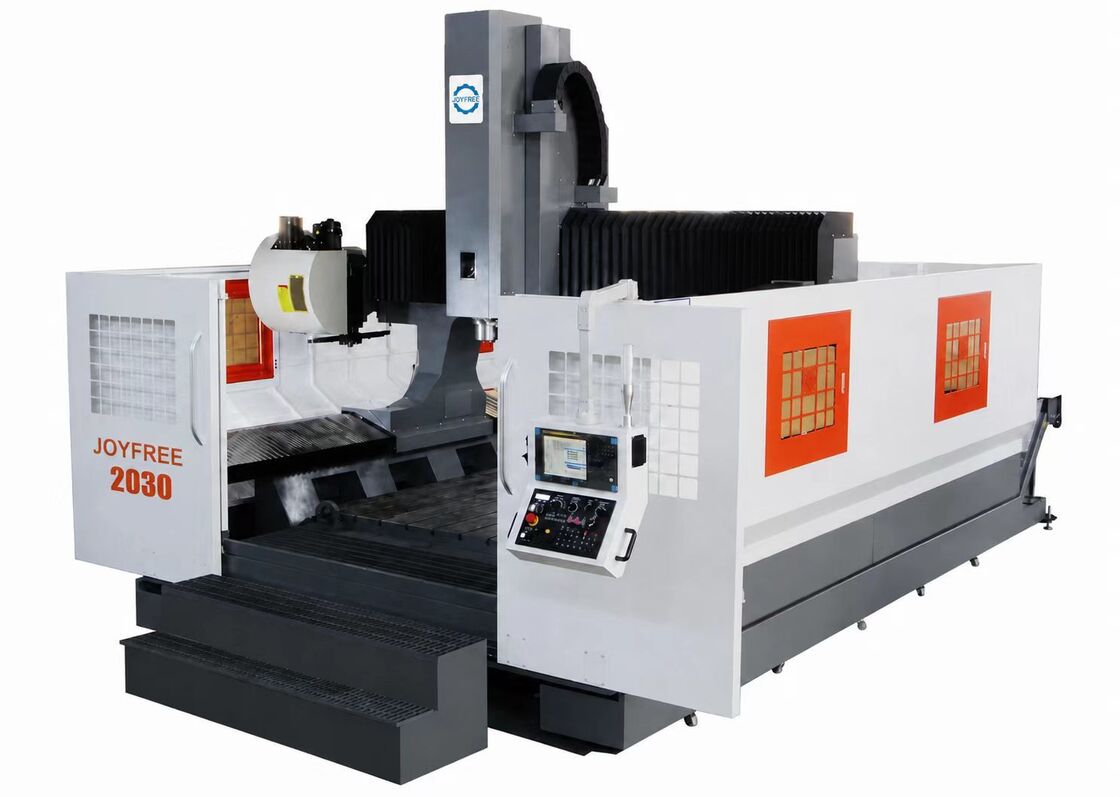

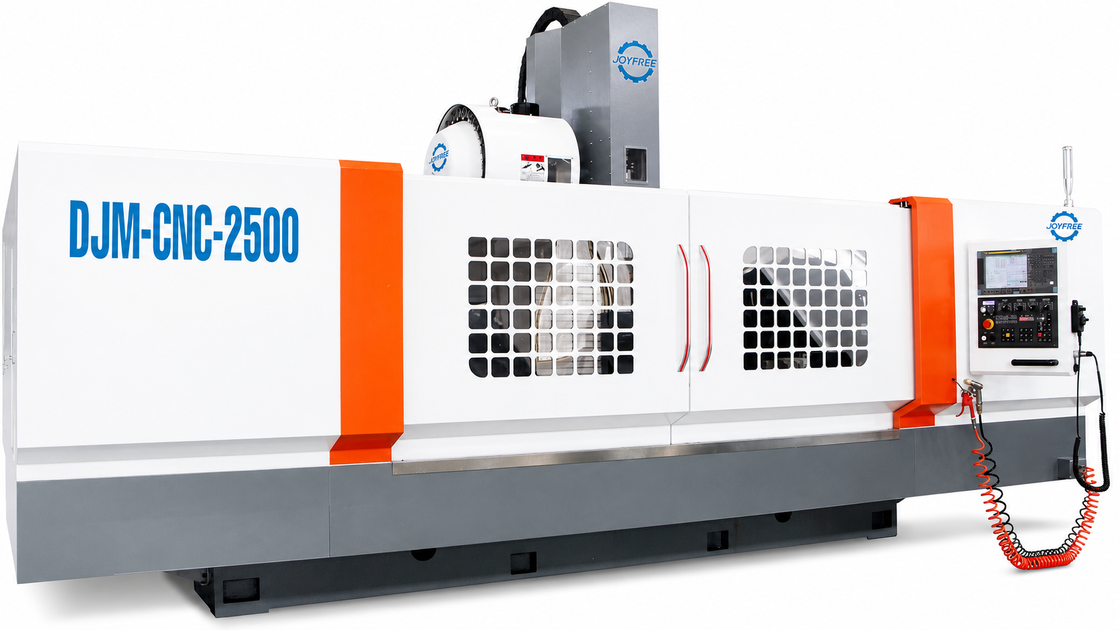

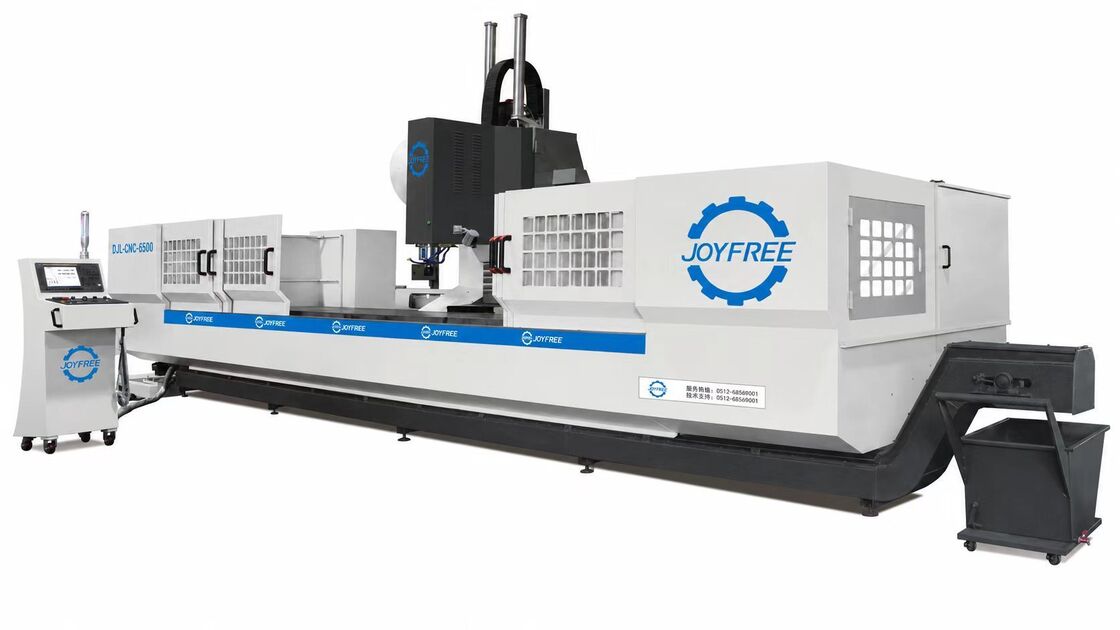

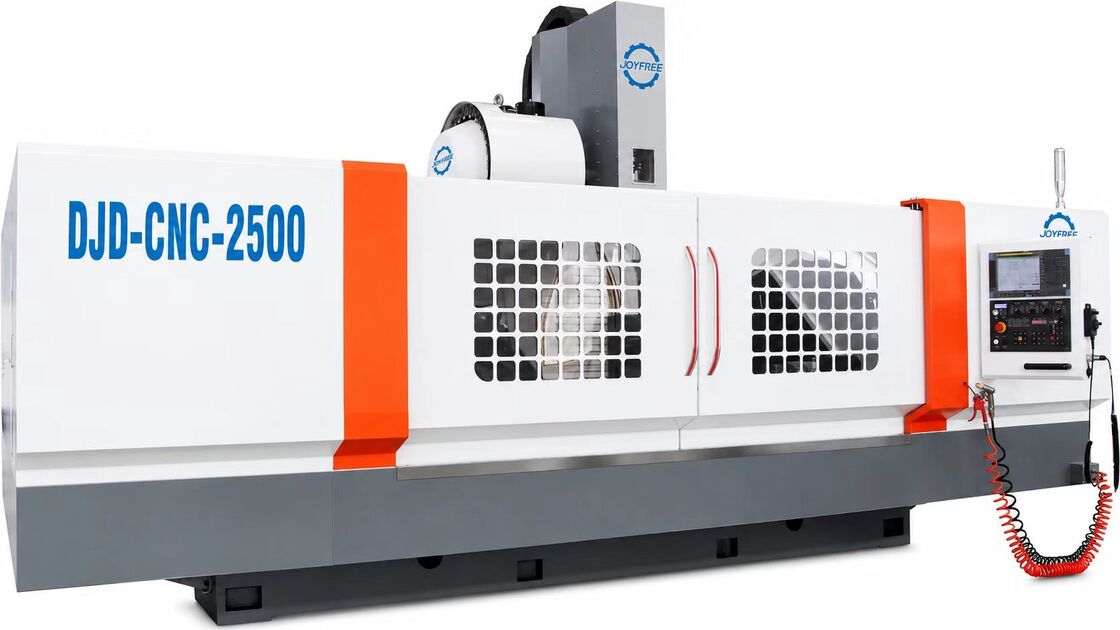

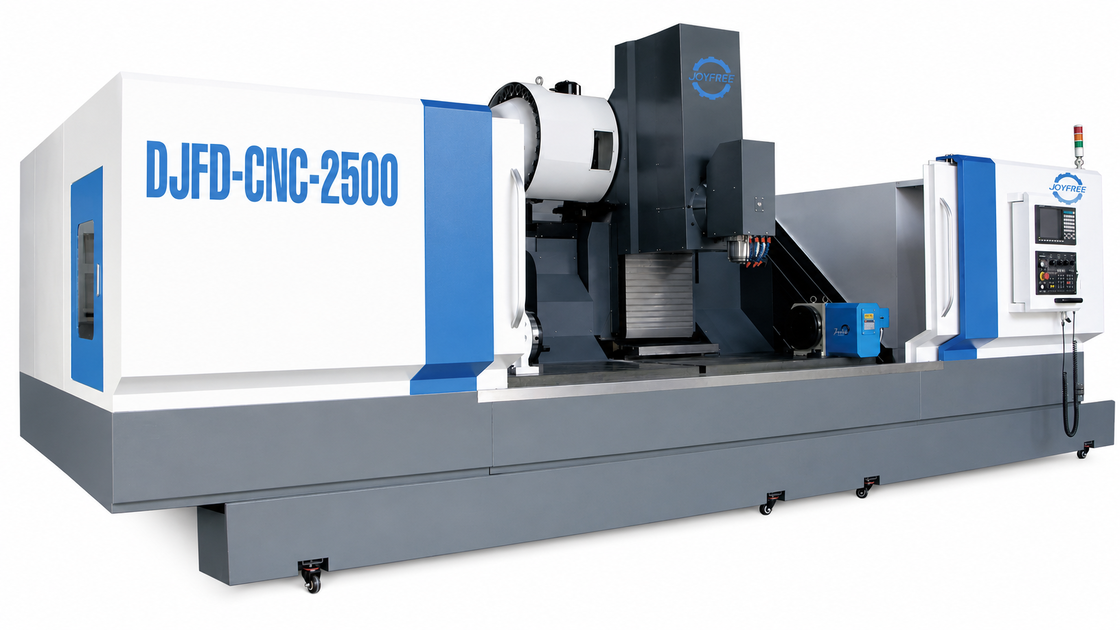

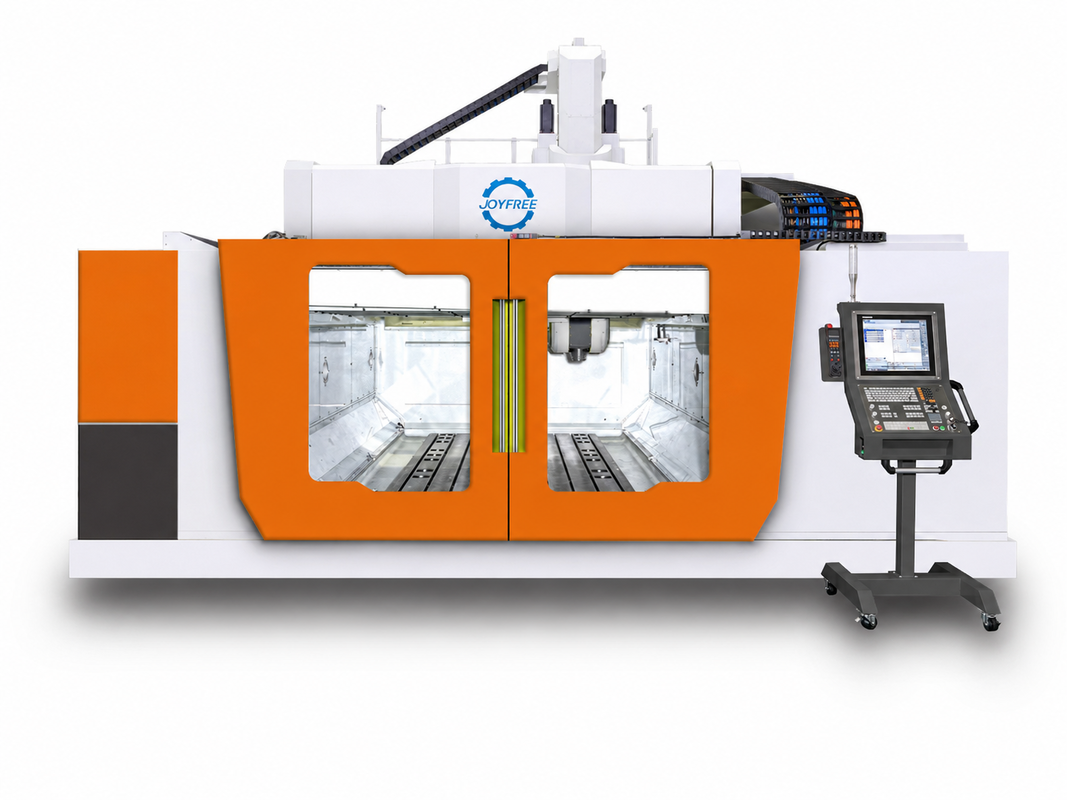

Equipment Views
Technical Parameters
| Category | Item | Parameter |
|---|---|---|
| STROKE | Stroke for X axis | 2500 / 3000 mm |
| Stroke for Y axis | 550 / 700 mm | |
| Stroke for Z axis | 500 / 700 mm | |
| SPINDLE | Spindle speed | 8000 r/min (belt) |
| Spindle taper | BT40(Φ150) | |
| TOOL | Tool magazine | Disc type |
| Capacity of tools magazine | 24 pcs | |
| Tool change time | 2 sec | |
| POWER OF MOTOR | Spindle driven motor | 11 kW |
| X driven motor | 3 kW | |
| Y/Z driven motor | 3 kW / 3 kW | |
| MOVING SPEED | X moving speed | 28 m/min |
| Y/Z moving speed | 28 / 28 m/min | |
| X/Y/Z feeding speed | 15000 mm/min | |
| LUBRICATING SYSTEM | Lubricating system | Automatic lubricating |
| Cooling system | Water cooling system | |
| PRECISION | Position precision of X axis | 0.01 mm |
| Position precision of Y/Z axis | 0.01 mm | |
| Repeating position | X: ±0.005 mm (500) / Y/Z: ±0.005 mm (300) | |
| SIZE OF MACHINE | Air pressure | 6 kg/cm² |
| Operation system | SIEMENS / FANUC / MITSUBISHI | |
| Height | 3300 mm | |
| Area | 5200 / 5700 * 3300 mm | |
| SIZE OF MACHINE | Weight | 9000–10000 kg |
FAQ
1. What is the High-Precision Heavy-Cutting CNC Machining Center used for?
The High-Precision Heavy-Cutting CNC Machining Center is mainly used for milling, drilling, tapping, boring, slotting, and heavy-duty machining of aluminum profiles and industrial profiles. It is suitable for large profile workpieces, structural components, curtain wall profiles, and customized metal profile parts.
2. What materials can this machine process?
This machine is mainly suitable for aluminum profiles, aluminum alloy materials, industrial extrusions, structural profiles, and customized metal profile components. The specific processing range depends on the machine configuration, spindle power, tooling system, and workpiece requirements.
3. What are the advantages of a heavy-cutting CNC machining center?
A heavy-cutting CNC machining center provides stronger cutting force, better rigidity, higher machining stability, and improved accuracy for large or complex workpieces. It is suitable for factories that need stable performance in high-load profile machining.
4. What control systems do you use on your machines?
We can provide different control systems according to customer requirements, such as Siemens, GSK, FANUC, and other reliable CNC control brands.
5. What machining functions do your machining centers support?
Our machining centers can support drilling, tapping, milling, boring, and turning functions. Multi-axis options, such as 3-axis, 4-axis, and 5-axis configurations, are also available to meet the processing needs of complex workpieces.
6. Can the machines be customized according to customer requirements?
Yes. We support customization of machining range, spindle power, automation level, fixture configuration, tooling system, control system, and other machine specifications according to your production needs.
