Aluminum Profile 3-Axis CNC Machining Center for Precision Drilling, Milling, Tapping and Slotting
Aluminum Profile 3-Axis CNC Machining Center for Precision Drilling, Milling, Tapping and Slotting
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Model Number:
JFE3020
Contact Us
Request A Quote
Product Details
Model NO.:
JFE3020
Application:
Glass
Process Usage:
Aluminum Profile 5-axis Gantry Machining Center
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
35days
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Aluminum Profile 3-Axis CNC Machining Center for Precision Drilling, Milling, Tapping and Slotting
Product Overview
The Aluminum Profile 3-Axis CNC Machining Center is a precision CNC machine designed for drilling, milling, tapping, slotting, and cutting aluminum profiles. It is widely used in aluminum window and door manufacturing, curtain wall profile processing, industrial aluminum extrusion machining, furniture aluminum profile production, and customized aluminum component fabrication. Compared with traditional manual processing equipment, the Aluminum Profile 3-Axis CNC Machining Center offers higher automation, better repeatability, and more stable performance. It is an ideal solution for factories that require accurate hole drilling, end milling, groove cutting, tapping, and multi-process aluminum profile machining.
Equipment Features
- Suitable for all kinds of aluminum alloy profile installation holes, flumes, lock holes, and other processing procedures
- Complete processing of all holes and slots on the same processing surface with a single setup
- High-quality imported CNC system with excellent user interface
- High-power air-cooled high-speed spindle imported from Italy for various drilling and milling processes
- Premium AC servo motors, ball screws, linear slides, and bearing structure for high machining accuracy
- HSD imported high-speed motorized spindle

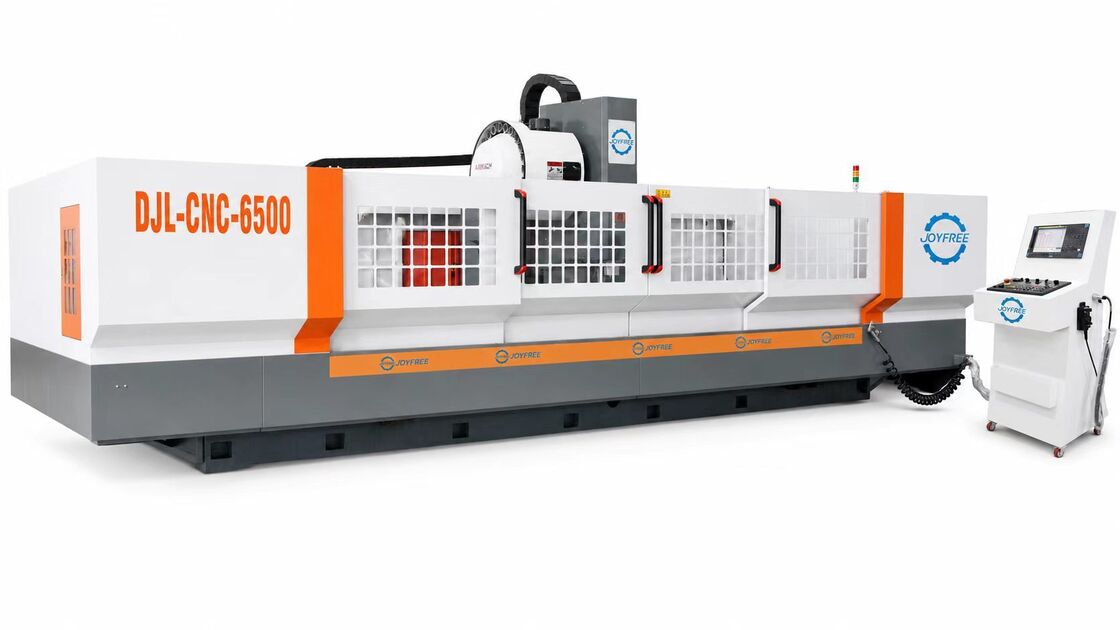

Equipment Views
Technical Parameters
| Category | Item | Parameter |
|---|---|---|
| STROKE | Stroke for X axis | 6500 mm |
| Stroke for Y axis | 400 mm | |
| Stroke for Z axis | 300 mm | |
| SPINDLE | Spindle speed | 18000 r/min |
| Milling cutter chuck | Φ32 mm | |
| TOOL | Tool magazine | Umbrella type |
| Capacity of tools magazine | 12 pcs | |
| Tool change time | 5 sec | |
| POWER OF MOTOR | Spindle driven motor | 9 kW |
| X/Y/Z driven motor | 1.5 kW / 1 kW / 1 kW | |
| MOVING SPEED | X/Y/Z moving speed | 52 m/min / 35 m/min / 18 m/min |
| LUBRICATING SYSTEM | Lubricating system | Automatic lubricating |
| Cooling system | Water cooling system | |
| PRECISION | Position precision of X axis | 0.1 mm |
| Position precision of Y/Z axis | 0.05 mm | |
| Repeating position | X/Y/Z: ±0.02 mm | |
| SIZE OF MACHINE | Air pressure | 6 kg/cm² |
| Operation system | SIEMENS / FANUC / MITSUBISHI | |
| Height | 2600 mm | |
| Area / Weight | 7500 * 1300 mm / 5500 kg |
FAQ
1. What is the Aluminum Profile 3-Axis CNC Machining Center used for?
The Aluminum Profile 3-Axis CNC Machining Center is mainly used for drilling, milling, tapping, slotting, and cutting aluminum profiles. It is suitable for aluminum doors and windows, curtain wall profiles, industrial aluminum extrusions, and customized aluminum parts.
2. What materials can this machine process?
This machine is mainly designed for aluminum profiles and aluminum alloy materials. It can process architectural aluminum profiles, industrial aluminum extrusions, door and window frames, curtain wall profiles, heat sink profiles, and other customized aluminum components.
3. What are the advantages of a 3-axis machining center?
A 3-axis machining center provides accurate positioning, stable machining quality, and high production efficiency. It can complete multiple machining operations in one clamping, reducing manual errors and improving processing consistency.
4. What control systems do you use on your machines?
We can provide different control systems according to customer requirements, such as Siemens, GSK, FANUC, and other reliable CNC control brands.
5. How can I choose the most suitable machine?
Please tell us the machine model, technical parameters, workpiece material, processing size, or production requirements you are interested in. You can also send us product pictures or drawings, and our team will recommend the most suitable machine with competitive price and reliable quality.
6. Can the machines be customized according to customer requirements?
Yes. We support customization of machining range, spindle power, automation level, fixture configuration, tooling system, control system, and other machine specifications according to your production needs.
