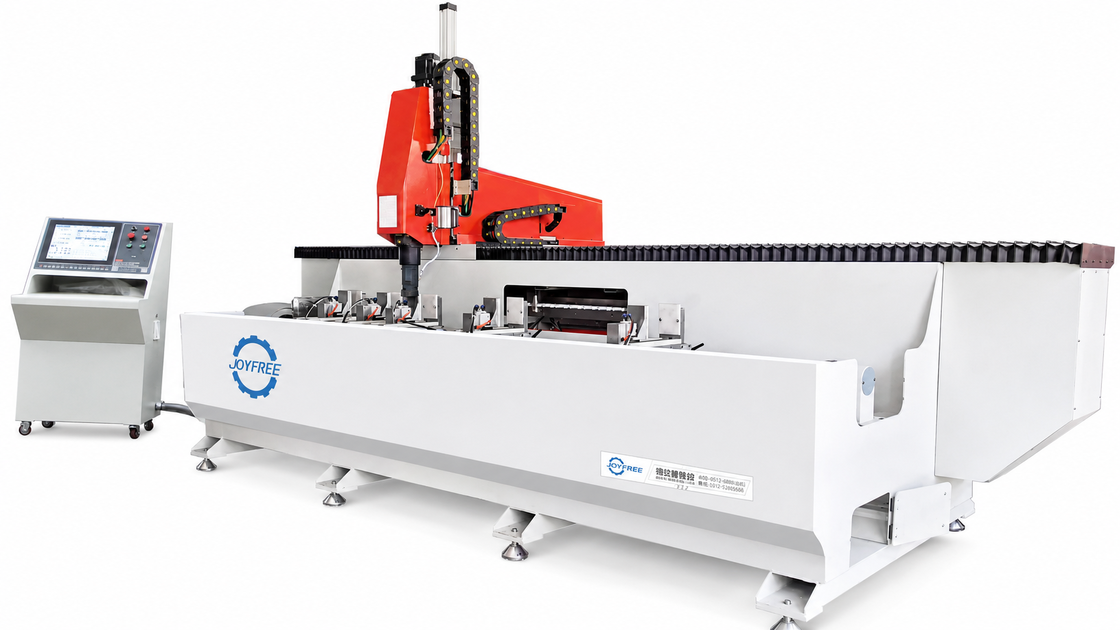

Aluminum Profile 4-Axis CNC Machining Center for Precision Drilling, Milling, Tapping and Multi-Side Processing

The Aluminum Profile 4-Axis CNC Machining Center is a high-precision CNC machine designed for drilling, milling, tapping, slotting, cutting, and multi-side processing of aluminum profiles. Compared with traditional 3-axis machining equipment, the 4-axis CNC system provides more flexible processing capability, allowing the machine to complete complex machining operations on different sides of the aluminum profile with higher efficiency and accuracy.

This aluminum profile CNC machining center is widely used in aluminum window and door manufacturing, curtain wall profile processing, industrial aluminum extrusion machining, automotive aluminum parts, rail transit components, furniture aluminum profiles, heat sink profiles, and customized aluminum component production. It is especially suitable for manufacturers that require accurate hole processing, groove milling, end milling, angle machining, and multi-surface profile processing.

Equipment Features

• CNC machining center for heavy aluminum profiles, suitable for high-speed machining of thick and thin wall profiles
• Ideal for aluminum alloy profile holes, grooves, round holes, shaped holes, plane engraving and other processing
• System adopts CNC four-axis high-speed CNC system
• High speed and high precision motorized spindle with excellent safety and reliability
• X axis uses high precision helical gear and rack; Y and Z axes use high precision ball screw drive
• Fourth axis uses high precision servo motor to drive table flipping for high precision machining
• Automatic processing of three aluminum profiles simultaneously
• Dual operation modes suitable for different user groups
• Automatic G-code conversion through programming software or manual input
• Graphic editing software for operators unfamiliar with G-code
• Workbench flips 0-90° at any angle
• Profile clamping via jig for high efficiency and precision
• Automatic tool changing with 8-tool magazine design
• Manual tool changing option available

The Aluminum Profile 4-Axis CNC Machining Center is mainly used for drilling, milling, tapping, slotting, cutting, and multi-side machining of aluminum profiles. It is suitable for aluminum doors and windows, curtain wall profiles, industrial aluminum extrusions, and customized aluminum components.

A 3-axis CNC machining center mainly processes the workpiece from three directions, while a 4-axis CNC machining center adds an additional rotary or positioning axis. This allows the machine to process multiple sides of the aluminum profile more efficiently, reducing repeated clamping and improving machining accuracy.

This machine is mainly designed for aluminum profiles and aluminum alloy materials. It can process architectural aluminum profiles, industrial aluminum extrusions, door and window frames, curtain wall profiles, heat sink profiles, and other customized aluminum parts.

We can provide different control systems according to customer requirements, such as Siemens, GSK, FANUC, and other reliable CNC control brands.

Our machining centers can support drilling, tapping, milling, boring, and turning functions. Multi-axis options, such as 3-axis, 4-axis, and 5-axis configurations, are also available to meet the processing needs of complex workpieces.

Yes. We support customization of machining range, spindle power, automation level, fixture configuration, tooling system, control system, and other machine specifications according to your production needs.
