Precision CNC Machine Tools for Heavy Duty Cutting Saw with Vertical Machining Centers Designed for Processing of Overweight Loads
Precision CNC Machine Tools for Heavy Duty Cutting Saw with Vertical Machining Centers Designed for Processing of Overweight Loads
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Model Number:
JFE3020
Contact Us
Request A Quote
Product Details
Model NO.:
JFE3020
Application:
Glass
Process Usage:
Aluminum Profile 5-axis Gantry Machining Center
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
35days
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Precision CNC Machine Tools for Heavy Duty Cutting Saw with Vertical Machining Centers Designed for Processing of Overweight Loads

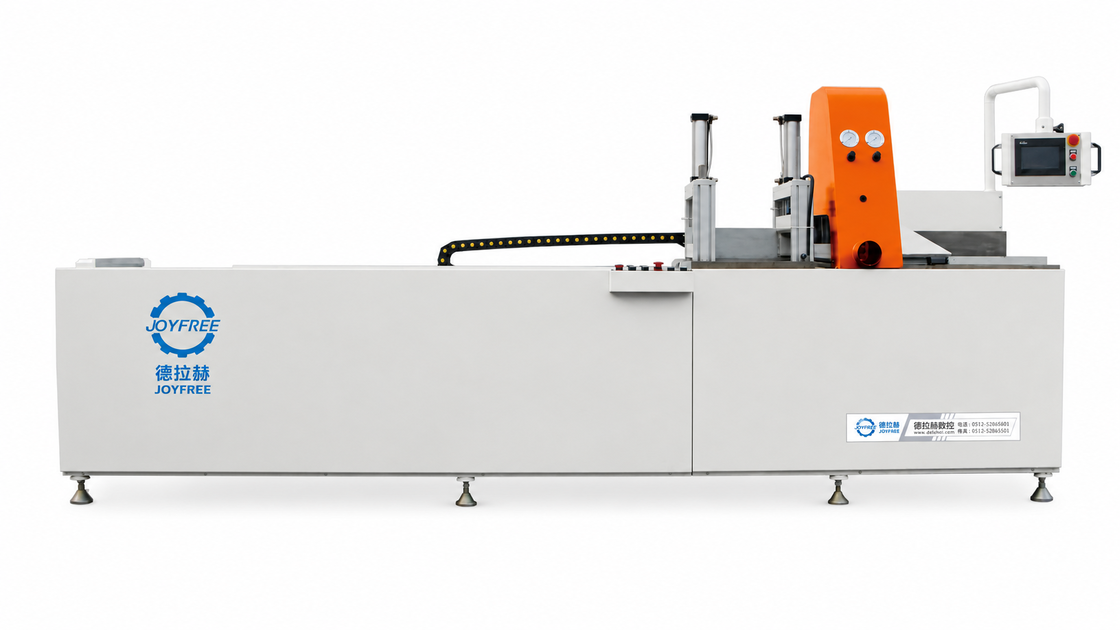

The Precision CNC Heavy-Duty Cutting Saw Machine with Vertical Machining Center is designed for high-strength cutting, milling, drilling, and machining of large-size and overweight workpieces. Built with a rigid machine structure and advanced CNC control system, this equipment provides stable performance, high cutting accuracy, and reliable processing capability for heavy industrial applications.
This CNC machine tool is especially suitable for processing heavy metal plates, large structural components, steel parts, aluminum alloy parts, and oversized industrial materials. With its vertical machining center design and heavy-duty cutting saw configuration, the machine can handle demanding workloads while maintaining excellent machining precision and surface quality.
Equipment Features
- Used in large quantities, large width of aluminum, copper, lumber, plastic efficiency automatic cutting
- Using advanced CNC System and powerful software, and the use of double servo control, can achieve automatic precision, efficient length cutting, counting
- Imported guide screw ensures long life and high precision
- Adopt high-strength mechanical spindle, suitable for high-precision and high-strength cutting
- Designed with protective devices to effectively protect the personal safety of operators
- The large width and high precision of cutting profiles can be effectively obtained by means of underfeed
- Using automatic positioning and clamping system can achieve safe and efficient work
- The automatic oil mist cooling system was used to cool the saw blade, so as to improve the quality of the end face and prolong the service life of the saw blade
Equipment Views
Technical Parameters
| Cutting surface roughness | ≤ Ra12.5 |
| Total power equipment | 10 kW |
| Dust removing device | Included |
| Saw blade specification | Φ600 * 4.2 * 30 * 120 |
| Configuration note | Configured according to the profile section area |
| Working pressure | 0.5–0.8 MPa |
| Air consumption | 150 L/min |
| Cutting length | Min. 10 mm / Max. 1500 mm |
| Cutting length note | Shorter cutting requires fixture; 1500 mm refers to single feed, round-trip feeding for infinite length |
| Cutting height | 185 mm |
| Width of cut | 420 mm |
| Width / height note | Width and height cannot be achieved simultaneously |
| Sawing angle | 90° |
| Cutting angle error | ±5′ |
| Input power | 380V 50Hz, three-phase four-wire |
| Speed | 3000 r/min |
| Weight | 1500 kg |
FAQ
1. What is this Precision CNC Heavy-Duty Cutting Saw Machine used for?
This machine is mainly used for cutting, milling, drilling, and machining large-size or overweight metal workpieces. It is suitable for heavy-duty industrial processing where high precision and strong machine rigidity are required.
2. What materials can this CNC machine tool process?
It can process steel, aluminum alloy, heavy metal plates, structural parts, castings, and large industrial components. The specific material range depends on the machine configuration, cutting tool, and processing requirements.
3. Which industries can use this machine?
This CNC heavy-duty cutting saw machine is widely used in machinery manufacturing, steel structure production, shipbuilding, rail transit, aerospace, mold manufacturing, and heavy equipment processing.
4. Can the machine be customized?
Yes. The machine size, load capacity, spindle power, cutting system, worktable size, and CNC configuration can be customized according to the customer’s workpiece size, material type, and production requirements.
