Horizontal CNC Machining Center for Precision Milling, Boring, Drilling and Multi-Sided Parts Processing
Horizontal CNC Machining Center for Precision Milling, Boring, Drilling and Multi-Sided Parts Processing
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
UT260
Application:
Glass
Process Usage:
Metal-Cutting CNC Machine Tools
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
35days
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Horizontal CNC Machining Center for Precision Milling, Boring, Drilling and Multi-Sided Parts Processing

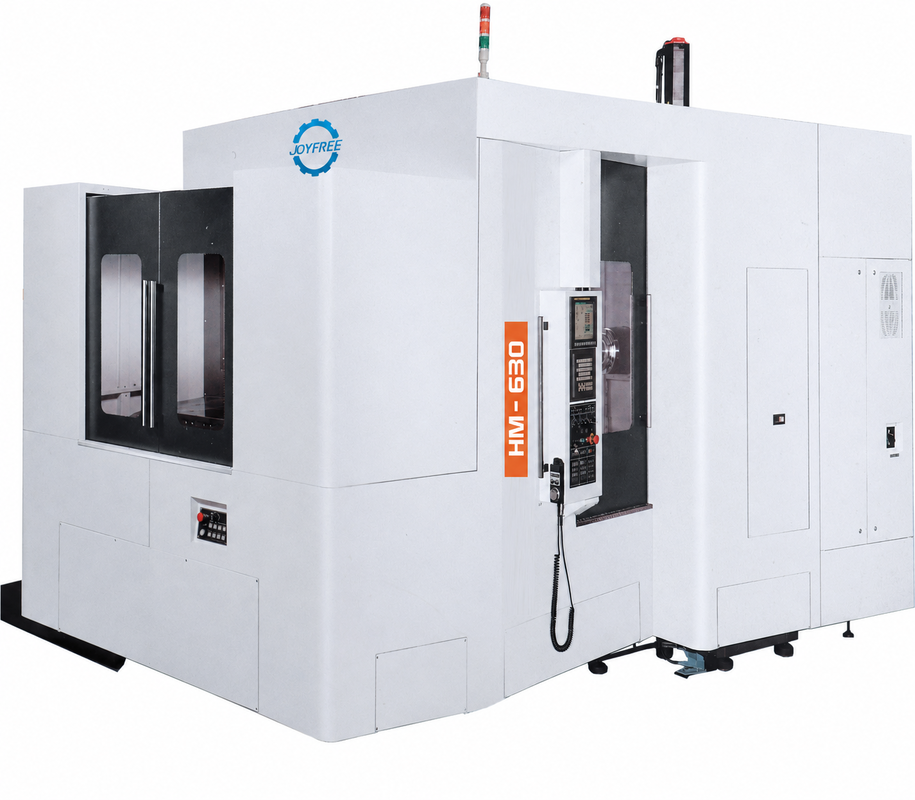

The Horizontal CNC Machining Center is a high-performance CNC machine tool designed for precision milling, boring, drilling, tapping, contour machining, and multi-sided parts processing. With a horizontal spindle structure, rigid machine body, stable worktable, and reliable CNC control system, this machining center is suitable for manufacturers that require high machining accuracy, strong cutting performance, efficient chip removal, and stable long-term production.
Compared with a vertical machining center, a horizontal machining center is especially suitable for box-type parts, cavity parts, molds, valve bodies, pump bodies, automotive components, machinery parts, and workpieces that require machining on multiple faces. The horizontal spindle layout allows better access to side surfaces and deep cavities, reducing repeated clamping and improving machining consistency.
The machine can complete milling, drilling, boring, tapping, chamfering, slotting, and contour machining in one setup according to different production requirements. This helps reduce secondary processing, shorten production cycles, and improve overall machining efficiency. With proper fixture configuration, the machine can support multi-face machining and batch production with stable repeatability.
Key Features
- Horizontal CNC machining center for precision industrial machining
- Suitable for milling, boring, drilling, tapping, chamfering, and contour machining
- Horizontal spindle structure improves access to side surfaces and deep cavities
- Suitable for box-type parts, valve bodies, pump bodies, molds, and machinery components
- Helps reduce repeated clamping and improve machining consistency
- Excellent chip removal performance for continuous production
- Rigid machine structure supports stable cutting and high machining accuracy
- CNC control system provides accurate and automated machining
- Suitable for multi-sided parts processing and batch production
- Can process steel, cast iron, stainless steel, aluminum alloy, copper, and mold materials
- Customizable spindle power, worktable size, pallet system, tool magazine, control system, and fixture configuration
Technical Specifications
| Item | Unit | HM500E | HM630 | HM500PLUS | HM630PLUS |
|---|---|---|---|---|---|
| Travel X/Y/Z | mm | 1100 × 750 × 650 | 1200 × 800 × 1000 | 800 × 700 × 680 | 1000 × 1000 × 850 |
| Distance from spindle nose to worktable center | mm | 175-825 | 100-1100 | 60-740 | 130-980 |
| Worktable size | mm | 500 × 500 | 630 × 630 | 500 × 500 | 630 × 630 |
| Worktable load capacity | kg | 1200 | 1200 | 600 | 1200 |
| Number of worktables | No. | 1 | 1 | 2 | 2 |
| Max. spindle speed | r/min | 8000 | 6000 | 6000 | 6000 |
| Spindle power | kW | 11-15 | 15-18.5 | 11-15 | 15-18.5 |
| Tool shank type | -- | BT40 | BT50 | BT50 | BT50 |
| Tool magazine capacity | No. | 24 / 30 | 24 / 30 | 24 / 30 | 24 / 30 |
| Rapid traverse speed X/Y/Z | m/min | 24 / 24 / 24 | 20 / 20 / 20 | 24 / 24 / 24 | 20 / 20 / 20 |
| NC system | -- | SYNTEC / FANUC | SYNTEC / FANUC | SYNTEC / FANUC | SYNTEC / FANUC |
Frequently Asked Questions
What is the Horizontal CNC Machining Center used for?
The Horizontal CNC Machining Center is mainly used for precision milling, boring, drilling, tapping, chamfering, contour machining, and multi-sided processing of industrial parts. It is especially suitable for box-type parts, valve bodies, pump bodies, molds, castings, and machinery components.
What are the advantages of a horizontal machining center?
A horizontal machining center provides better side-face machining capability, excellent chip removal, reduced repeated clamping, improved machining consistency, and higher efficiency for multi-sided parts processing.
What materials can this machine process?
This machine can process steel, cast iron, stainless steel, aluminum alloy, copper, mold materials, and other industrial materials. The actual processing capability depends on spindle power, cutting tools, machine configuration, and workpiece requirements.
What machining functions does the machine support?
The machine can support milling, boring, drilling, tapping, chamfering, slotting, contour machining, rough machining, semi-finishing, and precision finishing according to different production requirements.
Is this machine suitable for batch production?
Yes. With a suitable fixture system, automatic tool changer, and optional pallet system, the horizontal machining center is suitable for batch production and continuous industrial machining.
How can I choose the most suitable machine?
Please provide your workpiece material, processing size, required accuracy, machining functions, production capacity, or machine model. You can also send drawings or product pictures, and our team will recommend the most suitable configuration.
Can the machine be customized according to customer requirements?
Yes. We support customization of machining range, spindle power, spindle speed, worktable size, pallet system, control system, tool magazine, fixture configuration, cooling system, chip removal system, protective cover, and other machine specifications according to production needs.
