Advanced Three-Axis Deep Hole Drilling Machine for Precision Engineering
Advanced Three-Axis Deep Hole Drilling Machine for Precision Engineering
three-axis deep hole drilling machine
precision engineering drilling machine
deep hole drilling machine with warranty
Place of Origin:
China
Brand Name:
Queenly
Certification:
CE, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
CNQY-SKD1312
Structure:
Horizontal Drilling Machine
Layout:
Horizontal
Controlling Mode:
CNC
Number Of Shaft:
3
Hole Diameter:
50-100mm
Automatic Grade:
Automatic
Precision:
High Precision
Condition:
New
Size:
4700 X 4850 X 3100mm
Machining Hole Diameter:
3~35mm
Machining Depth:
1200mm
Worktable Horizontal (X):
1300
Spindle Vertical (Y):
1200
Max. Spindle Speed:
6000rpm
Spindle Feed Speed:
0~3000mm/Min
Spindle Motor:
11kw
Total Power Requirement:
35kw
Worktable Max. Loading Capacity:
8ton
Worktable Size:
1500X1050
Coolant Pressure:
1~8MPa
Rate Of Flow:
6~110 L/Min

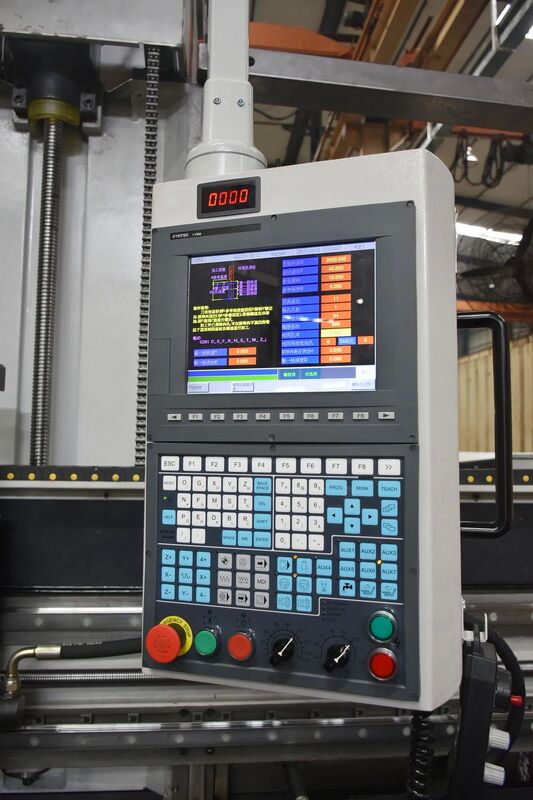

CNC System:
Fanuc/Syntec
Transport Package:
Container
Specification:
11 Ton
Trademark:
QUEENLY
Origin:
China
HS Code:
8459210000
Production Capacity:
800pieces/Year
Highlight:
three-axis deep hole drilling machine
,precision engineering drilling machine
,deep hole drilling machine with warranty
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Product Introduction

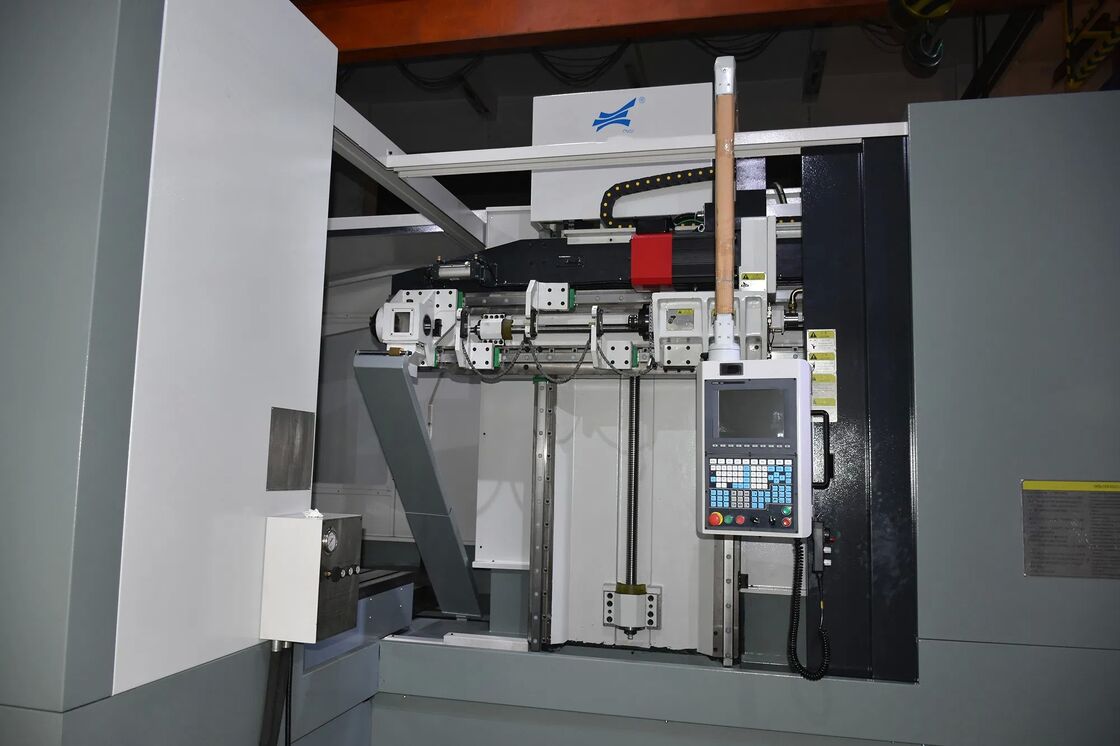

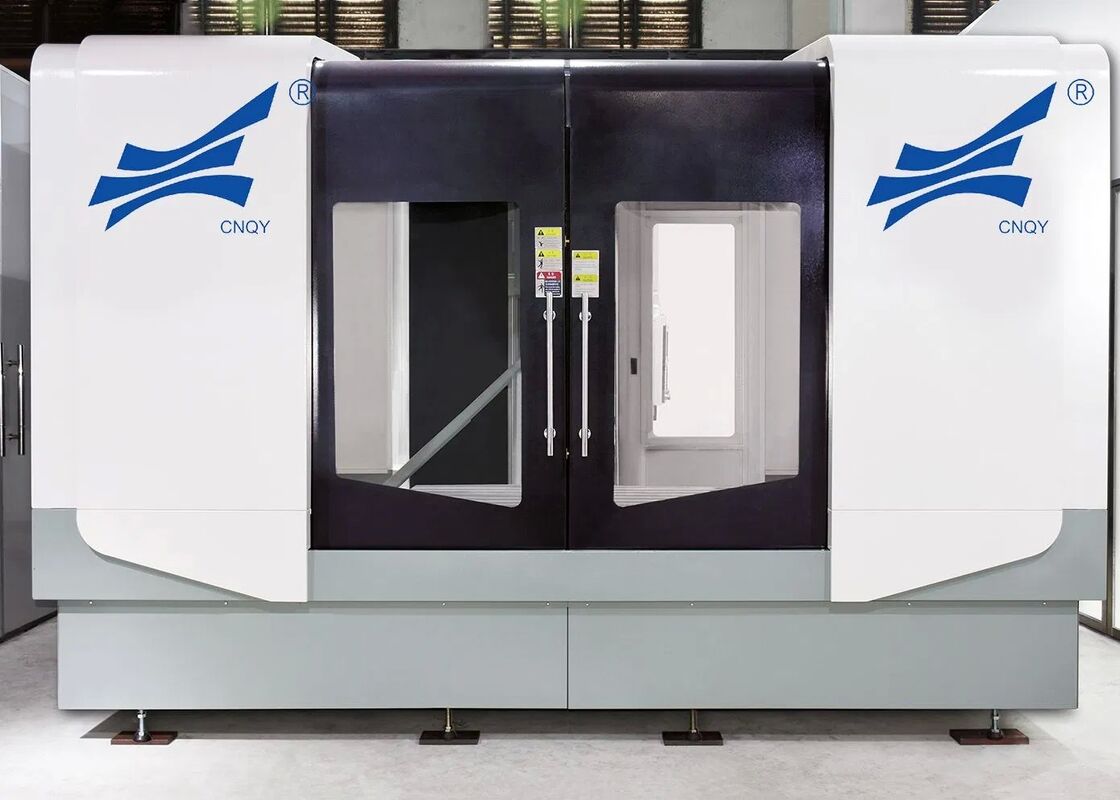

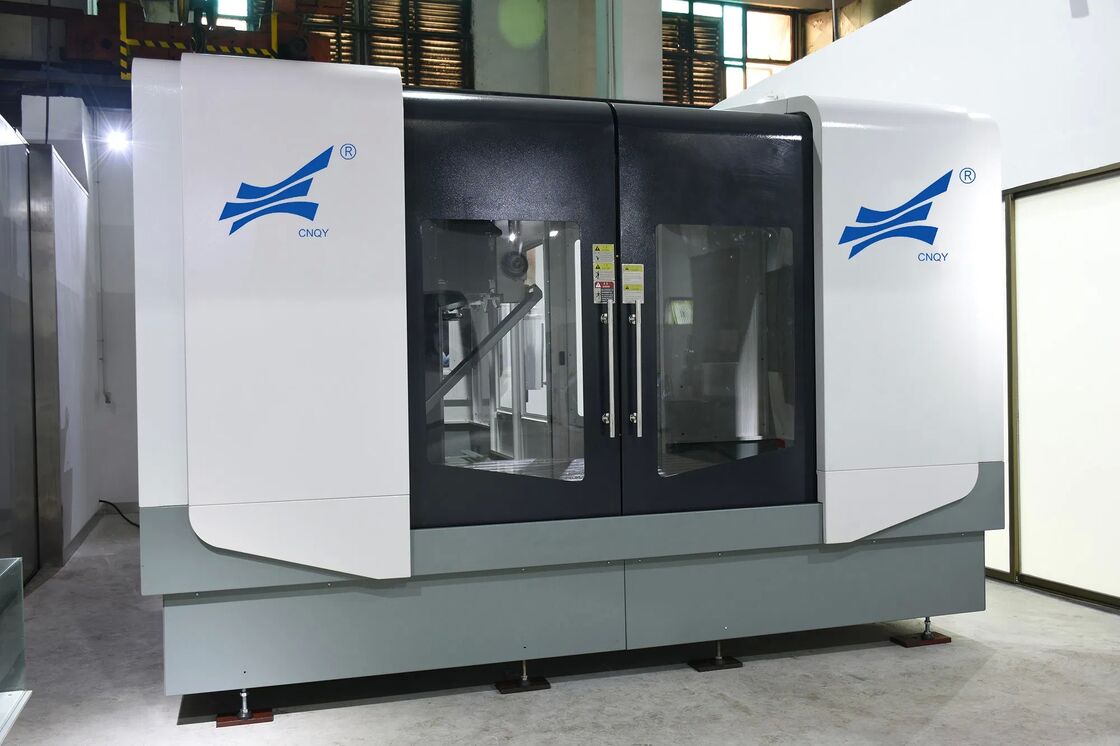

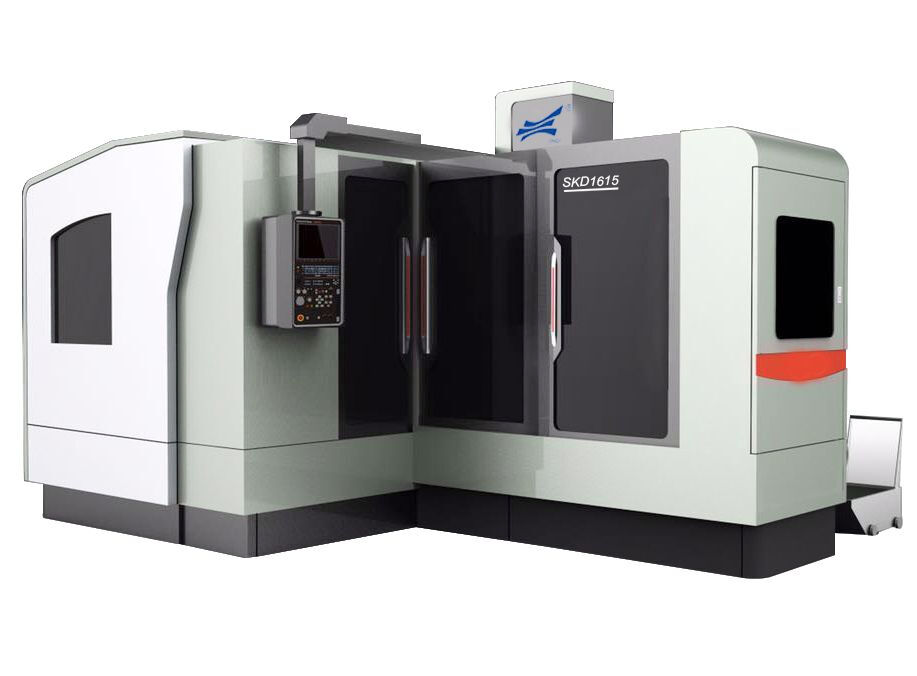

The Advanced Three-Axis CNC Deep Hole Drilling Machine is a precision drilling solution designed for deep-hole machining, long-hole drilling, mold plate processing, hydraulic component machining, and high-accuracy engineering part production. With three-axis CNC control, the machine provides accurate positioning, stable drilling depth control, and reliable machining consistency for workpieces that require high hole straightness and smooth inner hole quality.
Unlike ordinary drilling machines, this CNC deep hole drilling machine is specially developed for holes with greater depth, higher length-to-diameter ratios, and stricter accuracy requirements. The three-axis movement system allows the machine to perform precise coordinate drilling on different hole positions, making it suitable for molds, plates, shafts, hydraulic blocks, valve components, machinery parts, and customized industrial workpieces.
Key Features
- Three-axis CNC control for accurate hole positioning and drilling depth control
- Designed for deep-hole drilling, long-hole machining, and high length-to-diameter ratio holes
- Suitable for mold plates, hydraulic parts, shafts, valve bodies, and engineering components
- CNC programming supports precise hole position, feed rate, spindle speed, and drilling path control
- High-pressure coolant option improves chip removal and tool life
- Precision guide structure helps improve hole straightness and drilling stability
- Strong spindle system provides stable cutting performance for deep-hole machining
- Suitable for steel, alloy steel, stainless steel, cast iron, aluminum alloy, copper, and other materials
- Reduces manual positioning errors and improves repeatable machining quality
- Customizable configuration according to drilling depth, hole diameter, and workpiece size
FAQ
1: What's your main products of your company?
A : We specialized in a wide range of precision CNC machine tools, including high-precision grinding centers, ultra-precision surface grinders, optical milling and grinding centers, flexible polishing machines, various machining centers, CNC cutting tools, power chucks, hydraulic cylinder, drilling and tapping machine, packaging machinery, booster cylinder, copper, etc.
2:What kind of controls do you use on machines?
A :Siemens, GSK,Fanuc etc. You can choose according too your requirements
3 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, vwe can provide you with the best price and quality. You can also send us product pictures and we will choose the meost suitable machine for you.
4: What machining functions do your machining centers support?
A: Our machining centers support drilling, tapping, milling, boring, and turning functions, with multi-axis options (such as 3-axis, 4-axis, and 5-axis) to meet the needs of complex workpiece machining.
5: Can the machines be customized according to customer requirements?
A: Absolutely! We support customization of machining range, spindle power, automation level, and fixture and tooling configurations to meet your production needs.
6: What payment methods do you accept?
A: We accept various payment methods, including T/T bank transfers and Letters of Credit (L/C). Please contact us if you have other requirements.
7: How long is the delivery time?
A: Standard models usually require 30-45 days for delivery. For customized models, the delivery time may take 60 days or longer, depending on the complexity. The exact delivery time will be confirmed with the order.
8: How are the machines packaged and transported?
A: Our machines are packaged with waterproof and rustproof materials, reinforced with sturdy wooden crates, suitable for sea and long-distance transportation to ensure the products arrive at your specified location in perfect condition..
