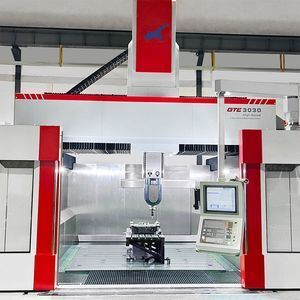

GTE3030C CNC Milling Machine with HEIDENHAIN Control System for High-Precision Milling and Large Workpiece Machining
GTE3030C CNC Milling Machine with HEIDENHAIN Control System for High-Precision Milling and Large Workpiece Machining
Heidenhain CNC milling machine
Gte3030c CNC machine
CNC milling machine with control system
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
GTE3030C
Application:
Metal
Process Usage:
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Transport Package:
Pallet
Specification:
4550*3827*3245
Trademark:
Queenly
Origin:
China
HS Code:
84601100
Production Capacity:
200sets/Month
Highlight:
Heidenhain CNC milling machine
,Gte3030c CNC machine
,CNC milling machine with control system
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Product Introduction
A CNC (Computer Numerical Control) milling machine is a precision - oriented, automated tool reshaping modern manufacturing. It operates by executing commands from a pre - written computer program, often generated from a CAD (Computer - Aided Design) model via CAM (Computer - Aided Manufacturing) software. This machine consists of key components. The control panel, acting as the "brain," interprets digital instructions and directs the machine's actions. The axis system, typically including the X, Y, and Z axes, determines the cutting tool's movement directions, while the spindle holds and rotates the cutting tool at varying speeds for material removal. The work table securely fastens the workpiece, ensuring stability during machining. CNC milling machines can create diverse shapes and perform operations like face milling, pocket milling, and drilling. They are highly versatile, working with materials such as metals, plastics, and wood. Their advantages are significant: they offer high precision, enabling the production of parts with tight tolerances; they ensure consistency and repeatability, crucial for mass - producing identical components; and they boost productivity as they can run continuously with minimal human intervention. These qualities make CNC milling machines indispensable across industries, from aerospace and automotive to medical device manufacturing and prototyping.
Key Features
- GTE3030C CNC milling machine designed for precision and large workpiece machining
- Equipped with HEIDENHAIN control system for accurate CNC control
- Suitable for face milling, pocket milling, drilling, boring, slotting, and contour machining
- Supports CAD/CAM programming workflow for automated machining
- X, Y, and Z axis system provides precise cutting tool movement
- Stable worktable improves workpiece clamping and machining accuracy
- Suitable for large molds, plates, castings, machine bases, and structural components
- Processes steel, cast iron, aluminum alloy, copper, plastic, wood, and other materials
- Helps reduce manual errors and improve repeatable machining quality
- Suitable for rough machining, precision finishing, and continuous industrial production
|
CNC milling machine GTE3030C Machine Tool Parameters:
|
|
|
X-axis travel (moving beam forward/backward travel):
|
3000 mm
|
|
Y-axis travel (saddle left/right travel): 3000 mm
|
3000mm
|
|
Z-axis travel (milling head up/down travel):
|
1500 mm
|
|
Distance from spindle nose to worktable:
|
100–1600 mm
|
|
Distance between two columns:
|
4200–5700 mm
|
|
Worktable size:
|
3500 * 2800 mm
|
|
Worktable load capacity:
|
8 tons
|
|
Maximum spindle speed:
|
6000 rpm
|
|
Maximum spindle torque:
|
300 N·m
|
|
Rotation angle:
|
A = ±180°, C = ±360°
|
|
Angular positioning accuracy:
|
A = ±5 sec; C = ±5 sec
|
|
Minimum indexing angle:
|
0.0001°
|
|
Rapid feed rate: X, Y:
|
20 / 50 m/min; Z: 20 m/min
|
|
Cutting feed rate:
|
10 m/min
|
|
Number of tools:
|
32 pcs
|
|
Total machine power:
|
110 kW
|
|
Machine dimensions (L * W * H):
|
7600 * 8100 * 6150 mm
|
|
Machine weight:
|
52 tons
|
|
Control system:
|
FANUC / Heidenhain / SIEMENS
|
FAQ
1. What is the GTE3030C CNC Milling Machine used for?
The GTE3030C CNC Milling Machine is mainly used for milling, drilling, boring, slotting, contour machining, and precision processing of large workpieces. It is suitable for molds, plates, machine bases, castings, structural parts, and customized industrial components.
2. What is the advantage of the HEIDENHAIN control system?
The HEIDEN3030C CNC Milling Machine is mainly used for milling, drilling, boring, slotting, contour machining, and precision processing of large workpieces. It is suitable for molds, plates, machine bases, castings, structural parts, and customized industrial components.
3. How does a CNC milling machine work?
A CNC milling machine follows a pre-written computer program. The part design is usually created with CAD software and converted into tool paths through CAM software. The CNC system then controls the spindle and machine axes to complete accurate machining operations.
4. What materials can this machine process?
This machine can process steel, cast iron, aluminum alloy, copper, plastic, wood, and other industrial materials. The actual processing capability depends on spindle power, cutting tools, machine configuration, and workpiece requirements.
5. What control systems do you use on your machines?
We can provide different control systems according to customer requirements, such as HEIDENHAIN, Siemens, GSK, FANUC, and other reliable CNC control brands.
6. How can I choose the most suitable machine?
Please tell us the machine model, technical parameters, workpiece material, processing size, accuracy requirements, or production needs. You can also send us product drawings or pictures, and our team will recommend the most suitable machine configuration.
7. Can the machines be customized according to customer requirements?
Yes. We support customization of machining range, control system, spindle power, worktable size, tooling system, fixture configuration, protective cover, chip removal system, and other machine specifications according to your production needs.
