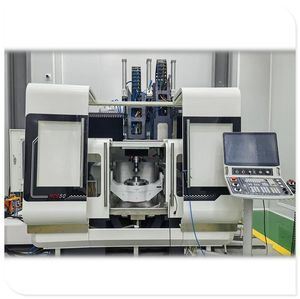

HCG50 5+1-Axis CNC Milling Center with HSK-A63 Spindle for High-Precision Machining
HCG50 5+1-Axis CNC Milling Center with HSK-A63 Spindle for High-Precision Machining
5+1 axis CNC milling center
HSK-A63 spindle CNC machine
HCG50 CNC milling machine
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
HCG50
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Transport Package:
Pallet
Specification:
4550*3827*3245
Trademark:
Queenly
Origin:
China
HS Code:
84601100
Production Capacity:
200sets/Month
Highlight:
5+1 axis CNC milling center
,HSK-A63 spindle CNC machine
,HCG50 CNC milling machine
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
The HCG50 5+1-Axis CNC Milling Center with HSK-A63 Spindle is a high-performance machining solution designed for precision milling, drilling, tapping, boring, contour machining, multi-sided processing, and complex metal part manufacturing. With a 5+1-axis machining structure and high-rigidity machine design, the HCG50 provides flexible processing capability, stable cutting performance, and reliable machining accuracy for demanding industrial applications.
The 5+1-axis configuration supports multi-angle machining and complex part processing while improving workpiece accessibility. It helps reduce repeated clamping, improve positioning accuracy, shorten production cycles, and maintain consistent part quality. The machine is suitable for machining molds, aerospace parts, automotive components, precision machinery parts, fixture parts, impellers, blades, and customized industrial components.
Equipped with an HSK-A63 spindle interface, the HCG50 offers strong tool clamping rigidity, stable high-speed performance, and reliable cutting accuracy. The spindle system supports efficient material removal and precision finishing, making it suitable for rough machining, semi-finishing, and high-quality surface finishing.
Key Features
- HCG50 5+1-axis CNC milling center for high-precision machining
- HSK-A63 spindle interface supports stable tool clamping and cutting rigidity
- Suitable for milling, drilling, tapping, boring, and contour machining
- 5+1-axis structure supports multi-angle and multi-sided processing
- Helps reduce repeated clamping and improve machining accuracy
- Rigid machine structure supports stable cutting performance
- Suitable for aluminum alloy, steel, stainless steel, cast iron, and mold steel
- Supports rough machining, semi-finishing, and precision finishing
- CNC control improves repeatability and production consistency
- Suitable for molds, aerospace parts, automotive components, impellers, and precision parts
Product Introduction
HCG50 5+1 Axis Optical Precision Milling Center Developed CO.,LTD., the HCG50 5+1 Axis Optical Precision Milling Center is a versatile and high-performance solution for optical component machining. It integr-ates coarse-to-fine grinding capabilities with dual grinding spindles, boosting efficiency and reliability while ensuring ex-ceptional precision—easily achieving surface form accuracy of PV 5µm.
Featuring a 6-axis, 5-linkage system, this center excels at processing complex components like spherical workpieces (up to 300mm diameter), aspherical workpieces (up to 450mm diameter), and prisms (max rotational diameter 480-mm). It comes with proprietary CAM software and a suite of advanced components, including the Renishaw OMP 40-2 tool measurement system for automatic tool wear compensation, and a Sinumerik CNC system for smooth operation.
Suitable for machining various materials such as fused quartz, H-K9L glass, monocrystalline silicon, and S136 stainless steel, the HCG50 delivers fine ground surfaces and high-precision results, making it a trusted choice for optical precisi-on machining needs.
|
Machining Range
|
|
|
|
X-Axis Travel
|
mm
|
550
|
|
Y-Axis Travel
|
mm
|
600
|
|
Z1-Axis Travel
|
mm
|
300
|
|
Z2-Axis Travel
|
mm
|
300
|
|
Drive Type of X/Y/Z1/Z2 Axes
|
|
Linear Motor
|
|
Motion Axes
|
|
|
|
Rated Power of X/Y/Z1/Z2 Axes
|
kW
|
|
|
Maximum Rapid Feed Rate (X/Y/Z1/Z2)
|
m/min
|
20/10/7.5/7.5
|
|
Maximum Acceleration (X/Y/Z1/Z2)
|
m/s^2
|
5/5/5/5
|
|
Positioning Accuracy (X/Y/Z1/Z2)
|
mm
|
±0.003
|
|
Axis Repeatability (X/Y/Z1/Z2)
|
mm
|
±0.002
|
|
Cradle Rotary Table
|
|
|
|
Table Diameter
|
mm
|
∅400
|
|
Cradle Span
|
mm
|
750
|
|
C-Axis Maximum Speed
|
rpm
|
550
|
|
Rotation Angle
|
°
|
Any Angle
|
|
Rotational Accuracy
|
"
|
±5(optional±2.5)
|
|
A-Axis Maximum Speed
|
rpm
|
100
|
|
Rated Torque
|
N.m
|
500
|
|
Rotation Angle
|
°
|
±90
|
|
Rotational Accuracy
|
"
|
±5(optional±2.5)
|
|
Spindle
|
|
|
|
Spindle Type
|
|
HSK-A63
|
|
Spindle Maximum Speed
|
rpm
|
20000
|
|
Spindle Motor Power (S1/S6)
|
kW
|
20/30
|
|
Spindle Motor Torque (S1/S6)
|
N.m
|
30.7/46
|
|
Fine Grinding Spindle Maximum Speed
|
rpm
|
8000
|
|
Fine Grinding Spindle Motor Power (S1/S6)
|
kW
|
8.5/11.8
|
|
Fine Grinding Spindle Motor Torque (S1/S6)
|
N.m
|
8.4/11.2
|
|
Tool System
|
|
|
|
Maximum Wheel Size
|
mm
|
25 *∅200
|
|
Internal Cooling Pressure
|
bar
|
20
|
|
Power Source
|
|
|
|
Power Supply
|
kVA
|
75
|
|
Air Supply
|
bar
|
8 (Clean & Dry)
|
|
Others
|
|
|
|
Overall Dimensions (L * W * H)
|
mm
|
355028002550
|
|
Weight
|
kg
|
13000
|
|
1
|
CNC System
|
Sinumerik 840 Digital
|
Panel Size: 307 mm
|
|
2
|
Linear Scale / Encoder
|
Renishaw
|
|
|
3
|
Five-Axis Cradle Rotary Table
|
Shengchang PESDTT400LA-EW6TL2
|
|
|
4
|
Through-Spindle Coolant
|
DGZX-15020 / 20D-KFHWJLS
|
|
|
5
|
Spindle Water Cooling
|
LW-120PTE-36 Water Chiller
|
|
|
6
|
Oil Mist Separator
|
800 - 1100m³/h
|
|
|
7
|
Oil-Water Separator
|
|
|
|
8
|
Wireless Probe
|
Renishaw OMP40-2
|
|
|
X-Axis Motor
|
1FK2208-3AC01-0MB0
|
Siemens
|
|
|
Y-Axis Motor
|
MLP200C-0090-FS-NOCN-NNNN
|
|
Linear Motor
|
|
Z-Axis Motor
|
MLP100A-xxxx-FS-NOCN-NNNN
|
|
Linear Motor
|
|
Spindle Motor
|
1PH8083-1SN02-0MA1
|
Siemens
|
Z2 Spindle Motor
|
|
X-Axis Linear Guide
|
RGH35CA3R2380ZBP Ⅱ
|
HIWIN
|
|
|
Y-Axis Linear Guide
|
RGH35CA2R1570ZBP Ⅱ
|
HIWIN
|
|
|
Z-Axis Linear Guide
|
RGH30CA3R1000ZBP Ⅱ
|
HIWIN
|
|
|
X-Axis Ball Screw
|
SDA4016VAZS-5TTG0+1129LC3
|
THK
|
|
|
Chiller Pump
|
MS5-40/2
|
|
|
|
Lubrication System
|
4L (NW-2232-410XI)
|
|
|
|
Hydraulic System
|
LY-2.2KW-80L
|
|
|
|
Rotary Table
|
PESDTT400LA-EW6TL2
|
Shengchang
|
|
FAQ
1. What is the HCG50 5+1-Axis CNC Milling Center used for?
It is mainly used for precision milling, drilling, tapping, boring, contour machining, multi-sided machining, mold processing, aerospace parts, automotive components, and complex industrial parts.
2. What does 5+1-axis machining mean?
5+1-axis machining usually refers to five-axis machining capability with an additional auxiliary axis or positioning function, helping improve machining flexibility and workpiece accessibility.
3. What is the advantage of an HSK-A63 spindle?
The HSK-A63 spindle interface provides strong tool clamping rigidity, stable high-speed performance, accurate tool positioning, and reliable cutting performance for precision machining.
4. What materials can this machine process?
It can process aluminum alloy, steel, stainless steel, cast iron, copper alloy, mold steel, and other industrial materials depending on tooling, spindle power, coolant condition, and cutting parameters.
5. Is this machine suitable for complex parts?
Yes. The 5+1-axis structure is suitable for complex parts, multi-angle features, curved surfaces, mold cavities, impellers, blades, and precision components.
6. Can the machine configuration be customized?
Yes. Spindle system, axis travel, table size, CNC control system, tool magazine, coolant system, chip conveyor, and other configurations can be customized according to production requirements.
7. What information is needed for quotation?
Please provide workpiece size, material, machining process, required accuracy, maximum workpiece weight, production quantity, and preferred machine configuration.
