Advanced 5-Axis CNC Blade Milling Center for Turbine Blade Machining and Precision Engineering
Advanced 5-Axis CNC Blade Milling Center for Turbine Blade Machining and Precision Engineering
Five-Axis CNC milling machine
Precision blade milling center
CNC machining center with warranty
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE
Contact Us
Request A Quote
Product Details
Type:
Multi-Axis Automatic And Semi-Automatic Lathe
Processing Accessory:
Centre CNC Lathe
Guide Rail:
Inclined Guide Rail
Tool Holder:
Single-tool Holder CNC Lathe
Power Source:
Hydraulic Pressure
Controlling Mode:
CNC
Automatic Grade:
Automatic
Setting Mode:
Floor-type
Precision:
High Precision
Condition:
New
Province:
Fujian
X Travel:
800mm
Z Travel:
530mm
Transport Package:
Box
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
HS Code:
84601100
Production Capacity:
5000/Year
Highlight:
Five-Axis CNC milling machine
,Precision blade milling center
,CNC machining center with warranty
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

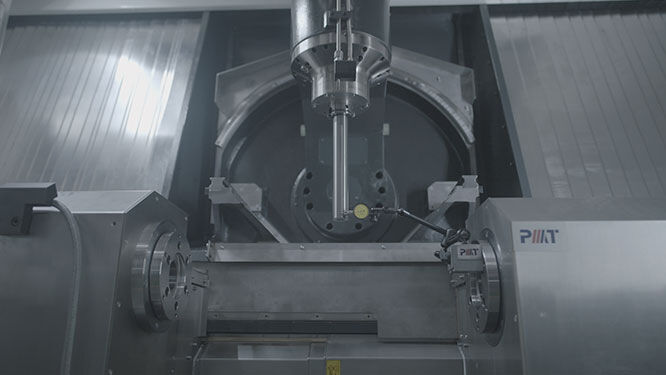

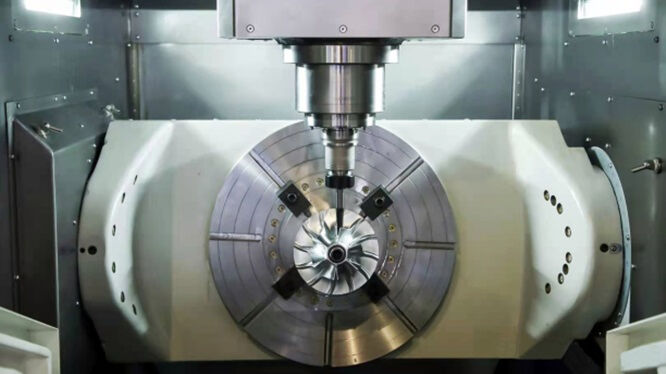

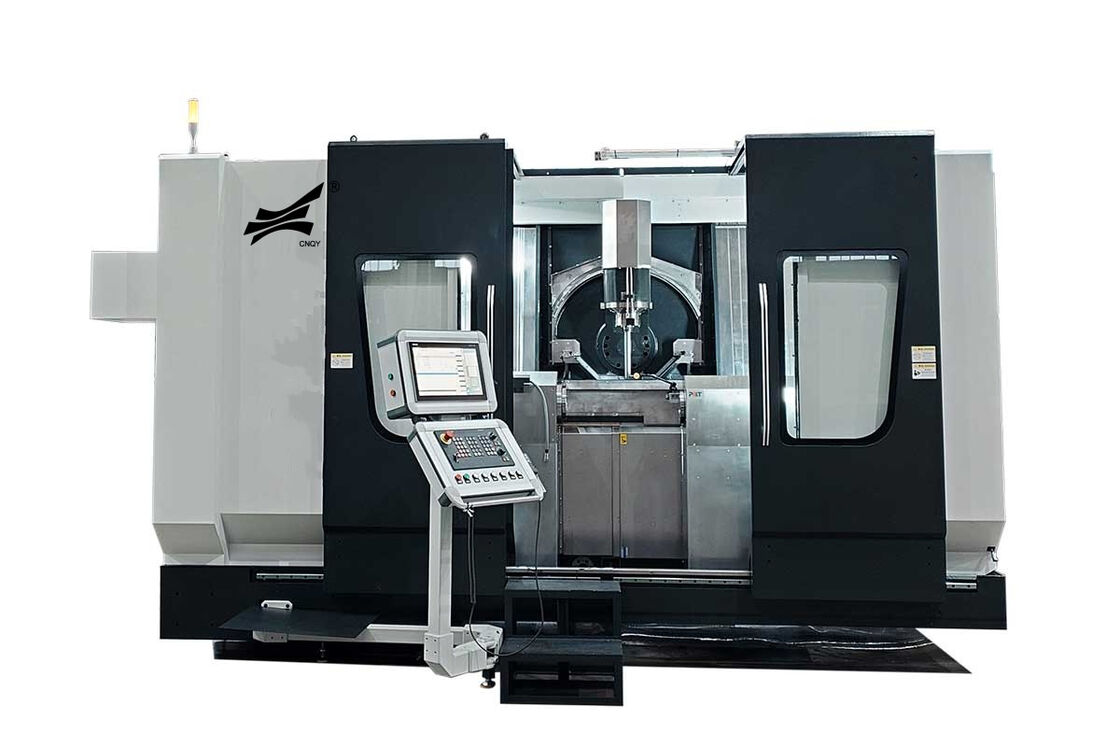

The Advanced 5-Axis CNC Blade Milling Center is a high-precision machining solution designed for turbine blade machining, impeller processing, aerospace component manufacturing, energy equipment parts, automotive precision parts, and complex curved surface machining. With five-axis coordinated control, this machine can process blade profiles, twisted surfaces, thin-wall structures, complex contours, and multi-angle features with high accuracy and stable performance.
Blade machining requires excellent dynamic response, smooth tool path control, stable spindle performance, and high surface finishing capability. This 5-axis CNC blade milling center helps reduce repeated clamping, improve positioning accuracy, and maintain consistent profile quality during complex blade and curved surface processing.
The machine can perform milling, drilling, contour machining, surface finishing, side milling, and precision profile processing in one setup. It is suitable for materials such as aluminum alloy, stainless steel, titanium alloy, alloy steel, mold steel, and other engineering materials depending on tool selection, spindle power, and machining parameters.
Product Introduction
Product Features
- Aseismatic capability, high strength and good quality cast iron.
- Wide base and Y-type column structure
- Taiwan high precision linear guide ways.
- Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.
- Adopting Japan NSK special screws angular contact ball bearing group.
Product Specifications
| MODELS | KDVM855L |
| TRAVEL | |
| X axis | 800mm |
| Y axis | 550mm |
| Z axis | 550mm |
| Spindle center to column | 595mm |
| Spindle end to table | 120-670mm |
| TABLE | |
| Tablesize | 1000*550mm |
| T-slot(width*number*space) | 18mm*5*90mm |
| Max.table loading | 800kg |
| SPINDLE | |
| Taper bore of spindle | BT40 |
| Spindle power | 11/15kw |
| Spindle speed | 8000rpm |
| FEED | |
| X/Y/Z fast feed | 48/ 48/ 36m/min |
| Torque axis motors | 20/ 20/ 20Nm |
| ATC | |
| Tool number | 24 |
| Max. tool size (With adjacent tool) | 78mm |
| Max. tool size (Without adjacent tool) | 120mm |
| Max.tool weight | 8kg |
| Time (tool-tool) | 2s |
| ACCURACY | |
| Positioning | ≤0.006 |
| Repeatability(X/Y/Z)(ISO) | ≤0.004mm |
| OTHERS | |
| Min.Input | 0.001mm |
| Overall dimension (LxWxH) | 2600x2300x2700mm |
| Net weight | 5250kg |
FAQ
1. What is a 5-Axis CNC Blade Milling Center used for?
It is mainly used for turbine blade machining, compressor blade processing, impeller milling, complex curved surface machining, aerospace parts, energy equipment components, and precision engineering parts.
2. Why use 5-axis machining for blade processing?
5-axis machining can follow complex curved and twisted blade surfaces more flexibly. It helps reduce repeated clamping, improve profile accuracy, shorten machining time, and improve surface finish quality.
3. What materials can this machine process?
It can process aluminum alloy, stainless steel, titanium alloy, alloy steel, mold steel, and other engineering materials depending on tooling, spindle power, coolant condition, and cutting parameters.
4. Is this machine suitable for turbine blades and impellers?
Yes. The five-axis coordinated structure is suitable for turbine blades, compressor blades, impellers, thin-wall parts, curved profiles, and multi-angle precision components.
5. Can the machine configuration be customized?
Yes. Axis travel, table size, spindle system, CNC control system, tool magazine, coolant system, chip conveyor, and other configurations can be customized according to production requirements.
6. What industries use 5-axis blade milling centers?
They are widely used in aerospace, energy equipment, turbine manufacturing, automotive precision parts, machinery manufacturing, mold production, and high-end precision engineering.
7. What information is needed for quotation?
Please provide workpiece size, material, blade type, required accuracy, surface finish requirement, maximum workpiece weight, production quantity, and preferred machine configuration.
