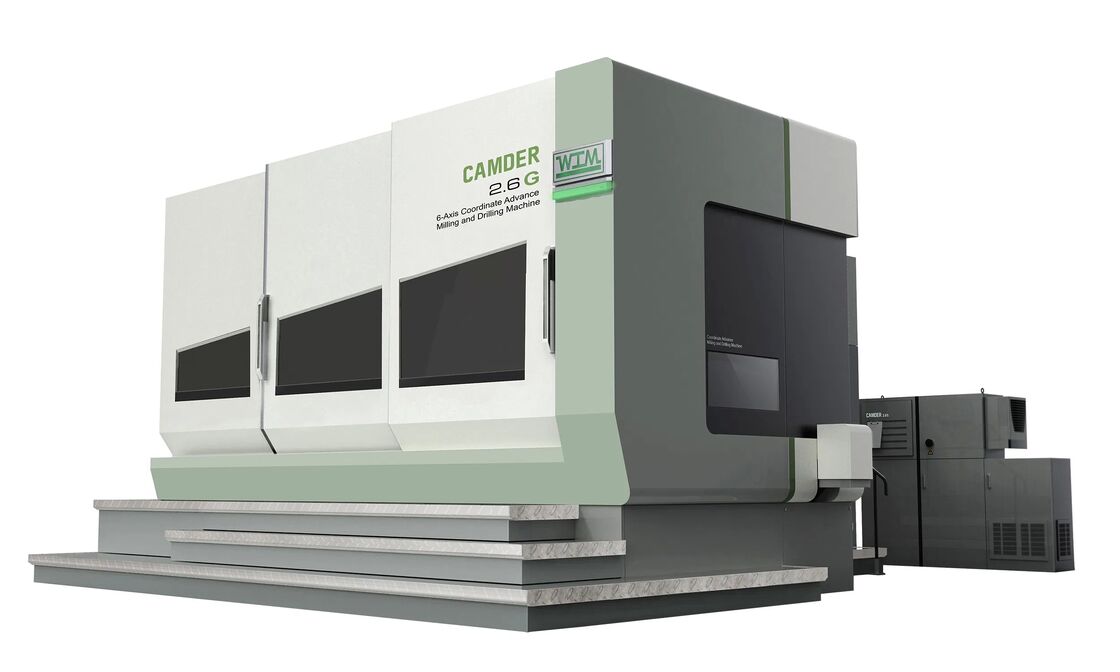

Heavy-Duty CNC Deep Hole Drilling Machine for Precision Metalworking and Long-Depth Hole Machining
Heavy-Duty CNC Deep Hole Drilling Machine for Precision Metalworking and Long-Depth Hole Machining
Heavy-Duty CNC drilling machine
Deep hole drilling machine for metalwork
CNC metal drilling machine
Place of Origin:
China
Brand Name:
Queenly
Certification:
CE, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
2.3G
Structure:
Horizontal Drilling Machine
Layout:
Horizontal
Controlling Mode:
CNC
Number Of Shaft:
3
Hole Diameter:
50-100mm
Automatic Grade:
Automatic
Precision:
High Precision
Condition:
New
Size:
4700 X 4850 X 3100mm
Machining Hole Diameter:
3~35mm
Machining Depth:
1200mm
Worktable Horizontal (X):
1300
Spindle Vertical (Y):
1200
Max. Spindle Speed:
6000rpm
Spindle Feed Speed:
0~3000mm/Min
Spindle Motor:
11kw
Total Power Requirement:
35kw
Worktable Max. Loading Capacity:
8ton
Worktable Size:
1500X1050
Coolant Pressure:
1~8MPa
Rate Of Flow:
6~110 L/Min
CNC System:
Fanuc/Syntec
Transport Package:
Container
Specification:
11 Ton
Trademark:
QUEENLY
Origin:
China
HS Code:
8459210000
Production Capacity:
800pieces/Year
Highlight:
Heavy-Duty CNC drilling machine
,Deep hole drilling machine for metalwork
,CNC metal drilling machine
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Product Introduction

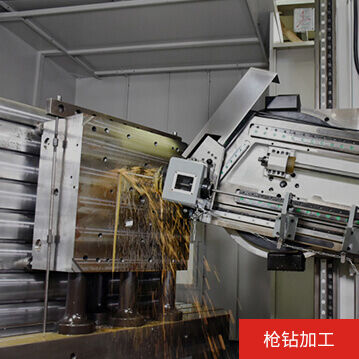

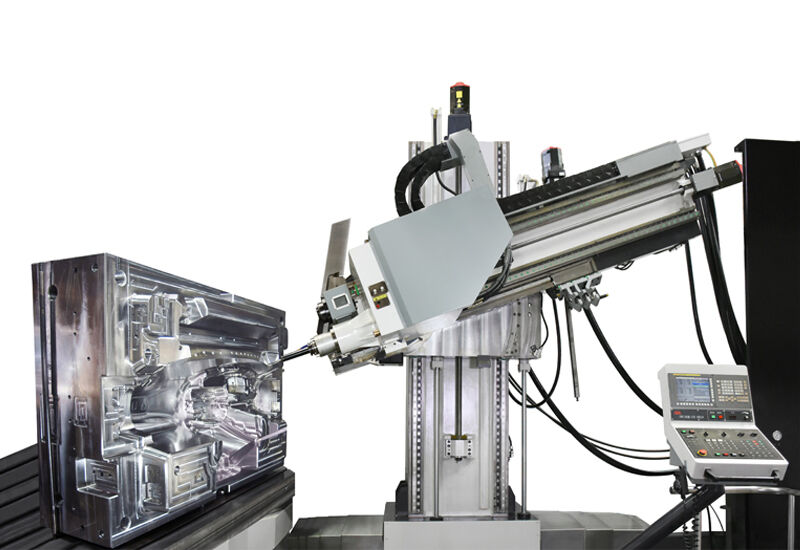

The Heavy-Duty CNC Deep Hole Drilling Machine is a high-performance machining solution designed for deep hole drilling, precision hole machining, long-depth drilling, mold processing, hydraulic component manufacturing, automotive parts production, aerospace parts machining, machinery manufacturing, and heavy-duty metalworking applications. With a rigid machine structure and CNC control system, this machine provides stable drilling accuracy, reliable hole straightness, smooth inner hole quality, and efficient machining performance.
Deep hole drilling requires strong machine rigidity, stable spindle performance, precise feed control, high-pressure coolant supply, and efficient chip evacuation. This heavy-duty CNC deep hole drilling machine is designed to handle demanding metalworking tasks while reducing hole deviation and maintaining consistent machining quality during long-depth drilling operations.
The machine is suitable for processing steel, alloy steel, stainless steel, cast iron, aluminum alloy, copper alloy, mold steel, and other industrial metal materials. It can be used for mold water channels, oil holes, cooling holes, hydraulic valve holes, shaft holes, cylinder holes, and other deep-hole structures.
The CNC control system allows operators to set drilling depth, spindle speed, feed rate, machining path, and process parameters according to different workpieces. This helps improve machining repeatability, reduce manual operation errors, and support stable production for both single-piece machining and batch manufacturing.
FAQ
- 1: What's your main products of your company?
- A : We specialized in a wide range of precision CNC machine tools, including high-precision grinding centers, ultra-precision surface grinders, optical milling and grinding centers, flexible polishing machines, various machining centers, CNC cutting tools, power chucks, hydraulic cylinder, drilling and tapping machine, packaging machinery, booster cylinder, copper, etc.
- 2:What kind of controls do you use on machines?
- A :Siemens, GSK,Fanuc etc. You can choose according too your requirements
- 3 : How can I choose the most suitable machines ?
- A : Please tell me the model or parameter you are interested in, vwe can provide you with the best price and quality. You can also send us product pictures and we will choose the meost suitable machine for you.
- 4: What machining functions do your machining centers support?
- A: Our machining centers support drilling, tapping, milling, boring, and turning functions, with multi-axis options (such as 3-axis, 4-axis, and 5-axis) to meet the needs of complex workpiece machining.
- 5: Can the machines be customized according to customer requirements?
- A: Absolutely! We support customization of machining range, spindle power, automation level, and fixture and tooling configurations to meet your production needs.
- 6: What payment methods do you accept?
- A: We accept various payment methods, including T/T bank transfers and Letters of Credit (L/C). Please contact us if you have other requirements.
- 7: How long is the delivery time?
- A: Standard models usually require 30-45 days for delivery. For customized models, the delivery time may take 60 days or longer, depending on the complexity. The exact delivery time will be confirmed with the order.
- 8: How are the machines packaged and transported?
- A: Our machines are packaged with waterproof and rustproof materials, reinforced with sturdy wooden crates, suitable for sea and long-distance transportation to ensure the products arrive at your specified location in perfect condition..
