Product Description
Drilling Machine
Technical Specifications
| Max. drilling capacity | ф45mm |
| Spindle taper | MT4/R8 |
| Spindle travel | ф130mm |
| Step of spindle speed | 6 steps |
| Range of spindle speed 50Hz | 80-1250rpm |
| Min. distance from spindle axis to column | 283.5mm |
| Max. distance from spindle nose to worktable | 728mm |
| Max. distance from spindle nose to stand table | 1127mm |
| Max. travel of headstock | 236mm |
| Swivel angle of headstock (horizontal/vertical) | 360° |
| Diameter of column | 115mm |
| Worktable size of availability | 380x300mm |
| Swivel angle of table horizontally | 360° |
| Table leaned | ±45° |
| Size of stand worktable of availability | 417x416mm |
| The size and spacing of the T-slot on the upper worktable | 16mm-100mm |
| The size and spacing of the T-slot on the lower worktable | 16mm-120mm |
| Motor Power | 1.5kw |
| Packing size (LxWxH) | 820x770x1850mm |
| N.w/G.w | 440/490kg |
Model: Z5045

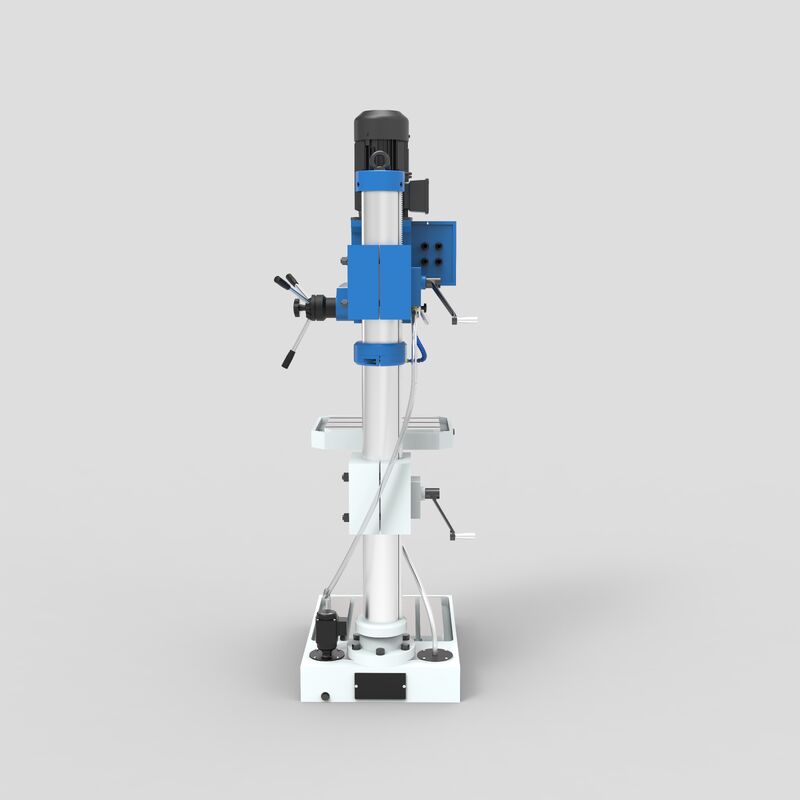

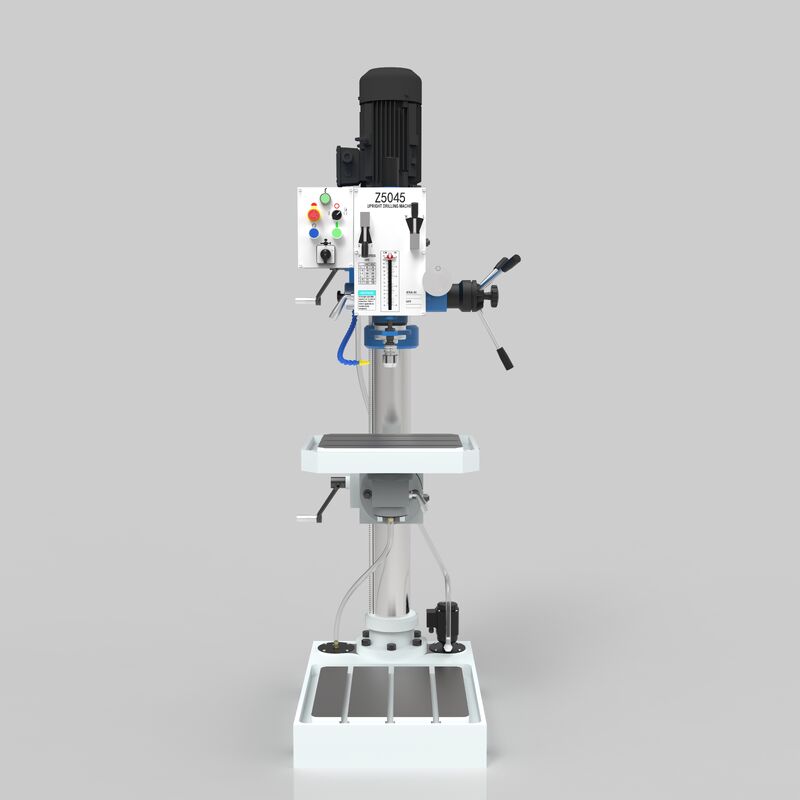

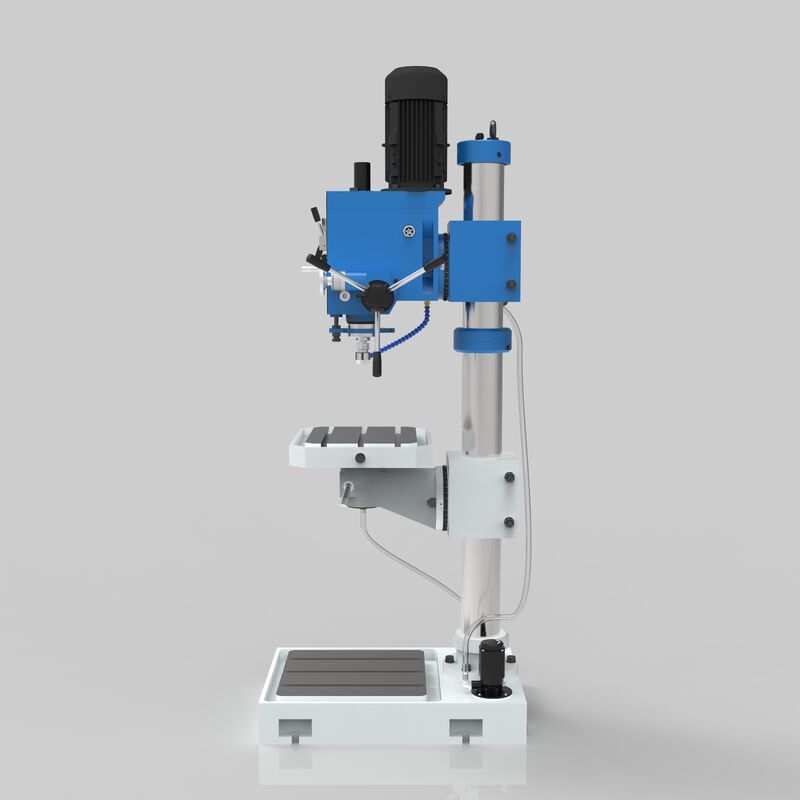

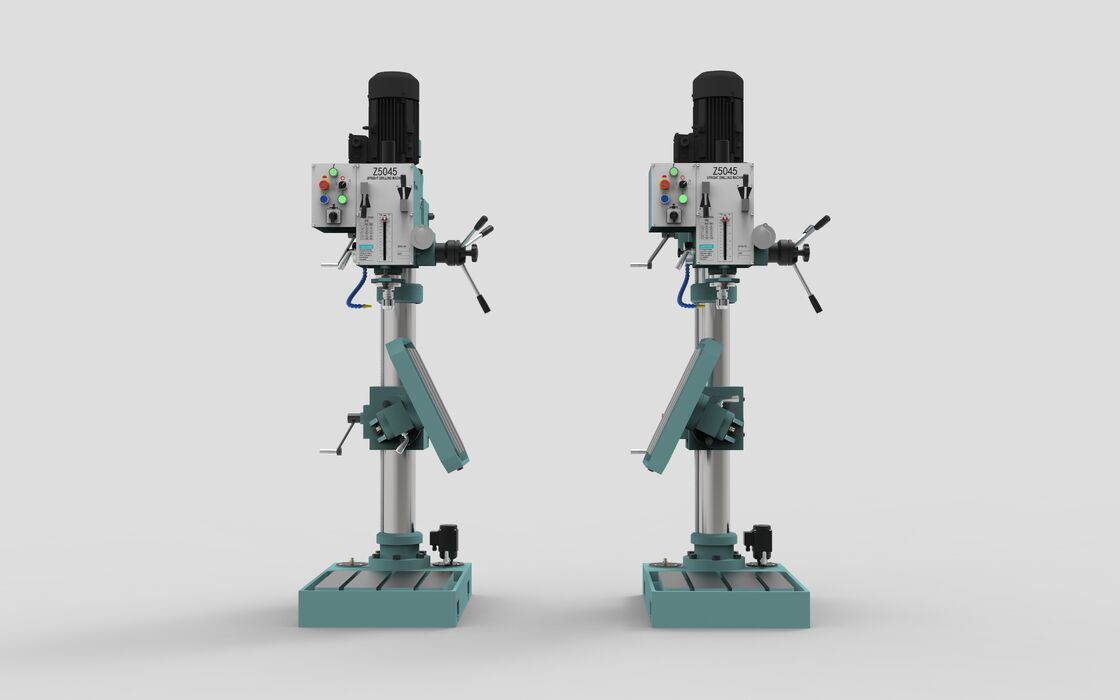

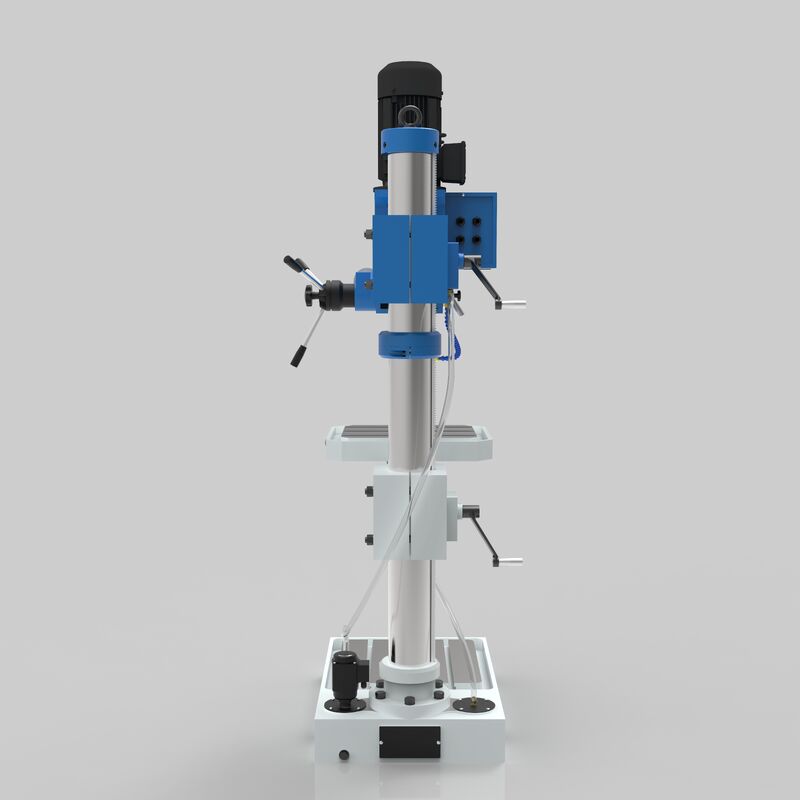

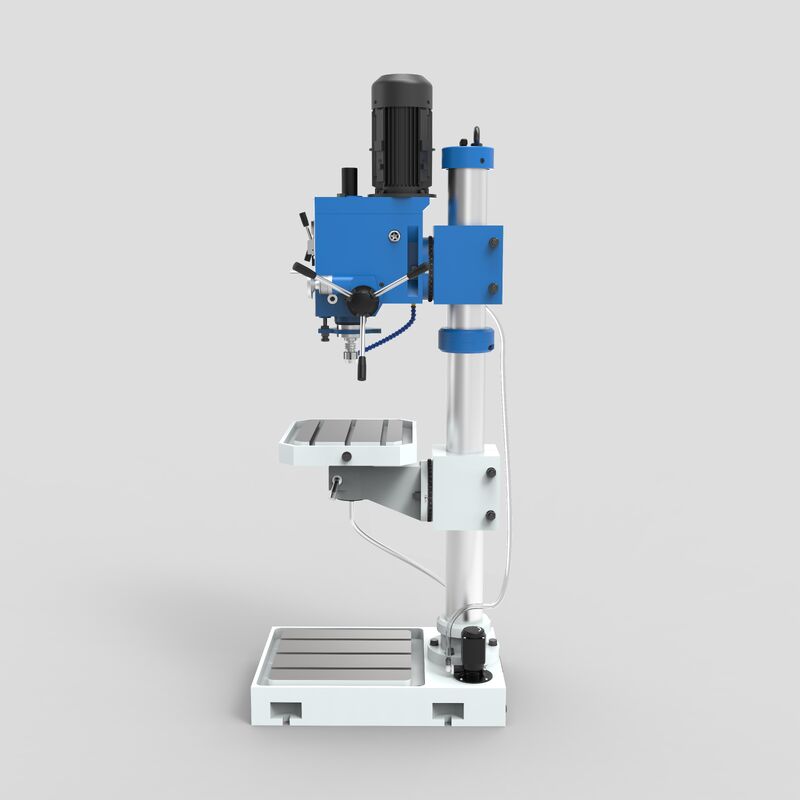

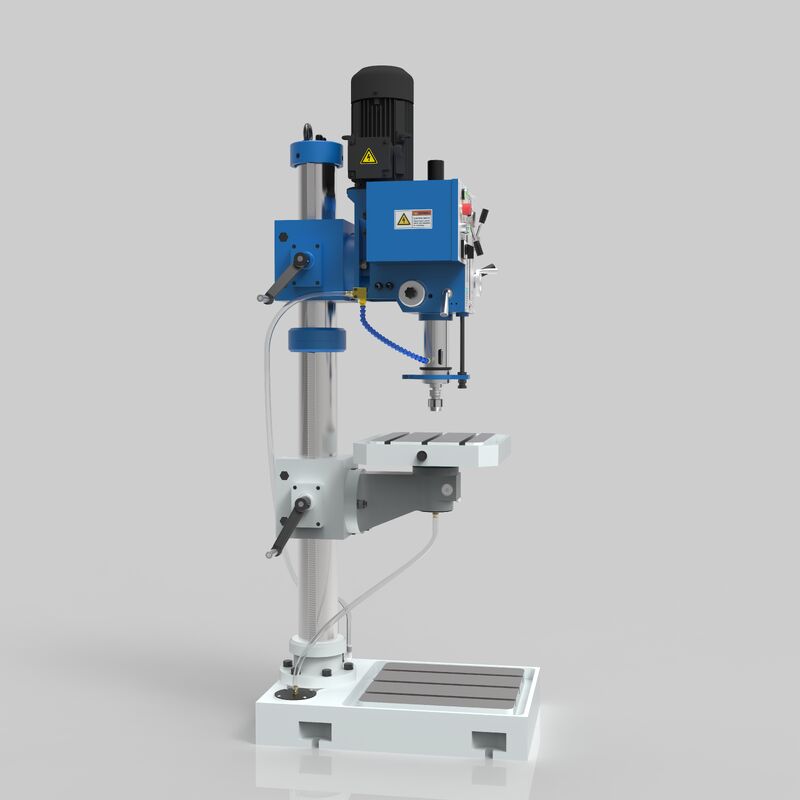

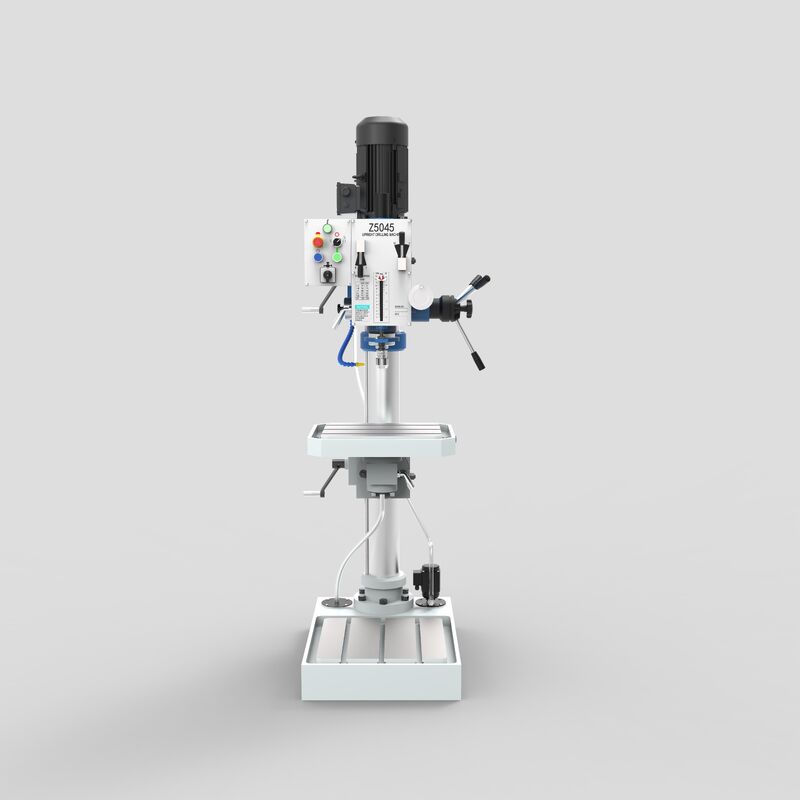

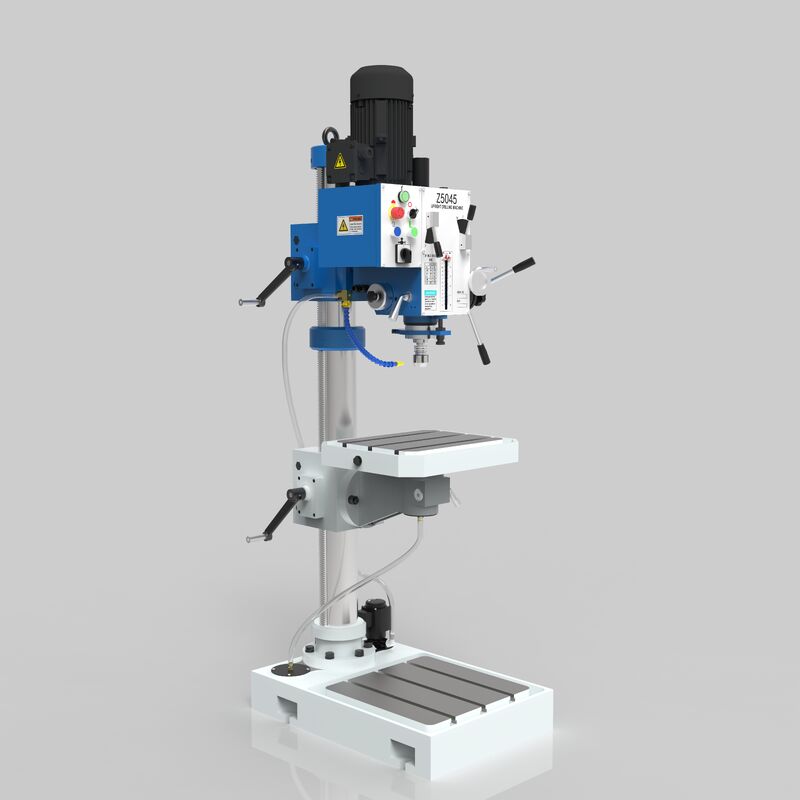

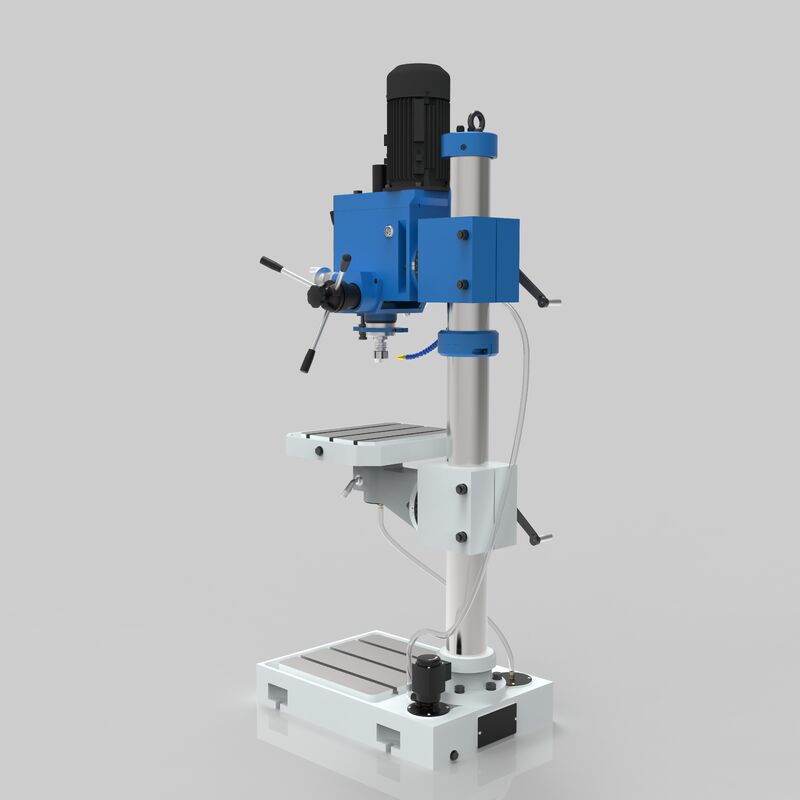

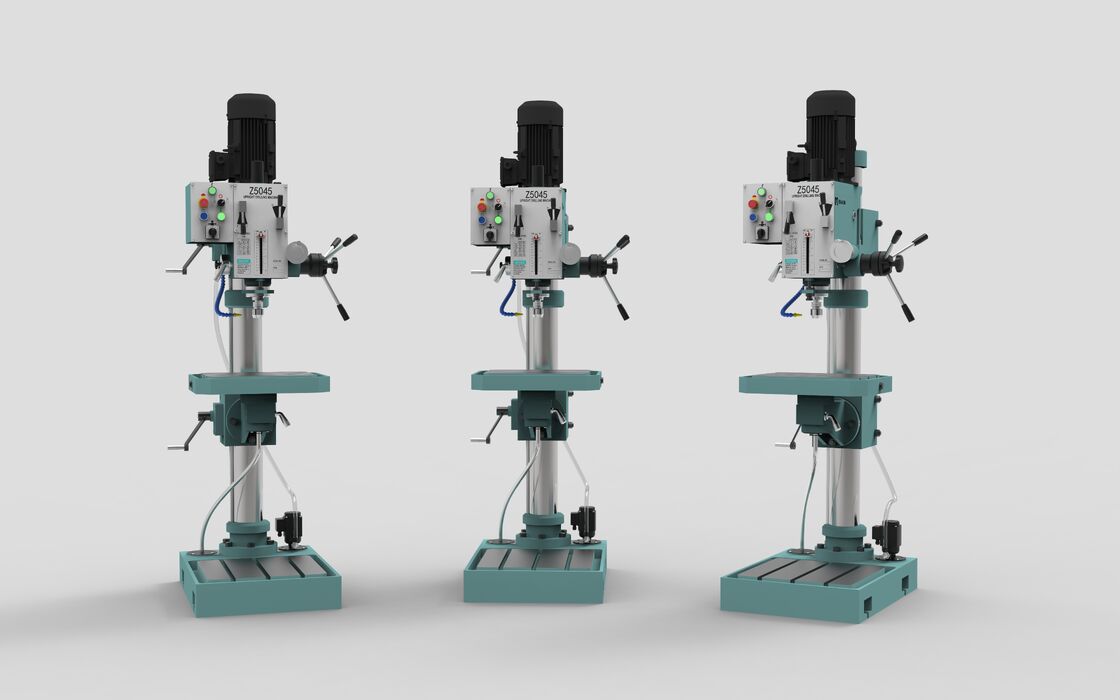

Product Images
