Product Description
Heavy-Duty Vertical Machining Center for Large Steel Parts, Castings and High-Precision Heavy Cutting
Product Overview
The Heavy-Duty Vertical Machining Center is engineered for large cutting capacity, high-rigidity machining, and precision processing of steel parts, castings, molds, structural components, and oversized metal workpieces. Built to heavy-duty machine tool standards, this CNC machining center meets the demands of manufacturers requiring strong cutting force, long travel distances, stable accuracy, and reliable performance under rigorous machining conditions.
The machine utilizes HT300 castings throughout its construction, delivering exceptional structural strength, vibration resistance, and long-term machining stability. Compared to standard vertical machining centers, the HT300 casting body provides superior rigidity during heavy milling, drilling, tapping, boring, and extensive metal removal operations, ensuring consistent accuracy even when processing hard materials and large workpieces.
This machine features a BT50 heavy-duty spindle with specifications of Φ155 / Φ190, combined with a high-power spindle motor. This configuration is specifically designed for heavy cutting applications, making the machine ideal for steel parts, cast iron components, heavy molds, large plates, and industrial parts requiring substantial torque and stable cutting performance.
Key Features
- Constructed with HT300 castings for excellent structural integrity and superior processing performance
- Designed to heavy-duty machine tool standards, suitable for large cutting volumes and high-precision machining of steel parts and castings
- BT50 - Φ155/190 heavy-duty spindle with high-power spindle motor, optimized for demanding heavy cutting applications
- X-axis travel options: 4500/6500/9000/12500 mm, with customizable lengths available
- Enhanced external protection effectively prevents cutting fluid splashing and ensures operational safety

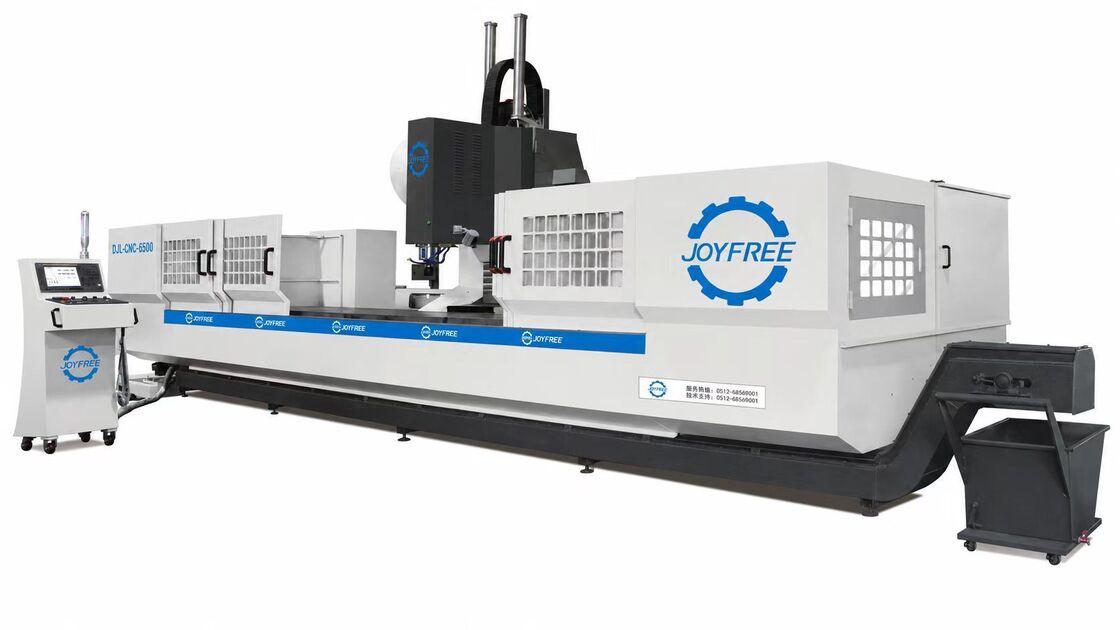

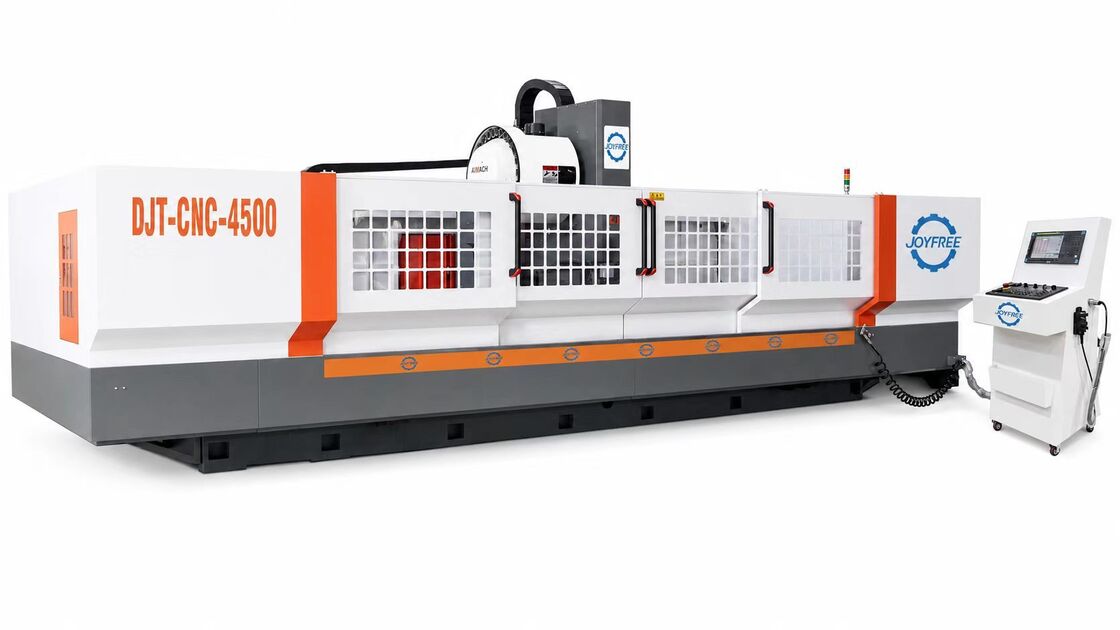

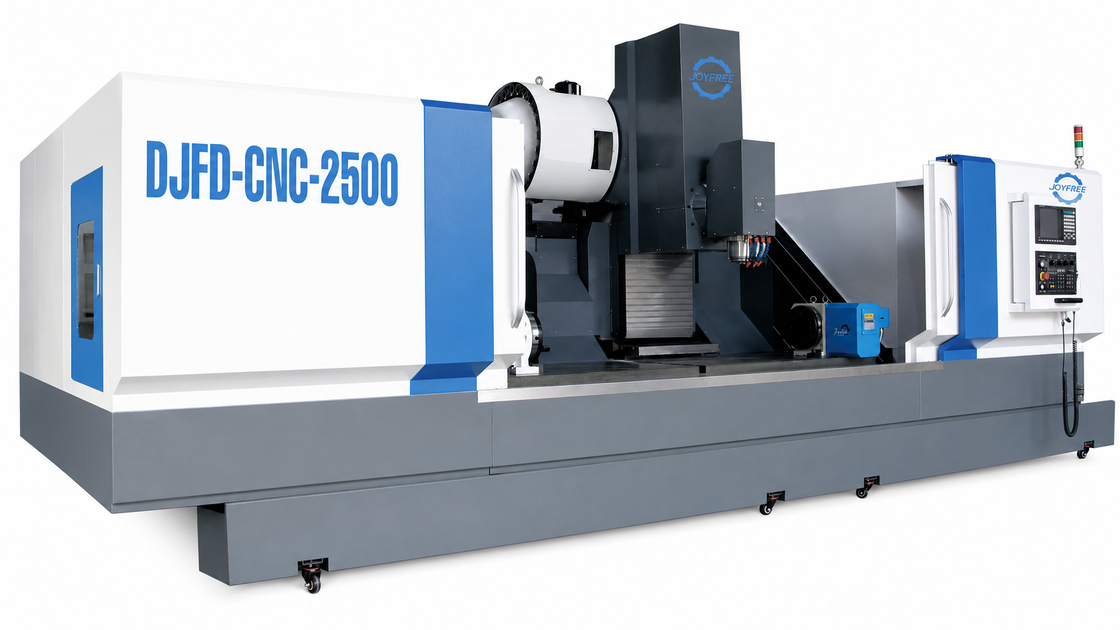

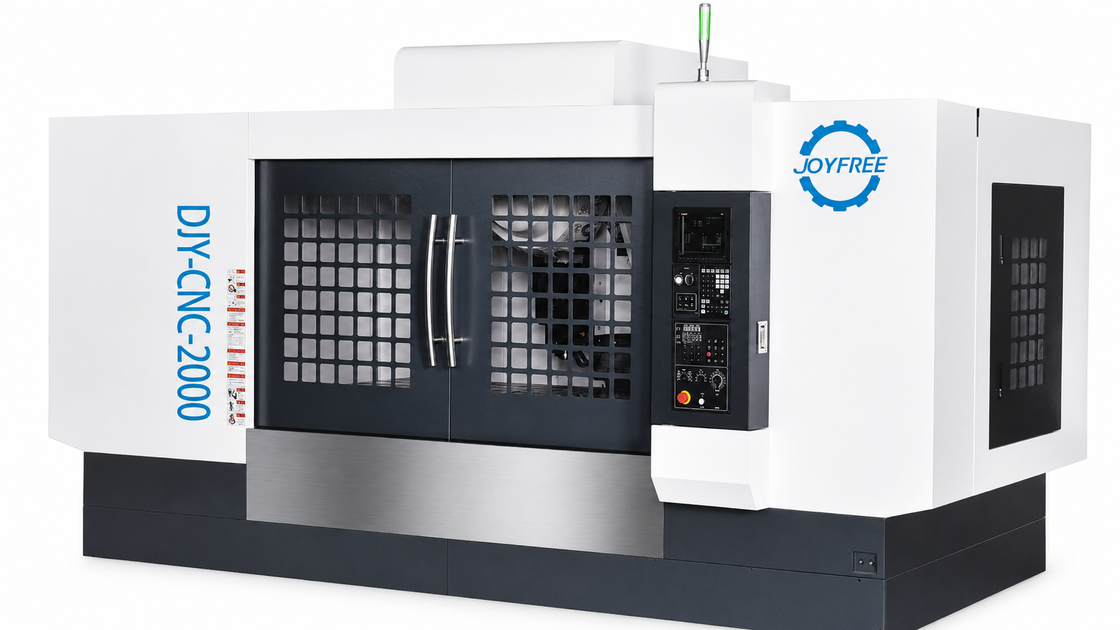

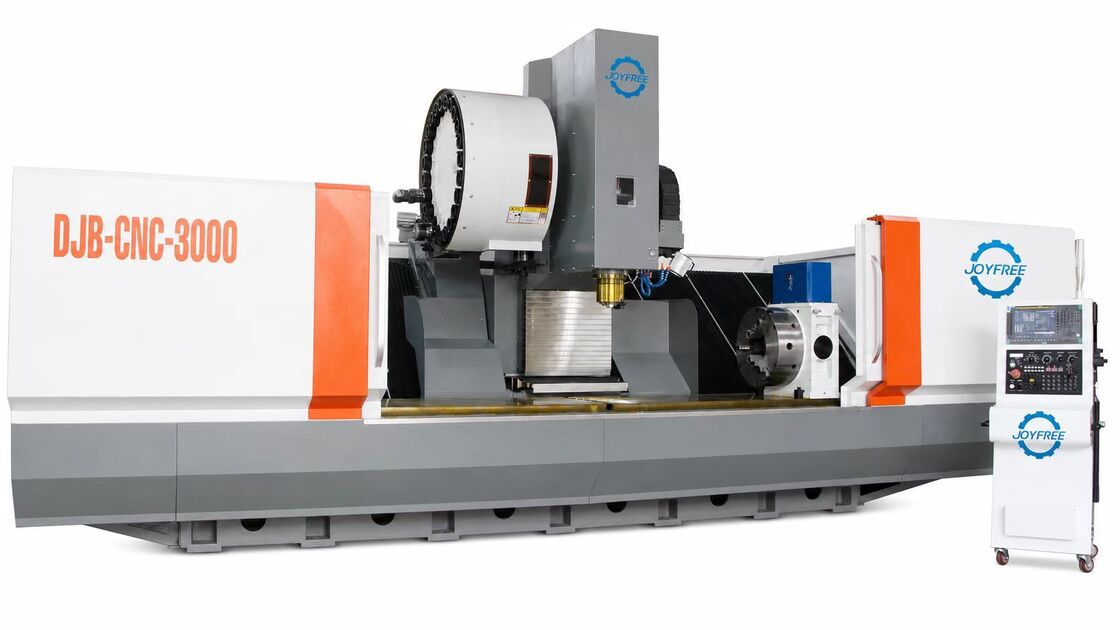

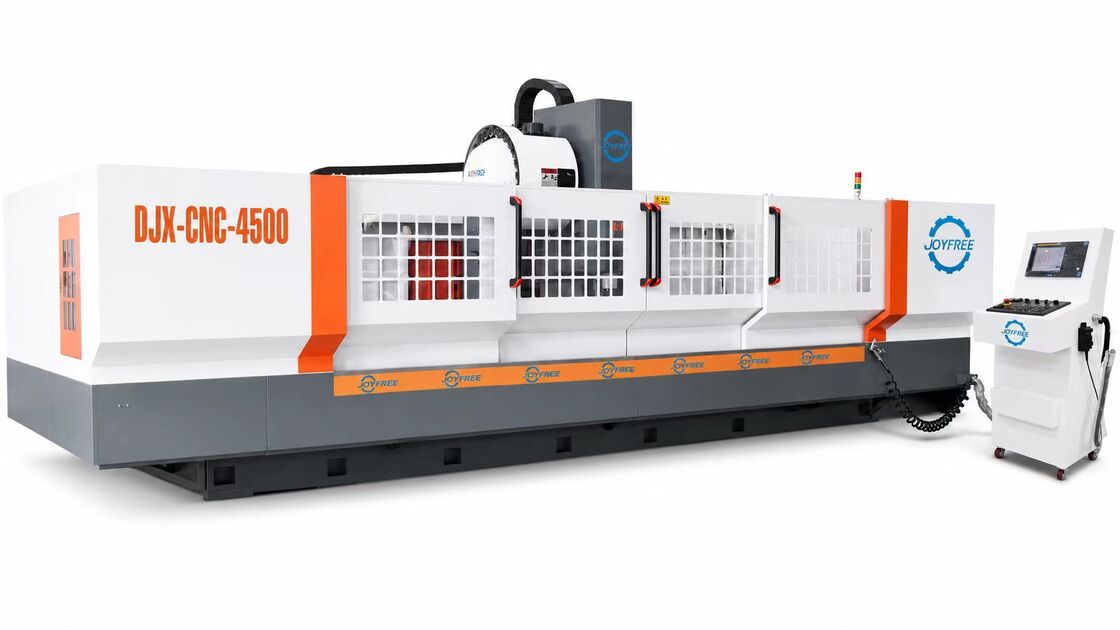

Equipment Views
Technical Specifications
| Category | Item | Parameter |
|---|---|---|
| STROKE | Stroke for X axis | 2500–12500 mm |
| STROKE | Stroke for Y axis | 700 mm |
| STROKE | Stroke for Z axis | 700 mm |
| SPINDLE | Spindle speed | 6000 / 8000 r/min |
| SPINDLE | Spindle taper | BT50 |
| TOOL | Tool magazine | Disc type |
| TOOL | Capacity of tools magazine | 24 pcs |
| TOOL | Tool change time | 2 sec |
| POWER OF MOTOR | Spindle driven motor | 15–18.5 kW |
| POWER OF MOTOR | X/Y/Z driven motor | 4 / 4 / 4 kW |
| MOVING SPEED | X moving speed | 40 m/min |
| MOVING SPEED | Y/Z moving speed | 28 / 28 m/min |
| MOVING SPEED | X/Y/Z feeding speed | 15000 mm/min |
| LUBRICATING SYSTEM | Lubricating system | Automatic lubricating |
| LUBRICATING SYSTEM | Cooling system | Water cooling system |
| PRECISION | Position precision of X axis | 0.02 mm |
| PRECISION | Position precision of Y/Z axis | 0.01 mm |
| PRECISION | Repeating position | X: ±0.01 mm (500) / Y/Z: ±0.005 mm (300) |
| SIZE OF MACHINE | Air pressure | 6 kg/cm² |
| SIZE OF MACHINE | Operation system | SIEMENS / FANUC / MITSUBISHI |
| SIZE OF MACHINE | Height | 3360 mm |
| SIZE OF MACHINE | Area | 5250–15200 * 3320 mm |
| SIZE OF MACHINE | Weight | 10000–31000 kg |
Frequently Asked Questions
What is the Heavy-Duty Vertical Machining Center used for?
The Heavy-Duty Vertical Machining Center is primarily used for milling, drilling, tapping, boring, and precision machining of large steel parts, castings, molds, plates, and heavy metal components. It is suitable for factories that require high rigidity, strong cutting force, and large workpiece processing capability.
Why does this machine use HT300 castings?
HT300 castings provide excellent structural rigidity, vibration absorption, and long-term stability. This helps the machine maintain machining accuracy during heavy cutting, large material removal, and continuous industrial production.
What are the advantages of the BT50 heavy-duty spindle?
The BT50 heavy-duty spindle provides stronger rigidity, higher torque transmission, and better cutting stability than lighter spindle configurations. With Φ155 / Φ190 spindle specifications and a high-power spindle motor, it is suitable for heavy cutting of steel parts, castings, molds, and large metal workpieces.
Can the X-axis travel be customized?
Yes. Standard X-axis travel options include 4500 mm, 6500 mm, 9000 mm, and 12500 mm. The machine length can also be customized according to the customer's workpiece size and production requirements.
What control systems do you use on your machines?
We can provide different control systems according to customer requirements, such as Siemens, GSK, FANUC, and other reliable CNC control brands.
How can I choose the most suitable machine?
Please tell us the machine model, technical parameters, workpiece material, processing size, or production requirements you are interested in. You can also send us product pictures or drawings, and our team will recommend the most suitable machine with competitive price and reliable quality.
Can the machines be customized according to customer requirements?
Yes. We support customization of machining range, spindle power, machine travel, automation level, fixture configuration, tooling system, control system, protective cover, chip removal system, and other machine specifications according to your production needs.
