CNC Profile Machining Center for Aluminum Profile Milling, Drilling, Tapping and Precision Industrial Profile Processing
CNC Profile Machining Center for Aluminum Profile Milling, Drilling, Tapping and Precision Industrial Profile Processing
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Model Number:
JFE3020
Contact Us
Request A Quote
Product Details
Model NO.:
JFE3020
Application:
Glass
Process Usage:
Aluminum Profile 5-axis Gantry Machining Center
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
35days
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
CNC Profile Machining Center for Aluminum Profile Milling, Drilling, Tapping and Precision Industrial Profile Processing
Product Overview
The CNC Profile Machining Center is a precision machining solution designed for aluminum profiles, industrial extrusions, door and window profiles, curtain wall profiles, and customized structural profile components. It is developed for manufacturers that need more than simple cutting or drilling, especially when profiles require accurate milling, tapping, slotting, end-face machining, and complex hole processing.
This machine is suitable for profile workpieces with long lengths, irregular cross-sections, multiple hole positions, side grooves, installation slots, and customized machining areas. With CNC programming and accurate positioning, it can complete different machining operations according to drawings, helping factories improve profile processing consistency and reduce manual adjustment errors.
Equipment Features
- Adopt CNC special numerical control system with friendly man-machine interface for easy operation
- Professional CNC machining software enables three programming processing with real-time visualization
- Capable of processing aluminum alloy profiles, aluminum wood composite profiles, copper profiles, steel profiles, PVC, and more with single clamping for milling, drilling, tapping, and chamfering operations
- Equipped with automatic chip removal machine and BT40 spindle taper hole for increased machine rigidity
- Servo automatic tool changing spindle ensures high precision machining with protective cover for operator safety and environmental sanitation
- 24-bit capacity fast synchronous tool changing library allows pre-tool preparation with tool change time of only 2 seconds
- T-type casting work table suitable for high precision machining with strong stability

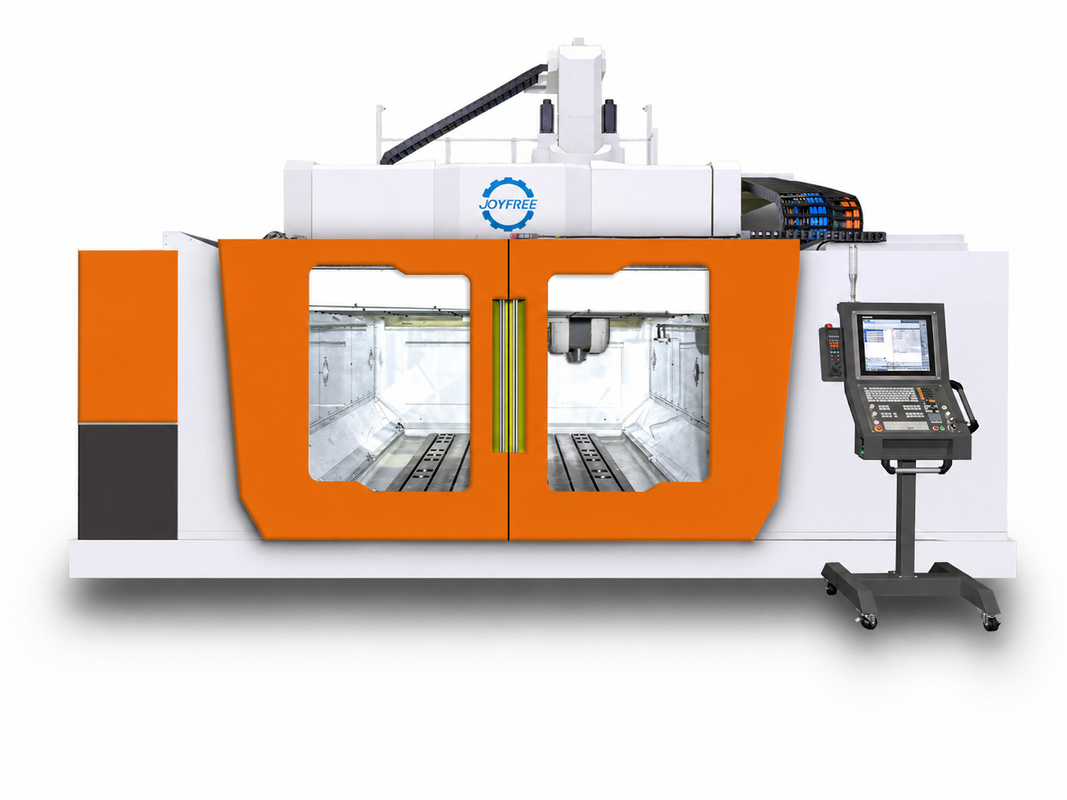

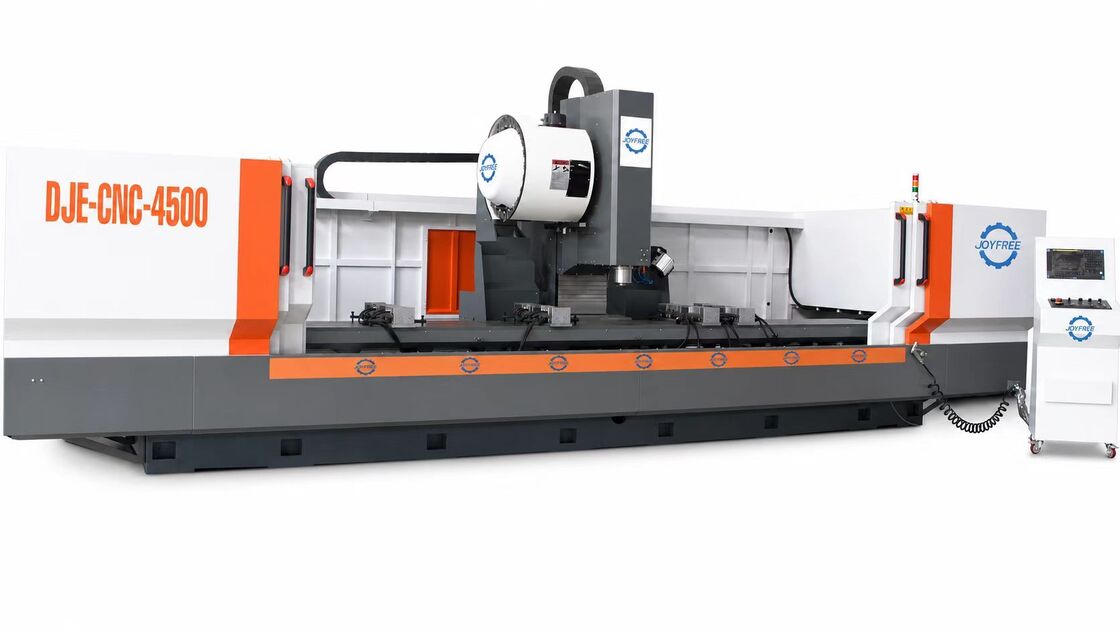

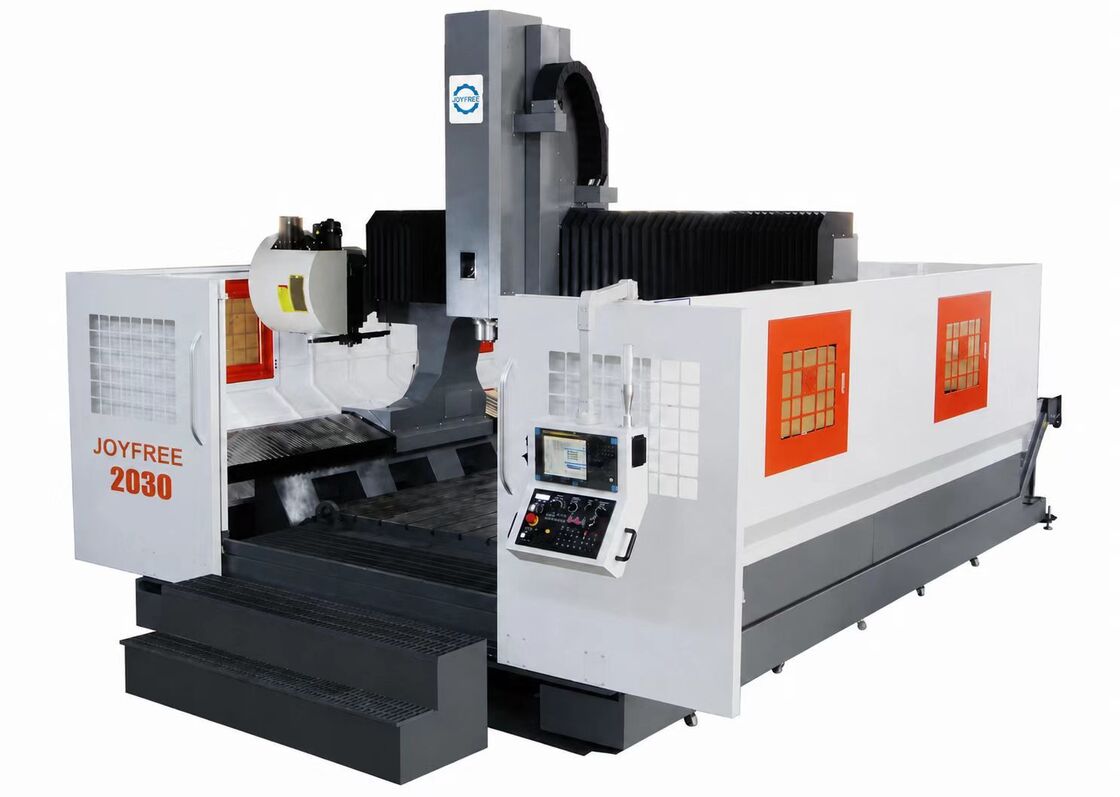

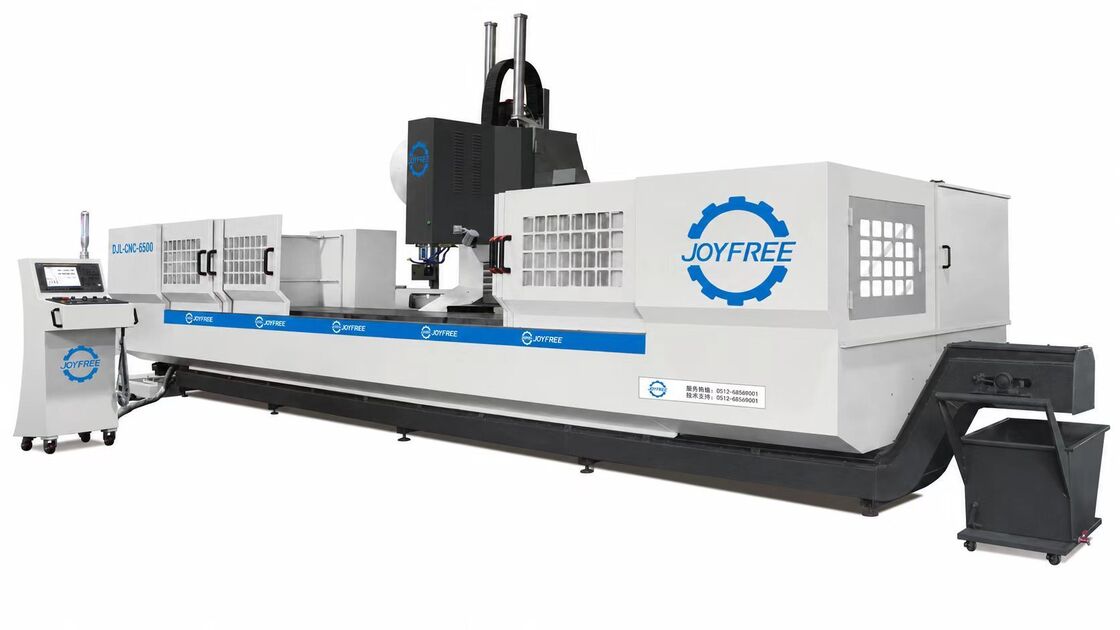

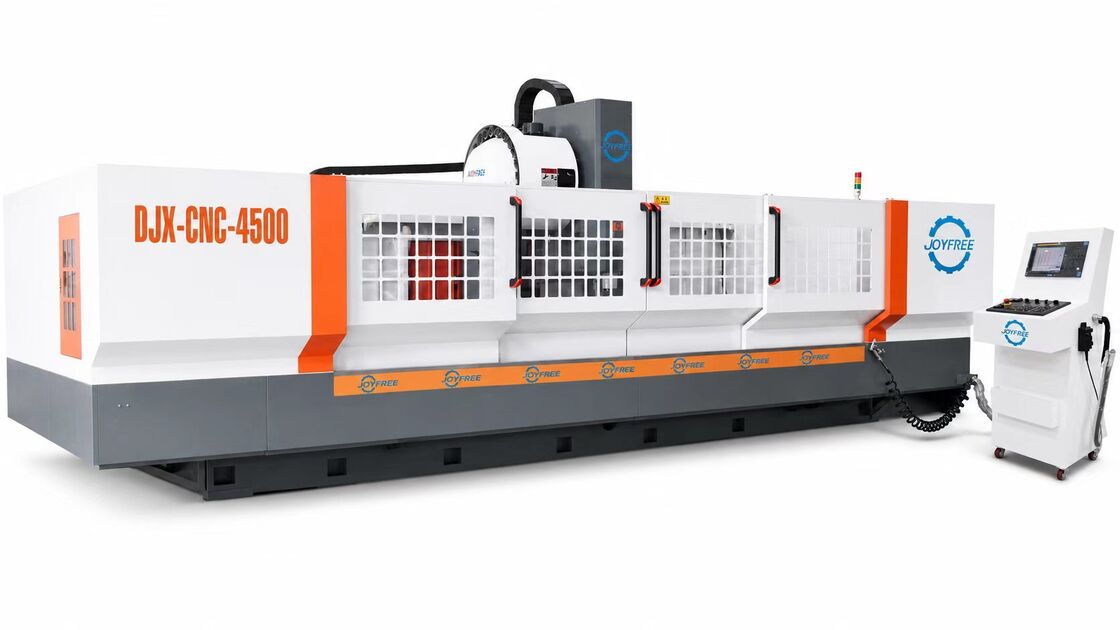

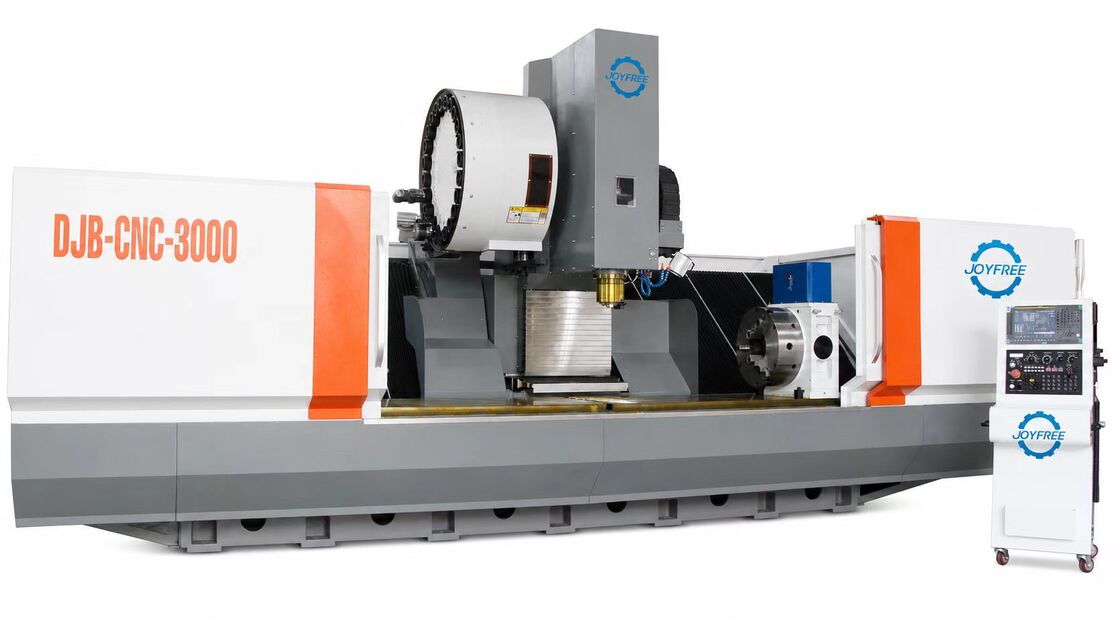

Equipment Views
Technical Parameters
| Category | Item | Parameter |
|---|---|---|
| STROKE | Stroke for X axis | 4500–12500 mm |
| Stroke for Y axis | 550 mm | |
| Stroke for Z axis | 500 / 700 mm | |
| SPINDLE | Spindle speed | 12000 r/min |
| Spindle taper | BT40 | |
| TOOL | Tool magazine | Disc type |
| Capacity of tools magazine | 24 pcs | |
| Tool change time | 2 sec | |
| POWER OF MOTOR | Spindle driven motor | 7.5(11) kW |
| X/Y/Z driven motor | 3 kW / 3 kW / 3 kW | |
| MOVING SPEED | X/Y/Z moving speed | 48 m/min / 28 m/min / 28 m/min |
| MOVING SPEED | X/Y/Z feeding speed | 15000 mm/min |
| LUBRICATING SYSTEM | Lubricating system | Automatic lubricating |
| Cooling system | Water cooling system | |
| PRECISION | Position precision of X axis | 0.03 mm |
| Position precision of Y/Z axis | 0.02 mm | |
| Repeating position | X: ±0.01 mm (500) / Y/Z: ±0.005 mm (300) | |
| SIZE OF MACHINE | Air pressure | 6 kg/cm² |
| Operation system | SIEMENS / FANUC / MITSUBISHI | |
| Height | 3300 mm | |
| Area | 7200–15000 * 3300 mm | |
| SIZE OF MACHINE | Weight | 12000–20000 kg |
FAQ
1. What is the CNC Profile Machining Center used for?
The CNC Profile Machining Center is mainly used for milling, drilling, tapping, slotting, end-face machining, and hole processing of aluminum profiles and industrial profiles. It is suitable for door and window profiles, curtain wall profiles, aluminum frames, industrial extrusions, and customized structural profiles.
2. What is the difference between a profile machining center and a profile processing center?
A profile processing center is often used for general profile production operations, while a profile machining center focuses more on precision CNC machining, including milling, tapping, slotting, end-face machining, and complex hole processing. It is more suitable for profiles with higher accuracy and customized machining requirements.
3. What materials can this machine process?
This machine is mainly designed for aluminum profiles and aluminum alloy extrusions. Depending on spindle power, machine configuration, and tooling selection, it can also process certain industrial metal profiles and customized structural profile components.
4. What control systems do you use on your machines?
We can provide different control systems according to customer requirements, such as Siemens, GSK, FANUC, and other reliable CNC control brands.
5. How can I choose the most suitable machine?
Please tell us the machine model, technical parameters, workpiece material, processing size, or production requirements you are interested in. You can also send us product pictures or drawings, and our team will recommend the most suitable machine with competitive price and reliable quality.
6. Can the machines be customized according to customer requirements?
Yes. We support customization of machining range, spindle power, automation level, fixture configuration, tooling system, control system, and other machine specifications according to your production needs.
