Profile CNC Drilling and Tapping Center for High-Precision Aluminum Profile Hole Processing and Thread Machining
Profile CNC Drilling and Tapping Center for High-Precision Aluminum Profile Hole Processing and Thread Machining
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Model Number:
JFE3020
Contact Us
Request A Quote
Product Details
Model NO.:
JFE3020
Application:
Glass
Process Usage:
Aluminum Profile 5-axis Gantry Machining Center
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
35days
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Profile CNC Drilling and Tapping Center for High-Precision Aluminum Profile Hole Processing and Thread Machining
Product Overview
The Profile CNC Drilling and Tapping Center is a high-precision CNC machine designed for efficient drilling, tapping, milling, hole processing, and light machining of aluminum profiles and industrial profiles. It is widely used in aluminum window and door manufacturing, curtain wall profile processing, industrial aluminum extrusion machining, furniture profile production, automotive components, rail transit parts, and customized metal profile fabrication.
Equipped with an advanced CNC control system, this drilling and tapping center provides accurate positioning, stable machining performance, and high processing efficiency. It can complete drilling and tapping operations quickly and consistently, helping manufacturers reduce manual labor, improve hole accuracy, and increase production capacity.
Equipment Features
- Suitable for CNC machining of various steel, aluminum, copper, PVC profiles, plates and other parts
- Capable of automatic milling, drilling, tapping and other multi-process operations with single workpiece clamping
- Movable column structure for enhanced stability with running speeds up to 60 meters per minute
- High-quality servo motors, ball screws, linear guide rails and bearings ensure high stability and reliability
- HT300 casting workbench with standard 18T groove
- High power, high torque servo spindle motor with Taiwan original spindle for high speed and good rigidity
- Advanced micro lubrication system improves working environment with energy saving and environmental protection
- Optional micro spray or cutting fluid systems
- Full front side protection for operator safety

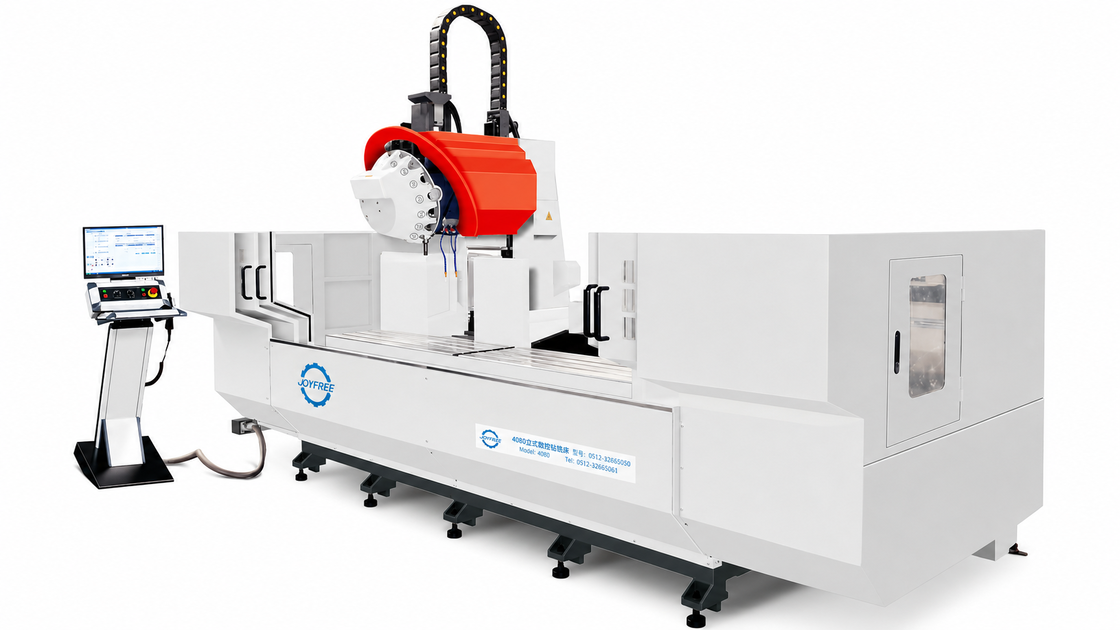

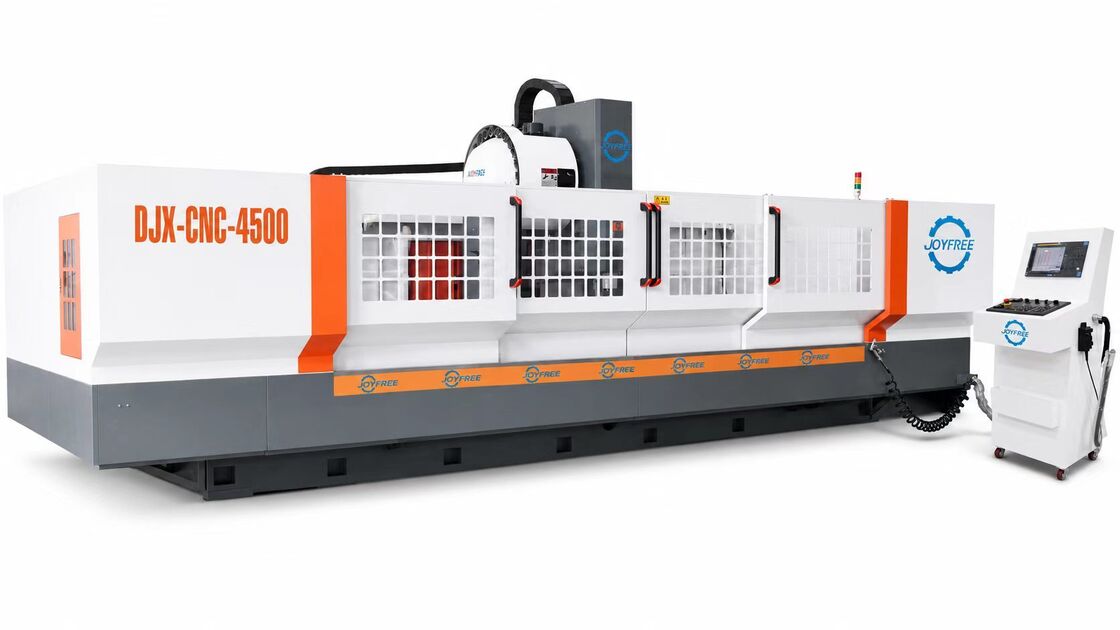

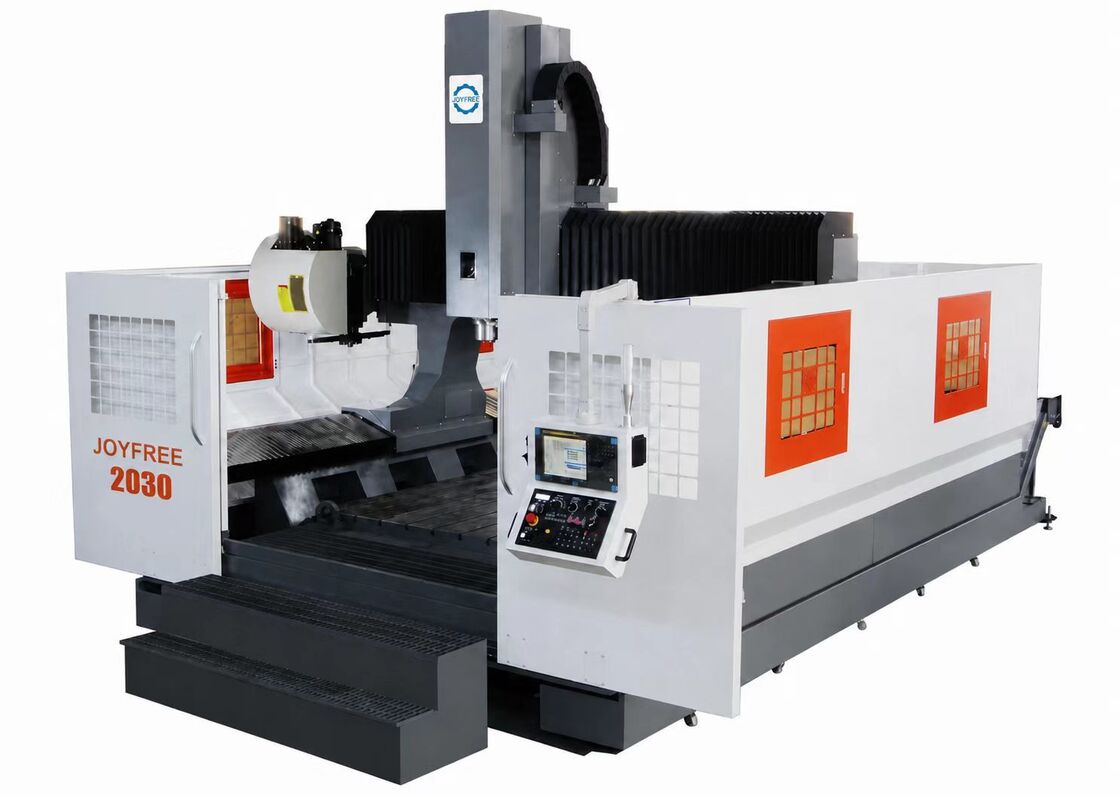

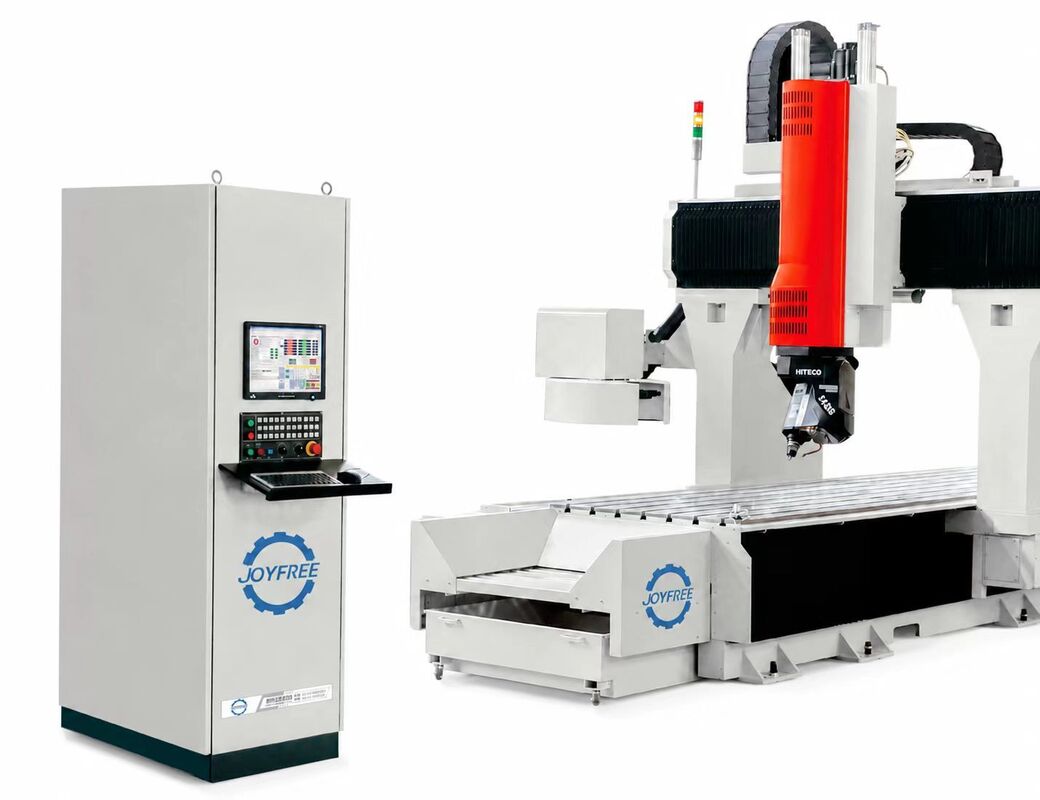

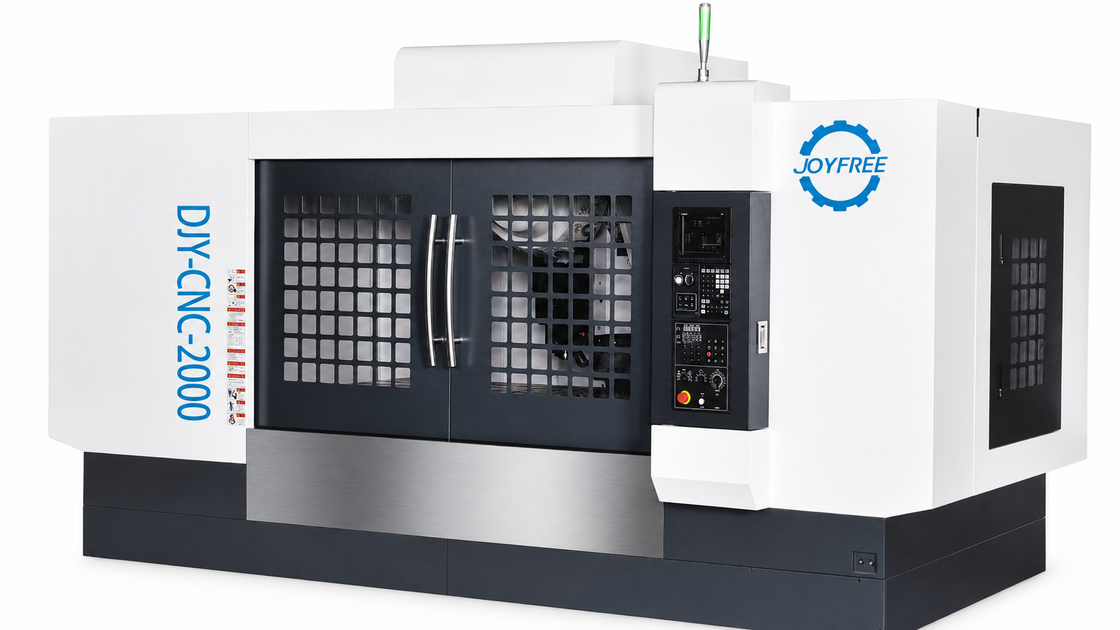

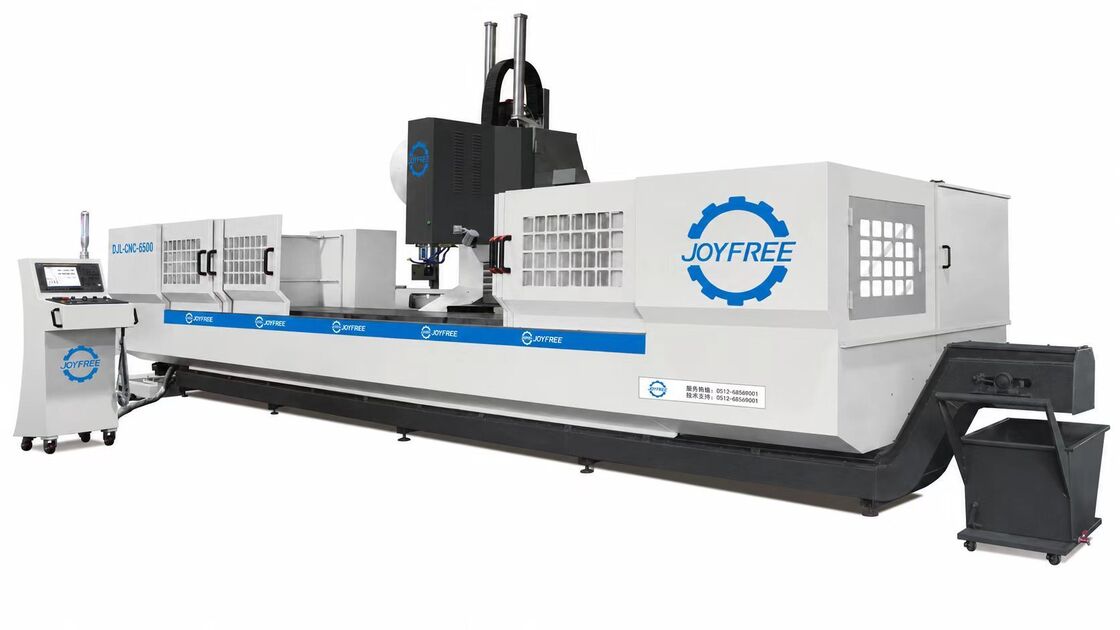

Equipment Views
Technical Parameters
| Category | Item | Parameter |
|---|---|---|
| STROKE | Stroke for X axis | 4500–24000 mm |
| STROKE | Stroke for Y axis | 450 mm |
| STROKE | Stroke for Z axis | 450 mm |
| SPINDLE | Spindle speed | 12000 r/min |
| SPINDLE | Spindle taper | BT30 |
| TOOL | Tool magazine | Arm type |
| TOOL | Capacity of tools magazine | 16 pcs |
| TOOL | Tool change time | 2 sec |
| POWER OF MOTOR | Spindle driven motor | 5.5 kW |
| POWER OF MOTOR | X/Y/Z driven motor | 1.8 kW / 3 kW / 3 kW |
| MOVING SPEED | X moving speed | 60 m/min |
| MOVING SPEED | Y/Z moving speed | 30 / 30 m/min |
| MOVING SPEED | X/Y/Z feeding speed | 15000 mm/min |
| LUBRICATING SYSTEM | Lubricating system | Automatic lubricating |
| LUBRICATING SYSTEM | Cooling system | Water cooling system |
| PRECISION | Position precision of X axis | 0.05 mm |
| PRECISION | Position precision of Y/Z axis | 0.015 mm |
| PRECISION | Repeating position | X/Y/Z: ±0.015 mm |
| SIZE OF MACHINE | Air pressure | 6 kg/cm² |
| SIZE OF MACHINE | Operation system | SIEMENS / FANUC / MITSUBISHI |
| SIZE OF MACHINE | Height | 2600 mm |
| SIZE OF MACHINE | Area | 7000–26500 * 2600 mm |
| SIZE OF MACHINE | Weight | 4000–18000 kg |
FAQ
1. What is the Profile CNC Drilling and Tapping Center used for?
The Profile CNC Drilling and Tapping Center is mainly used for drilling, tapping, milling, and hole processing of aluminum profiles and industrial profiles. It is suitable for door and window profiles, curtain wall profiles, industrial extrusions, aluminum frames, and customized profile parts.
2. What materials can this machine process?
This machine is mainly suitable for aluminum profiles and aluminum alloy materials. Depending on the machine configuration and tooling selection, it can also process certain industrial metal profiles and customized profile components.
3. What are the advantages of CNC drilling and tapping?
CNC drilling and tapping provides higher accuracy, better repeatability, faster processing speed, and more stable machining quality compared with manual operation. It is especially suitable for batch production and precision profile processing.
4. What control systems do you use on your machines?
We can provide different control systems according to customer requirements, such as Siemens, GSK, FANUC, and other reliable CNC control brands.
5. How can I choose the most suitable machine?
Please tell us the machine model, technical parameters, workpiece material, processing size, or production requirements you are interested in. You can also send us product pictures or drawings, and our team will recommend the most suitable machine with competitive price and reliable quality.
6. Can the machines be customized according to customer requirements?
Yes. We support customization of machining range, spindle power, automation level, fixture configuration, tooling system, control system, and other machine specifications according to your production needs.
