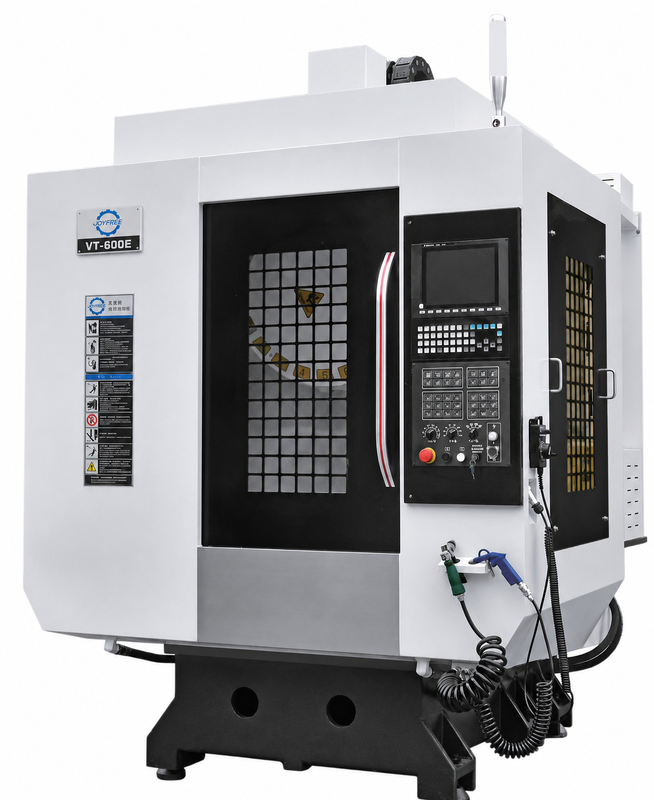

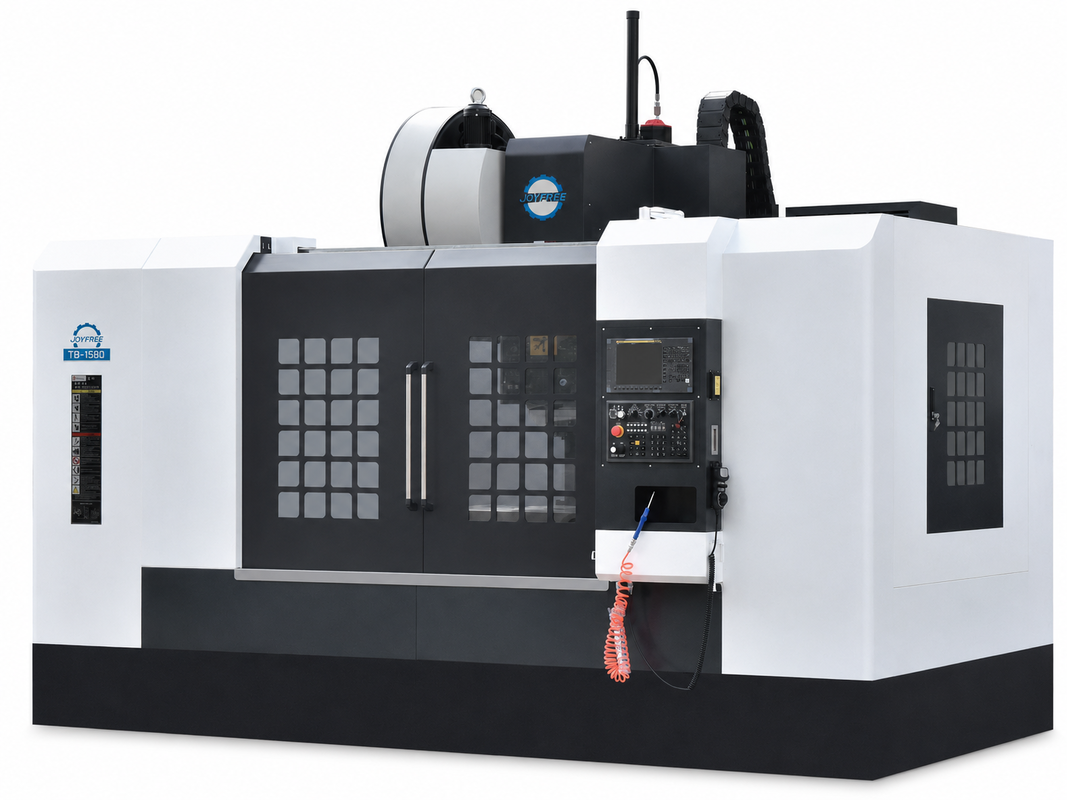

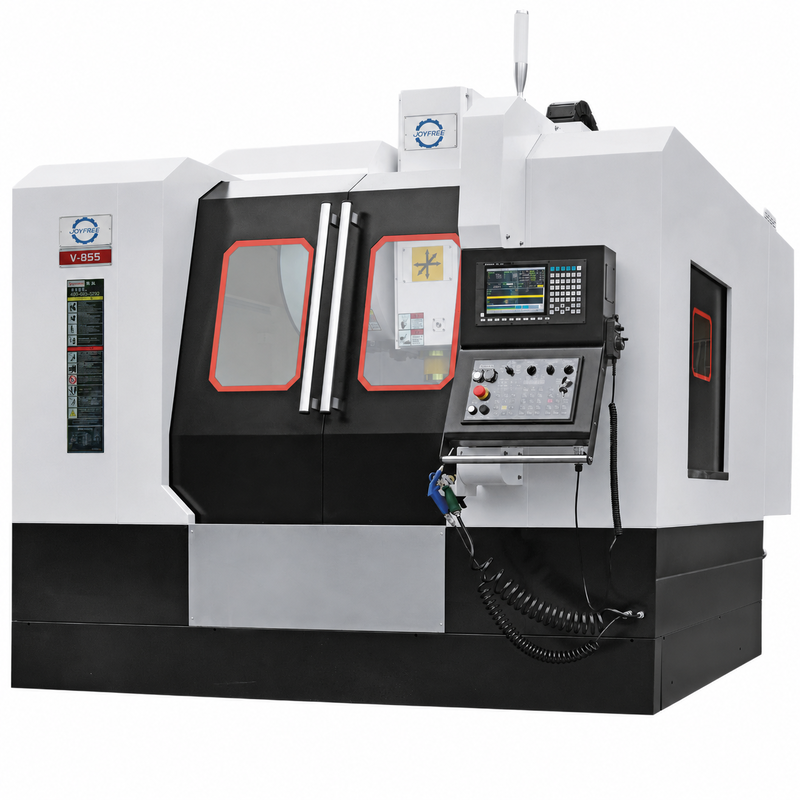

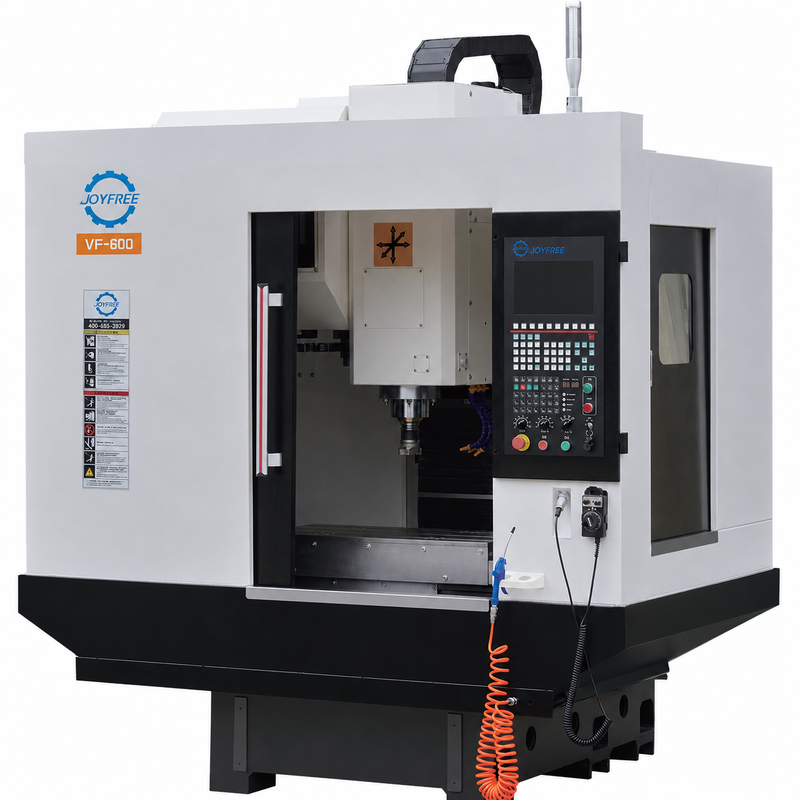

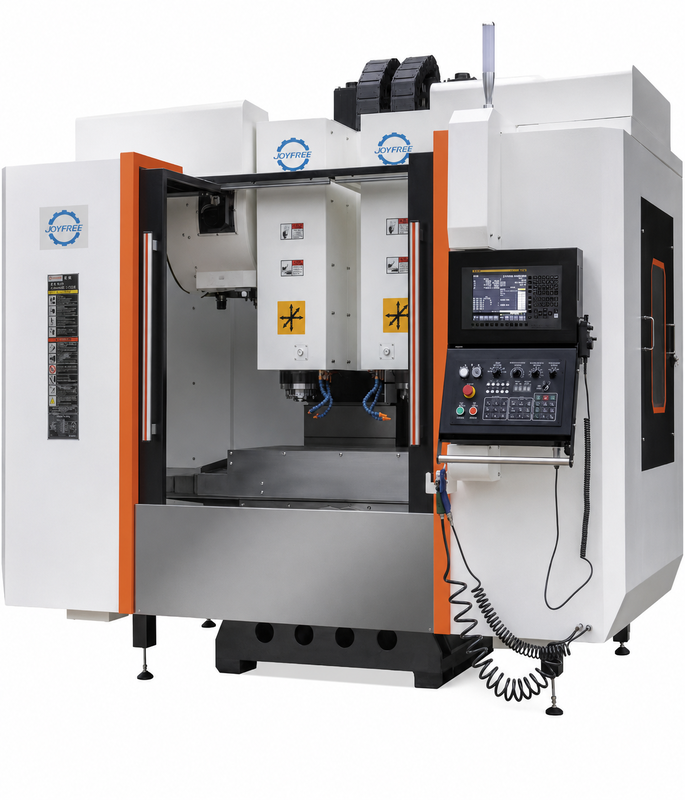

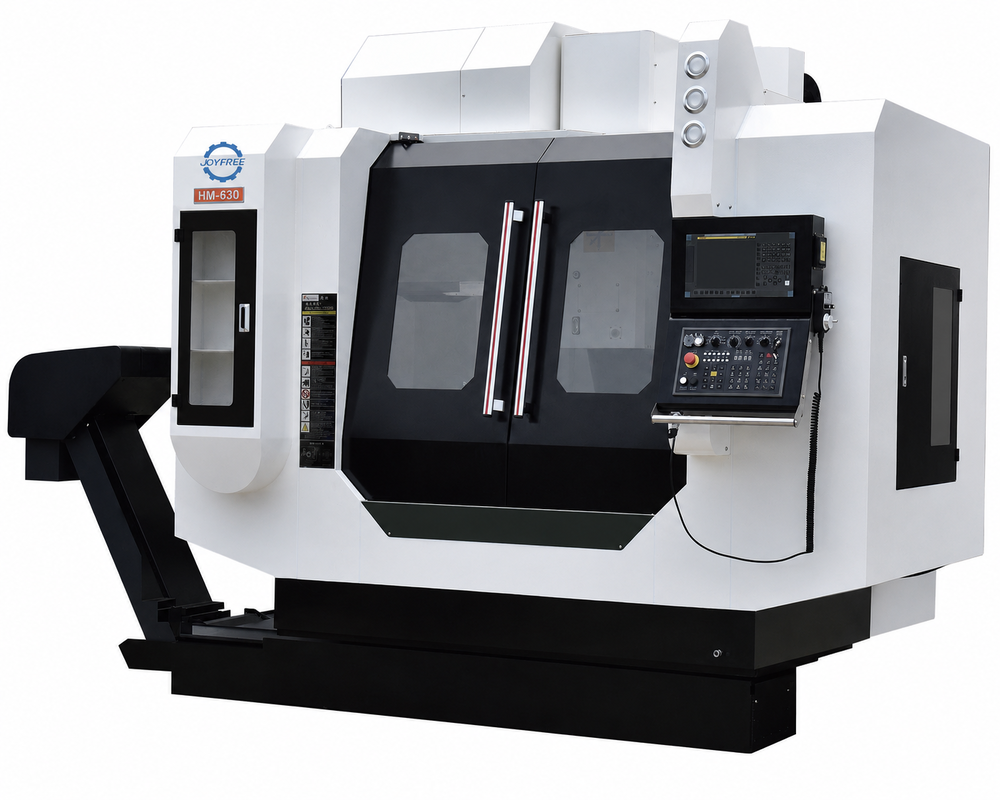

General-Purpose CNC Machining Center for Milling, Drilling, Tapping and Precision Parts Production
General-Purpose CNC Machining Center for Milling, Drilling, Tapping and Precision Parts Production
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
UT260
Application:
Glass
Process Usage:
Metal-Cutting CNC Machine Tools
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
35days
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
General-Purpose CNC Machining Center for Milling, Drilling, Tapping and Precision Parts Production
Product Overview
The General-Purpose CNC Machining Center is a versatile CNC machine tool designed for milling, drilling, tapping, boring, contour machining, surface finishing, and precision parts production. With stable machine structure, flexible machining functions, and reliable CNC control, this machining center is suitable for manufacturers that need one machine to handle a wide range of industrial processing tasks.
This machine is designed for practical and flexible production. It can process various workpieces such as metal parts, molds, plates, fixtures, aluminum components, steel parts, mechanical parts, and customized industrial components. The CNC control system accurately manages spindle speed, feed rate, tool path, axis movement, and machining sequence, helping reduce manual errors and improve repeatable machining quality.
As a general-purpose machining center, it supports multiple machining processes in one setup. It can complete milling, drilling, tapping, boring, chamfering, slotting, and contour processing according to different workpiece requirements. This helps reduce secondary processing, shorten production cycles, and improve overall machining efficiency.
Key Features
- General-purpose CNC machining center for versatile industrial production
- Suitable for milling, drilling, tapping, boring, slotting, chamfering, and contour machining
- CNC control system supports accurate and automated processing
- Stable machine structure helps improve cutting accuracy and reliability
- Suitable for aluminum alloy, steel, cast iron, copper, plastics, and other materials
- Supports small-batch customization and continuous production
- Flexible configuration for spindle, tool magazine, control system, and protection system
- Helps reduce manual operation errors and improve repeatability
- Suitable for molds, fixtures, plates, mechanical parts, and custom components
- Practical choice for factories requiring wide machining adaptability
Technical Specifications
| Item | Unit | V/VL855 | V/VL1160 | V/VL1270 | V1380Ⅱ | V1580Ⅱ |
|---|---|---|---|---|---|---|
| Travel X/Y/Z | mm | 800 * 550 * 550 | 1100 * 600 * 600 | 1200 * 700 * 700 | 1300 * 800 * 700 | 1500 * 800 * 700 |
| Distance from spindle nose to worktable | mm | 120–670 | 120–720 | 215–915 | 160–860 | 160–860 |
| Worktable size | mm | 1000 * 550 | 1200 * 600 | 1360 * 700 | 1400 * 800 | 1600 * 800 |
| Max. load capacity | kg | 500 | 800 | 1000 | 1300 | 1500 |
| T-slot size | mm | 5–18 * 90 | 5–18 * 100 | 5–18 * 120 | 7–18 * 110 | 7–22 * 110 |
| Max. spindle speed | r/min | 8000 / 12000 | 8000 / 12000 | 8000 / 12000 | 8000 | 8000 |
| Spindle power | kW | 7.5–11 / 11–15 | 7.5–11 / 11–15 | 11–15 / 15–18.5 | 15–18.5 / 18.5–22 | 15–18.5 / 18.5–22 |
| Rapid traverse speed X/Y/Z | m/min | 48 * 48 * 48 | 36 * 36 * 36 | 36 * 36 * 30 | 20 * 20 * 20 | 20 * 20 * 20 |
| Tool shank type | — | BT40 | BT40 | BT40 / BT50 | BT50 | BT50 |
| Tool magazine capacity | pcs | 24 | 24 | 24 | 24 | 24 |
| Tool change time | sec | 2.2 | 2.5 | 2.5 | 3.5 | 3.5 |
| NC system | — | SYNTEC / FANUC | SYNTEC / FANUC | SYNTEC / FANUC | SYNTEC / FANUC | SYNTEC / FANUC |
Frequently Asked Questions
What is the Vertical Machining Center used for?
The Vertical Machining Center is mainly used for CNC milling, drilling, tapping, boring, and precision machining of metal parts. It is suitable for molds, machinery parts, automotive components, aerospace parts, aluminum parts, steel parts, and customized workpieces.
What materials can this machine process?
This machine can process various metal materials, including steel, aluminum alloy, copper, cast iron, and other industrial metal materials. The specific processing range depends on the machine configuration, spindle power, cutting tools, and workpiece requirements.
What are the advantages of a vertical machining center?
A vertical machining center provides stable cutting performance, accurate positioning, high machining efficiency, and strong flexibility. It can complete multiple machining processes in one clamping, reducing manual errors and improving production consistency.
What control systems do you use on your machines?
We can provide different control systems according to customer requirements, such as Siemens, GSK, FANUC, and other reliable CNC control brands.
How can I choose the most suitable machine?
Please tell us the machine model, technical parameters, workpiece material, processing size, or production requirements you are interested in. You can also send us product pictures or drawings, and our team will recommend the most suitable machine with competitive price and reliable quality.
Can the machines be customized according to customer requirements?
Yes. We support customization of machining range, spindle power, automation level, fixture configuration, tooling system, control system, and other machine specifications according to your production needs.
