Portable Backpack Pulse Fiber Laser Cleaning Machine for Rust, Paint and Oil Removal
Portable Backpack Pulse Fiber Laser Cleaning Machine for Rust, Paint and Oil Removal
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
UT260
Application:
Glass
Process Usage:
Metal-Cutting CNC Machine Tools
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
35days
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

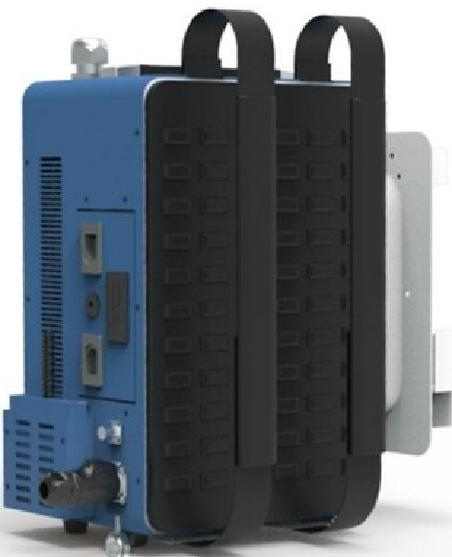

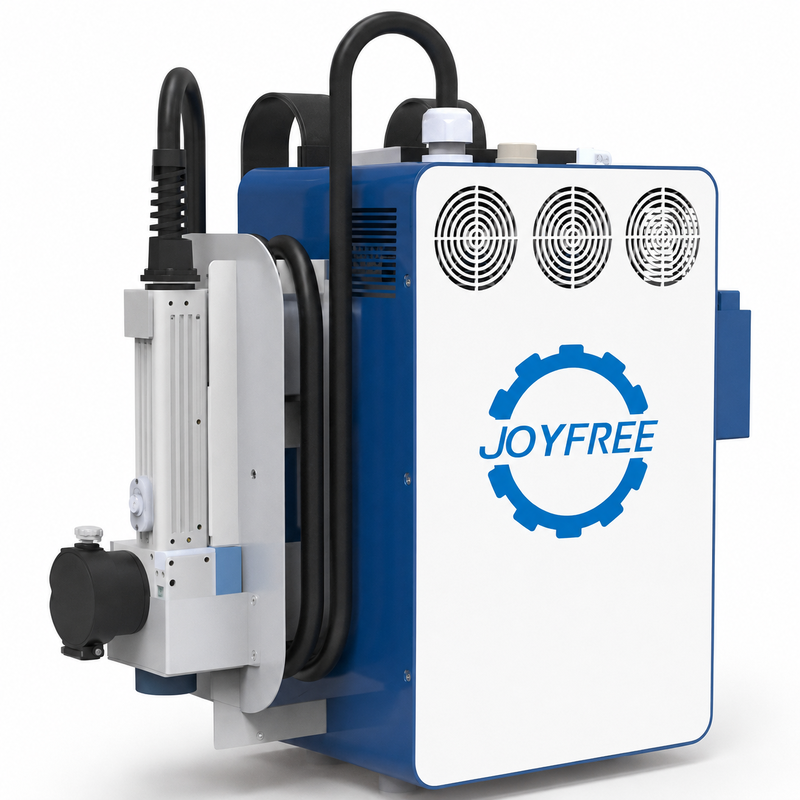

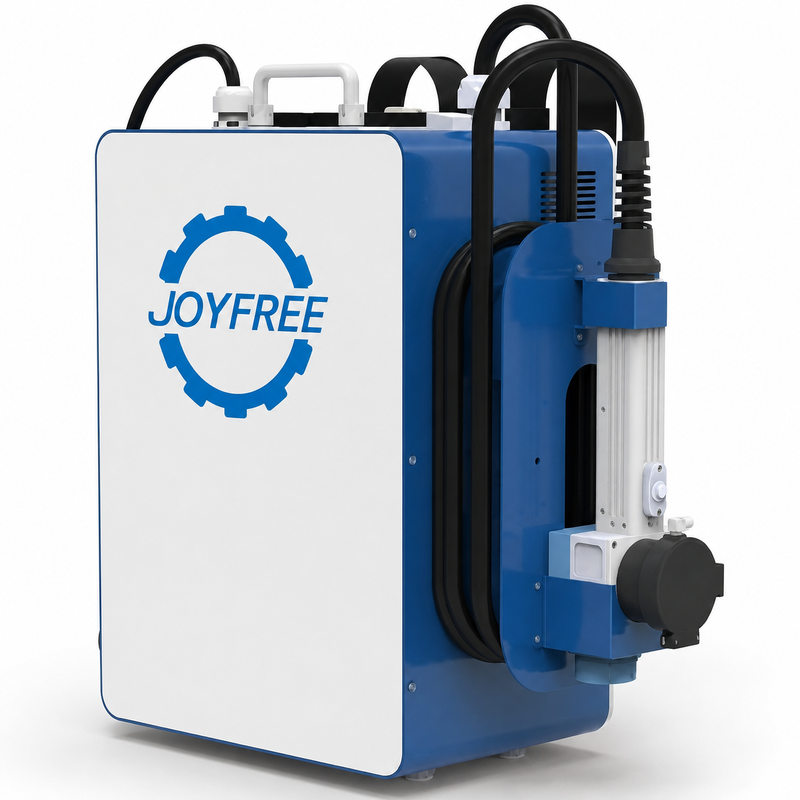

Portable Backpack Pulse Fiber Laser Cleaning Machine for Rust, Paint and Oil Removal
Product Introduction
The Portable Backpack Pulse Fiber Laser Cleaning Machine is a compact and mobile laser cleaning solution designed for rust removal, paint stripping, oil stain cleaning, oxide layer removal, weld seam cleaning, mold cleaning, and metal surface restoration. Equipped with a pulse fiber laser and a self-developed intelligent control system, this machine provides precise, efficient, and flexible cleaning performance for both factory workshops and outdoor maintenance applications.
The backpack structure makes the machine easy to carry and convenient to operate in different working environments. With its compact size and lightweight design, it is suitable for small spaces, high-altitude field operations, large equipment maintenance, on-site repair, pipeline cleaning, steel structure cleaning, and factory workshop cleaning. The machine supports both battery power supply and external power supply, allowing users to choose the most suitable working mode according to the cleaning site.
Key Features
- Portable backpack laser cleaning machine for mobile surface treatment
- Pulse fiber laser for precise rust, paint, oil and oxide removal
- Self-developed intelligent control system for stable cleaning operation
- Compact and lightweight backpack design for easy carrying
- Battery and external power supply modes can be selected freely
- Suitable for small spaces, high-altitude field operations and factory workshops
- 2D galvanometer supports customized graphic cleaning
- Air curtain dustproof structure protects core optical components
- Safety lock and tilt-sensing system help prevent accidental laser emission
- Focus laser assistance supports accurate focal distance positioning
- Built-in Korean Samsung high-capacity battery supports 2.5 hours or more full-power work
- 4-inch mobile touch screen with multi-language visual operation
- Power-off parameter saving and custom process parameter storage improve work efficiency
Applications
- Rust removal
- Paint stripping
- Metal surface cleaning
- Oil stain removal
- Oxide layer removal
- Weld seam cleaning
- Mold cleaning
- Automotive maintenance
- Ship repair
- Rail transit maintenance
- Steel structure cleaning
- Pipeline cleaning
- Machinery refurbishment
- Factory workshop cleaning
- Outdoor industrial maintenance
Technical Parameters
| Model | QYCL-FP100B | QYCL-FP200B | QYCL-FP300B |
|---|---|---|---|
| Laser power(W) | 100 | 200 | 300 |
| Single pulse energy(mJ) | 1.8 | 1.8/15 | 1.8/5/15 |
| Rated power (kW) | 0.55 | 0.8 | 1.1 |
| Rated current (A) | 2.5 | 4 | 6 |
| Power adjustment range(%) | 10～100 | ||
| Scanning width (mm) | 0～100(F160 field lens) | ||
| Working model | Pulse | ||
| Type of laser source | Pulsed fiber laser | ||
| Battery | Lithium battery(24V 25Ah) | ||
| Battery life(h) | 1.6 | 1.3 | 1 |
| Laser head weight(kg) | 1.05±0.1 | ||
| Weight of machine (kg) | 14±2 | 21±2 | - |
| Dimension of machine (mm) | 492*215*550 | 536*221*501 | - |
| Installation environment requirements | 1. Ambient humidity 10%～85%RH, no condensation. 2. No explosive or corrosive gases exist in the place where the equipment is installed. | ||
Frequently Asked Questions
What is the Backpack Laser Cleaning Machine used for?
The Backpack Laser Cleaning Machine is mainly used for rust removal, paint stripping, oil stain cleaning, oxide layer removal, weld seam cleaning, mold cleaning, and metal surface restoration.
What are the advantages of the backpack structure?
The backpack structure is compact, lightweight, and easy to carry. It is suitable for small spaces, high-altitude field operations, outdoor maintenance, large equipment cleaning, and factory workshop use.
Can the machine work without external power?
Yes. The machine supports both battery power supply and external power supply. The built-in Korean Samsung high-capacity battery can work at full power for 2.5 hours or more.
What materials can this machine clean?
It can clean steel, stainless steel, aluminum alloy, copper, iron, mold steel, and other industrial metal materials. The actual cleaning effect depends on laser power, surface condition, cleaning speed, and parameter settings.
What is the function of the 2D galvanometer?
The 2D galvanometer supports customized graphic cleaning, allowing the machine to clean different shapes and surface areas more flexibly according to application needs.
Is the machine safe to operate?
Yes. The machine includes a safety lock, tilt-sensing system, air curtain dustproof structure, and focus laser assistance. These designs help improve operation safety and protect key components.
Can the machine save cleaning parameters?
Yes. The machine supports power-off parameter saving and custom process parameter storage, helping users save common cleaning settings and improve operation efficiency.
