Composite Continuous and Pulse Fiber Laser Cleaning Machine for Industrial Rust Removal and High-Cleanliness Surface Treatment
Composite Continuous and Pulse Fiber Laser Cleaning Machine for Industrial Rust Removal and High-Cleanliness Surface Treatment
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
UT260
Application:
Glass
Process Usage:
Metal-Cutting CNC Machine Tools
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
35days
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

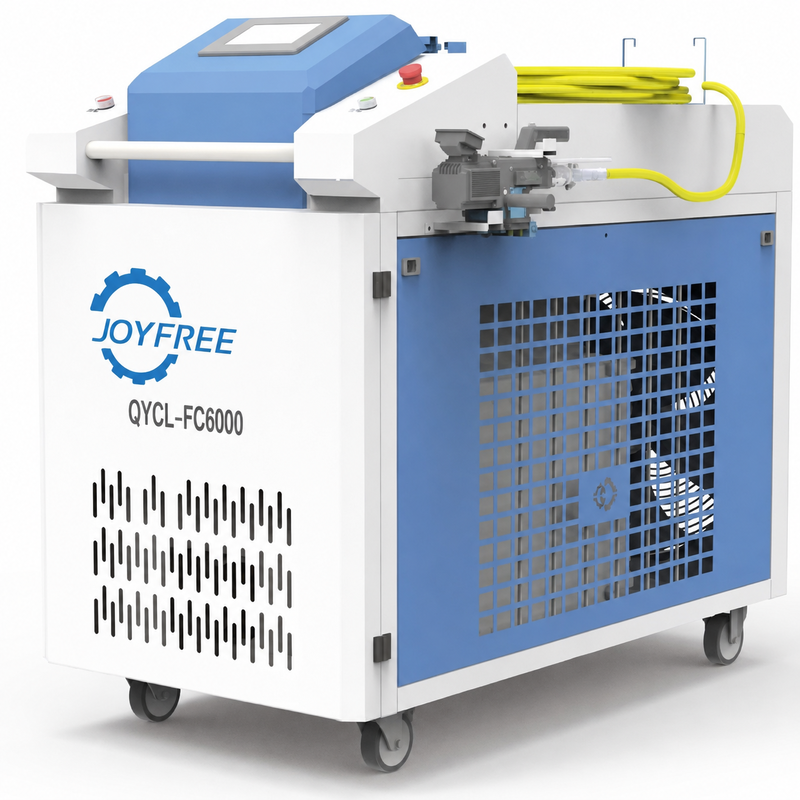

Composite Continuous and Pulse Fiber Laser Cleaning Machine
Product Overview
The Composite Continuous and Pulse Fiber Laser Cleaning Machine is an advanced industrial laser cleaning solution that integrates continuous fiber laser cleaning and pulse fiber laser cleaning in one system. This innovative combination delivers superior cleaning performance for rust removal, paint stripping, coating removal, oxide layer cleaning, oil stain removal, weld seam cleaning, and high-quality metal surface treatment.
Dual Laser Synergy: The composite cleaning effect creates a combined cleaning performance of 1+1 >2, leveraging the stable, continuous high-average-energy characteristics of continuous laser with the instant penetration, precision, and high cleanliness of pulsed laser.
Key Features
- Composite laser cleaning integrating continuous fiber laser and pulse fiber laser
- Continuous laser supports large-area and high-efficiency cleaning
- Pulse laser enables high-cleanliness and precision surface treatment
- Dual laser synergy creates stronger cleaning effect than single laser sources
- Dual protective lens design protects the optical system
- Semi-enclosed dust suction port removes smoke and dust during operation
- High-speed airflow prevents lens contamination
- Compatible with robotic arms, truss robots, and automated cleaning systems
- Reduces manual operation differences and improves cleaning consistency
- Superior substrate protection compared to traditional aggressive cleaning methods
Applications
- Rust removal and paint stripping
- Coating removal and oxide layer cleaning
- Oil stain removal and metal surface cleaning
- Weld seam cleaning and steel structure maintenance
- Rail transit maintenance and ship surface cleaning
- Construction machinery repair and automotive parts cleaning
- Aerospace component cleaning and mold repair
- Pipeline cleaning and automated industrial cleaning systems
Technical Parameters
| Parameter | QYCL-FC3000/500A (Top-hat beam) | QYCL-FC3000/500P (Gaussian beam) |
|---|---|---|
| Laser Power (W) | 3000 | 500 | 3000 | 500 |
| Rated Power (kW) | 12.6 | 2 | 12.6 | 7.5 |
| Rated Current (A) | 25 | 33 | 25 | 27 |
| Power Adjustment Range | 10% - 100% | |
| Scanning Width (mm) | 10 - 120 | |
| Focal Distance (mm) | 254/330 | |
| Central Wavelength (nm) | 1070 - 1090 | |
| Cooling Method | Water cooled + Air cooled | |
| Fiber Cable Length (m) | 10 (Customizable) | |
| Working Model | Continuous + Pulse | |
| Supply Voltage (V) | 380 + 220 | |
| Machine Weight (kg) | 220 ± 5 | 220 ± 5 |
| Laser Head Weight (kg) | 7 ± 1 | |
| Machine Dimensions (mm) | 1200 × 585 × 1380 | 1200 × 585 × 1380 |
Installation Environment Requirements
- Ambient humidity: 10% - 85% RH, no condensation
- No explosive or corrosive gases in installation area
- Ambient temperature: 10℃ - 40℃
Frequently Asked Questions
What is a Composite Laser Cleaning Machine used for?
The Composite Laser Cleaning Machine is primarily used for rust removal, paint stripping, coating removal, oxide layer cleaning, oil stain removal, weld seam cleaning, and industrial metal surface treatment applications.
What is the difference between composite laser cleaning and single laser cleaning?
Composite laser cleaning combines continuous fiber laser and pulse fiber laser technologies. Continuous laser provides large-area cleaning efficiency, while pulse laser delivers high cleanliness and precision. This dual approach offers more flexible and efficient cleaning than using only one laser type.
Why is dual laser synergy important?
Dual laser synergy leverages the stable high-average-energy output of continuous laser with the instant precision cleaning ability of pulsed laser. The combined effect is stronger than simply adding two laser sources, significantly improving cleaning efficiency and surface quality.
How does the machine protect the optical system?
The field lens utilizes two protective lenses to prevent dust, smoke, debris, and cleaning residues from contaminating the optical system. This design extends machine service life and reduces maintenance frequency.
Can this machine be used for automated cleaning?
Yes. The machine can be integrated with joint robots, truss robots, and automated cleaning systems. This integration improves cleaning consistency, reduces manual operation variations, and increases production efficiency.
Does the machine include dust removal protection?
Yes. The cleaning end is equipped with a semi-enclosed dust suction port that removes most smoke and dust. High-speed airflow helps prevent lens contamination and maintains a cleaner working environment.
Can the machine be customized according to customer requirements?
Yes. We support customization of laser power, continuous and pulse laser configuration, cleaning head design, dust suction system, optical protection design, robotic integration, control system, communication interface, and other specifications based on specific customer cleaning needs.
