6000W High-Power Continuous Fiber Laser Cleaning Machine for Heavy-Duty Rust Removal and Industrial Surface Cleaning
6000W High-Power Continuous Fiber Laser Cleaning Machine for Heavy-Duty Rust Removal and Industrial Surface Cleaning
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
UT260
Application:
Glass
Process Usage:
Metal-Cutting CNC Machine Tools
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
35days
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
6000W High-Power Continuous Fiber Laser Cleaning Machine
Product Overview
The 6000W High-Power Continuous Fiber Laser Cleaning Machine is an advanced industrial laser cleaning system designed for heavy-duty rust removal, paint stripping, coating removal, oxide layer cleaning, grease removal, weld seam cleaning, and large metal surface treatment. With premium core components, a self-developed intelligent control system, visual control panel, and one-button operation, this machine provides safe, stable, and reliable cleaning performance for high-intensity industrial environments.
Designed for demanding applications, this 6000W continuous fiber laser cleaning machine is suitable for rail transportation, marine ships, engineering machinery, steel structures, heavy equipment maintenance, industrial refurbishment, and large-scale metal surface preparation. It efficiently removes surface contaminants and helps prepare workpieces for welding, painting, coating, inspection, repair, or remanufacturing.
The machine adopts a self-developed control system with long focal depth, anti-shake design, infrared laser focusing, multiple open external interfaces, automated integration support, and remote real-time monitoring. These functions make the equipment suitable not only for manual cleaning operations but also for automated production lines and intelligent industrial cleaning systems.
Key Features
- 6000W high-power continuous fiber laser cleaning machine
- Suitable for heavy-duty rust removal, paint stripping, coating removal and grease cleaning
- Premium core components for safe, stable and reliable operation
- Self-developed intelligent control system with visual control panel
- One-button operation for ease of use
- Long focal depth and anti-shake design improve cleaning stability
- Infrared laser focusing supports accurate cleaning operation
- Multiple open external interfaces support automated integration
- Remote real-time monitoring improves operation management
- Ergonomic portable cleaning head - strong, durable and easy to operate
- Built-in temperature sensor protects cleaning head and optical lens
- Multi-layer protective cavity improves optical lens protection
- Intelligent water cooling system supports long-time high-power operation
- Industrial-grade mobile platform enables flexible deployment
- Multi-language touch screen supports industrial bus communication protocols
Applications
- Heavy-duty rust removal
- Paint stripping
- Coating removal
- Grease cleaning
- Oxide layer removal
- Metal surface cleaning
- Weld seam cleaning
- Rail transportation maintenance
- Marine ship cleaning
- Engineering machinery repair
- Steel structure cleaning
- Heavy equipment refurbishment
- Industrial surface preparation
- Automated laser cleaning systems
Technical Parameters

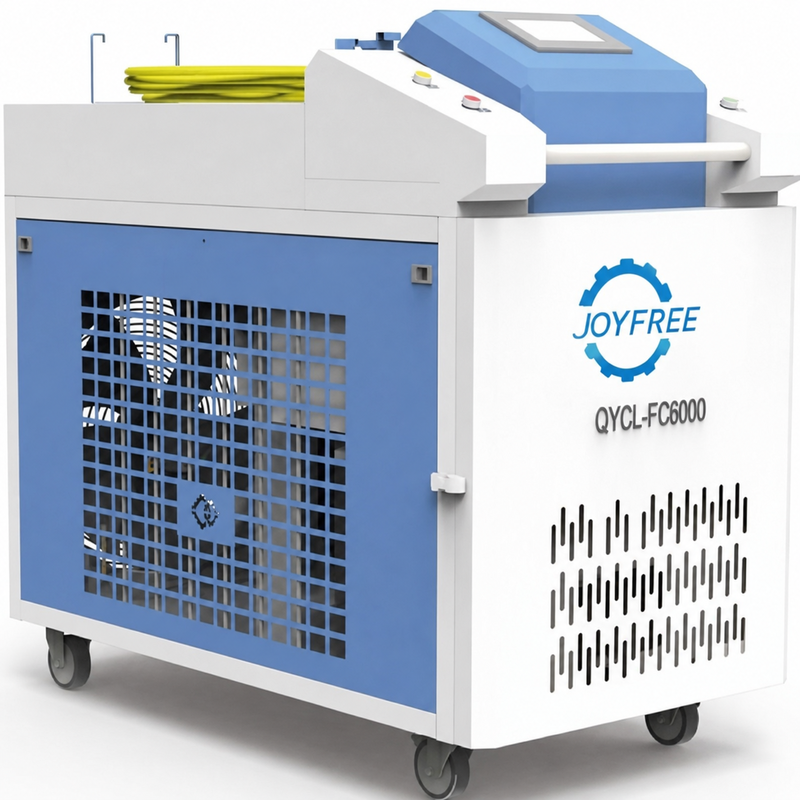

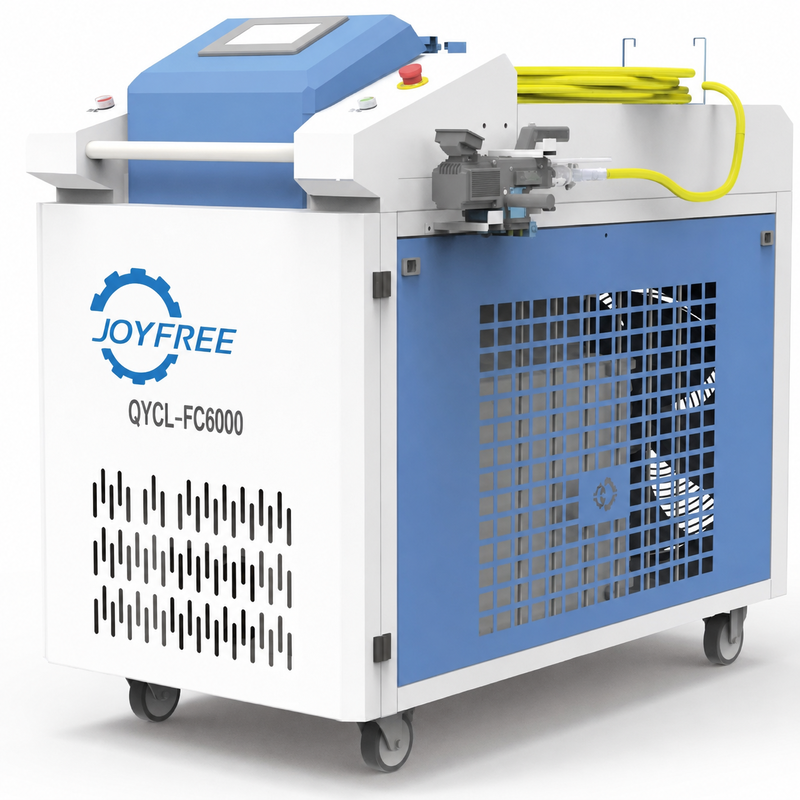

| Model | QYCL-FC6000 |
|---|---|
| Laser Power (W) | 6000 |
| Rated Power (kW) | 21 |
| Power Adjustment Range (%) | 10～100 |
| Scanning Width (mm) | 0～500 |
| Focal Distance (mm) | 800(Optional)/1000(Optional)/1200/1500 |
| Working Model | Continuous |
| Center Wavelength (nm) | 1070～1090 |
| Cooling Method | Water Cooled |
| Working Water Temperature (°C) | Laser Source: 22～26 / Fiber Head: 28～30 |
| Fiber Cable Length (m) | 20 |
| Output Fiber Type | Standard QBH(LOC) |
| Supply Voltage (V) | 380 |
| Dimension of Machine (mm) | 1418*820*1235 |
| Laser Head Weight (kg) | 1.27 (Sup laser) |
| Installation Environment Requirements | 1. Ambient humidity 10%～85%RH, no condensation. 2. No explosive or corrosive gases exist in the installation place. 3. Ambient temperature 10℃~40℃. |
Frequently Asked Questions
1. What is the 6000W Continuous Fiber Laser Cleaning Machine used for?
The machine is mainly used for heavy-duty rust removal, paint stripping, coating removal, grease cleaning, oxide layer removal, weld seam cleaning, and industrial metal surface treatment.
2. What industries is this machine suitable for?
It is suitable for rail transportation, marine ships, engineering machinery, steel structures, heavy equipment maintenance, industrial refurbishment, and large-scale metal surface preparation.
3. What are the advantages of the self-developed control system?
The self-developed control system supports long focal depth, anti-shake design, infrared laser focusing, open external interfaces, automated integration, and remote real-time monitoring. These features help improve cleaning stability and automation compatibility.
4. Is the cleaning head easy to operate?
Yes. The cleaning head adopts an ergonomic portable design. It is lightweight in operation, durable, and equipped with professional water and gas path design, built-in temperature sensor, and optical lens protection structure.
5. How does the machine support high-power continuous operation?
The machine uses an intelligent water cooling system and compact heat dissipation structure to help maintain stable operation during long-time high-power cleaning.
6. Can this machine be integrated into an automated cleaning system?
Yes. The machine provides multiple open external interfaces and supports industrial bus communication protocols, making it suitable for robotic cleaning systems, automated production lines, and intelligent factory applications.
7. Can the machine be customized according to customer requirements?
Yes. We support customization of laser power, cleaning head, control system, cooling system, automation interface, communication protocol, mobile platform, safety protection system, and other specifications according to customer cleaning needs.
