Product Description
High-Power Five-Axis CNC Tool Grinder with 24 kW Direct-Drive Spindle
The High-Power Five-Axis CNC Tool Grinder is a high-precision grinding solution designed for cutting tool manufacturing, carbide tool grinding, end mill grinding, drill grinding, reamer processing, step tool grinding, and custom precision tool production. Equipped with a powerful 24 kW direct-drive spindle grinding head, linear motor driven X/Y axes, precision clamping system, Renishaw probe, and full closed-loop control, this machine delivers strong grinding performance, high accuracy, stable repeatability, and efficient tool processing capability.
Key Features
- High-power five-axis CNC tool grinder for precision cutting tool production
- 24 kW direct-drive spindle grinding head provides strong grinding capability
- Grinding wheel flange supports 2–4 grinding wheels in one setup
- DD direct-drive workpiece spindle improves rotation accuracy and stability
- Schaublin precision collet and W25 clamping system ensure reliable tool holding
- X/Y axes use linear motors and linear scales for smooth high-precision motion
- Z axis uses servo motor and C3-class ball screw for stable feed control
- Precision Renishaw probe supports accurate measurement and compensation
- Dual DD direct-drive rotary axes provide stable full closed-loop control
- Suitable for carbide tools, end mills, drills, reamers, and custom cutting tools
- Supports high-accuracy grinding of complex tool geometries
- Designed for tool manufacturers and precision machining workshops

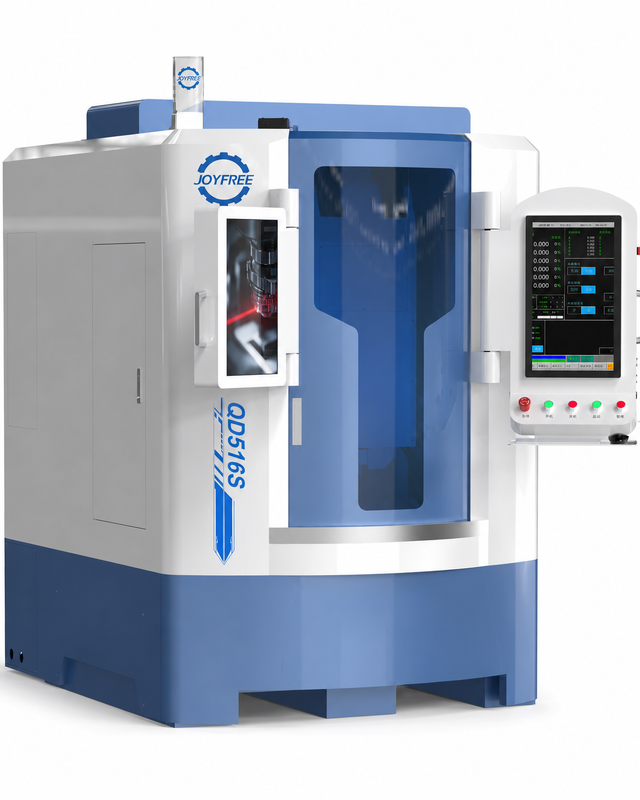

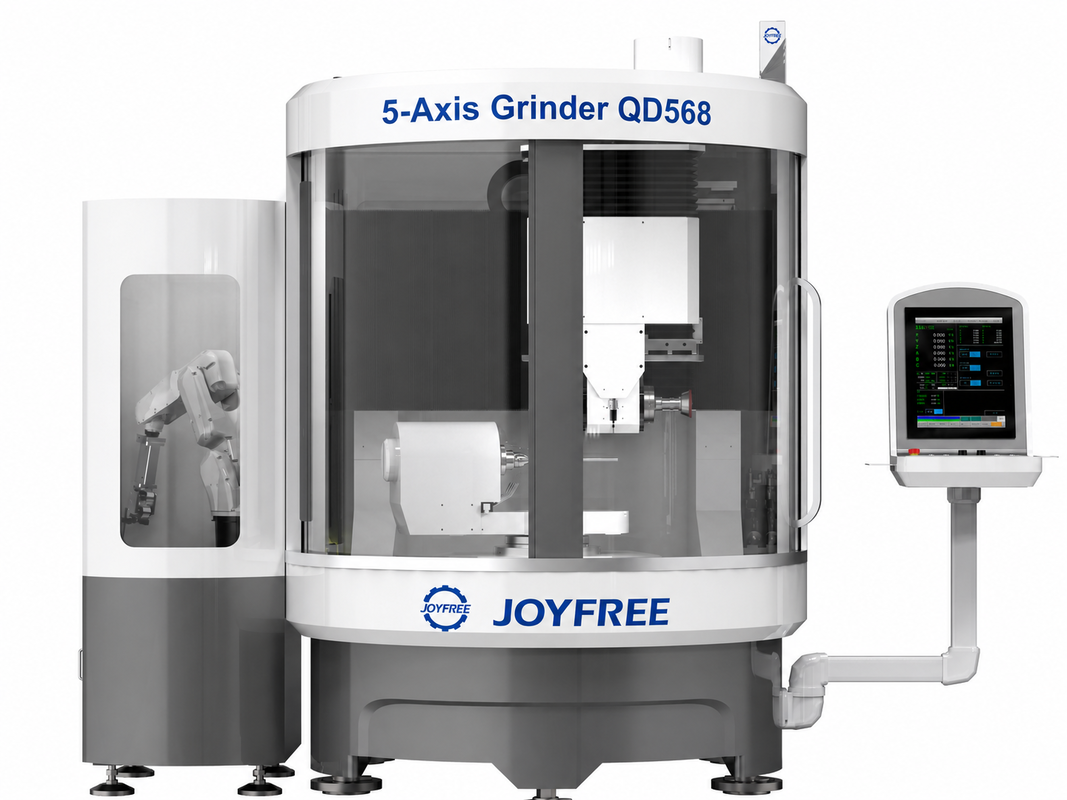

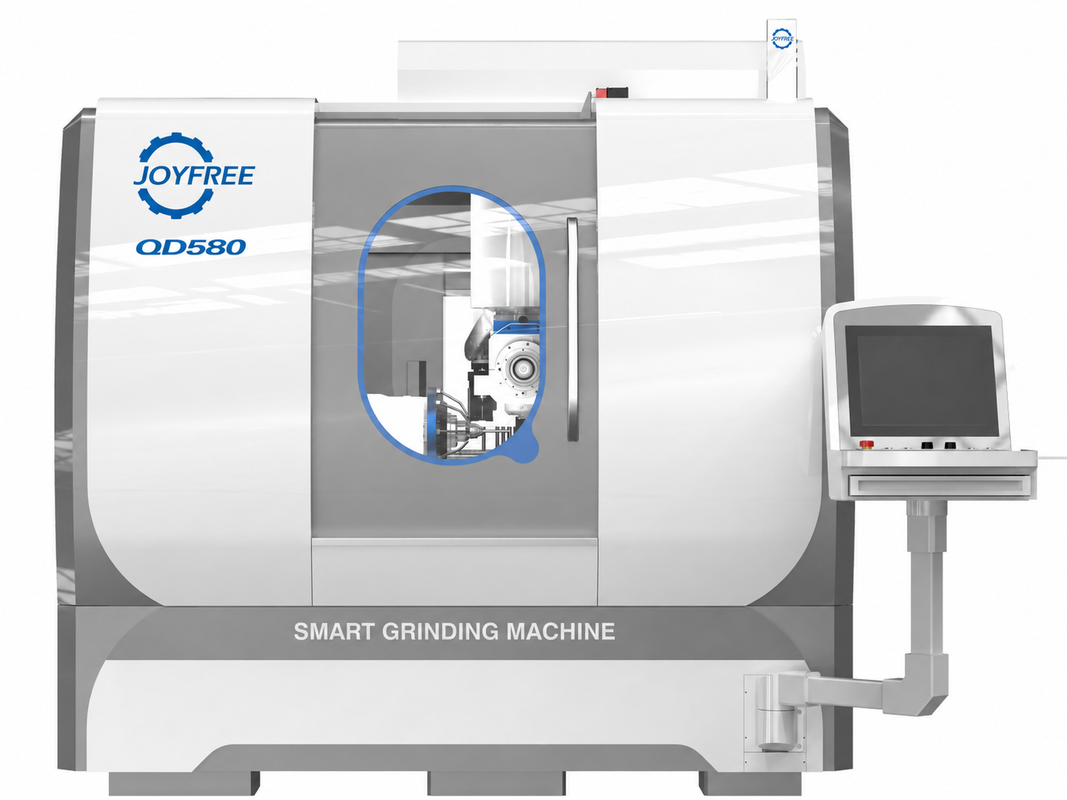

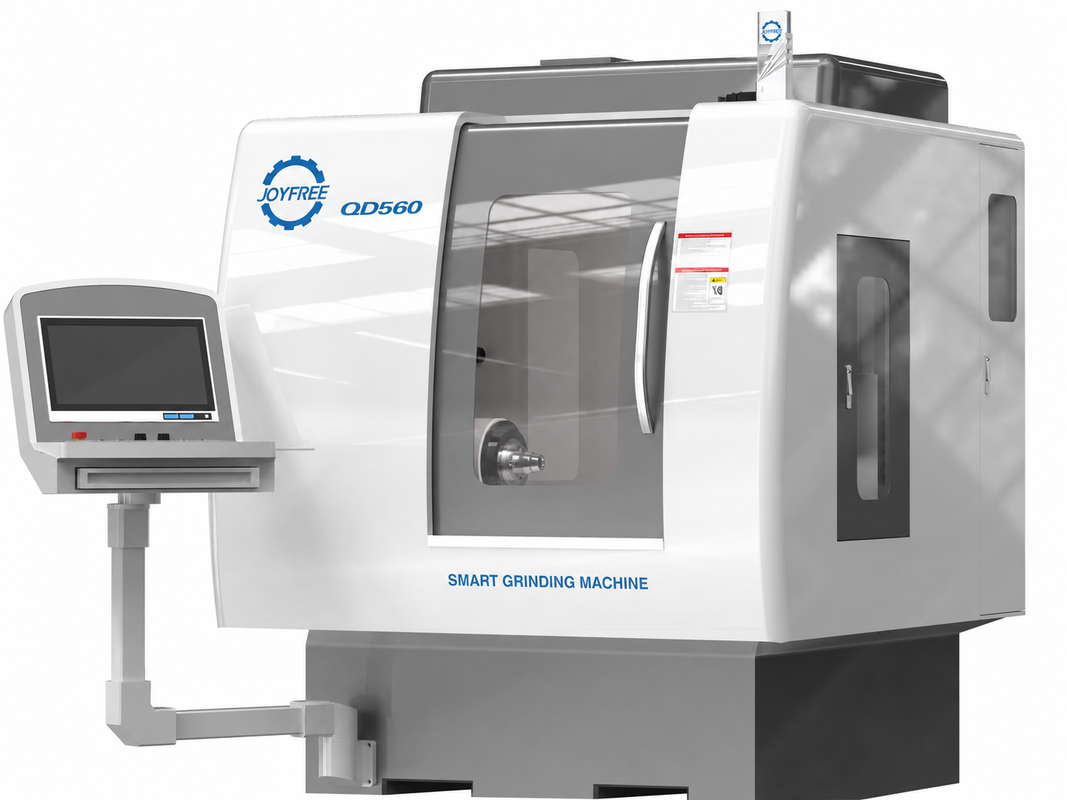

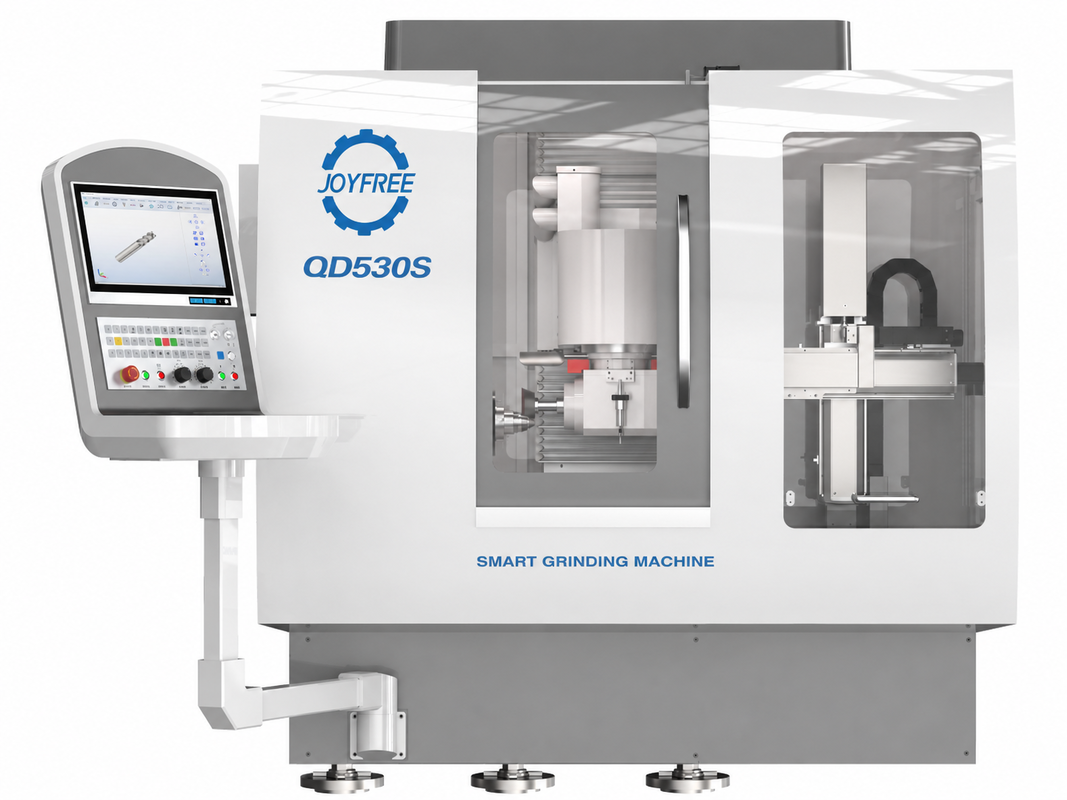

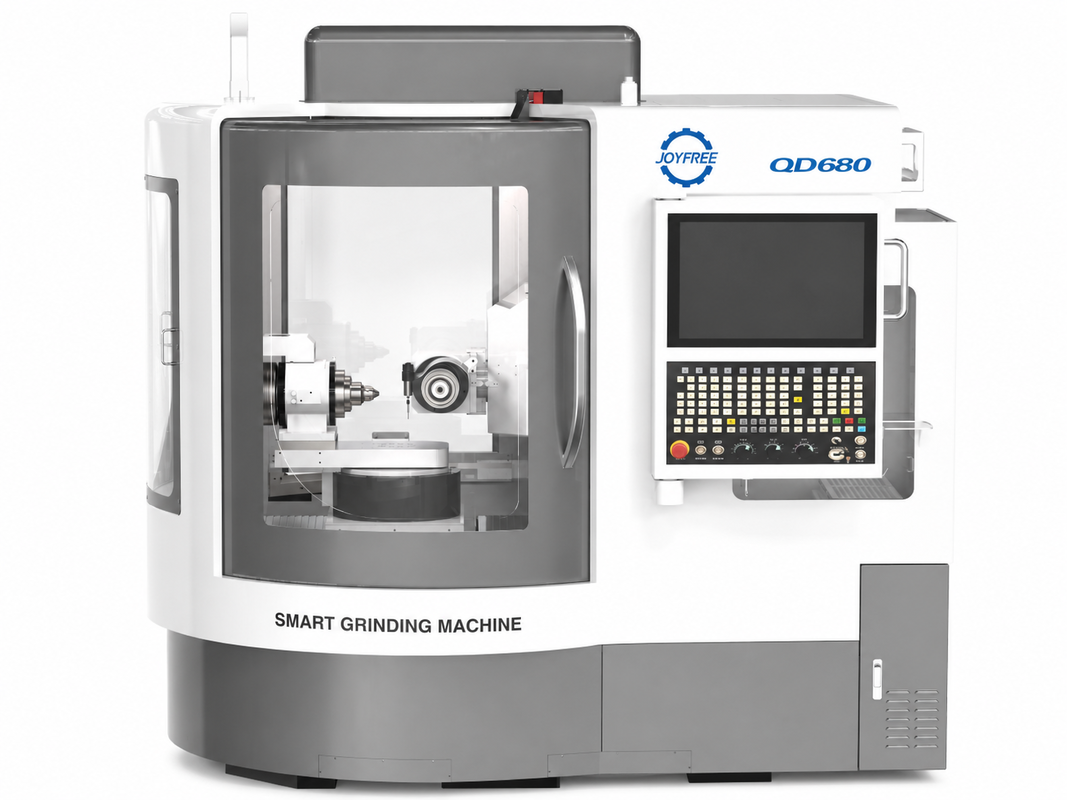

Product Images
Technical Specifications
| Category | Item | Parameter |
|---|---|---|
| Control System | CNC system | NUM (Flexium+) / SYNTEC 210MA-5E |
| Machining Capability | Processing workpiece diameter | Φ3–Φ32 mm / Disc type: Φ320 mm |
| Max. workpiece weight | 20 kg | |
| Max. workpiece length | < 300 mm | |
| Grinding length | < 200 mm | |
| Travel and Rotary Angle | Swivel angle A/B-axis stroke | A axis: 0–∞ / B axis: 0–360° |
| Worktable travel X/Y/Z axis | X: 840 / Y: 500 / Z: 310 mm | |
| Drive and Power | Spindle power | 24 kW, 6000 r/min |
| X/Y power | 3 kW, 1166 N thrust | |
| B-axis power | 1.2 kW / 100 rpm / 230 N·m | |
| A-axis power | 0.6 kW / 200 rpm / 60 N·m | |
| Z-axis power | 2.9 kW / 1500 rpm / 18.6 N·m | |
| Total power | 35 kW | |
| Accuracy Specifications | Linear axis positioning accuracy | ±0.002 mm |
| A-axis repeat positioning accuracy | 4 arc sec | |
| Linear axis repeat positioning accuracy | ±0.001 mm | |
| B-axis repeat positioning accuracy | 4 arc sec | |
| Precision of machining tool contour | ±0.005 mm | |
| Mechanical Interface | B-axis tool holder interface | BT50 |
| Toolholder | W20, W25 hydraulic, SCHUNK, Schaublin tool holder | |
| Specifications | Machine weight | 5.5 T |
| Dimensions | 1930 * 2420 * 2500 mm | |
| Voltage | AC380V 50Hz | |
| Optional Configurations | Robotic loading / unloading | 500 kg |
Frequently Asked Questions
1. What is a Five-Axis CNC Tool Grinder used for?
It is mainly used for grinding and manufacturing precision cutting tools, including carbide end mills, drills, reamers, step tools, special cutters, and custom tool geometries.
2. What is the advantage of a 24 kW direct-drive spindle?
The 24 kW direct-drive spindle provides stronger grinding power, stable rotation, high efficiency, and reliable performance for high-precision and heavy-duty tool grinding tasks.
3. How many grinding wheels can be clamped at one time?
The grinding wheel flange can clamp 2–4 grinding wheels in one setup, allowing multiple grinding processes to be completed efficiently.
4. What is the advantage of the DD direct-drive workpiece spindle?
The DD direct-drive workpiece spindle provides stable rotation, reduced transmission error, fast response, and improved grinding accuracy for precision tools.
5. What clamping system does the machine use?
The machine uses a Schaublin precision collet with a W25 precision clamping system, helping ensure stable and accurate workpiece holding.
6. What are the advantages of linear motors on the X/Y axes?
Linear motors provide fast response, smooth movement, reduced mechanical wear, and high positioning accuracy. Combined with linear scales, they support full closed-loop precision control.
7. What does the Renishaw probe do?
The precision Renishaw probe supports tool measurement, positioning verification, and automatic compensation, helping improve machining accuracy and consistency.
