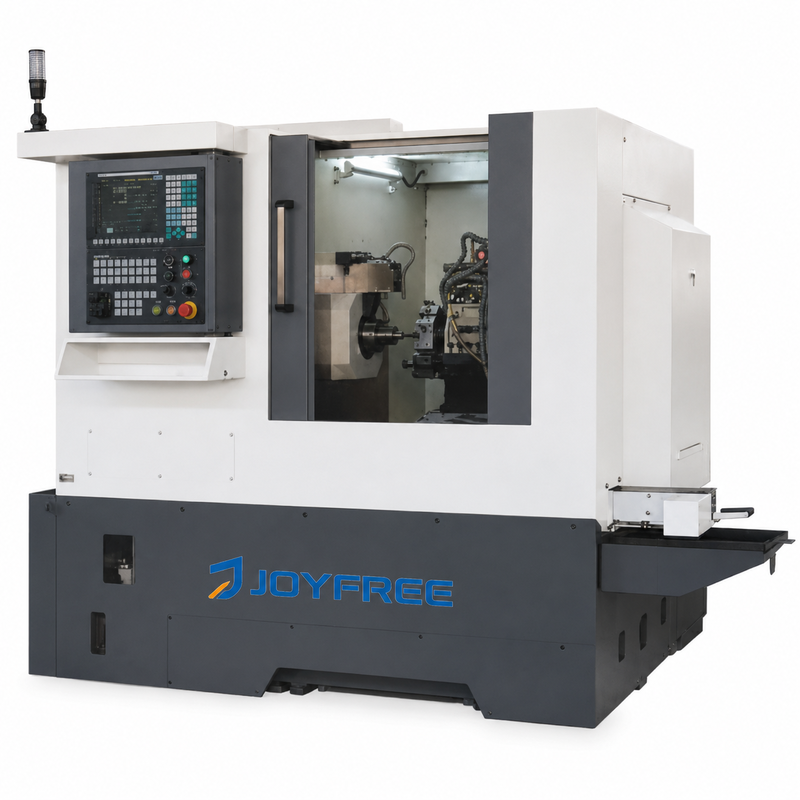

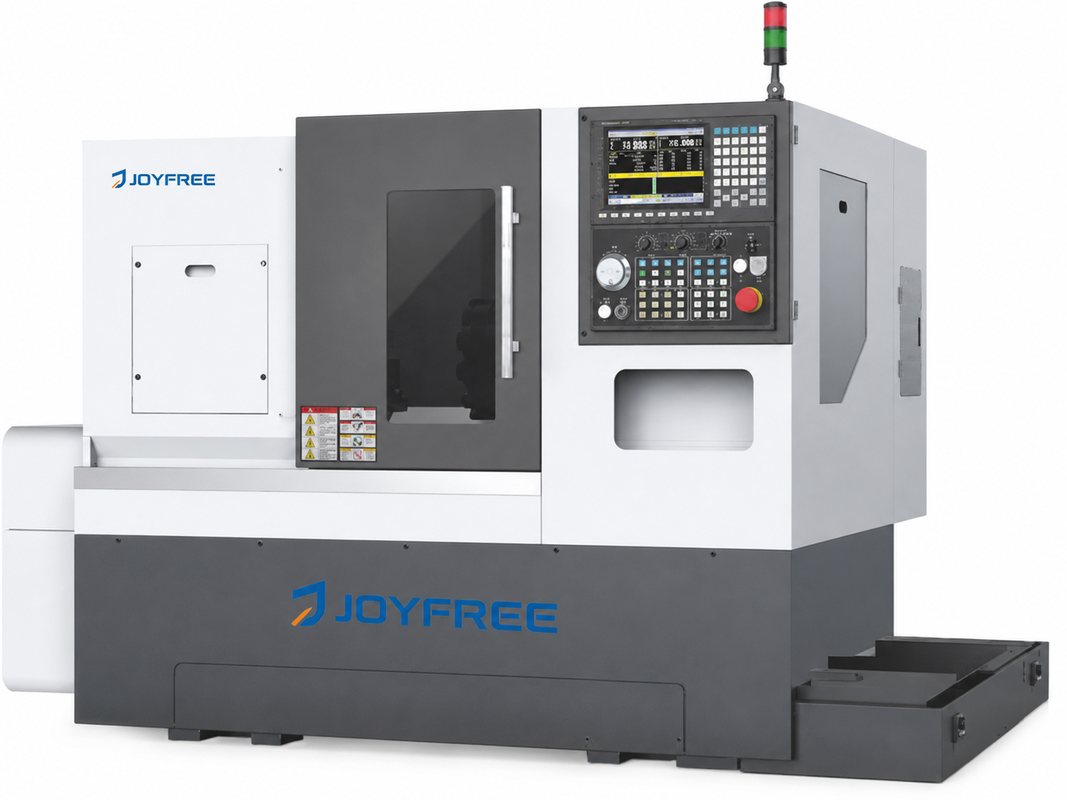

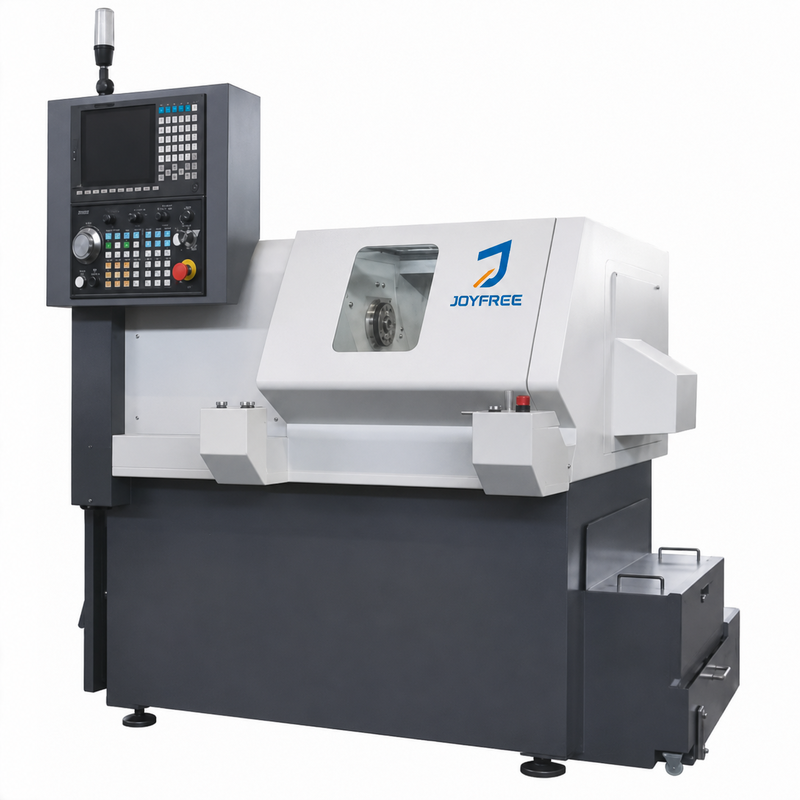

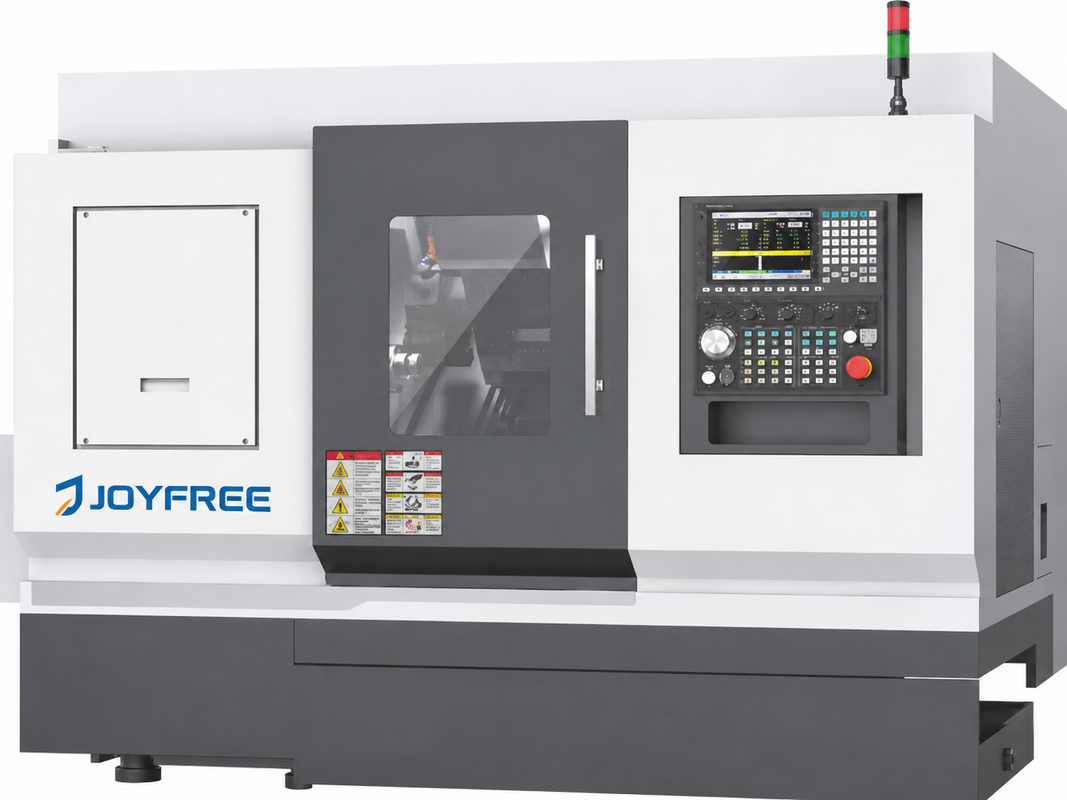

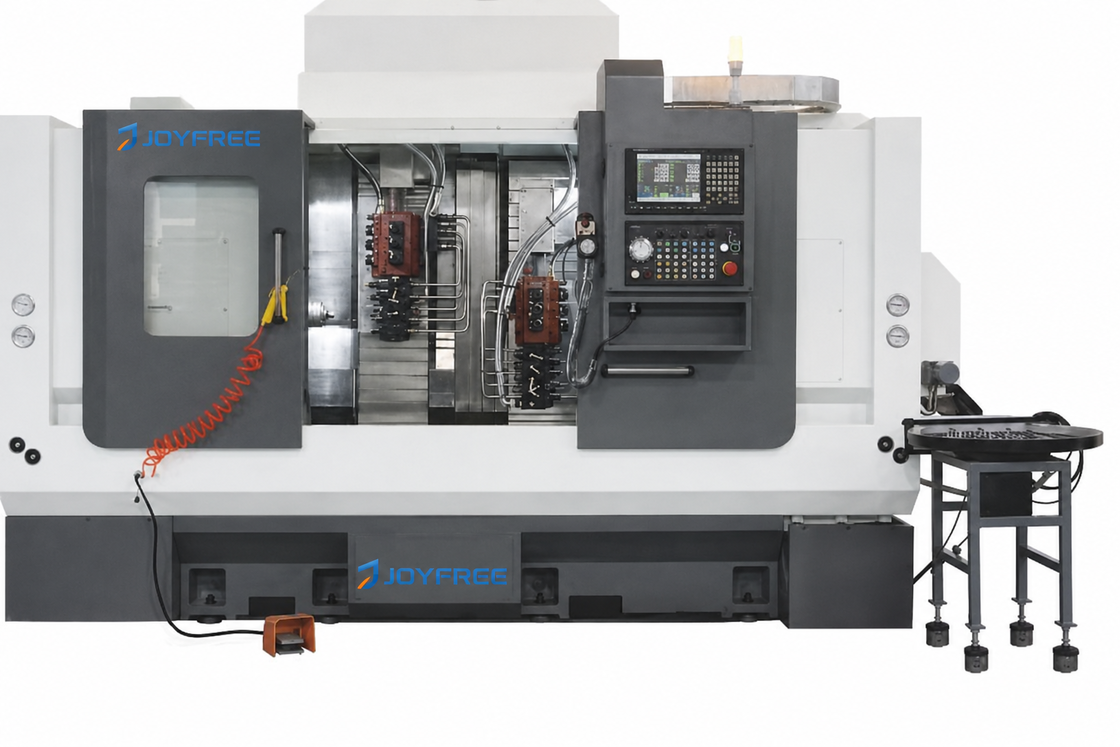

HNC-40GT Turning and Hobbing Compound CNC Machine for Small Modulus Gears and Short Shaft Parts
Product Overview
The HNC-40GT Turning and Hobbing Compound CNC Machine is a compact and efficient composite machining solution designed for turning, hobbing, milling, and processing small modulus gears, synchronous pulleys, worm gears, sprockets, short shaft parts, and disc parts. It can complete most or all machining processes in one clamping, helping improve machining accuracy, reduce secondary positioning errors, and increase production efficiency.
The machine adopts a large-span rectangular bed, providing good foundation rigidity, vibration resistance, and torsional strength. The box-type horizontal bed saddle structure offers high bending strength, supports high-torque cutting, and helps reduce thermal displacement of key machine components.
The through-hole high-rigidity electric spindle provides fast dynamic response and stable spindle performance. It can meet the requirements of high-torque cutting, strong cutting, and high-speed precision machining.
The two-axis linear feed system adopts large-diameter precision ball screws with pre-stretched installation, maximizing feed rigidity while reducing the influence of thermal deformation on machining accuracy.
Key Features
- HNC-40GT turning and hobbing compound CNC machine
- Suitable for small modulus gears, synchronous pulleys, worm gears, and sprockets
- Can complete turning, hobbing, and milling in one clamping
- Especially suitable for short shaft parts and disc parts
- Large-span rectangular bed provides strong foundation rigidity
- Box-type horizontal bed saddle structure supports high-torque cutting
- Through-hole high-rigidity electric spindle provides fast dynamic response
- Large-diameter precision ball screws improve feed rigidity
- Pre-stretched ball screw structure helps reduce thermal deformation
- Box-type A-axis device supports high-speed milling and angle adjustment
- Optional workpiece support bracket improves cutting rigidity

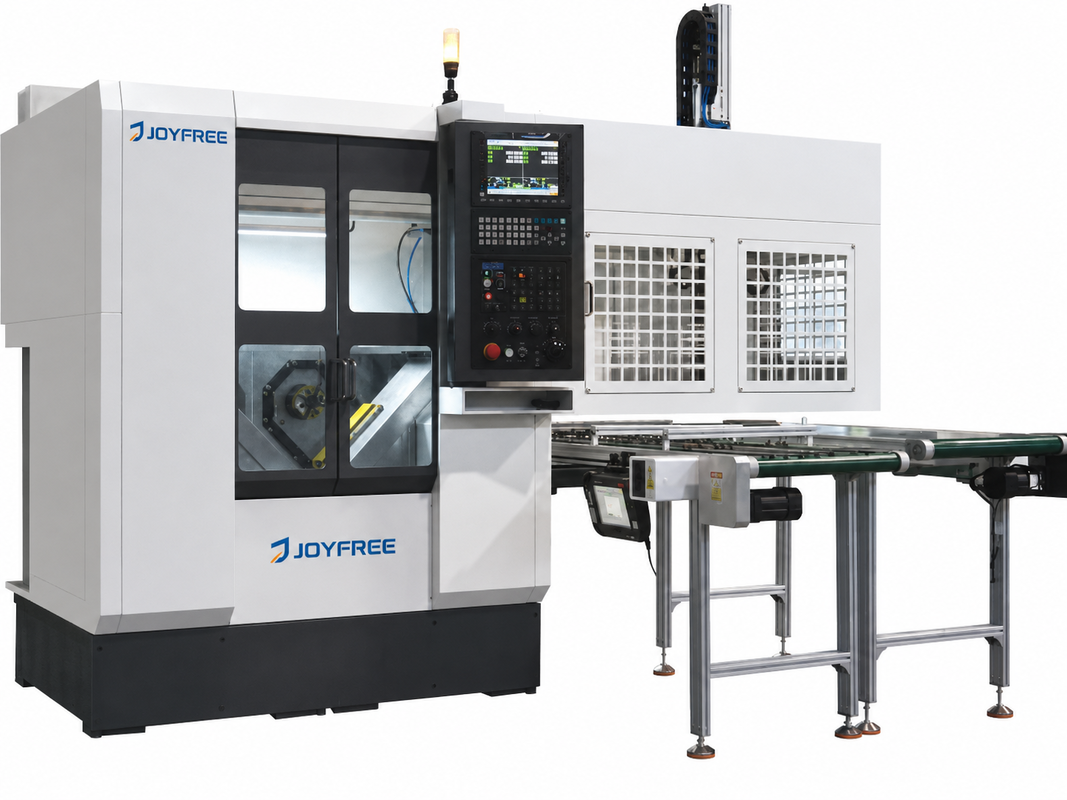

- Optional automatic feeder and protective door support automated processing
- Compact machine layout for efficient small-part production
Product Images
Technical Specifications
Capacity
| Item | Parameter |
|---|---|
| Model | HNC-40GT |
| Swing | Φ400 mm |
| Max. turning diameter | Φ70 mm |
| Max. turning length | 185 mm |
| Max. bar through-hole | Φ32 mm |
| Max. hobbing diameter | Φ70 mm |
| Max. hobbing modulus | 1 mm |
| Max. hobbing length | 40 mm |
| Tilt angle, horizontal bed | Horizontal |
Spindle
| Item | Parameter |
|---|---|
| Spindle front end type | A2-4, GB/T5900.1-2008 |
| Chuck size | CL30-A4 hydraulic collet / custom rear-pull hydraulic collet |
| Max. spindle speed | 7000 r/min |
| Inner diameter of spindle bearing, front side | Φ70 mm |
| Diameter of spindle bore | Φ46 mm |
| Spindle built-in motor power | 3.7/5.5 kW, CTB / 5.5/7.5 kW, FANUC |
Feed and A-Axis
| Item | Parameter |
|---|---|
| X-axis travel | 210 mm |
| Z-axis travel | 310 mm |
| X-axis rapid speed | 24 m/min |
| Z-axis rapid speed | 24 m/min |
| X-axis motor | 1.2 kW, FANUC |
| Z-axis motor | 1.2 kW, FANUC |
| A-axis rotation range | -20° to 90° |
Turret and Power Cutting Tools
| Item | Parameter |
|---|---|
| Turret form | Horizontal turret |
| Turret station | 8 stations |
| Tool size, OD/ID | Φ16 mm / Φ20 mm |
| Power cutting tool interface | Customized |
| Max. installation diameter | Φ80 mm |
| Max. speed | 6000 r/min, FANUC |
| Power cutting tool motor | 2.2 kW, FANUC |
Other Configuration
| Item | Parameter |
|---|---|
| Power capacity | 13 kVA |
| Machine dimensions, L×W×H | 1890×1770×1690 mm, excluding warning light |
| Machine weight | ≈2.4 T |
Frequently Asked Questions
What is the HNC-40GT CNC Machine used for?
It is mainly used for turning, hobbing, milling, and compound machining of small modulus gears, synchronous pulleys, worm gears, sprockets, short shaft parts, and disc parts.
What is the maximum hobbing diameter?
The maximum hobbing diameter is Φ 70 mm.
What is the maximum hobbing modulus?
The maximum hobbing modulus is 1 mm.
What is the maximum bar through-hole?
The maximum bar through-hole is Φ 32 mm.
What is the A-axis rotation range?
The A-axis rotation range is -20° to 90°.
Can the machine complete multiple processes in one clamping?
Yes. It can complete turning, hobbing, milling, and other compound machining processes in one clamping, reducing secondary positioning errors.
For Quotation: Please provide workpiece drawing, material, gear module, gear diameter, shaft length, tolerance requirement, surface finish requirement, machining process, production quantity, and automation requirement.
