GD-002CNC-A CNC Punch Grinding Machine with Custom Automatic Loading and Unloading System
GD-002CNC-A CNC Punch Grinding Machine with Custom Automatic Loading and Unloading System
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Application:
Glass
Model NO.:
UT260
Control Method:
Closed-Loop Control
Condition:
New
Processing Precision:
0.01~0.02(mm)
Specification:
2550×3020×3000
Production Capacity:
50sets/Month
Performance Classification:
High-End CNC Machine Tools
Transport Package:
Pallet
Origin:
China
Numerical Control:
CNC/MNC
Trademark:
Queenly
Process Usage:
Metal-Cutting CNC Machine Tools
Movement Method:
Contour Control
Leading Time:
35days
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

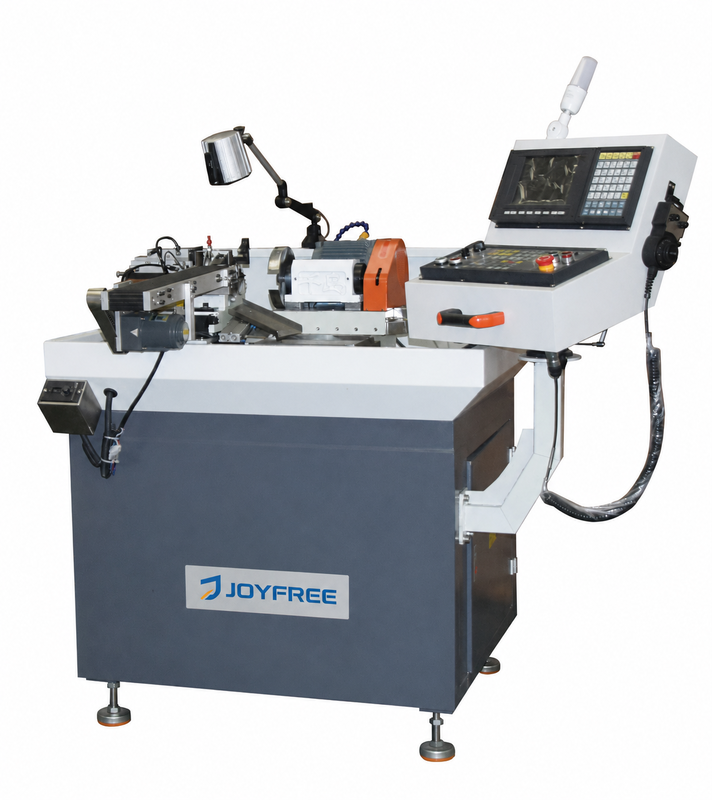

GD-002CNC-A CNC Punch Grinding Machine with Custom Automatic Loading and Unloading System
Product Overview
The GD-001CNC-A CNC Punch Grinding Machine is a high-precision grinding solution designed for punch pin grinding, ejector pin grinding, small shaft grinding, mold component grinding, precision cylindrical part processing, and automated grinding production. With CNC control, stable spindle performance, accurate workpiece positioning, and customizable automatic loading and unloading solutions, this machine helps improve grinding efficiency, reduce manual operation, and ensure consistent machining quality.
The machine supports a grindable diameter range of Φ 1-Φ25 mm and an ideal outer diameter machining range of Φ 0.8-Φ25 mm, making it suitable for small precision cylindrical parts used in mold manufacturing, tooling, hardware processing, automotive parts, and electronic components.
Automatic loading and unloading can be customized according to customer requirements. Different feeding, clamping, transfer, and unloading systems can be designed for different workpiece shapes, sizes, materials, and production processes. This makes the machine suitable for batch production, one-operator multi-machine operation, and intelligent automated grinding lines.
Key Features
- GD-002CNC-A CNC punch grinding machine for precision mold components
- Suitable for punch pins, ejector pins, guide pins, small shafts, and mold inserts
- Grindable diameter range: Φ 1-Φ25 mm
- Ideal outer diameter machining range: Φ 0.8-Φ25 mm
- Automatic loading and unloading can be customized according to customer needs
- Different automation solutions available for different workpieces
- CNC control improves grinding consistency and repeatability
- 6500 rpm spindle speed supports stable grinding performance
- ±45° working head rotation angle improves processing flexibility
- Helps reduce manual operation and labor intensity
- Suitable for batch production and intelligent grinding lines
- Supports one-operator multi-machine production mode
Product Images
Technical Specifications
| Item | Parameter |
|---|---|
| Model | GD-002CNC-A |
| Grindable diameter | Φ1~Φ25mm |
| Front and rear maximum stroke | 40mm |
| Left and right maximum stroke | 70mm |
| Working head speed | 0~150rpm |
| Working head rotation angle | ±45° |
| Spindle speed | 0~20000rpm |
| Spindle motor | 750w |
| Inner Diameter Processing Range | Φ1~Φ20mm |
| Servo motor | 1.27Nm 3000rpm 400W |
| Mechanical size | 1650×1200×1600mm |
| Machine weight | 480kg |
Frequently Asked Questions
1. What is the GD-001CNC-A CNC Punch Grinding Machine used for?
It is mainly used for grinding punch pins, ejector pins, guide pins, small shafts, mold inserts, precision sleeves, and other small cylindrical parts.
2. What is the grindable diameter range?
The grindable diameter range is Φ 1-Φ25 mm, and the ideal outer diameter machining range is Φ 0.8-Φ25 mm.
3. Can the machine be equipped with automatic loading and unloading?
Yes. Automatic loading and unloading can be customized according to customer production requirements and workpiece characteristics.
4. Can different loading solutions be customized?
Yes. Different feeding, clamping, transfer, and unloading solutions can be designed for different workpiece shapes, sizes, materials, and production processes.
5. What are the advantages of automatic loading and unloading?
Automatic loading and unloading helps reduce manual operation, improve production efficiency, support stable batch production, and make one-operator multi-machine operation possible.
6. Is this machine suitable for mold parts?
Yes. It is suitable for punch pins, ejector pins, mold inserts, guide pins, precision pins, and other mold-related cylindrical parts.
7. What information is needed for quotation?
Please provide workpiece type, material, diameter, length, grinding accuracy, surface finish requirement, production quantity, loading method requirement, and preferred automation configuration.
