Precision Surface Grinder with Meehanite Cast Iron Structure and Taiwan Spindle Unit
Precision Surface Grinder with Meehanite Cast Iron Structure and Taiwan Spindle Unit
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Application:
Glass
Model NO.:
UT260
Control Method:
Closed-Loop Control
Condition:
New
Processing Precision:
0.01~0.02(mm)
Specification:
2550×3020×3000
Production Capacity:
50sets/Month
Performance Classification:
High-End CNC Machine Tools
Transport Package:
Pallet
Origin:
China
Numerical Control:
CNC/MNC
Trademark:
Queenly
Process Usage:
Metal-Cutting CNC Machine Tools
Movement Method:
Contour Control
Leading Time:
35days
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Precision Surface Grinder with Meehanite Cast Iron Structure and Taiwan Spindle Unit
Product Overview
The Precision Surface Grinder is a reliable grinding machine designed for flat surface grinding, precision mold grinding, metal part finishing, tool room grinding, machinery component processing, and industrial surface machining. With a widened and thickened Meehanite cast iron structure, Taiwan imported spindle unit, Xilin inverter, Taiwan Wanhao grating ruler, high-precision screw, and low-vibration spindle motor, this machine provides stable grinding accuracy, smooth operation, and reliable long-term performance.
The machine body is made of high-grade Meehanite cast iron. The overall structure is widened and thickened to improve rigidity, vibration resistance, and machining stability. This strong structure helps maintain high grinding precision during long-term operation and supports stable surface finishing for molds, plates, fixtures, and precision metal parts.
The machine is equipped with a standard direct-type original Taiwan imported spindle unit, providing reliable spindle performance and stable rotation accuracy. Combined with a Xilin inverter and Taiwan Wanhao grating ruler, the machine supports convenient speed control, accurate position feedback, and stable grinding operation.
Taiwan high-precision screws provide smooth handwheel movement and light operation feel. The V3-level low-vibration spindle motor offers high speed, strong stability, and reduced vibration during grinding, helping improve final surface quality and machining consistency.
Key Features
- Precision surface grinder for flat surface finishing
- High-grade Meehanite cast iron structure improves rigidity and stability
- Widened and thickened machine body supports long-term grinding accuracy
- Standard direct-type Taiwan imported spindle unit
- Xilin inverter supports stable speed control
- Taiwan Wanhao grating ruler provides accurate position feedback
- Taiwan high-precision screw ensures smooth and light operation
- V3-level low-vibration spindle motor provides high speed and strong stability
- Helps reduce grinding vibration and improve surface quality
- Optional vacuum cleaner and water tank available
- Suitable for mold grinding, tool room grinding, and precision metal part finishing

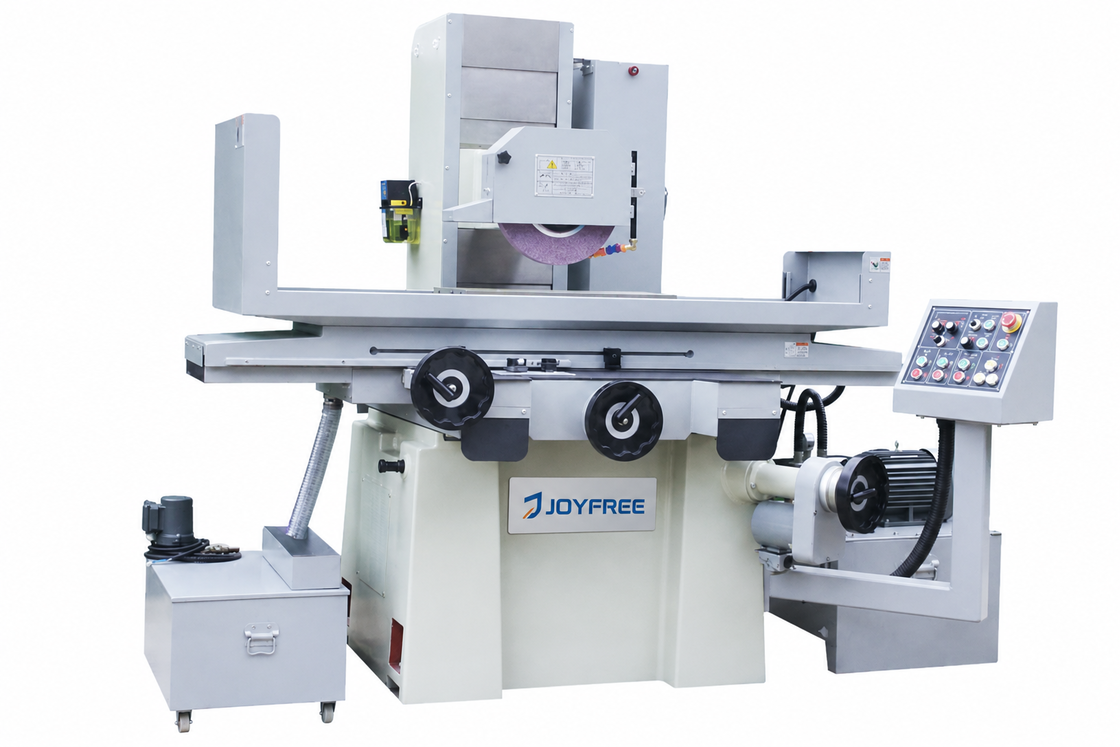

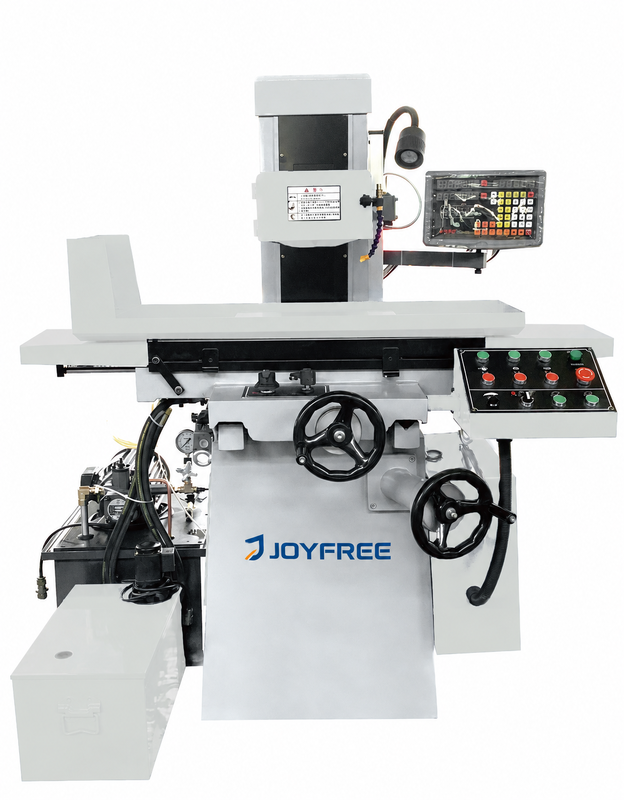

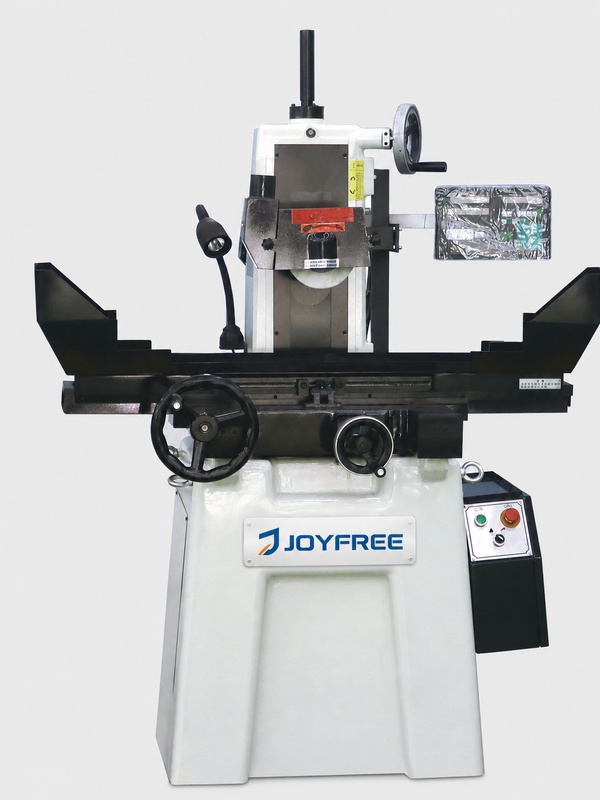

Product Images
Technical Specifications
| Item | Parameter |
|---|---|
| Model | GD-618S |
| Workbench size | 150×460mm |
| Maximum grinding length (X) | 470mm |
| Maximum grinding width (Y) | 160mm |
| Distance from spindle to worktable (Z) | 400mm |
| X axis manual travel | 460mm |
| Y axis manual travel | 180mm |
| Spindle speed | 3000/3600rpm |
| Spindle motor (V3 class) | 1.5HP |
| Handwheel feed per tick | 0.02mm |
| Handwheel feed per round | 5mm |
| Elevating handwheel feed per scale | 0.005mm |
| Handwheel feed per revolution | 1mm |
| Grinding wheel size (diameter + width + hole diameter) | 175×12.7×31.75mm |
| Standard disk size | 150×350mm |
| Net weight/gross weight | 720kg/850kg |
| Machine overall dimensions | 1400×1150×1980mm |
Frequently Asked Questions
What is the Precision Surface Grinder used for?
It is mainly used for flat surface grinding, mold grinding, metal part finishing, tool room grinding, machinery component processing, and precision surface machining.
What is the advantage of the Meehanite cast iron structure?
The Meehanite cast iron structure provides strong rigidity, good vibration resistance, and stable long-term machining accuracy, making it suitable for precision grinding applications.
What spindle unit does the machine use?
The machine uses a standard direct-type original Taiwan imported spindle unit, providing stable rotation and reliable grinding performance.
What is the function of the Xilin inverter?
The Xilin inverter supports stable speed control and helps improve machine operation reliability during grinding.
What is the advantage of the Taiwan Wanhao grating ruler?
The Taiwan Wanhao grating ruler provides accurate position feedback, helping improve machining accuracy and operation stability.
Why is the V3-level low-vibration spindle motor important?
The V3-level low-vibration spindle motor reduces vibration during grinding, helping improve surface finish quality and machining consistency.
What optional configurations are available?
Optional vacuum cleaner and water tank configurations can be provided according to customer requirements.
